Accessories & Supplies
Materials

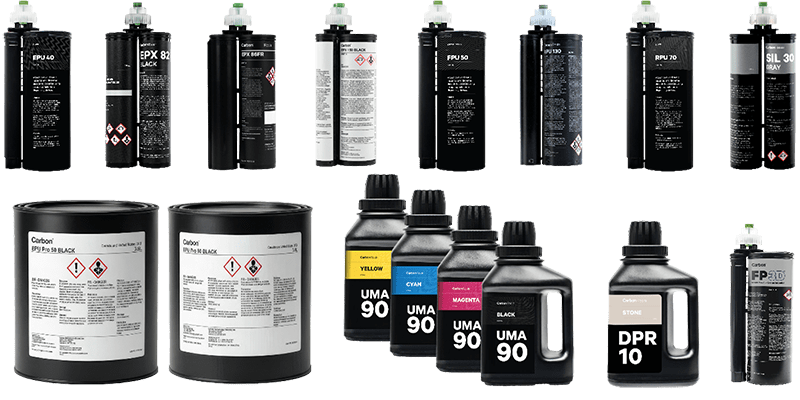

Carbon Resins
To order Carbon Resins not listed in the Carbon Shop (bulk resins), reference Ordering from Carbon.
Existing customers may also reference the Carbon Resin Price List (login required).
3ʳᵈ Party Resins

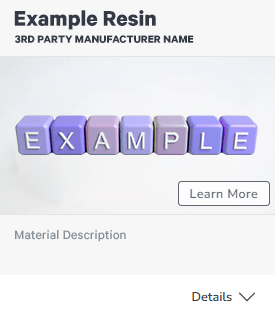

For resins manufactured by a third party and validated for use on a Carbon printer, reference the resin's About Material page for purchasing links.
Lab Infrastructure
Utilities
Ventilation
4" Ventilation Duct for oven exhaust High-Temperature Flexible Silicone
Anemometer to measure ventilation air flow Thermo | Testo 405

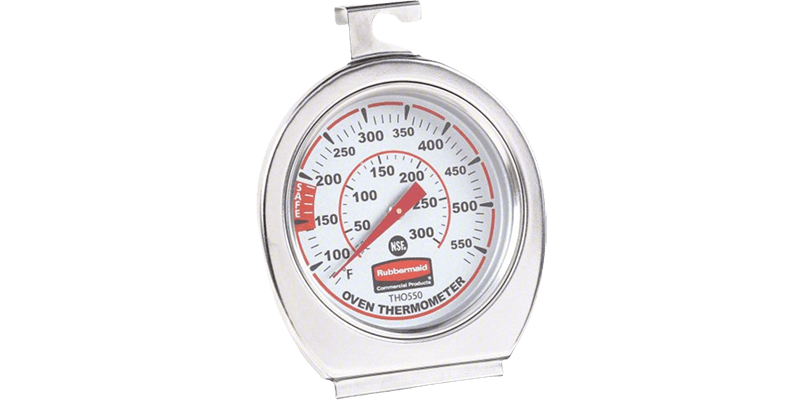

Oven Thermometer High-temperature | Rubbermaid FGTHO550
Fume Extractor for qualifying dental facilities Sentry | Dual 400 SS-400-FSD
Electrical
Power Strip with Surge Protector

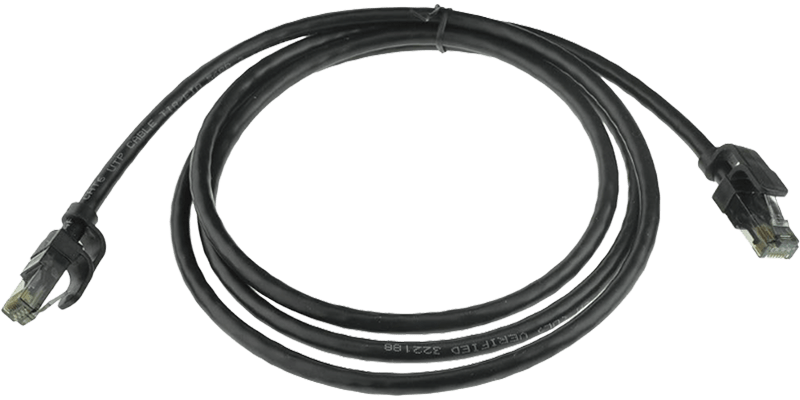

Ethernet Cable
Power Cable - M1/M2, Smart Part Washer included with printer/washer, for replacement NEMA 5-15P to IEC 320-C13 SJT
Power Cable - M3 included with printer, for replacement NEMA 5-15 Male Plug to IEC320 C19
Power Cable - M3 Max included with printer, for replacement NEMA 5-20 to IEC 60320 C19
For L1 or international printer power cables, contact Carbon.

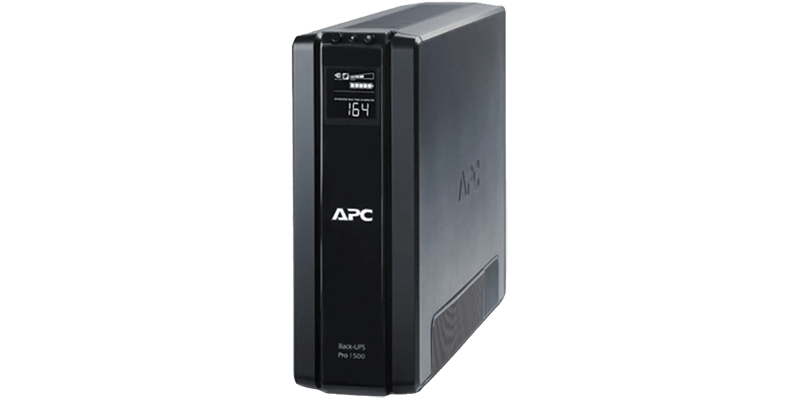

UPS Battery Backup for M1/M2 backup power and surge protection APC BR1500G

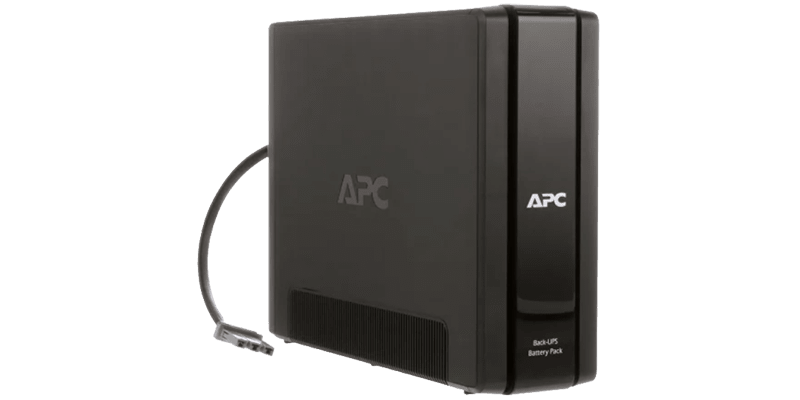

UPS External Battery Pack for M1/M2 extra backup power APC BR24BPG
For M3, M3 Max, and L1 printers, reference electrical site prep for VA specifications and use an online tool to calculate an appropriate UPS and battery backup for your needs.
Workstation Setup
Self-Adhesive Absorbent Mat recommended liner for tables, orbital shakers, and compressed air cabinet
Absorbent Mat alternate liner for tables, orbital shakers, and compressed air cabinet

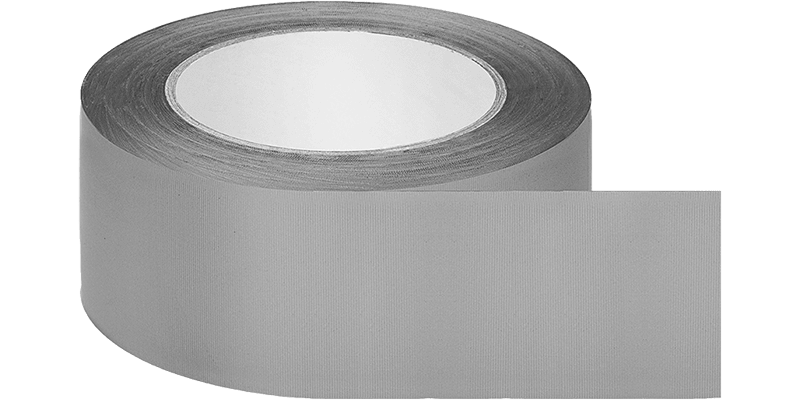

Easy-Tear Vinyl Duct Tape to secure liners
Blue Shop Towels for various process steps

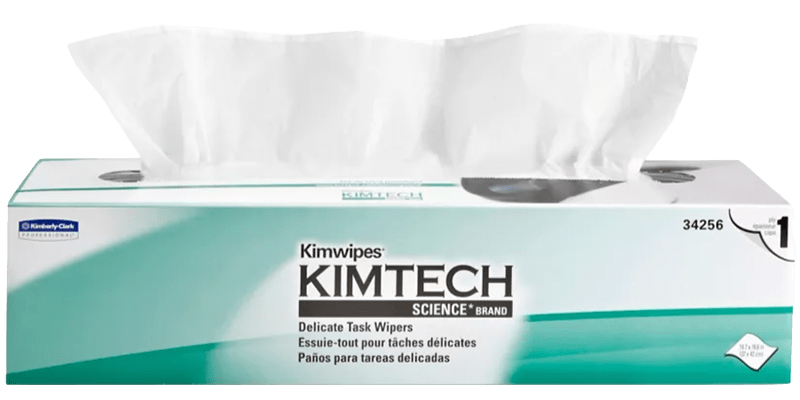

Low-Lint Wipes for various process steps Kimwipes® - 1-Ply, 15 x 17"
Low-Profile Steel Table for pour stand 18" high | Mobile
Low-Profile Vinyl-Coated Composite Wood Table for pour stand, secured to surface 24" high | Mobile
Anti-Fatigue Floor Mat
Safety

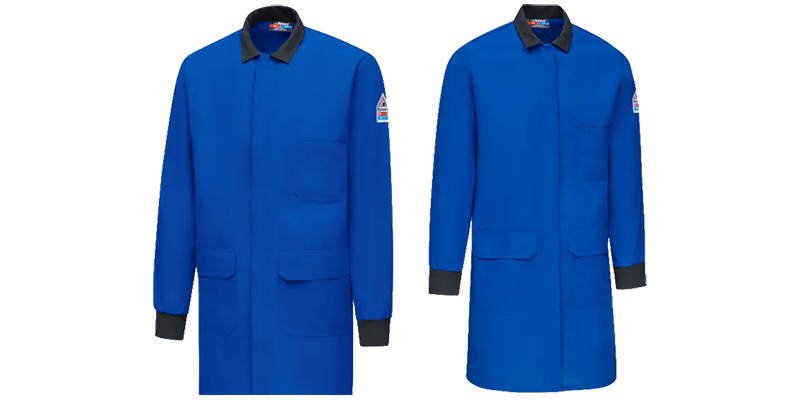

Reusable Lab Coat with Cuffs FR/CP (flame resistance/chemical protection) NFPA 2112 Compliant
Disposable Lab Coat

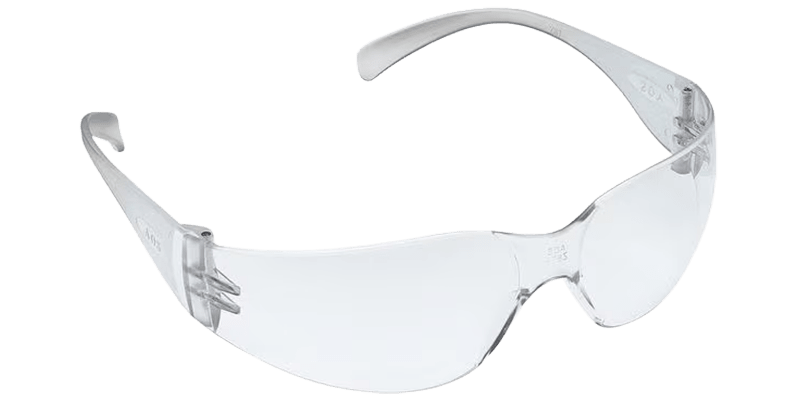

Safety Glasses

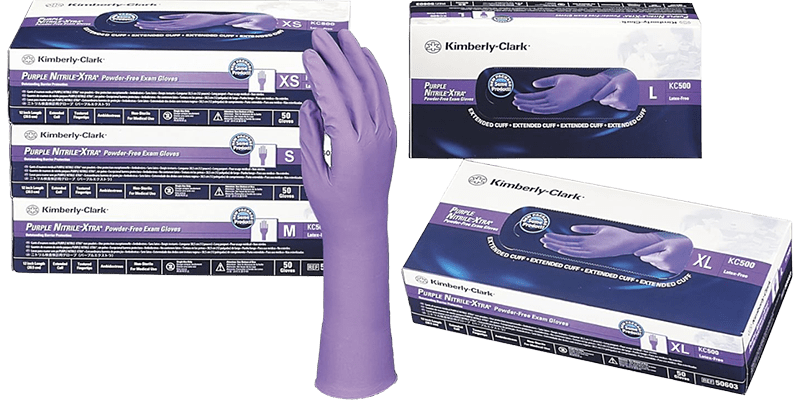

Long-Cuff Disposable Gloves Kimberly-Clark PURPLE NITRILE-XTRA™ Examination Gloves
Polyethylene Disposable Gloves

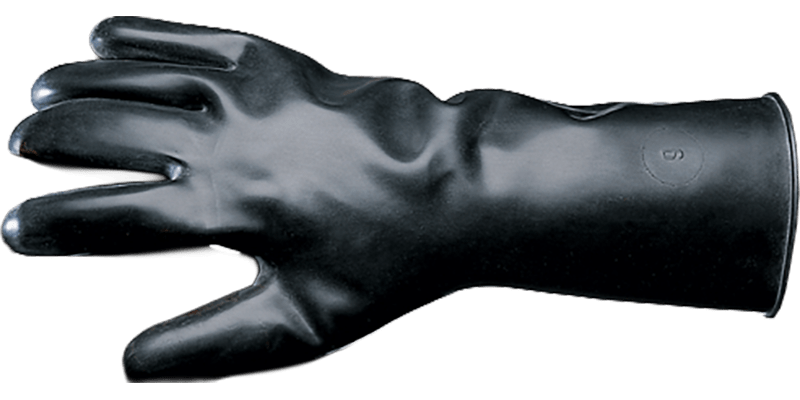

Butyl Rubber Chemical Resistant Gloves optional for use with DMA SHOWA® 25 mil 14" Smooth
Cut Resistant Gloves cut-resistant
Heat Resistant Gloves heat and cut-resistant
5 Gallon Jerrican for liquid hazardous waste
Hazardous Waste Label

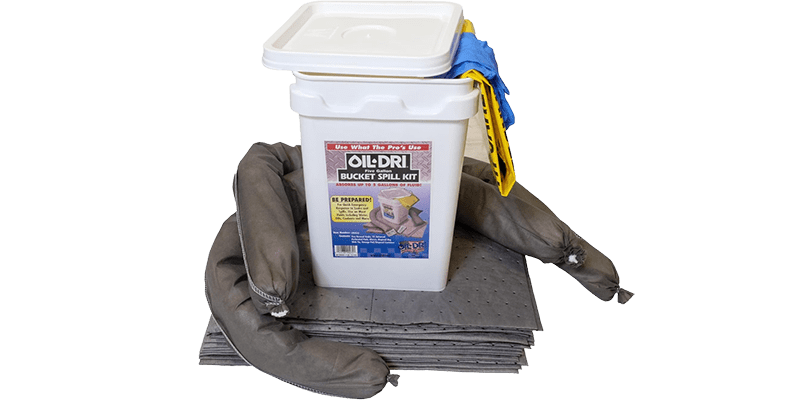

Spill Kit
Resin and Solvent Storage
Verify compliance with local regulations.
Desiccant Dryer for dry air resin storage after opening reference Resin Storage for sizing assistance

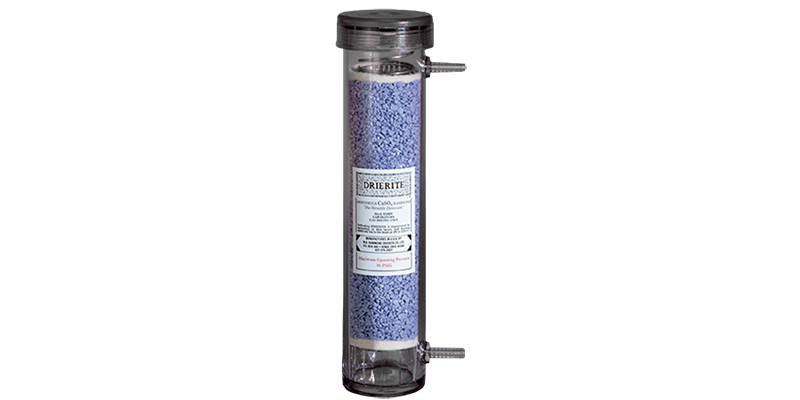

for small containers Drierite Laboratory Gas Drying Unit
for large containers Walker Filtration Compressed Air Dryers

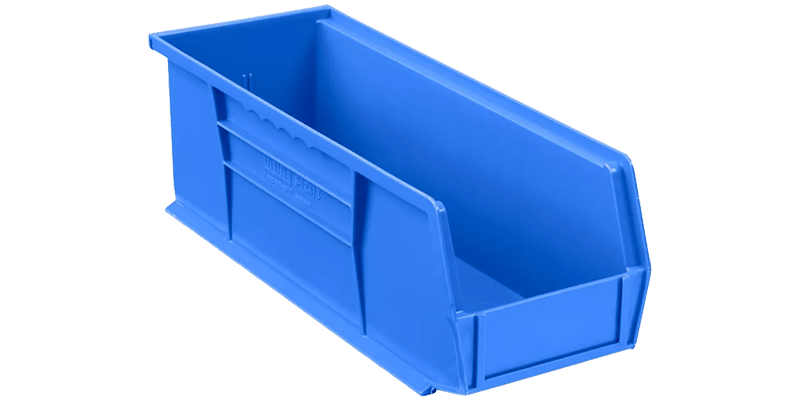

Plastic Stackable Bin secondary containment for cartridge, bottle, and can resin storage

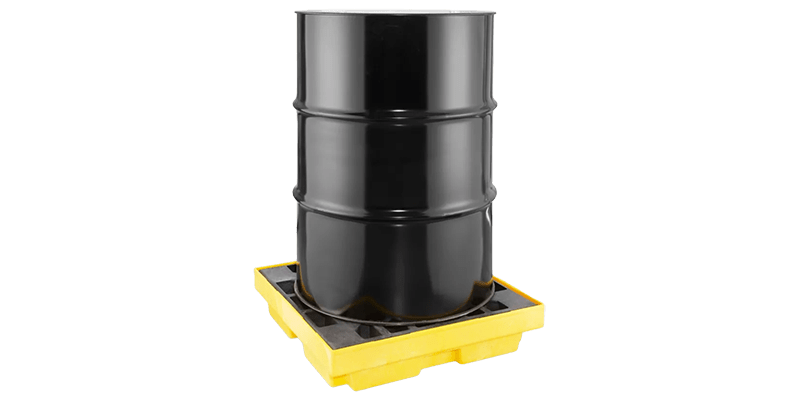

Drum Spill Containment for resin and solvent storage
IBC Tote Spill Containment for resin and solvent storage

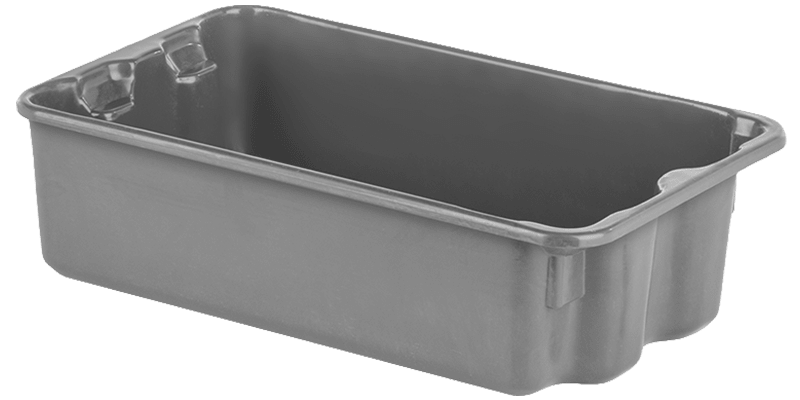

Fiberglass Tote Box secondary containment bin for solvent storage
Flammables Safety Cabinets for solvent storage
Resin Mixing and Dispensing
Thermal Processing
Incubator for cartridge, bottle, and can resin warming 25L | up to 60℃
Thermal curing convection oven may also be used.
Mini ViscoSampler Sample Thief Burkle 5341-1150 150 cm
Thermal Blanket - 55 Gallon Drum Powerblanket, Adjustable Controller 145°F Max, 120V
Thermal Blanket - 250-275 Gallon Tote Powerblanket, Adjustable Controller 145°F Max, 120V
Dispensing
Aluminum Foil for cartridge burn off, temporary liner

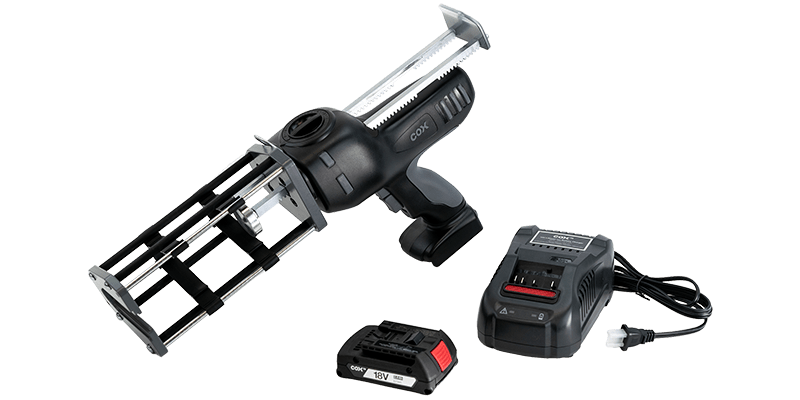

Cox Dual-Drive Resin Dispenser
Cox Dual-Drive Resin Dispenser Spare Battery 18V Part no: 7E1625 2.0Ah
Resin Dispensing Tips for 4:1 and 10:1 ratio cartridges Orange
Resin Dispensing Tips for 1:1 and 2:1 ratio cartridges White

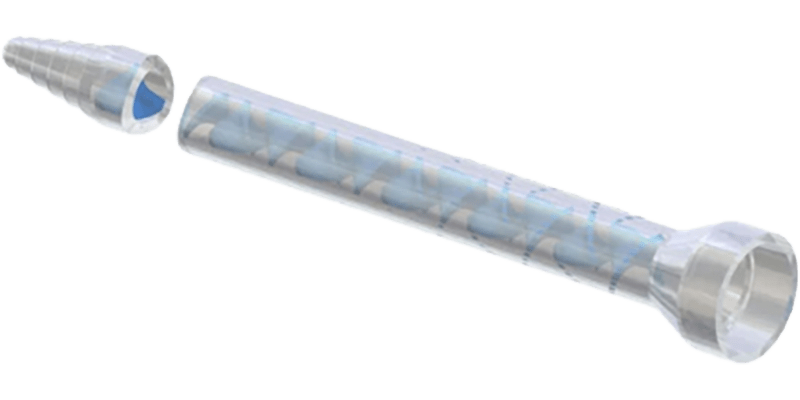

MMD Resin Mix Tips use varies per resin protocol and MMD model Sulzer ME 10-24T
Sulzer ME 13-32T
Sulzer ME 1312-1032D
Sulzer MSR 13-12T

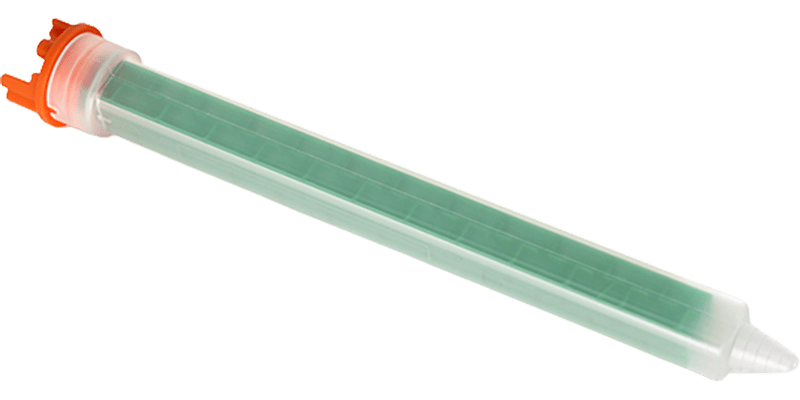

Sulzer MFQX 10-24T
High Resolution Weigh Scale for dispensing Pennsylvania Scale Company Model 7600HR 1 gram Precision
Platform size fits M2 and M3 cassettes. For larger M3 Max and L1 cassettes, dispensing into a resin transfer container is recommended.
White Polypropylene Container for resin transfer, reclaiming, or discarding

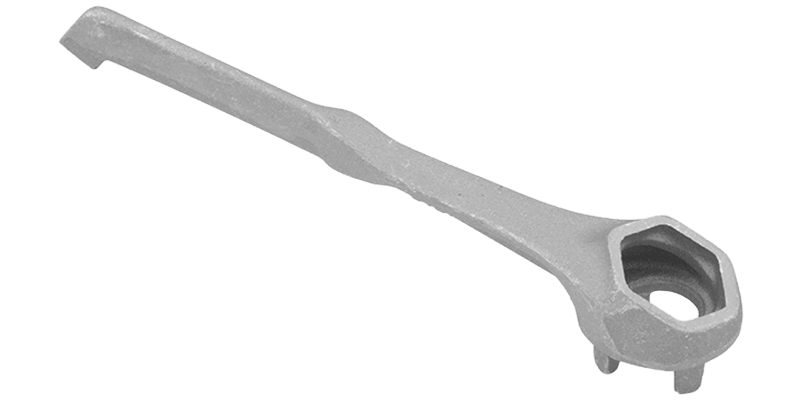

Drum Plug Wrench for drum dispense setup
Mixing

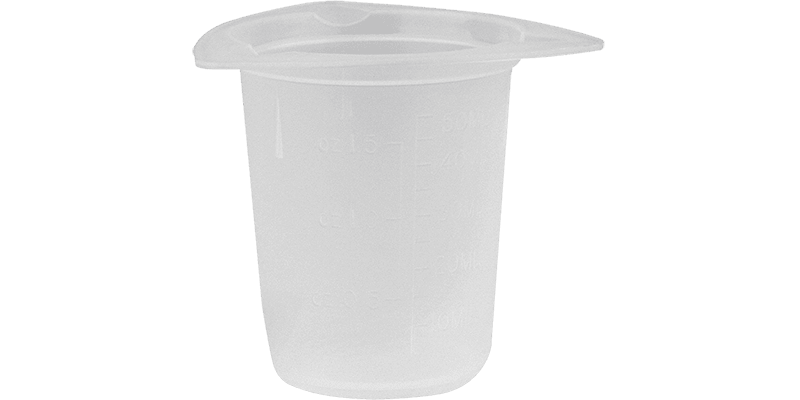

Graduated Disposable Beakers

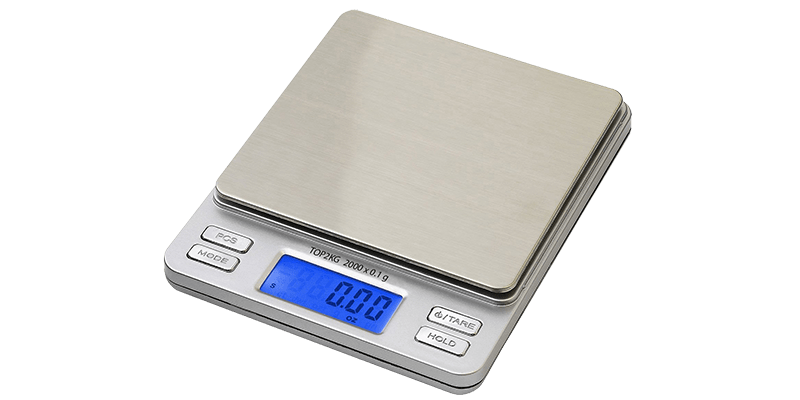

Digital Scale for bulk mixing 0.1 gram Precision

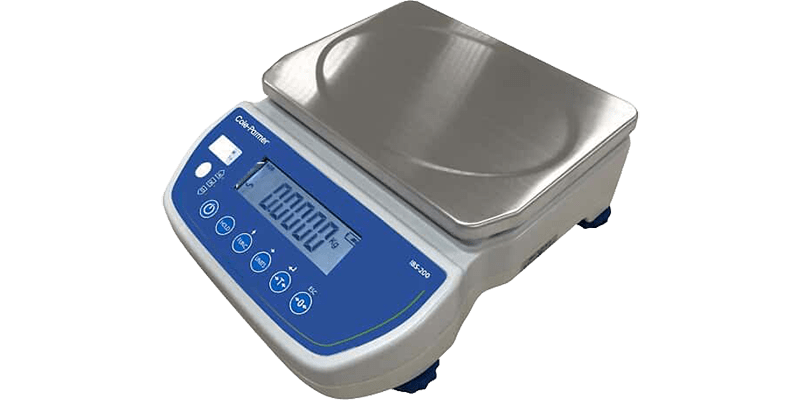

Digital Scale for bulk mixing Cole-Parmer IBS-200-6H 0.2 gram Precision
Digital Scale for production scale bulk mixing Sartorius PMA Vision 0.1 gram Precision
Color Mixing
Digital Scale for color mixing A&D Apollo GF-3002A 0.01 gram High Precision

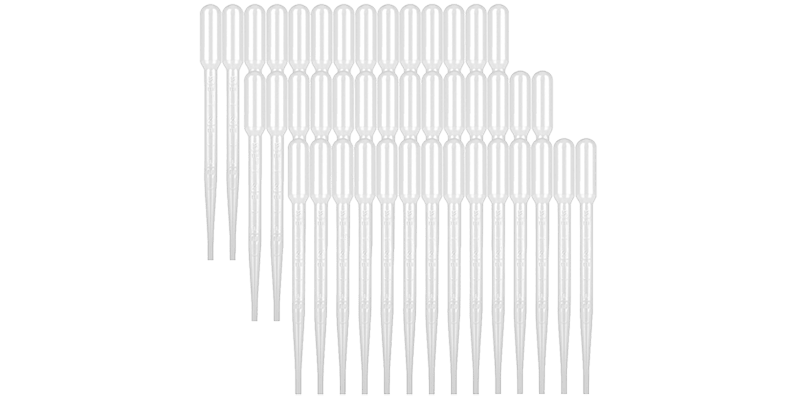

Disposable Dropper Pipettes

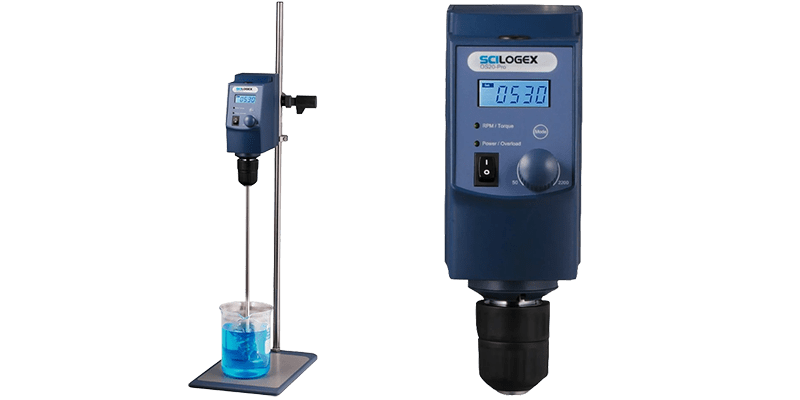

LCD Digital Overhead Stirrer shown with Plate Stand Accessory
Silicone Rubber Sheet Non-Slip Mat for Overhead Mixer
HDPE Plastic Bottle Opaque for color mixed resin storage
Printing
Per Print | Per Shift
Platform Prep

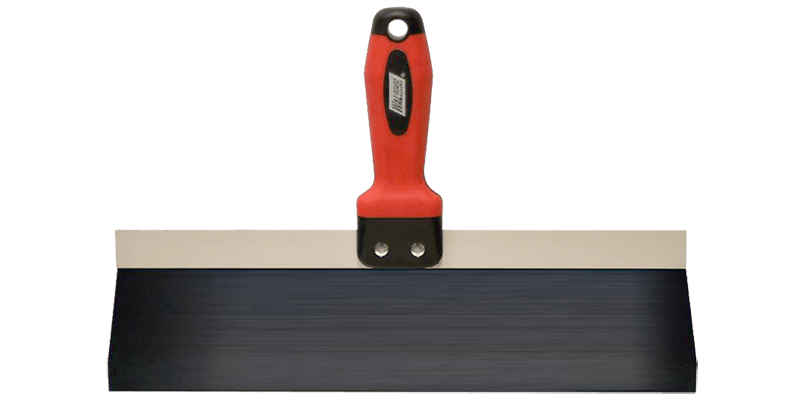

Taping Knife for platform inspection 14"

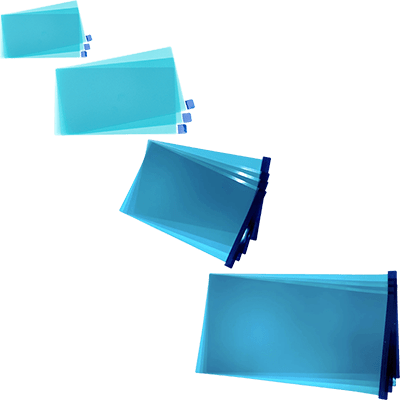

Release Film
Release Film Roller for M Series
Refer to Release Film Applicator for L1 printers.
Cleaning Printer Hardware

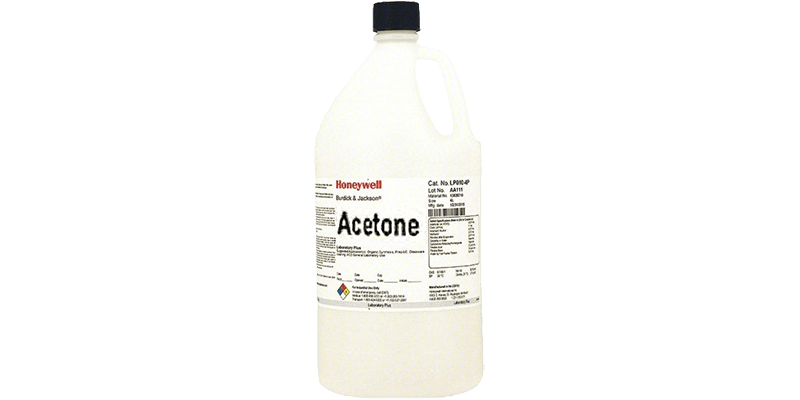

Acetone for cleaning printer hardware where instructed 100% | CAS: 67-64-1
Acetone Squirt Bottle for cleaning printer hardware where instructed
Acetone Wipes Canister for cleaning printer hardware where instructed SWCN0092
Acetone Wipes Refill for cleaning printer hardware where instructed SW420045
IPA (Isopropanol, Isopropyl Alcohol) for cleaning printer hardware where instructed for cleaning parts per resin protocol 99% | CAS: 67-63-0

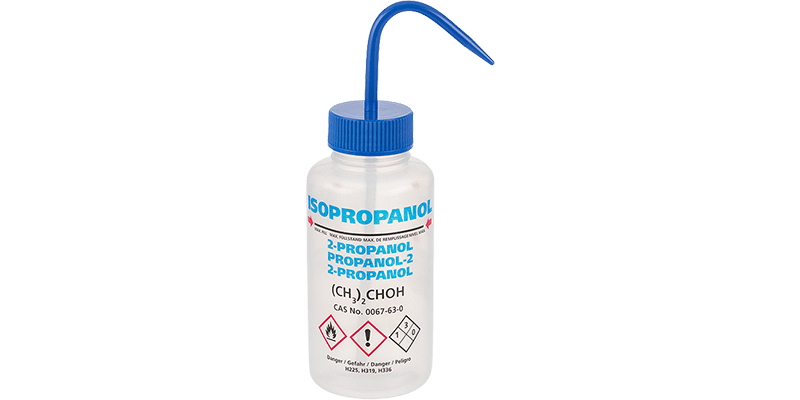

Isopropanol Squirt Bottle for cleaning printer hardware where instructed for damp swabbing parts
IPA Pre-saturated Wipes for cleaning printer hardware where instructed 9% IPA, 91% DI Water

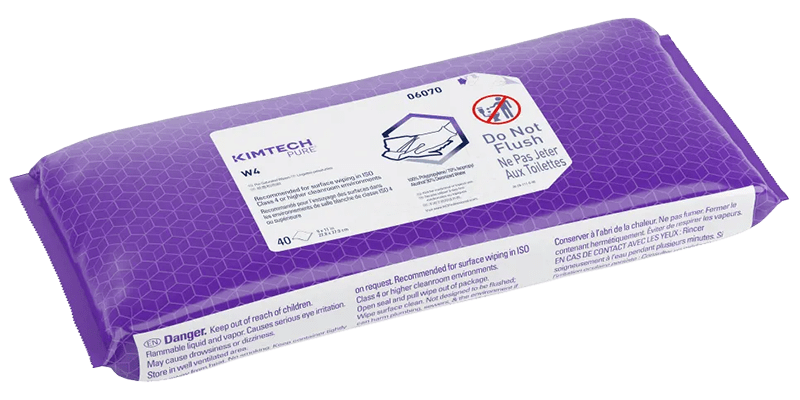

IPA Kimtech Wipes for cleaning printer hardware where instructed Pre-saturated with 70% Isopropyl Alcohol, 30% DI Water
Resin Handling After Printing

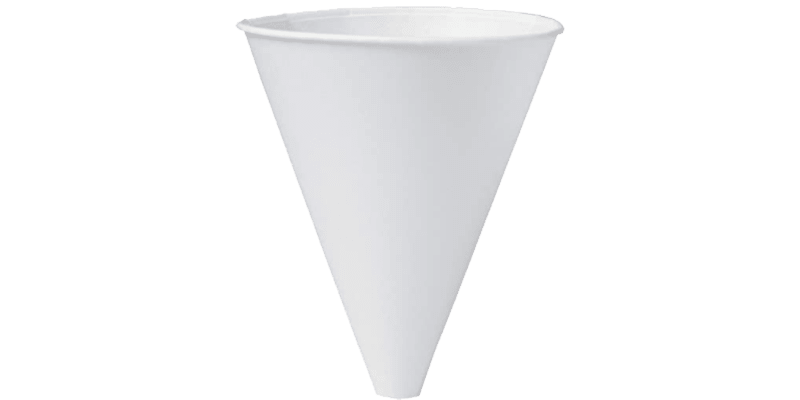

Funnel Cones for resin reclaiming or discarding Paper, 10 fl oz

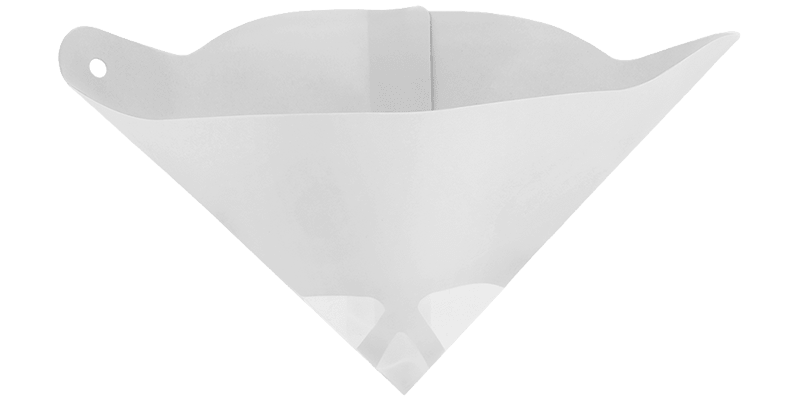

Paint Strainers for resin reclaiming and/or dispensing per resin protocol particles up to 226 μm

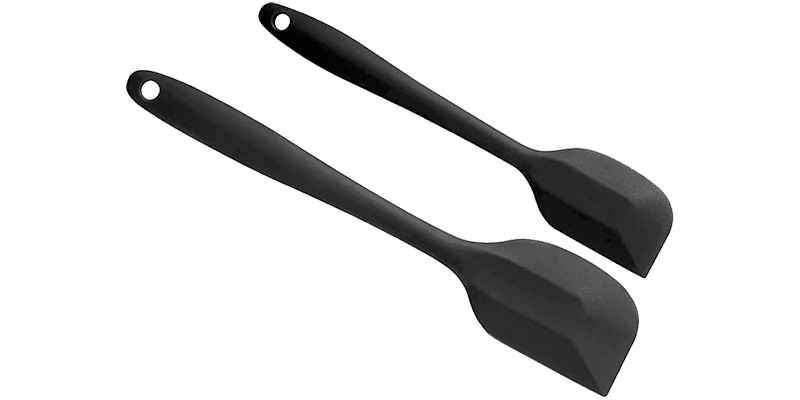

Spatulas for resin reclaiming or discarding Heat-Resistant Silicone

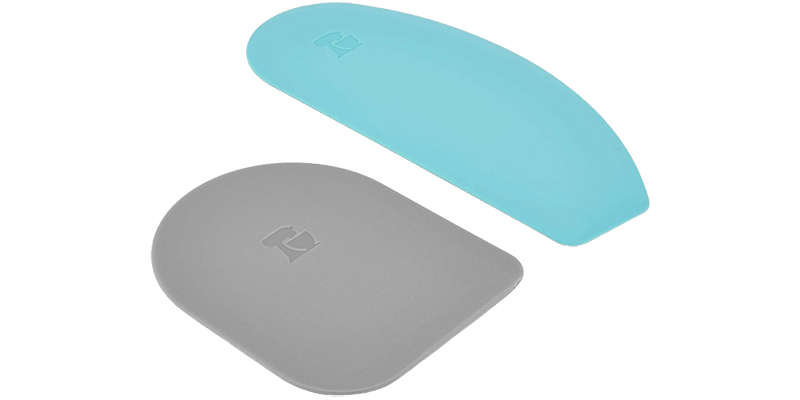

Handheld Spatulas for resin reclaiming or discarding Silicone
Wide Spatulas for resin reclaiming or discarding Silicone
Pour Stand, M Series for resin reclaiming or discarding
White Polypropylene Container for resin transfer, reclaiming, or discarding
Maintenance

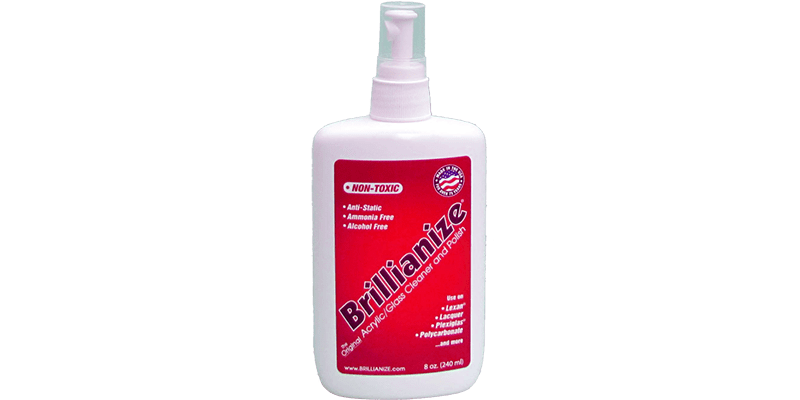

Brillianize Anti-Static Cleaner and Polish for cleaning printer door

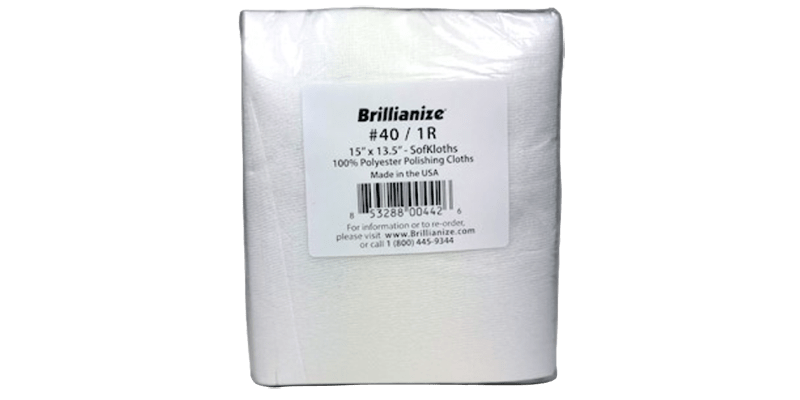

Brillianize Lint-Free Polishing Cloth

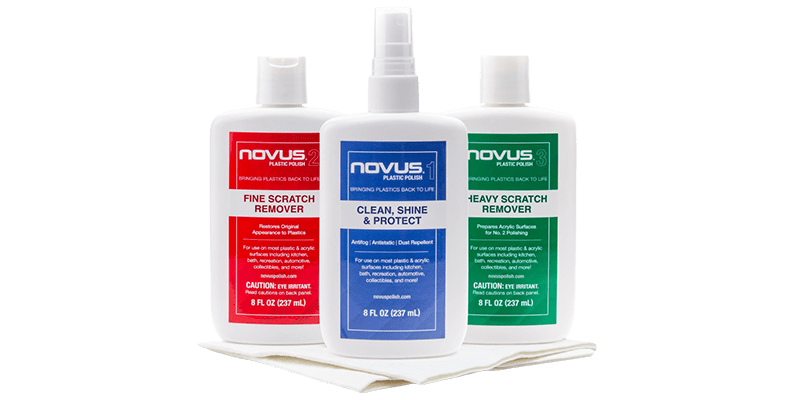

Novus Polishing Kit for scratches in printer door

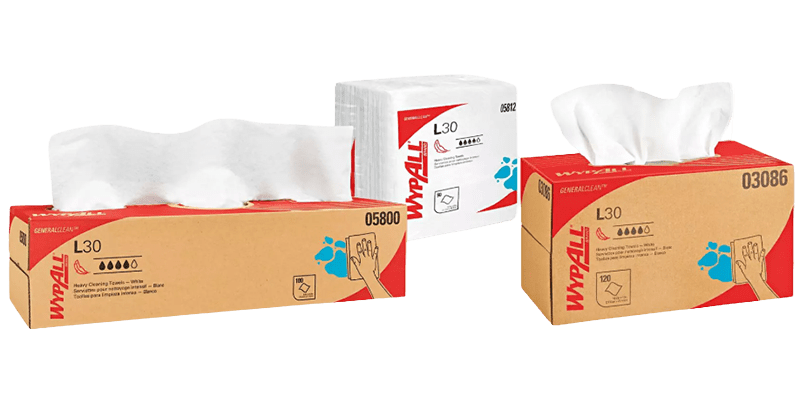

Polishing Cloths
Air Intake Filters for M3/M3 Max MERV 8
Fan Filter for M1/M2, L1 Essentra Components RFF-120-T White 120mm x 120mm
Chiller Coolant for use with L1 Must use these validated options

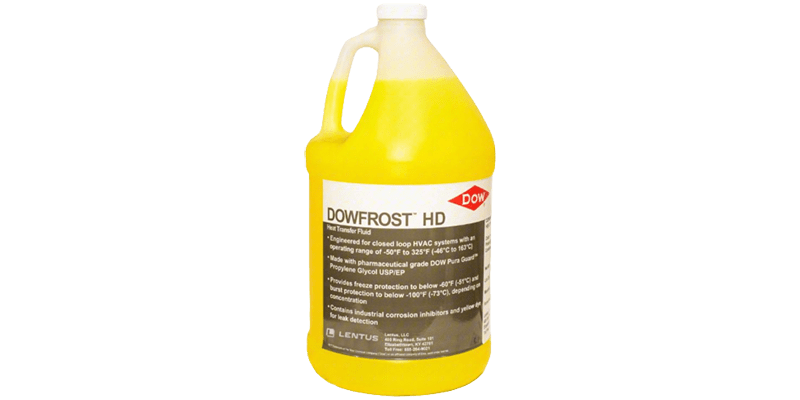

DOWFROST™ HD, 94%
DOWCAL™ 200 Heat Transfer Fluid, 92%
Pekasol-L

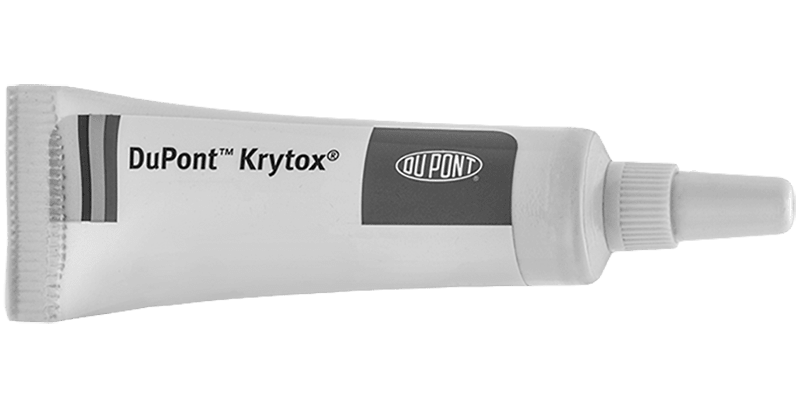

Bearing Grease for M1, M2 Krytox GPL 205
EPDM Rubber Tubing for Smart Part Washer lid seal
Hose Pipe Cleaner for Smart Part Washer Sense Tube

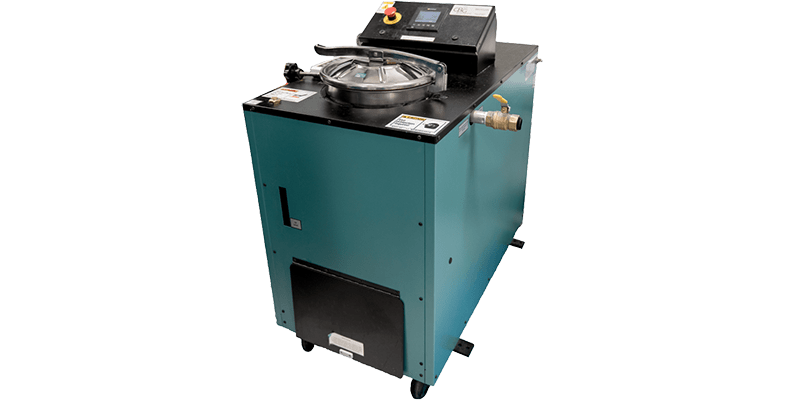

CBG Distiller when using VF-1 solvent in the Smart Part Washer
Contact your Carbon sales representative for direction and/or reach out to CBG Biotech directly to purchase.
Note that you are using a Carbon Smart Part Washer because CBG makes a custom distiller for this purpose. Exact model will vary by US or EU.

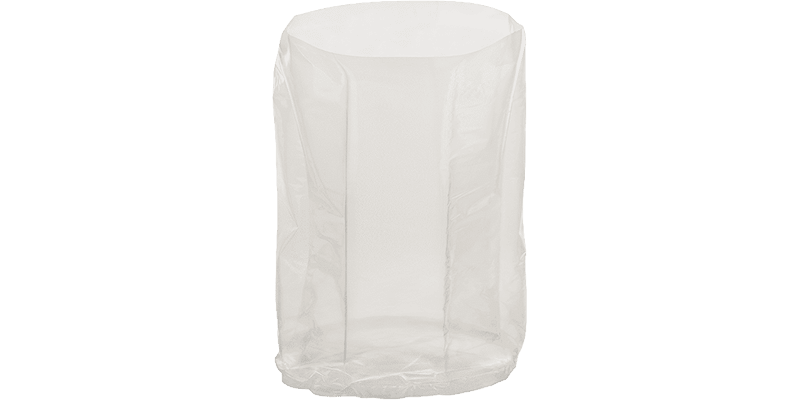

55 gal Drum Liner for draining VF-1 solvent into distiller 9772T51

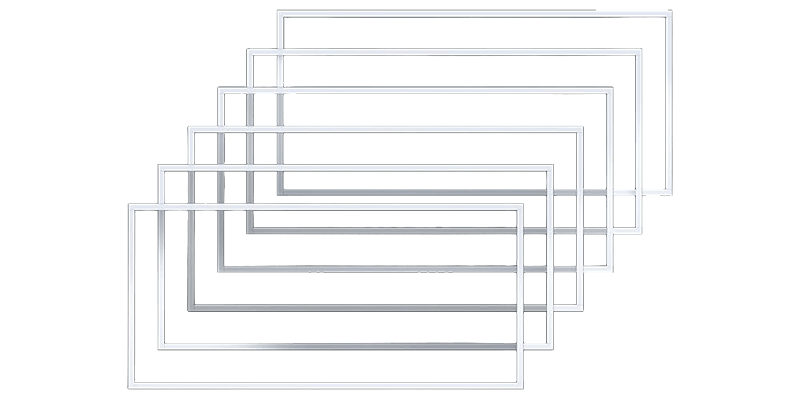

Window Film for compressed air cabinet
Post-Processing
Washing
Removing Parts and Supports

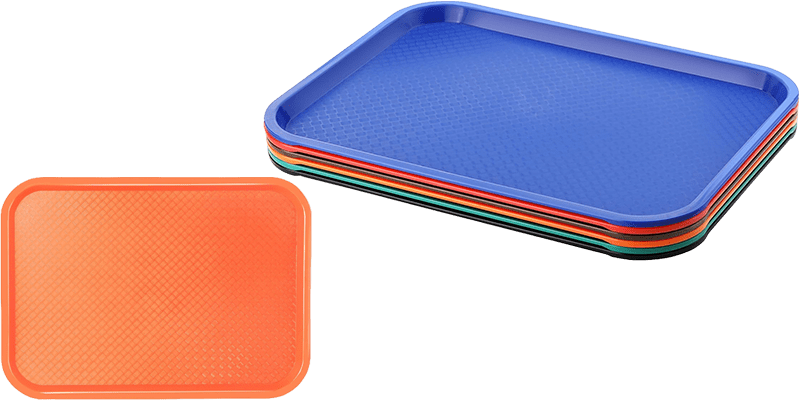

Transfer Trays plastic
Aluminum Foil for cartridge burn off, temporary liner
Blade Putty Knife scraper to remove parts from platform 3" wide
Dead Blow Mallet 1-5/8" Diameter Polyurethane Rubber Face, 18 oz

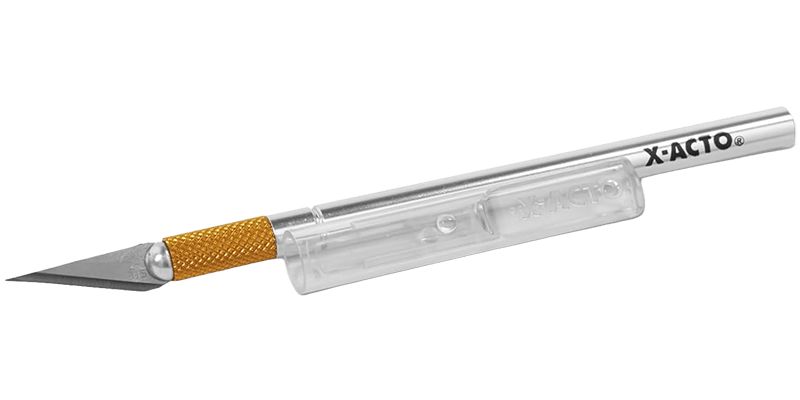

X-Acto Knife Z-Series #1

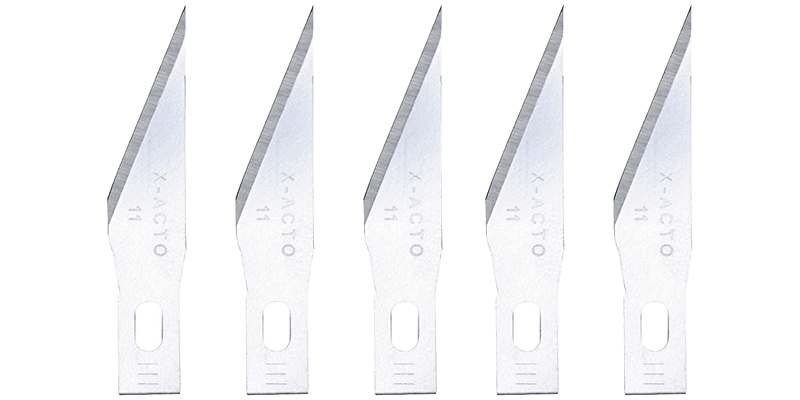

X-Acto Blades #11
Flush Cutter Heavy Duty Xcelite 2178MN

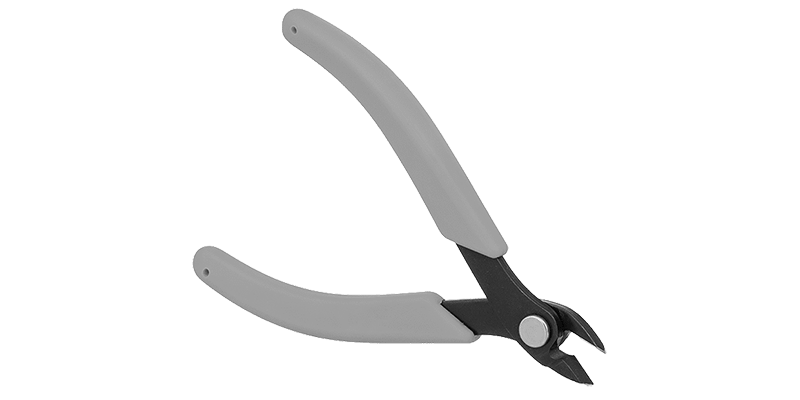

Flush Cutter Economy Oval Head
Flush-Cut Compact Curved Scissors Fine Point | Stainless Steel
Curved Spring Scissors Castroviejo Scissors Curved 4 1/4"
High Precision PTFE-Coated Pointed Tip Tweezers McMaster-Carr 5184A144
Solvents

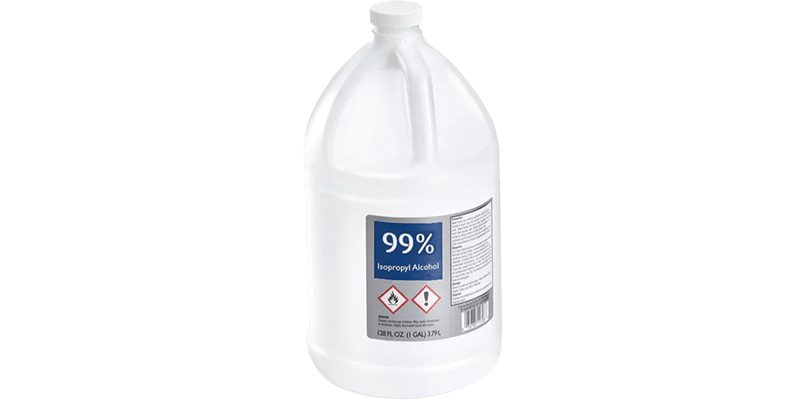

IPA (Isopropanol, Isopropyl Alcohol) for cleaning printer hardware where instructed for cleaning parts per resin protocol 99% | CAS: 67-63-0
DAA (Diacetone Alcohol) for cleaning parts per resin protocol 99% |CAS: 123-42-2
DPM, Dipropylene Glycol Methyl Ether for cleaning parts per resin protocol 99% | CAS: 34590-94-8

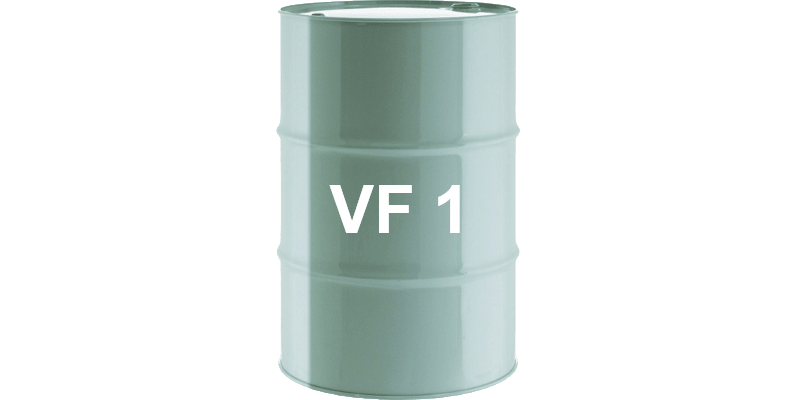

VF-1 for cleaning parts per resin protocol MS-767-3D-13 formerly custom Vertrel™ solvent blend REQUIRED VENDORS
Washing Accessories

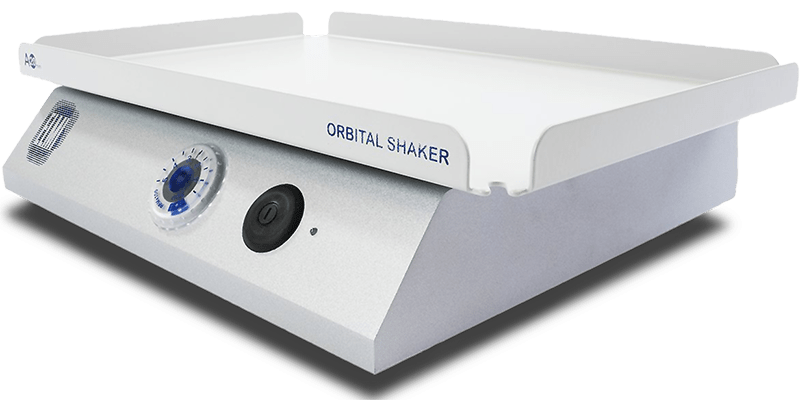

Orbital Shaker

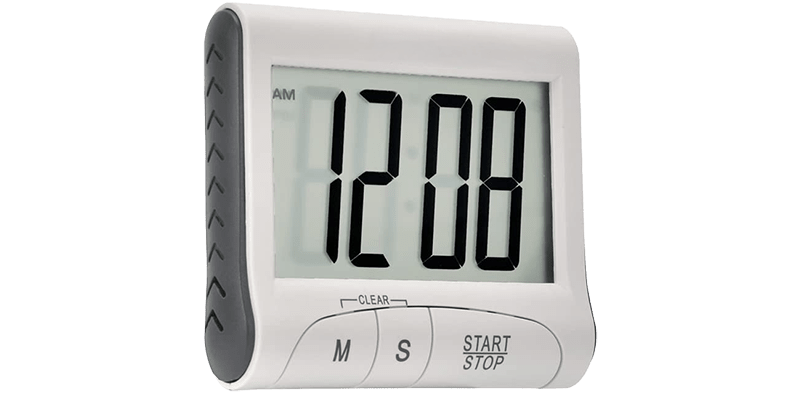

Timer

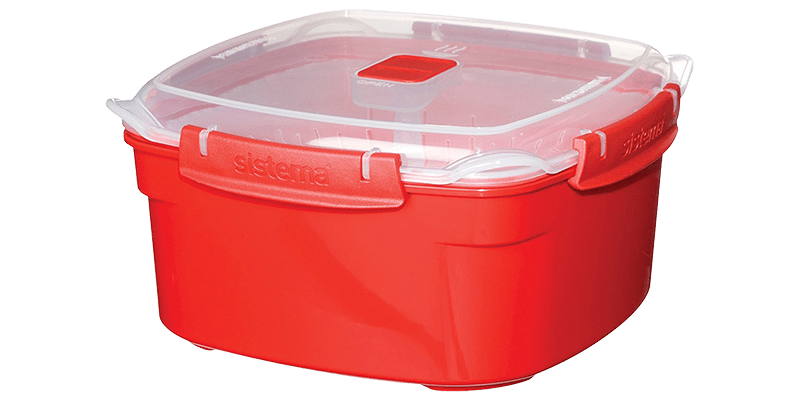

Washtub with Removable Strainer 3.2 L
Washtub 4.6 L
Washtub 7 L
Washtub 11.5 L

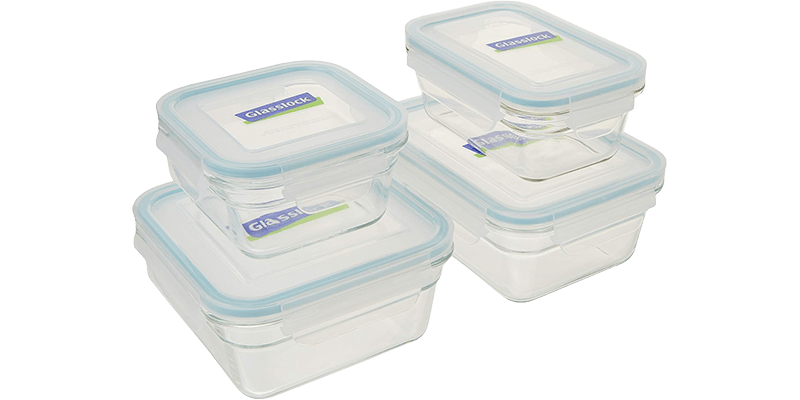

Glass Washtubs
Silicone Head Tongs stainless steel with silicone head
Touchup

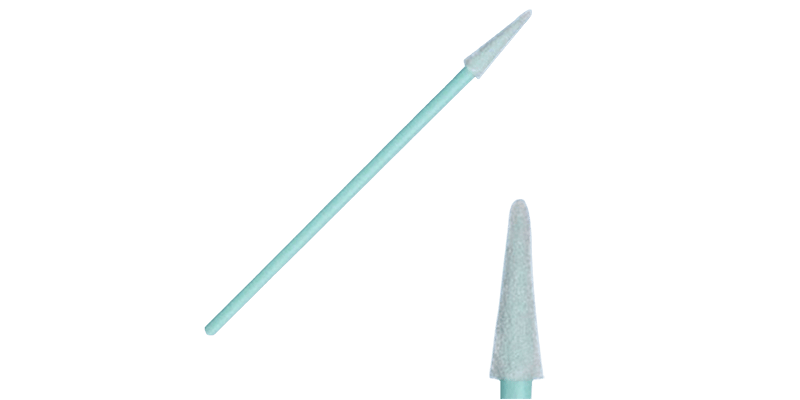

Foam Swabs Solvent-compatible 100 ppi polyurethane foam tip | Polypropylene Shaft
Pointed Tip 11.5 mm (0.5") x 3.5 mm (0.1")

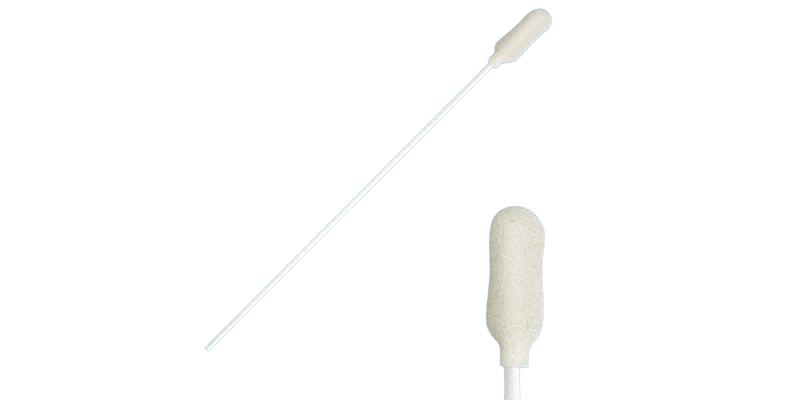

Tip 25.4 mm (1.0") x 9.5 mm (0.4")

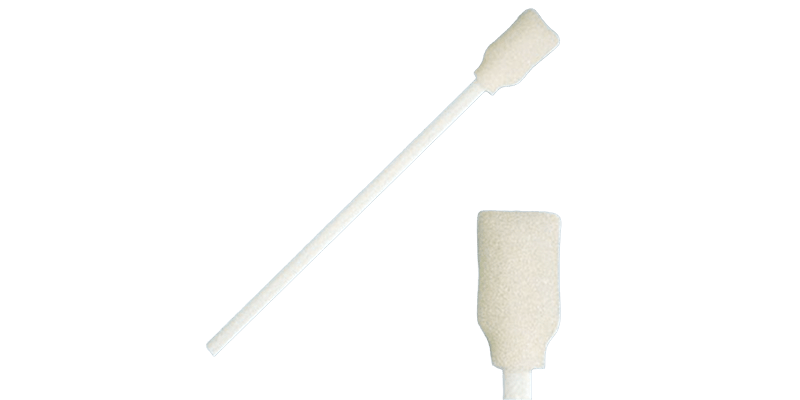

Rectangular Tip 25.5 mm (1.0") x 16.0 mm (0.6")
Polyester Wipes, 4x4 Cleantex Hydrosorb III
Ductless Fume Hood as compressed air cabinet
Manual Spinner 5 quart
Manual Spinner 2.5 gallon
Honey Spinner
Curing
UV Cure Units

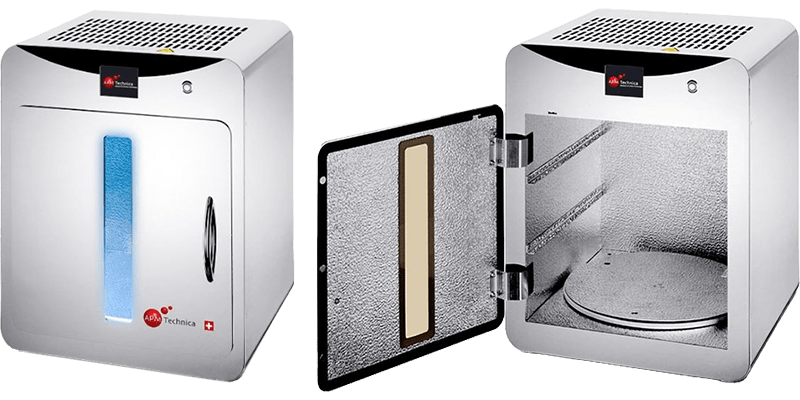

APM LED UV-Cube III for UV curing 365 nm Low Power

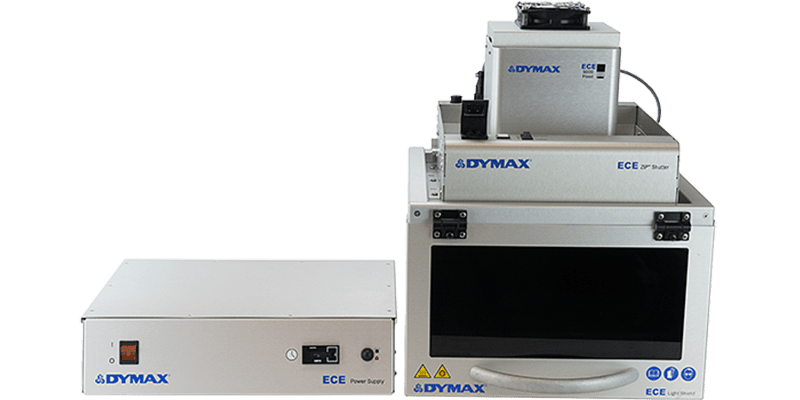

Dymax ECE 5000 for UV curing

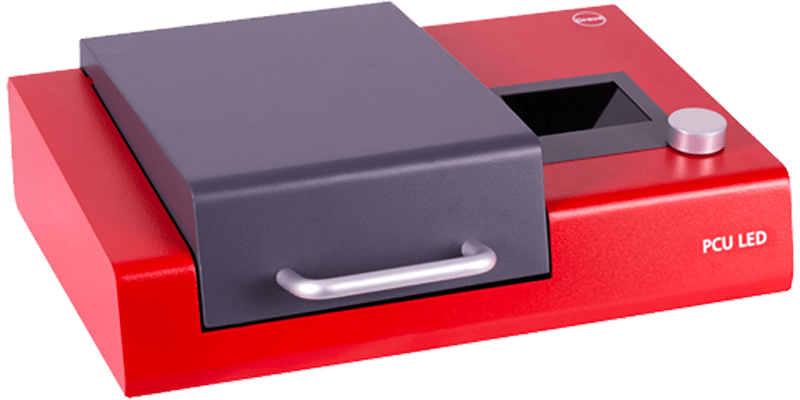

Dreve PCU LED N2 for UV curing select dental resins in nitrogen

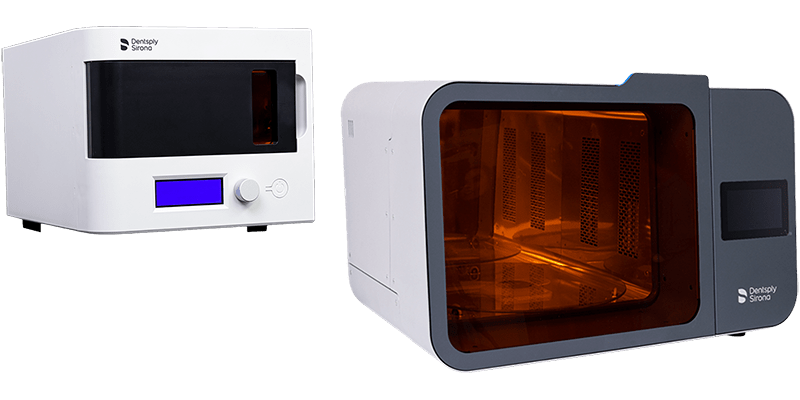

Dentsply Digital Cure | Digital Curing Unit for UV curing select dental resins 120V-240V | 120V
Ovens
Yamato DKN602C Convection Oven for thermal curing
Curing Accessories
Aluminum Baking Sheet 20" x 14"
Drying Rack

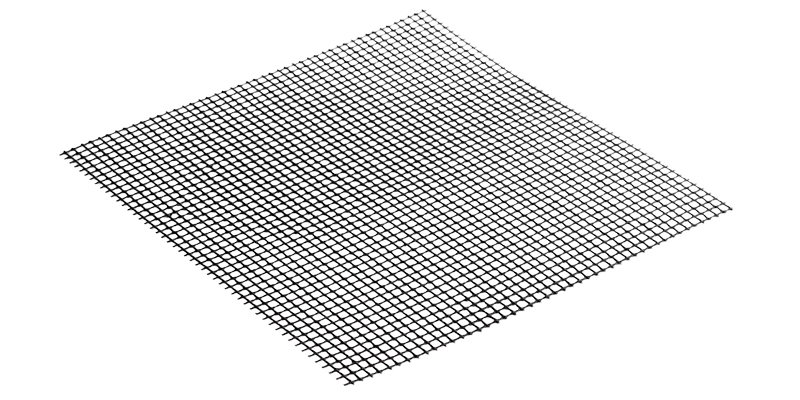

Pan Mesh
Non-Stick Foil

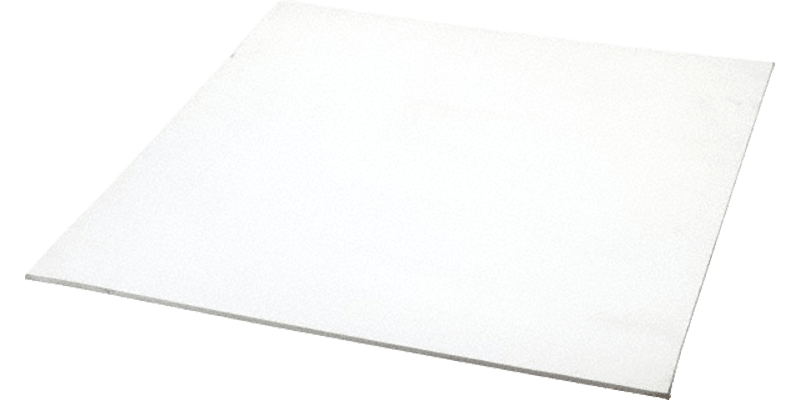

Silicone Mat for baking
Metal Tent Sign for labeling bakes with sharpie
Salt Baking

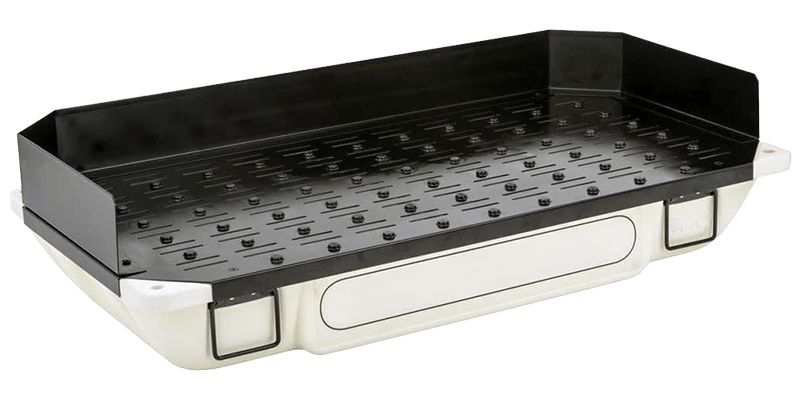

Salt Downdraft Table Shop Fox W1733A |20" by 40" | 4" dust port
Sea Salt powder grain
Baking Pan for salt packing 13" x 9" x 2"
Baking Pan for salt packing 21" x 13" x 6"
Baking Pan for salt packing 9" x 5" x 3"

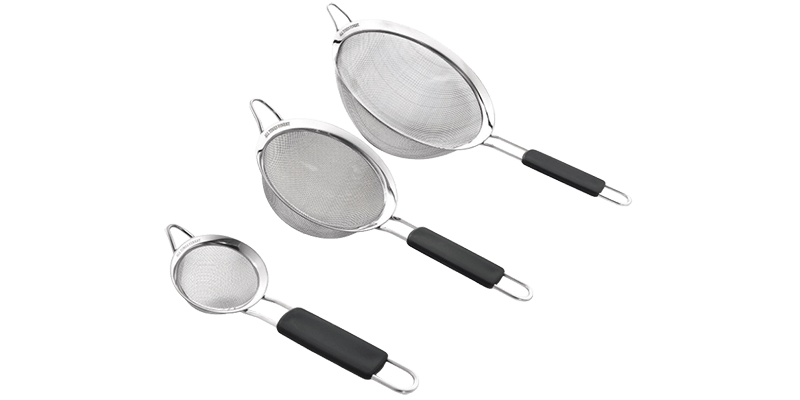

Fine Mesh Strainer for salt sifting
Glycerol Accessories

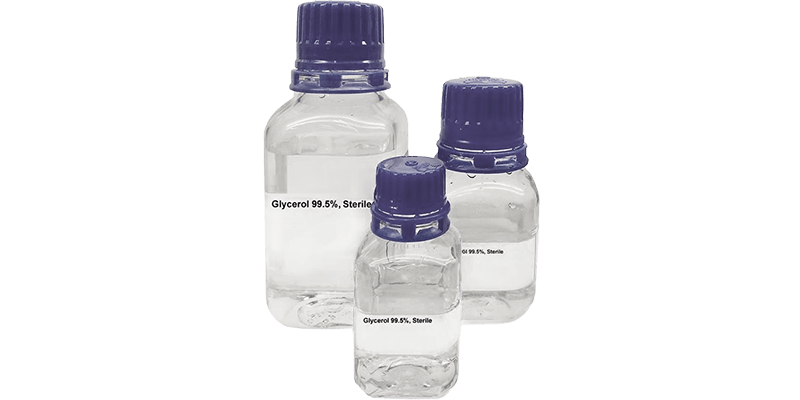

Glycerol for curing select dental resins when specified in IFU 99.5% Purity

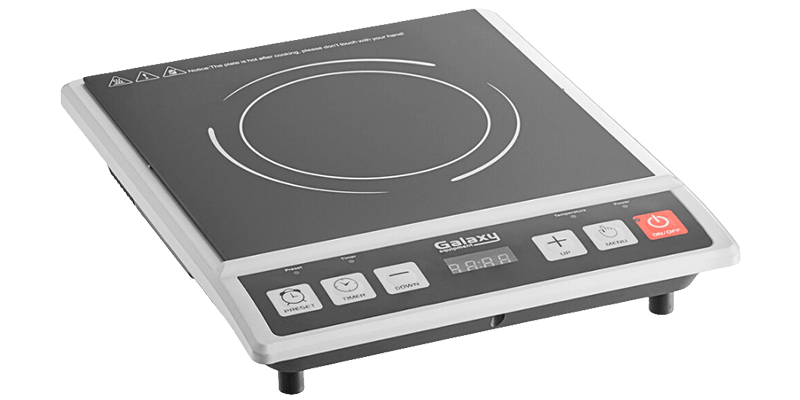

Hot Plate for pre-warming glycerol Electric 1500 Watts
Induction 1800 Watts
Stainless Steel Saucepan for pre-warming glycerol Induction Ready 2-3.5 quart

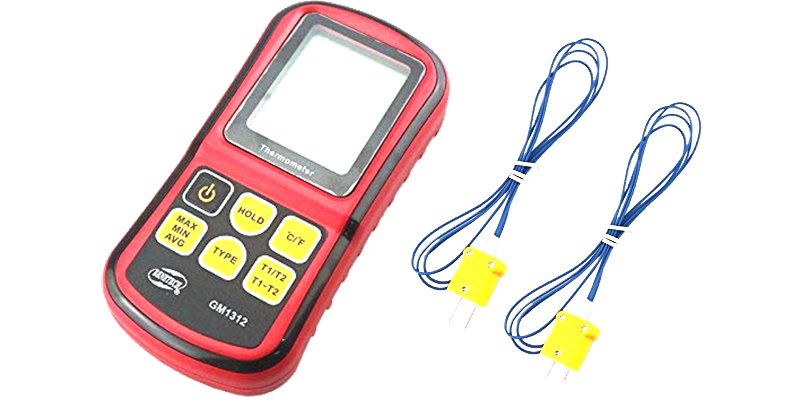

Digital Thermometer Thermocouple Benetech GM1312 -50~300 °C
Borosilicate Glass Container for glycerol curing without lid, fits compatible UV chambers 132 x 132 x 56 mm (5.2" x 5.2" x 2.2")
Borosilicate Glass Plate for glycerol curing to keep parts submerged CG-1904-11 4" x 4" x 1/8"

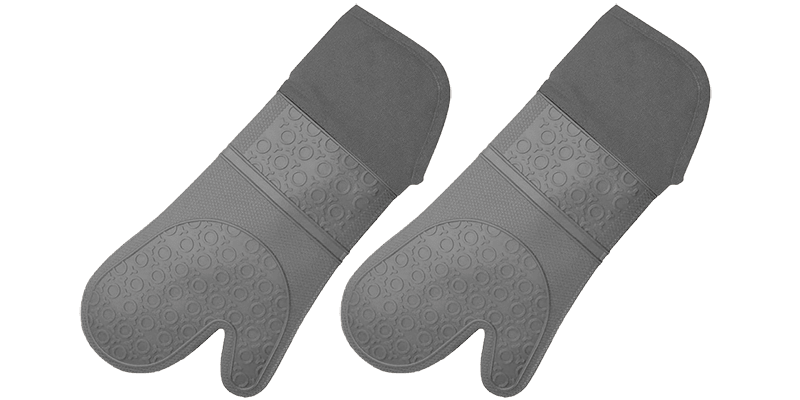

Silicone Mitts heat-resistant
Large Binder Clips for select dental resins when specified in IFU
Nitrogen Accessories

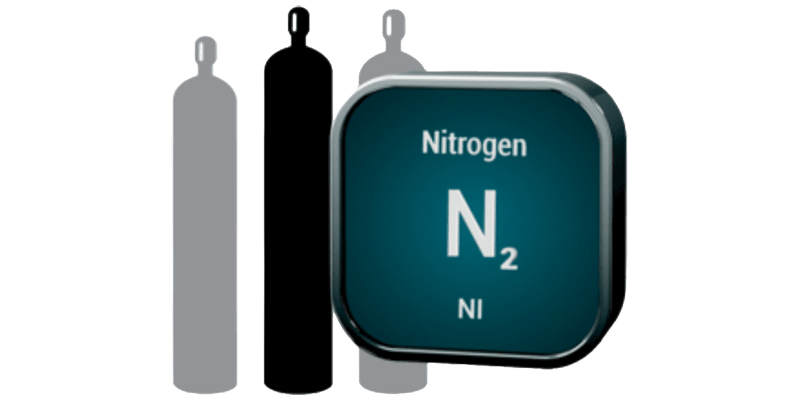

Industrial Nitrogen Cylinder Size 300

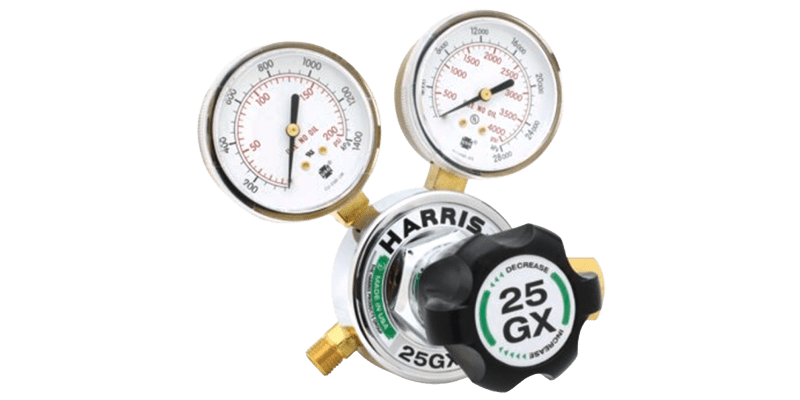

Gas Regulator for regulating nitrogen Model 25GX
Gas Tubing for nitrogen Nylon Plastic, Semi-Clear White, 15/64" ID, 5/16" OD
Finishing
Wet or Dry Sandpaper

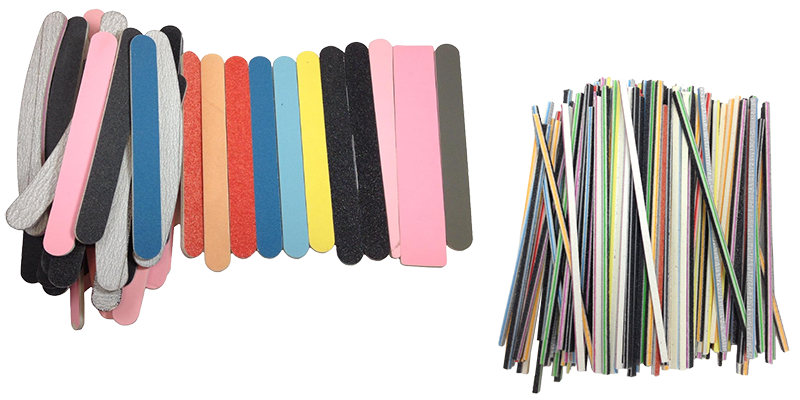

Sanding Sticks
Sanding Sponge 3M

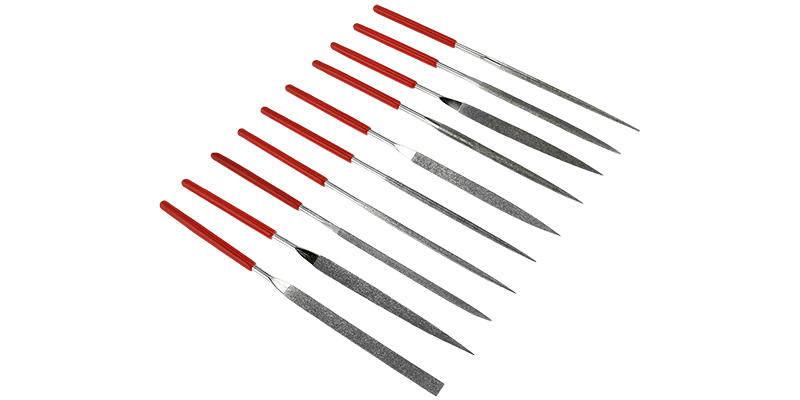

Diamond Needle Files

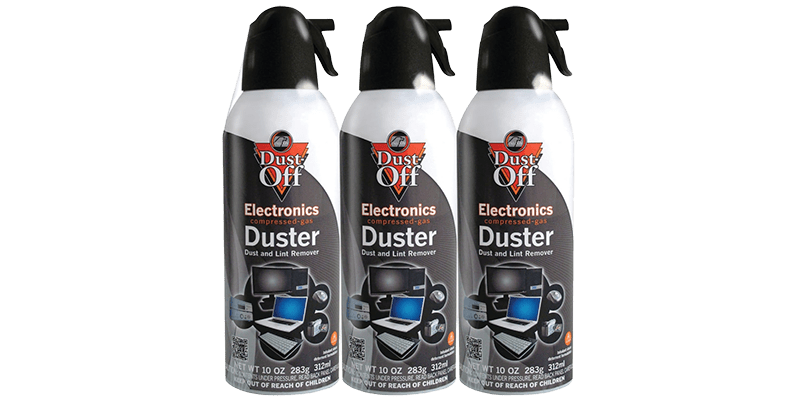

Compressed Gas Can

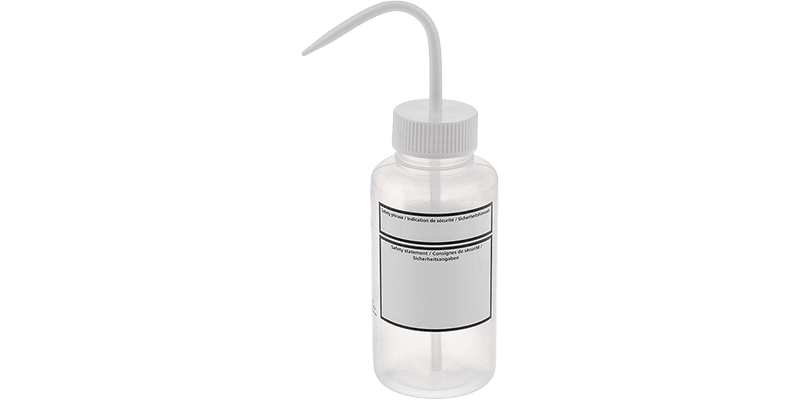

Plain Squirt Bottle for water
