General Site Prep Guide

Utilities

27min

Ventilation and Air Quality

Document image


Requirements

Ventilation equipment is not provided by Carbon and can be a long lead item. Therefore, planning and installation should be started early in the site preparation process.

You must have built-in mechanical ventilation that meets the requirements below before scheduling your printer installation. This must include a blast gate/damper for each drop to control the amount of airflow.

Item

Flow Rate Requirement

Additional Requirements

M1/M2 Printer

Minimum Flow Rate 34-51 m³/hr (20-30 cfm) per printer

Printer exhaust outlet: 4” diameter exhaust on the back of the printer

M3 / M3 Max Printer

Minimum Flow Rate 34-51 m³/hr (20-30 cfm) per printer

Printer exhaust outlet: 4” diameter exhaust on the back of the printer

L1 Printer

Minimum Flow Rate 85 m³/hr (50 cfm) per part washer

Printer exhaust outlet: 4” diameter exhaust above the printer

Smart Part Washer

85 m³/hr (50 cfm) per part washer

SPW exhaust outlet: 4” diameter exhaust on the back of the SPW

Custom Distiller (if applicable)

170 m³/hr (100 cfm) per distiller

  • Fixed snorkel
  • Only for use with VF 1 solvent (formerly Vertrel solvent blend MS-767-3D-13). Not compatible with DPM or DAA solvents

Compressed Air Cleaning Cabinet

136 m³/hr (80 cfm) per cabinet

  • Compressed Air Cleaning Cabinet exhaust outlet: 4” diameter exhaust on the top left, looking at the machine from the front

Convection Oven

34 m³/hr (20 cfm) per oven

  • Convection Oven exhaust outlet: 4” diameter exhaust on the top of the oven
  • High-temp hose

Part Washing Area (orbital shaker)

85 m³/hr (50 cfm) per wash area

  • Adjustable snorkel or fume hood

Facility Air Quality

  • Printer must be installed away from sources of particulate matter: smoke, dust from grinding, milling, sanding, or polishing, or any other known sources of dust or air contaminants (internal optical equipment is highly sensitive and will degrade when exposed to significant pollutants).
  • Room where printer is installed should have air filters to maintain air cleanliness.
  • Above requirements do not apply to post-processing areas.

Total Ventilation Capacity

M1 / M2 & M3 / M3 Max Printers

  • The minimum ventilation requirement for a single M1/M2 or M3 / M3 Max printer lab plus the industrial accessories (orbital shaker, compressed air cleaning cabinet, and convection oven) is 290 m³/h (170 cfm).
  • The minimum ventilation requirement for a single M1/M2 or M3 / M3 Max printer lab with a Smart Part Washer and industrial accessories is 374 m³/h (220 cfm).
    • Capacity calculation for the above lab: Ventilation Needed (220 cfm) = M2 printer (20 cfm) + Smart Part Washer (50 cfm) + Comprsessed Air Cleaning Cabinet (80 cfm) + Convection Oven (20 cfm) + Orbital Shaker (50 cfm).

L1 Printers

  • The minimum ventilation requirement for a single L1 printer lab plus the industrial accessories (orbital shaker, compressed air cleaning cabinet, and convection oven) is 340 m³/h (200 cfm).
  • The minimum ventilation requirement for a single L1 printer lab with a Smart Part Washer and industrial accessories is 425 m³/h (250 cfm).
    • Capacity calculation for the above lab: Ventilation Needed (250 cfm) = L1 printer (50 cfm) + Smart Part Washer (50 cfm) + Comprsessed Air Cleaning Cabinet (80 cfm) + Convection Oven (20 cfm) + Orbital Shaker (50 cfm).
  • Building capacity for plenty of ventilation is a good idea for your Carbon lab because excess ventilation will make it easy to accommodate more printers and adopt future products or accessories without the need to re-engineer your lab.

If you do not have a meter to test the flow, we have used this anemometer. Be sure it is properly calibrated. You will need to estimate your ventilation tubing diameter, length, and bends to understand the pressure drop for your lab.

Ventilation Locations

  • Ventilation is required in 4 places in a single printer lab:
    1. printer
    2. part washing workstation
    3. compressed air cleaning cabinet
    4. convection oven
  • Ventilation is required in 5 places in a single printer lab with a Smart Part Washer:
    1. printer
    2. part washer
    3. part washing workstation (orbital shaker)
    4. compressed air cleaning cabine
    5. convection oven
  • Each additional product will require 1 additional ventilation drop per the Ventilation Requirements Table (see above).
  • Each of these locations must be vented to the outside of the building.

Note: The Smart Part Washer with Dipropylene glycol methyl ether (DPM) solvent does not require separate ventilation since DPM can't be distilled and thus requires no custom distiller. The custom distiller is only applicable if you plan to use your Smart Part Washer with VF 1 (formerly Vertrel™ solvent blend MS-767-3D-13). See the table below for solvent/material compatibility.

Smart Part Washer Solvent

Compatible Materials

VF 1 (formerly Vertrel™ solvent – MS-767-3D-13)

UMA 90, RPU 70, FPU 50, EPU 40/41, and SIL 30

Dipropylene glycol methyl ether (DPM)

EPU 40, EPX 82, FPU 50, MPU 100, RPU 70, SIL 30, and UMA 90

Ventilation Examples

Your Onboarding Consultant will ask for a picture of each ventilation connection before scheduling the installation. We recommend a central line of ventilation with multiple drops, each with an installed blast gate and a 4-inch diameter ventilation hose. This will connect to the Carbon product’s exhaust port using a hose clamp.

Document image

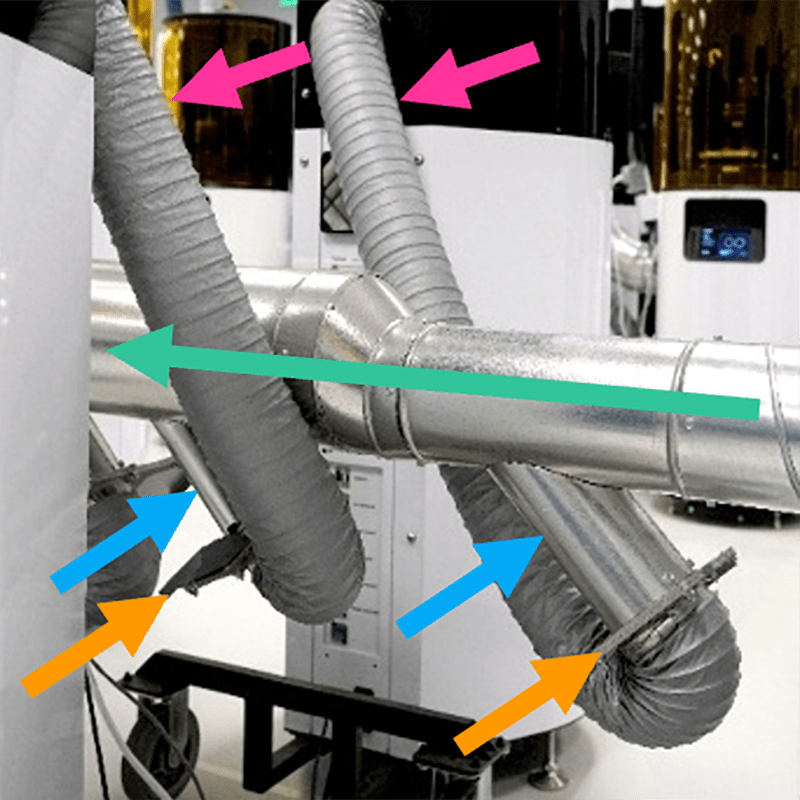

M1/M2 & M3 / M3 Max Printers

Document image


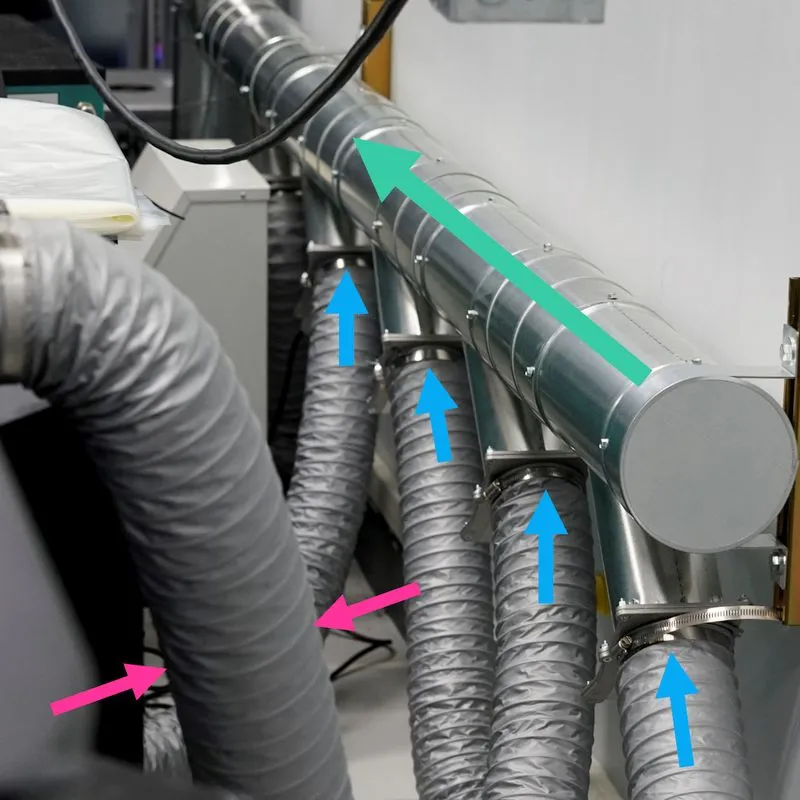

Smart Part Washers

Document image


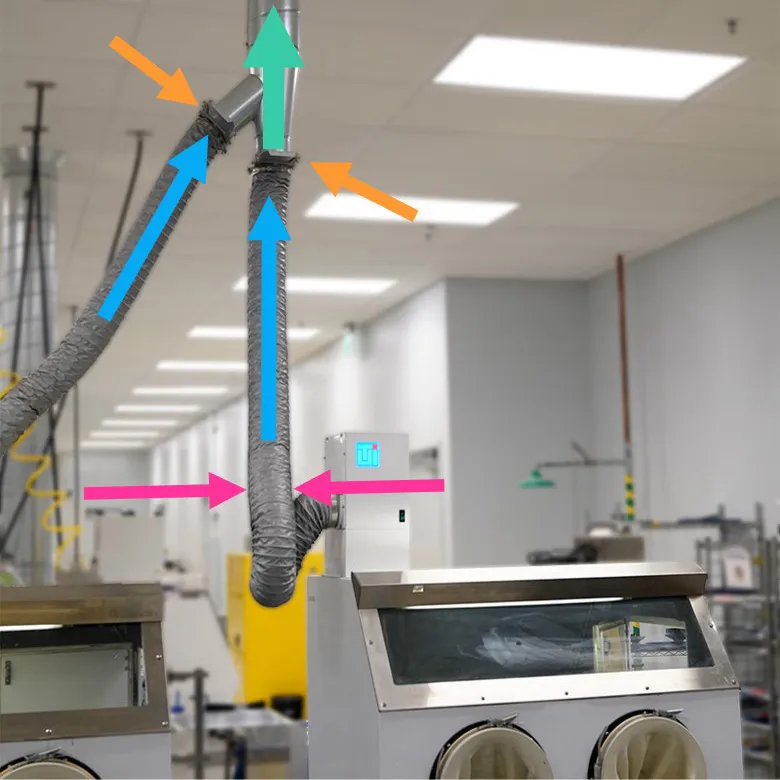

Compressed air cleaning cabinet

Document image


Rear view of oven with adapter

Document image


Snorkel over custom distiller for VF 1 (formerly Vertrel solvent blend MS-767-3D-13)

Document image


Wash area with adjustable snorkel located over orbital shaker and solvent-filled container

Document image


L1 Printer (top view showing circular exhaust port)

Document image

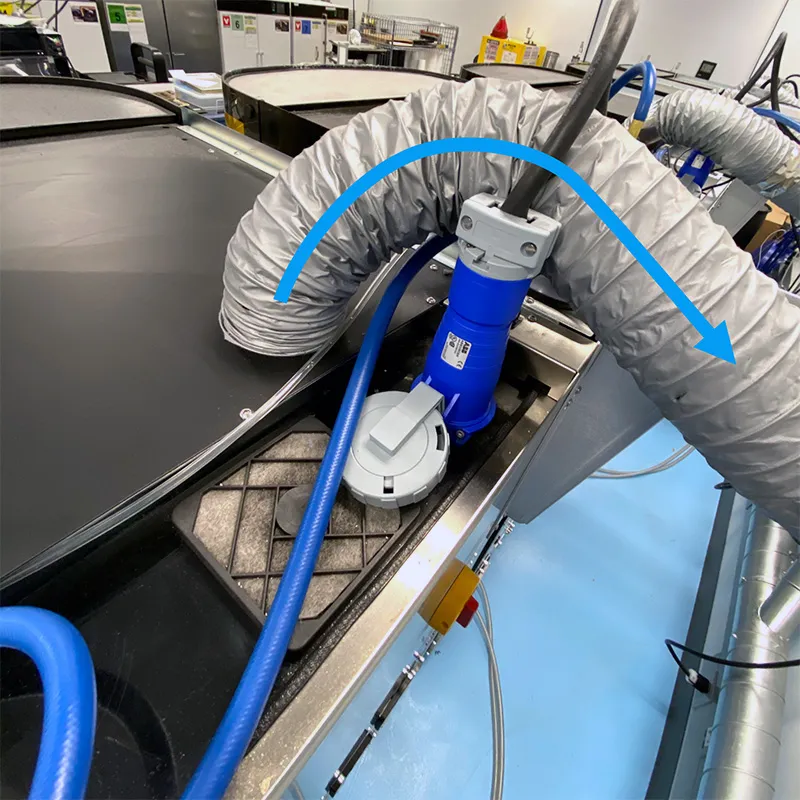

Ventilation hose attached to L1 printer

Document image

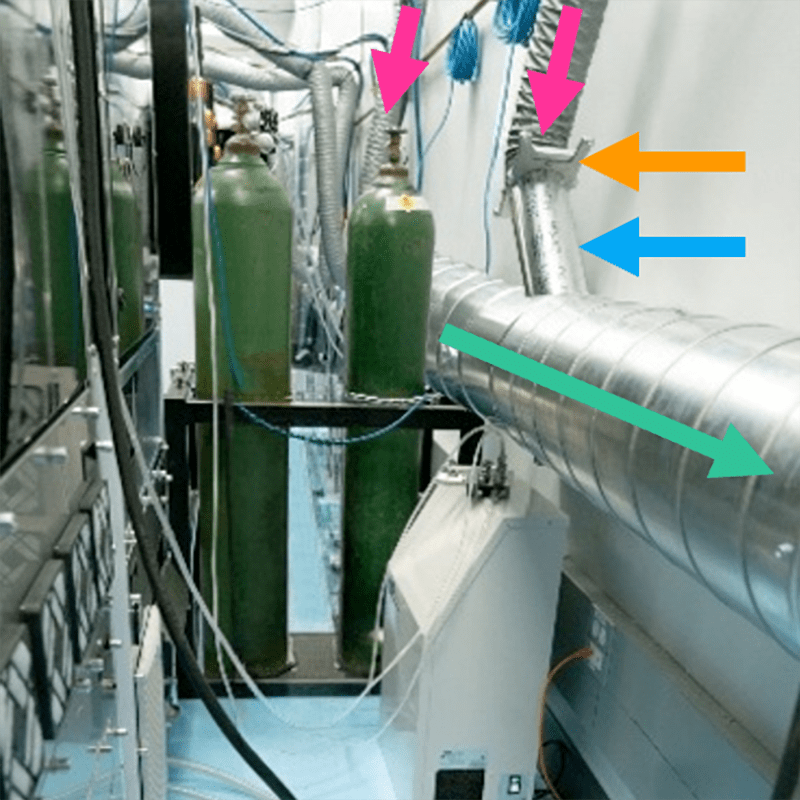

Ventilation system behind L1 printer



Additional Oven Ventilation Notes

Your oven is equipped with an adapter to ensure flow rate is not too high. Please attach the oven to the ventilation system using the provided adapter, which is shipped inside the oven.

  • The adapter is a flanged ventilation duct with an outer ring held with three wing nuts that should be installed on top of the oven. You should connect it to the oven first so you can easily connect it to your 4-inch round exhaust duct.
  • Do not seal the outer ring (a common customer issue).
  • This arrangement pulls air from the room rather than sucking heat out of the oven, but in doing so also removes oven fumes.
Document image


As oven exhaust temperatures can exceed 220 °C, use metal duct or metal duct hose, plus a hose clamp, to withstand the high-temperature air for at least 10 feet to allow for sufficient cooling. You can also use a flexible hose with a high-temperature rating, such as the silicone hose from McMaster-Carr.

Document image

  • Once the oven has been installed and ventilated, please conduct temperature checks, using any precision oven thermometer, at 60, 120, and 220 °C to ensure your oven is maintaining the proper temperature.

EPU Resins and Lauryl Methyacrylate (LMA)

LMA Notes

A potential fire risk exists if you operate your oven at temperatures in excess of the Carbon recommended bake profiles. This concern is specific to ovens used to cure EPU parts. Lauryl Methyacrylate (LMA), which is released during the baking of EPU parts, can condense inside oven insulation and/or ducting. The amount of LMA released will be dependent on the volume of EPU parts in a particular bake and how often you are baking with those parts. This condensed LMA can ignite if exposed to temperatures above what is needed to cure the parts. Please refer to the SDS for LMA for more specific information about this chemical.

Given our findings, we are updating our user documentation to include these additional recommendations for customers who print with EPU resins.

  • Don’t perform bakes at higher temperatures than the bake profile specified by Carbon.
  • Inspect oven and exhaust ducts for presence of condensate. If you find condensate, clean it or replace ductwork. Refer to the SDS for LMA prior to cleaning to ensure proper precautions are in place.
  • If condensate is noticed after cleaning or replacement, a heat exchanger may need to be installed to cool the ventilation duct to remove the condensate.

Additional Recommendations:

  • Consider baking CE/EPX and EPU parts in separate ovens. CE and EPX require a higher temperature to bake.
  • Clearly label ovens with maximum allowable temperatures for bakes as specified for products by Carbon. Do not exceed the Carbon recommended bake temperatures. Yamato Ovens are equipped with Independent Overheat Protection. Refer to the
  • Consult your Facilities and EHS staff on proper handling of LMA condensate in the exhaust system and proper personal protective equipment for handling of LMA contaminated exhaust components and associated ductwork.

Reminders

  • Ventilation must vent to the outside of the building.
  • M1/M2 & L1 Printers only - Before scheduling the installation, you must provide photos of each of the following ventilation connections: printer; part washing workstation (orbital shaker); compressed air cleaning cabinet; convection oven; as well as Smart Part Washer and custom distiller, if applicable.
  • Ensure the oven ventilation is installed using the provided adapter (shipped inside the oven).
  • Check the flow rate of each connection prior to equipment installation.
  • Check the oven temperature after ventilation installation.
  • Each ventilation drop must include an installed blast gate to tune airflow. Have extra hose clamps on hand for exhaust hose connections.
  • Selecting the proper type of ventilation hoses at installation may save you headaches later.
  • Building capacity for plenty of ventilation is a good idea for your Carbon lab because excess ventilation will make it easy to accommodate more printers and adopt future products or accessories without the need to re-engineer your lab.

FAQs and Additional Information

How do we know if our installation site has adequate air quality? For most installation sites, air that is filtered and clean enough for workers not to wear dust masks will likely be adequate. In addition, the printer must be separated from any machines that emit smoke, dust, mist, or particles.

Can I use a stand-alone ventilation system (fume extractor) instead of mechanical ventilation? No, the fume extractor is not compatible with the following:

  • Non-Dental resins or Carbon 2-part engineering resins
  • If using multiple M1/M2 or M3 / M3 Max printers with 1-part resins, you will need more than one fume extractor

For more information on fume extraction, contact the Carbon Onboarding Team. Do I need a contractor for traditional/mechanical ventilation? In most cases, you may want to use a contractor to install mechanical ventilation. A contractor can help ensure that your ventilation system meets all local and regulatory codes, as well as Carbon-recommended specifications.

In a single printer lab with a Smart Part Washer, how many ventilation drops are required? Ventilation is required in five places: Printer, Smart Part Washer, part washing workstation (orbital shaker), compressed air cleaning cabinet, and convection oven. See the table above for the specific flow requirements per product.

If using a custom distiller (only for VF 1 formerly custom Vertrel™ solvent - MS-767-3D-13), this will also require ventilation.

Where is the exhaust port located on L1 Printers? On the top of the printer.

Where is the Smart Part Washer exhaust port located? On the back, in the upper right corner.

Why does Carbon have a ventilation requirement? Carbon printers require ventilation because liquid resins and solvents are classified as hazardous materials. Without ventilation, your facility could be exposed to fumes that could pose a health risk for your employees. For more information regarding health and safety, contact your local regulatory agency.

Oven Ventilation LMA FAQs

What are the elements of a ventilation system set up to capture condensate? LMA fumes tend to condense in cold spots. In general, this seems to be in areas of the ventilation system where the hot air coming out of the ovens cools - elbows, connectors, etc. further away from the oven. Carbon has installed cold traps at the point where oven ventilation connects to the main facility exhaust line. These cold traps condense LMA and the liquid can be collected and disposed of as hazardous waste. Work with a qualified HVAC contractor to determine the size of the intercooler/condenser unit to best suit your needs.

How do I safely clean out existing ductwork if condensate is present? If you notice condensate in the duct connecting to your oven exhaust - we recommend you replace any flexible ducts with new ones. For condensate that might have accumulated in metal pipes, use a rag to wipe down the inside of the ductwork as far back as possible. Any cleaning gloves, wipes, rags. etc the come in contact with LMA should be handled as hazardous material and disposed of accordingly.

What PPE is needed during this cleaning? Standard PPE used for work with resins and solvents should be used for this cleaning task.

How do I handle multiple resin bakes in ovens? Per the memo and user guide, avoid baking parts printed with CE and EPX in the same ovens as EPU parts. CE and EPX require a higher bake temperature.

Electricity

Document image


Requirements

You will be required to supply power to the following equipment and accessories:

  • All printers
  • Smart Part Washer
  • Custom Distiller (if applicable)
  • Resin Prep Workstation
  • Part Washing Workstation

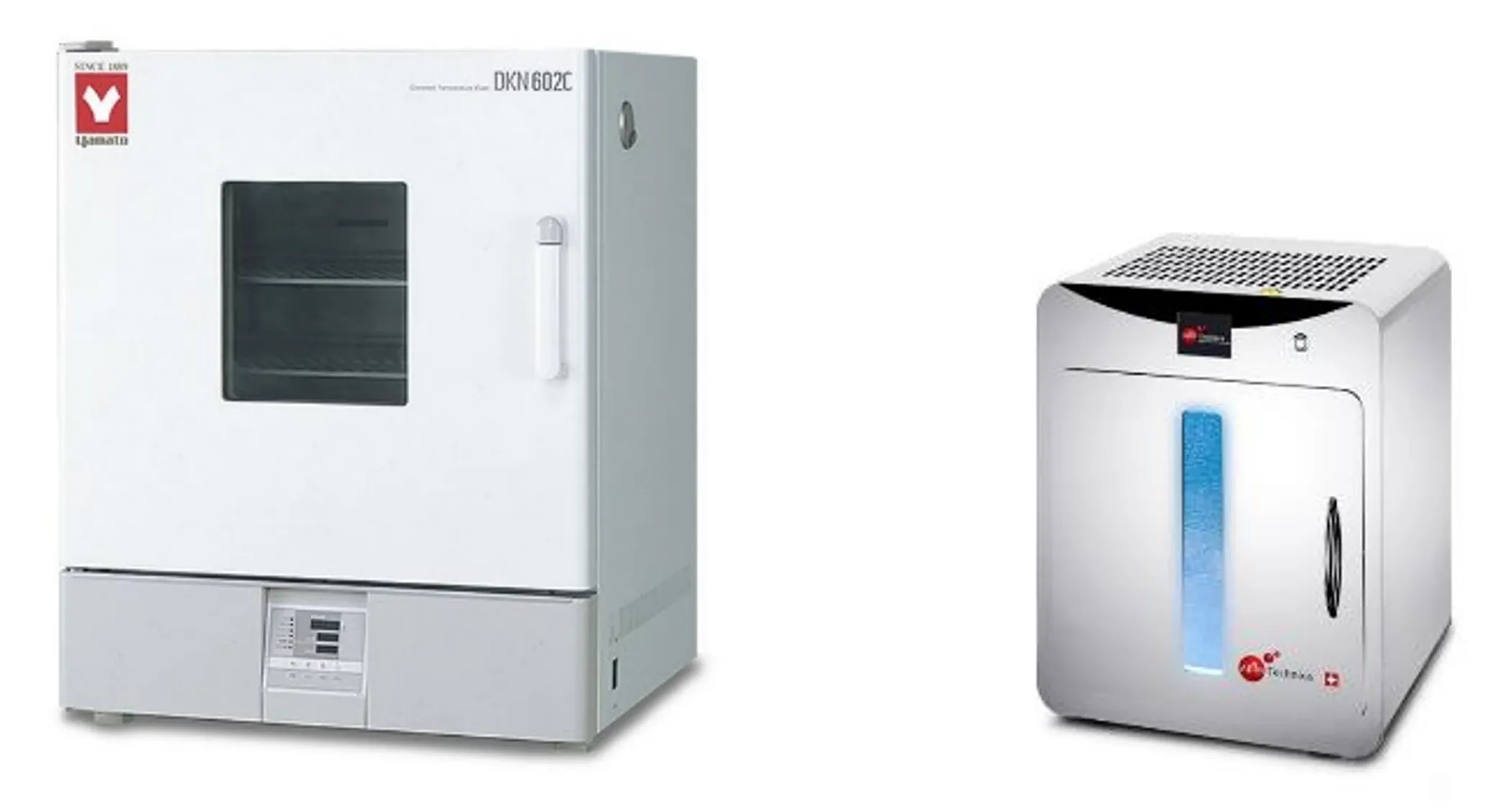

  • Curing Workstation
  • Compressed Air Cleaning Cabinet Workstation

Item

M1/M2 Printer

M3 Printer

M3 Max Printer

L1 Printer

Voltage

100-240 V 50/60 Hz single phase

120-240 V 50/60 Hz single phase

120-240 V 50/60 Hz single phase

200-240 V 50/60 Hz single phase

Mains supply voltage fluctuations

±10%

±10%

±10%

±10%

Overvoltage category

II

II

II

II

Circuit Breaker

15 A dedicated circuit

15 A breaker on a dedicated circuit separate from ovens (Japan: 16 A breaker on 200 V dedicated industrial power circuit)

20 A breaker on a dedicated circuit separate from ovens (Japan: 16 A breaker on 200 V dedicated industrial power circuit)

30 A dedicated circuit

Power Supply Cable

A regionally appropriate power supply cable will be supplied.

A regionally appropriate power supply cable will be supplied.

A regionally appropriate power supply cable will be supplied.

For North American customers, a regionally appropriate power supply cable will be supplied. All International customers will need to purchase the .

Socket type

Standard

Standard

NEMA 5-20

NEMA L6-30

Item

All printers

Socket location

If using a Carbon-provided cable, the socket must be within 1.8 m (6’) of the power entry point on the printer.

Non-Carbon power cords

Note: Using an inadequately rated power cable can result in electric shock, arc flash, fire, or damage to the equipment.



Sockets & Amp Draw

You may need to supply power using at least 7 electrical sockets for an M1/M2 or M3 / M3 Max Printer lab and 9 electrical sockets for an L1 Printer lab. For each additional Carbon product installed, you will require another electrical socket.

Note: International customers should contact Carbon for region-specific information.

Workstation/Product

# Sockets Required Place sockets near equipment to avoid trailing power cords.

Dedicated Circuit Breaker Required

Power Requirements (100-240 VAC and 50/60 Hz)

Printer

1

Yes

7.5 A for M1; 9 A for M2; 12 A for M3; 16 A for M3 Max; 18 A for L1

Chiller (L1 Printers only)

1 (NEMA 6-15 socket)

Yes

15 A

Oxygen Concentrator (L1 Printers only)

1 (NEMA 5-15 socket)



3-5.5 A

Smart Part Washer

1 (US NEMA 5-15R socket)



8 A

Custom Distiller (if applicable)

1 (US NEMA 5-20R socket)*

Yes

20 A

Resin Prep Workstation

1 for resin dispenser battery charger



2.1 A

Part Washing Workstation

1 for orbital shaker



1 A

Curing Workstation

1 for convection oven

Yes

14 A



1 for APM LED UV-Cube III



2.5 A

Compressed Air Cleaning Cabinet (CACC) Workstation

2 (1 for light & 1 for fan)



2 A

*Make sure custom distiller outlet has a single socket. A dual-socket outlet is not recommended since a second device could be plugged into the circuit and cause an overload.

Notes

  • The oven and printer should be on separate breakers. Additionally, the part washer and custom distiller should be on separate breakers.
  • Please consult with your electrician on how to best power the printer and accessories.


Compressed Air

Document image


Requirements

You will be required to supply compressed air to the following equipment and accessories:

  • M3 / M3 Max & L1 Printers
  • Smart Part Washer
  • Compressed Air Cleaning Cabinet Workstation

Workstation/Product

Requirement

M3 / M3 Max Printer

  • Pressure: 620-800 kPa (90-115 psi) at inlet
  • Peak Consumption: 30 L/min ANR (1 cfm) for 10 seconds every 10 minutes
  • Purity: ISO 8573-1:2010 Class 2.4.3 Standard

L1 Printer

  • Pressure: 650-800 kPa (95-115 psi) at inlet
  • Average Consumption: 1.5 L/min ANR (0.05 cfm)
  • Peak Consumption: 30 L/min ANR (1 cfm) for 10 seconds
  • Purity: ISO 8573-1:2010 Class 2.4.3 Standard

Smart Part Washer

  • Pressure: 620-900 kPa (90-130 psi) at inlet
  • Average Consumption: 100 L/min ANR (3.5 cfm)
  • Purity: ISO 8573-1:2010 Class 2.4.3 Standard

Compressed Air Cleaning Cabinet (CACC) Workstation

  • Pressure: 620-900 kPa (90-130 psi) at inlet
  • Average Consumption: 623 L/min ANR (22 cfm)

Notes

  • If you require a pressure regulator, you can replace the standard 1/4-inch NPT (industrial shape hose coupling) fitting on the compressed air cleaning cabinet to meet your specifications.
  • Compressed air cleaning cabinet
    Compressed air cleaning cabinet

  • If you are sourcing a self-contained air compressor, the size will be based on your expected use and throughput.
  • Document image
