Washing

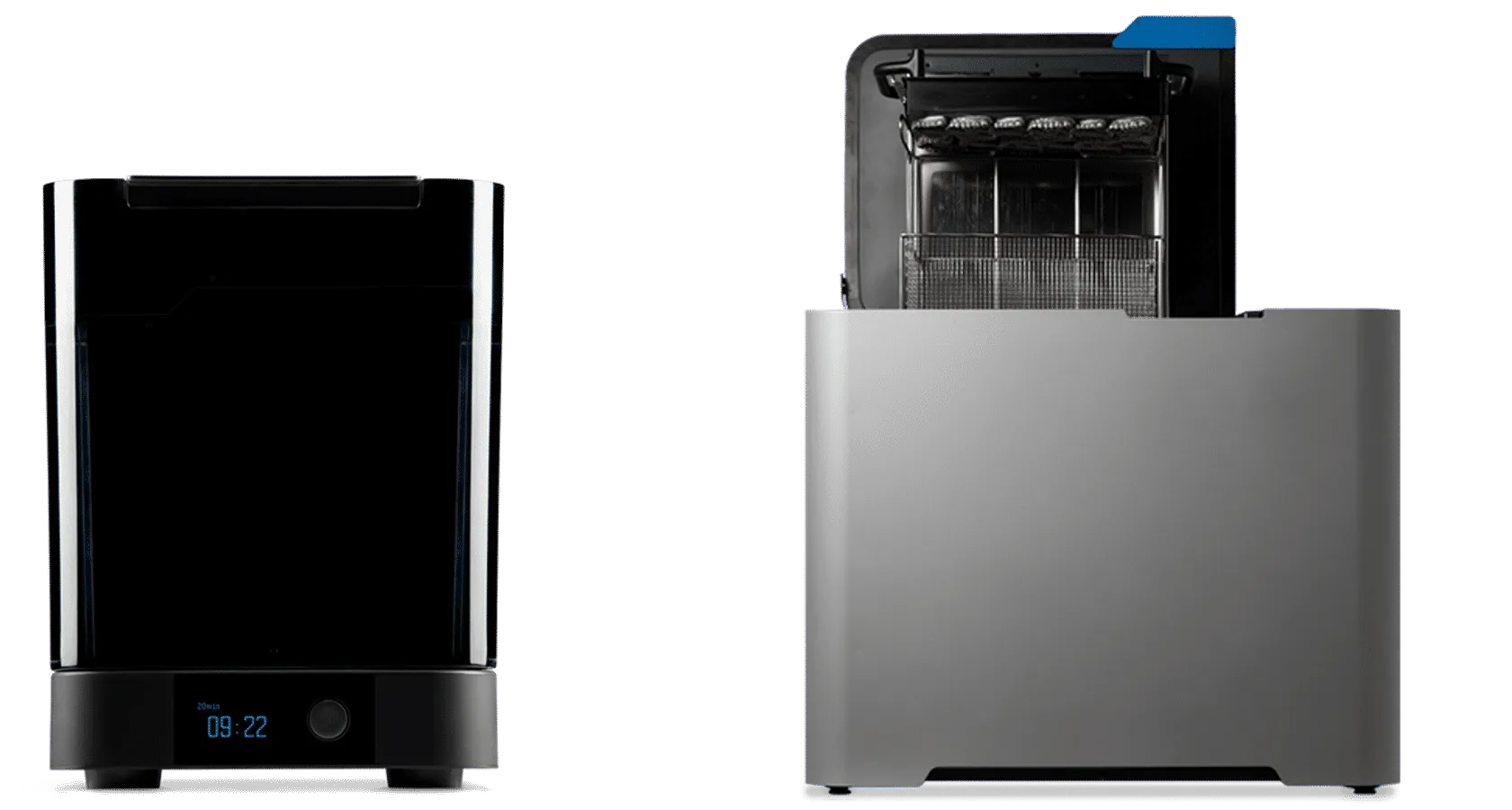

Formlabs Form Wash

15min
legal disclaimer form wash and form wash l are products of formlabs inc because these products are not manufactured by carbon, the following disclaimer applies to formlabs hardware it does not apply to carbon’s hardware, software, resins or accessories the training contained herein includes the product manufacturer’s information available as of the release date of this course this information is subject to change from time to time without notice you are responsible for determining that such information is correct and current as of the date of use and sufficient for your intended purpose training sources https //support formlabs com/s/article/using the form wash l?language=en us(opens in a new tab) https //support formlabs com/s/article/using form wash?language=en us(opens in a new tab) https //support formlabs com/s/article/manuals and documentation?language=en us#form wash form cure overview carbon now offers another option for washing parts formlabs form wash and form wash l! these washers are validated to clean dpr 10 models printed on your carbon printer more applications are in the process of validation the formlabs form wash and form wash l washers clean printed parts using isopropyl alcohol (ipa) and magnetically coupled impellers parts are automatically lifted out of the solvent after cleaning to help prevent overexposure form wash and form wash l these washers are now validated to wash carbon printed parts using the following resins dpr 10 carbon is in the process of validating more resins stay tuned for updates in order to use form wash and form wash l, parts must be removed from the platform and placed into the basket the form wash and form wash l washers are available for purchase at formlabs website technical specifications specifications form wash form wash l dimensions (w x d x h) 262 × 293 × 340 mm 10 3 × 11 5 × 13 4 in height when open 640 mm (25 2 in) 780 × 460 × 670 mm 30 7 × 18 1 × 26 4 in height when open 1130 mm (44 5 in) weight (without solvent) 6 7 kg 14 5 lbs 56 7 kg 125 lbs minimum space requirement (w x d x h) 389 × 419 × 640 mm 15 3 × 16 5 × 25 4 in 1000 × 1200 × 1200 mm 40 × 48 × 48 in power requirements 100–240 v 2 0 a 50/60 hz 50 w input (na) 100–120 vac, 50–60 hz, 1 a max input (eu) 220–240 vac, 50–60 hz, 1 a max bucket volume 8 6 l 37 9 l 10 us gal all specifications, safety, operation and maintenance information are owned and created by formlabs and subject to change please go to formlabs com for the latest information product manuals and links the latest information can be found on the formlabs website use the links below to find specific information form wash manual (available in multiple languages) safety operation maintenance form wash l manual (available in multiple languages) safety operation maintenance validated resin workflows dpr 10 solid and hollow models printed with dpr 10 are compatible with form wash and form wash l follow carbon's recommendations below solvent wash time 99% ipa 5 minutes workflow for single wash unit remove models from the platform for hollow models, drain excess resin for about 5 minutes before washing place models in basket in a single layer do not stack for hollow models, orient models so the occlusal surface is facing up occlusal surface is facing up this will result in the intaglio surface being oriented down toward the impellers set wash time to 5 minutes begin wash cycle when complete, remove parts from basket and continue post processing workflow for two form wash units if you have two form wash units, you have the option to set up one for primary washes and the other for rinse washes, similar to the workflow with the orbital shaker remove models from the platform for hollow models, drain excess resin for about 5 minutes before washing place models in basket of primary washer in a single layer do not stack for hollow models, orient models so the occlusal surface is facing up this will result in the intaglio surface being oriented down toward the impellers set wash time to 3 minutes begin wash cycle when complete, remove parts and transfer to basket of rinse washer in a single layer do not stack for hollow models, orient models so the occlusal surface is facing up set wash time to 2 minutes begin wash cycle when complete, remove parts from basket and continue post processing guidelines for models per wash overloading the washer will compromise cleanliness follow the recommendations below to maximize yield m2 / m3 m3 max l1 form wash up to 1 platform of models up to half a platform of models not recommended form wash l up to 2 platforms of models up to 1 platform of models about a half a platform of models guidelines for soil load range soil load describes the amount of resin in the solvent the greater the soil load, the less effective the solvent will be consult to measuring the resin concentration of ipa learn about measuring the soil load in the form wash and form wash l form wash form wash l maximum recommended soil load replace solvent at about 4% soil load replace solvent at 2 4% soil load soil load levels are approximate and may change depending on part quantity and geometry soil load levels are approximate and may change depending on part quantity and geometry carbon recommends testing different solvent levels and solvent replacement times to optimize the washing workflow
