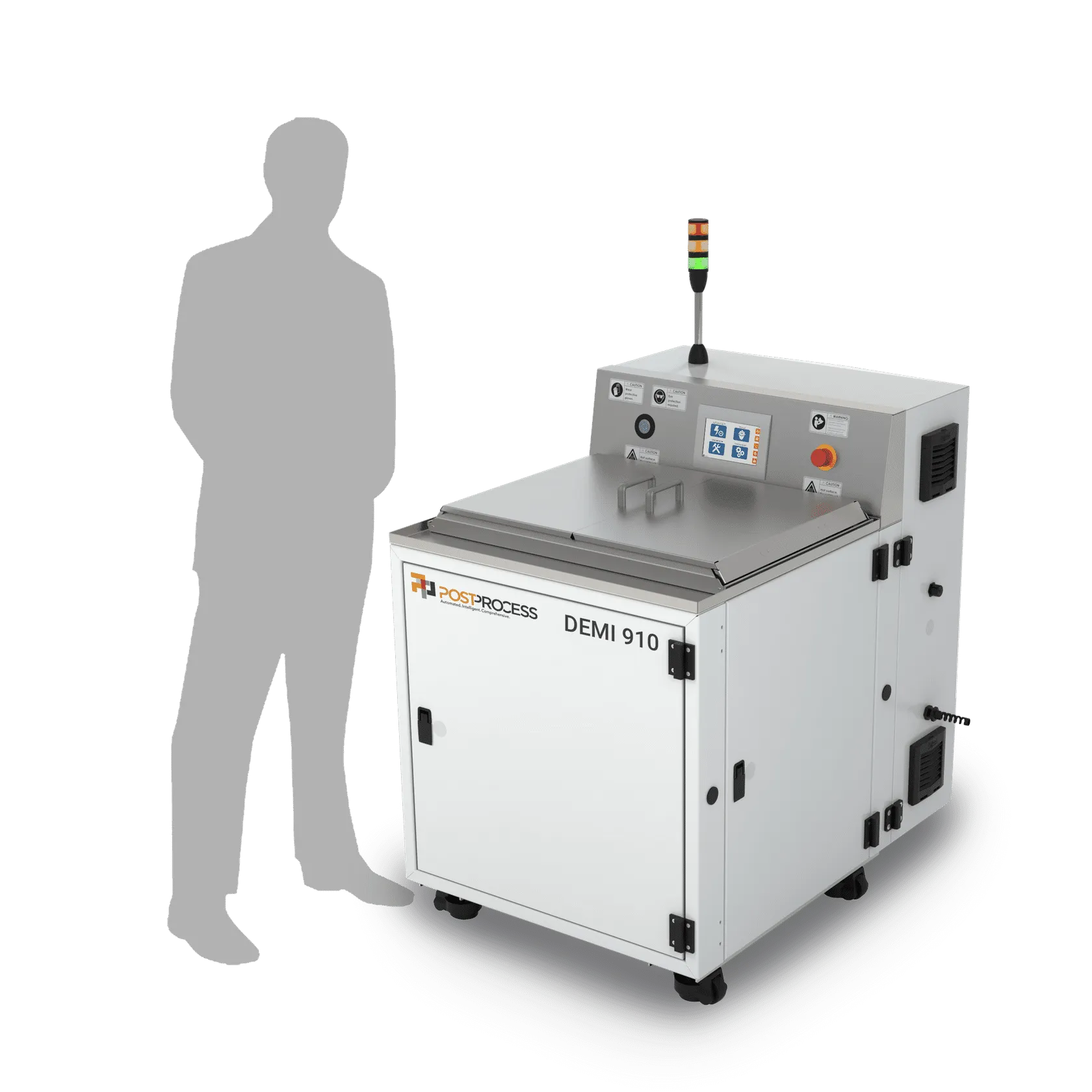

PostProcess DEMI 910

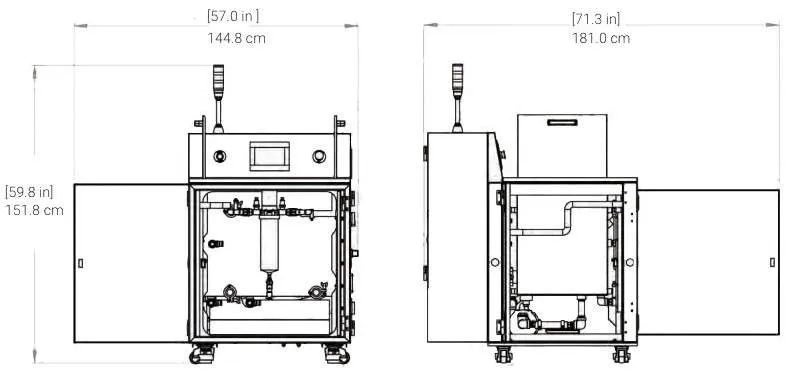

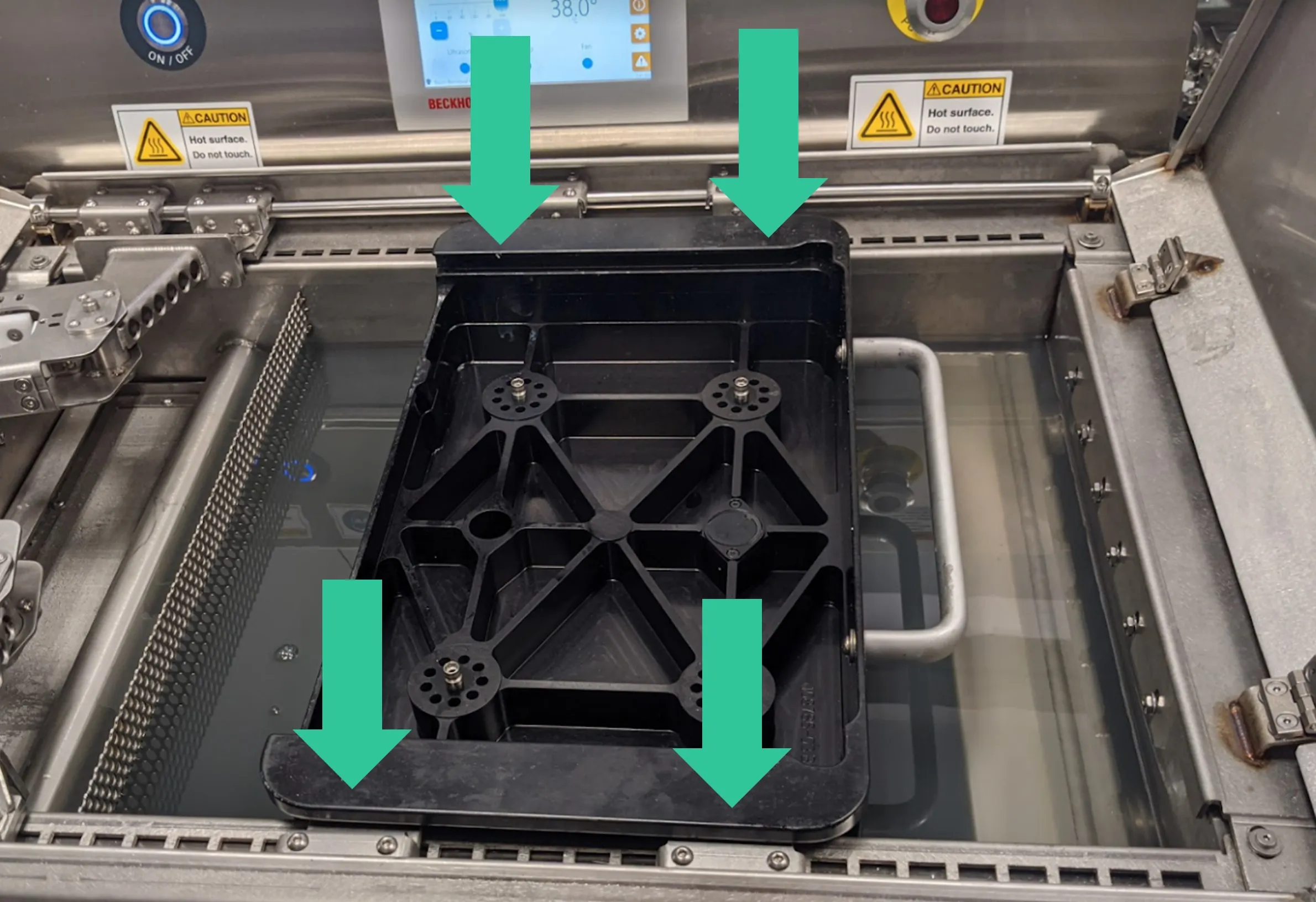

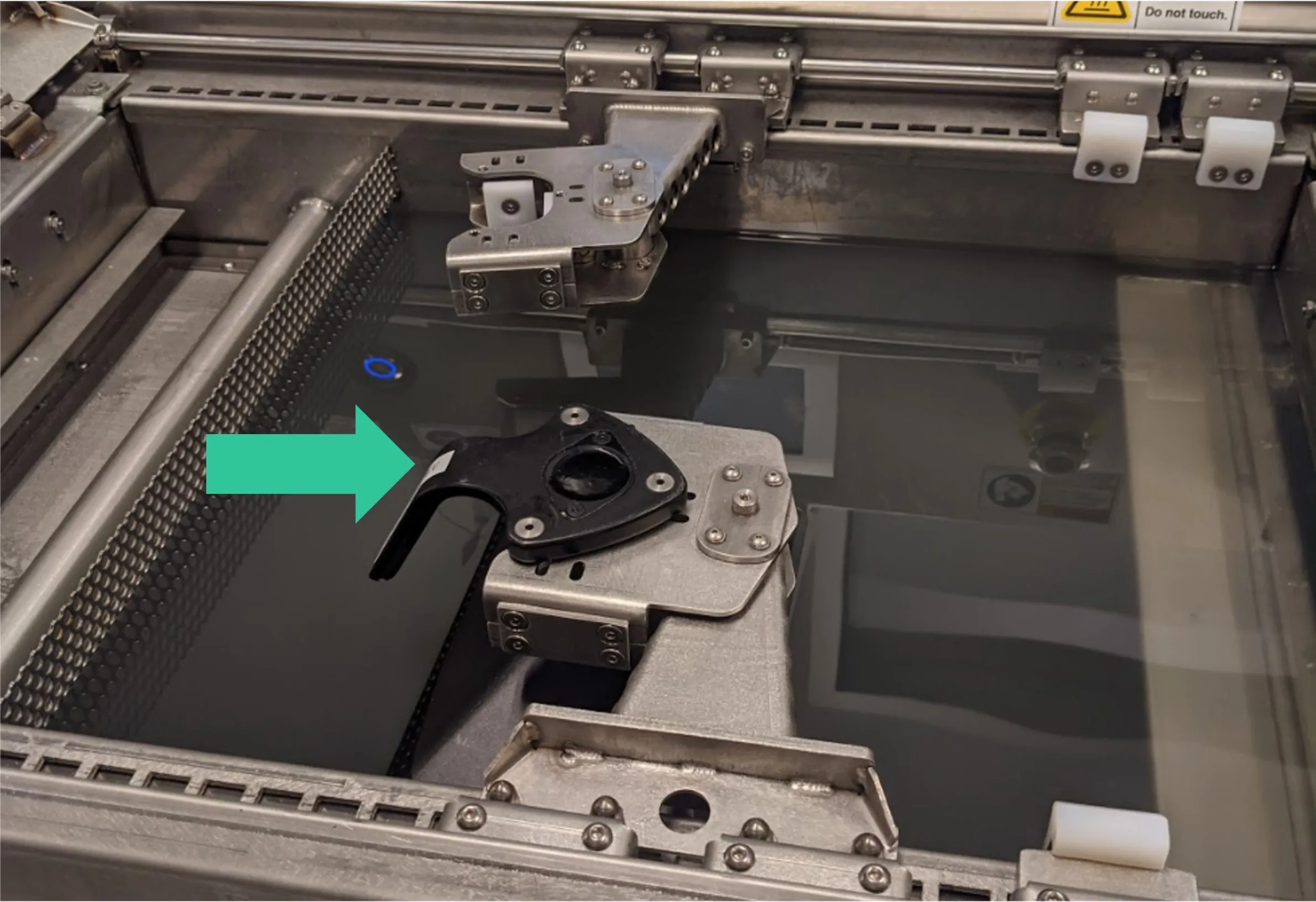

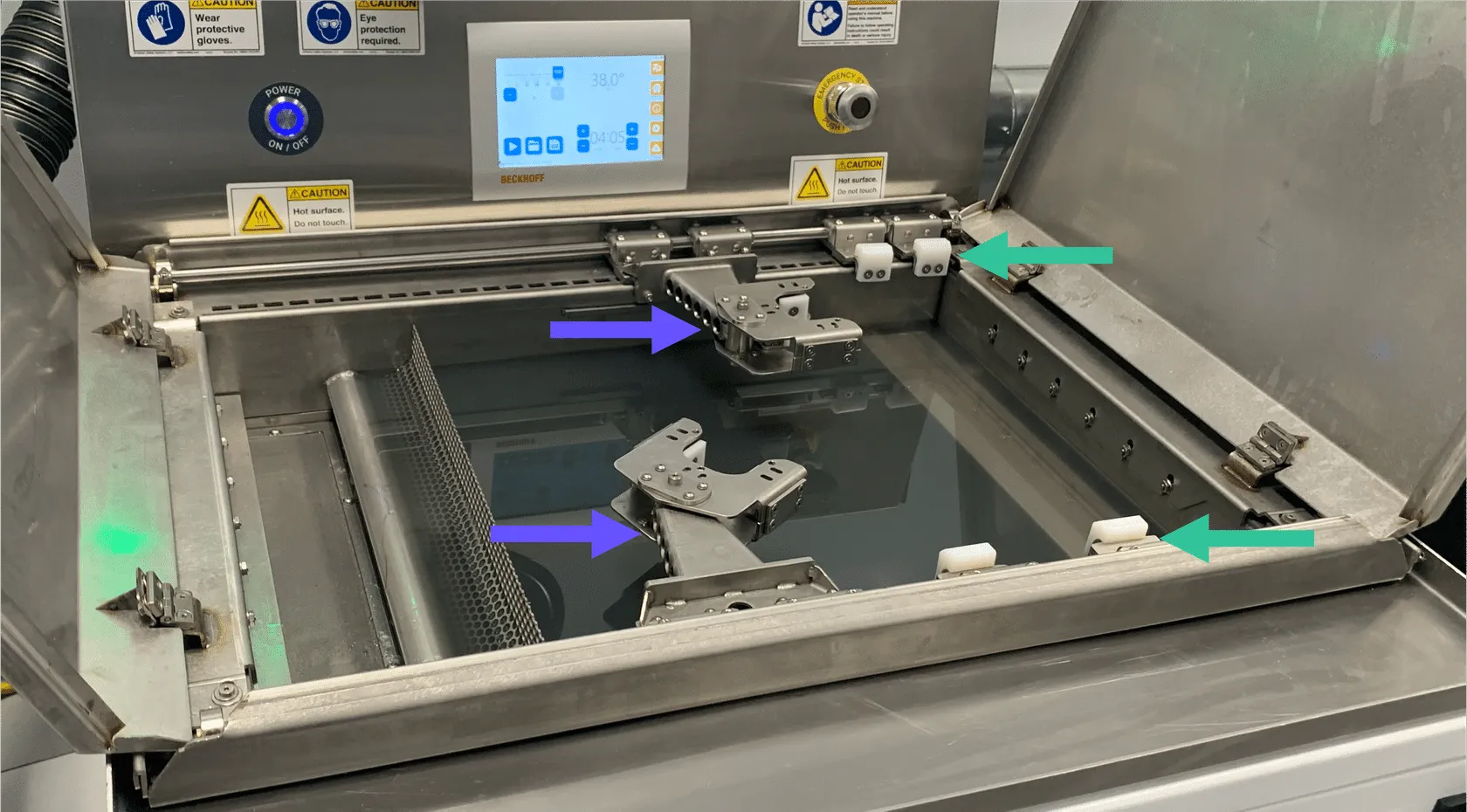

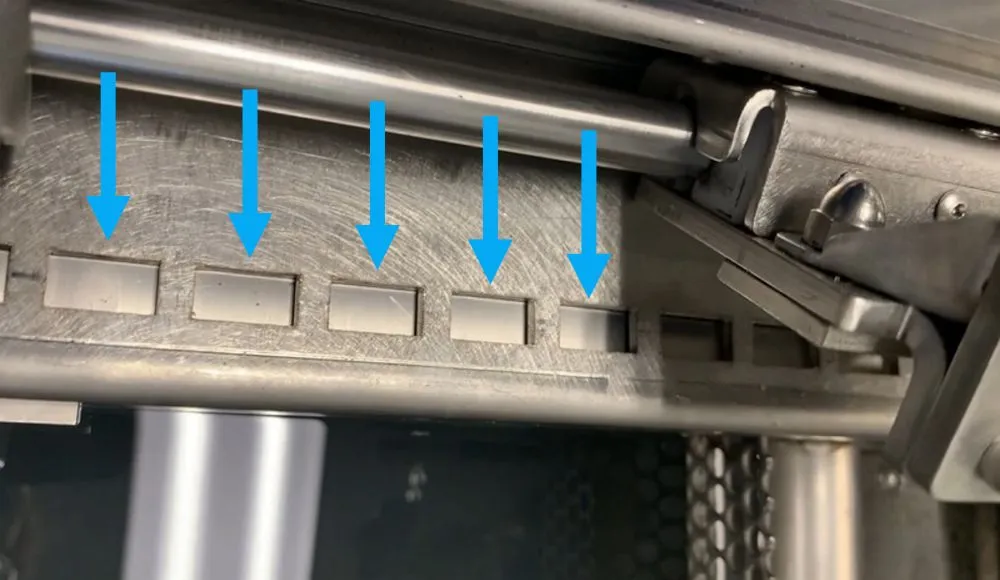

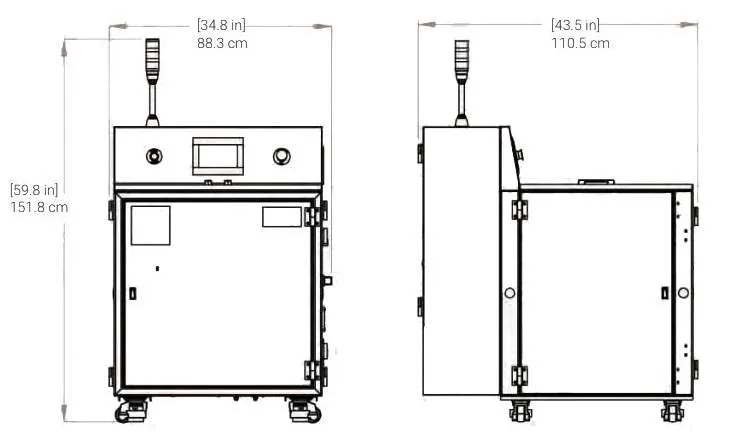

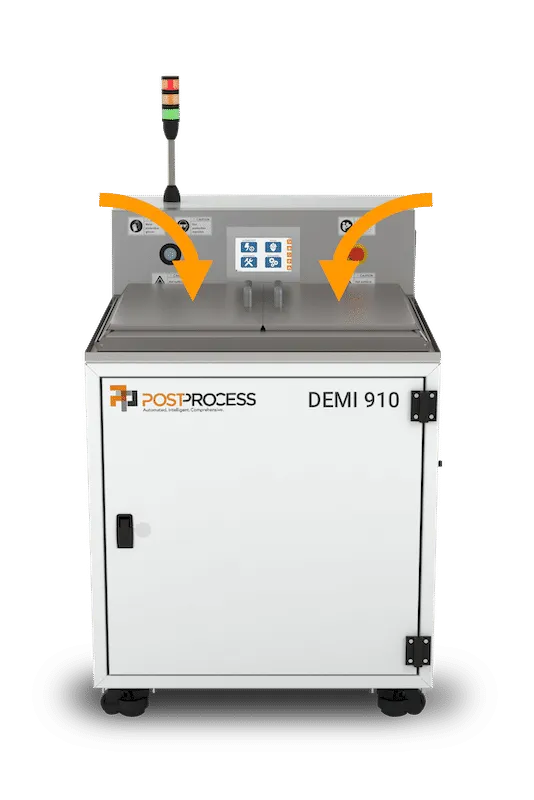

overview the postprocess demi 910 enables the on platform washing of parts made with m and l series carbon printers this guide will show the unique to carbon operation of the demi 910 refer to the operator's manual for general use instructions dimensions access panels open access panels closed go to the postprocess demi 910 website for user manual containing specific information on safety, site prep, installation, operation, maintenance, and troubleshooting solvent sds postprocess contact info operation two m1/m2 platforms or one l1 platform can be placed in the washer at one time m3 and m3 max platforms are not currently compatible with demi 910 brackets fixture adjustment this applies to both m series m series and l1 brackets l1 brackets tilt fixture up and away from the solvent and slide sideways along the rail to the desired location lower fixture down towards solvent make sure to seat the tab on the underside of the bracket arm into the rectangular notches on the rail rectangular notches on the rail to prevent sideways motion m series fixture adjustment video mount the platform in the bracket place your platform in the m or l1 fixtures as shown below do not submerge the mount of the m series platform or allow solvent into the cavity on the underside of the l1 platform! m series platform l1 platform start the wash cycle close the lid and start the wash cycle rinse parts as soon as the wash is complete, remove the platform from the demi 910 post dunk the parts in ipa for 10 vertical dunks on platform to displace the solvent and let dry for at least 30 minutes before curing or baking wash settings carbon has tested the demi 910 using the plm 450 sub solvent with the resins listed in the table below use the table to set the proper ultrasonics and wash time use the shortest effective wash cycle longer solvent exposure times may degrade material properties resin % ultrasonics time (start) time (maximum) rpu 130 100 2 min 6 min rpu 70 100 2 min 6 min epx 82 & epx 86fr 100 2 min 4 min epu 41 100 2 min 6 min uma 90 100 2 min 6 min ind 405 100 2 min 6 min mpu 100 100 2 min 6 min dpr 10 100 2 min 6 min recommended starting point parts may be washed for less time if sufficiently clean washing beyond the recommended maximum time could lead to degradation of material properties carbon does not recommend washing sil 30 with the demi 910 plm 450 sub solvent is not compatible with the carbon smart part washer support for questions and support for the demi 910 series hardware or software, please contact postprocess technologies 2495 main street, suite 615 buffalo, ny 14214 usa +1 866 430 5354 support\@postprocess com postprocess technologies international les aqueducs b3 535 routes des lucioles 06560 sophia antipolis, france +33 (0)4 22 32 68 13 for questions and support related to washing parts made with carbon resins, please contact support\@carbon3d com
