Dreve PCU LED

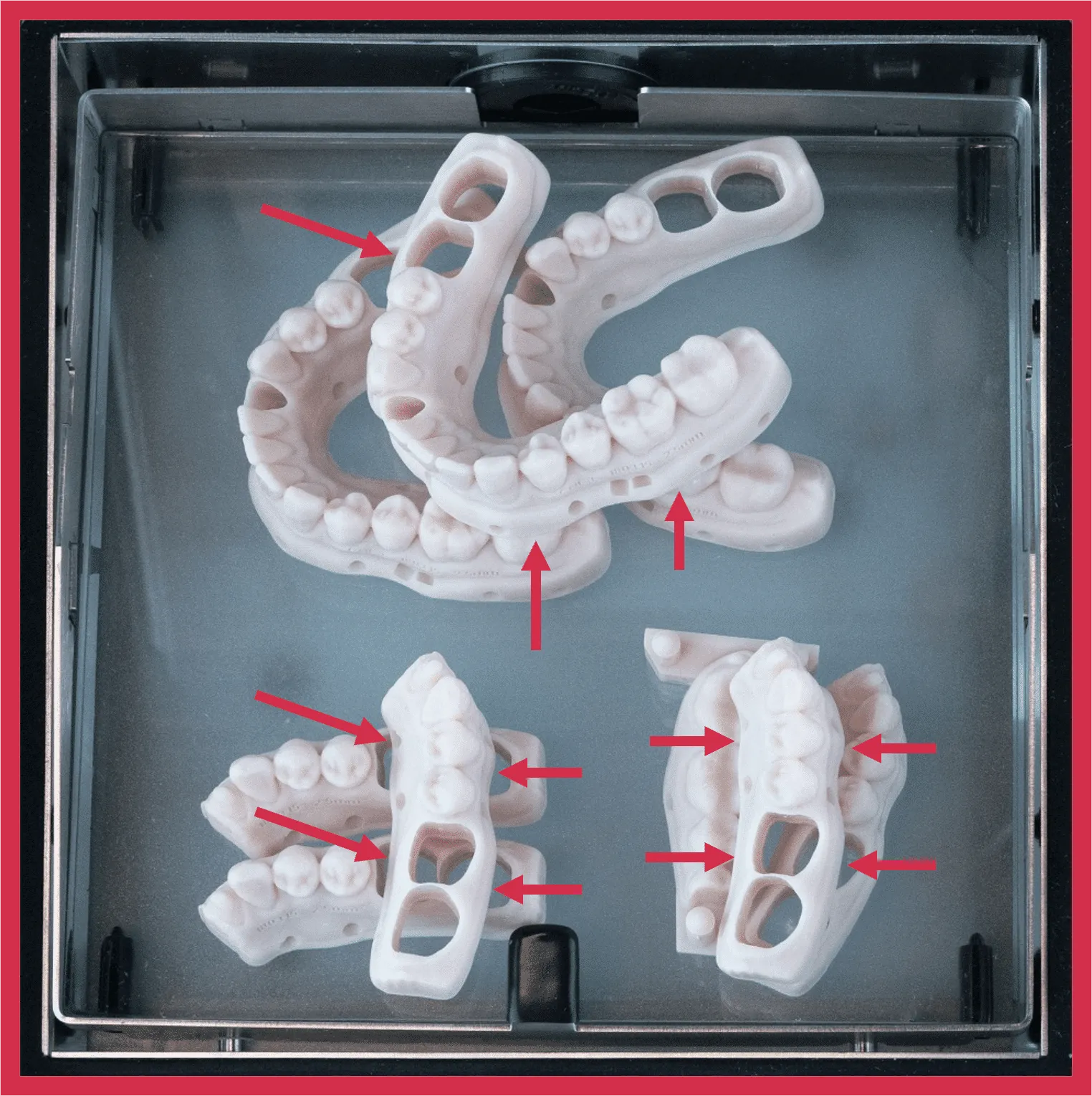

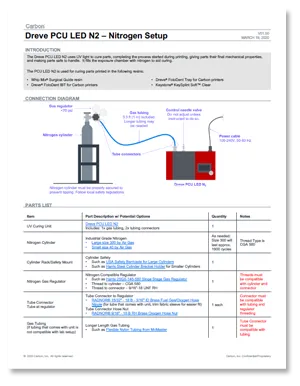

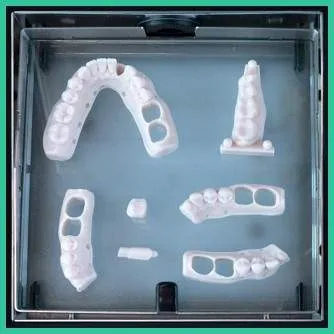

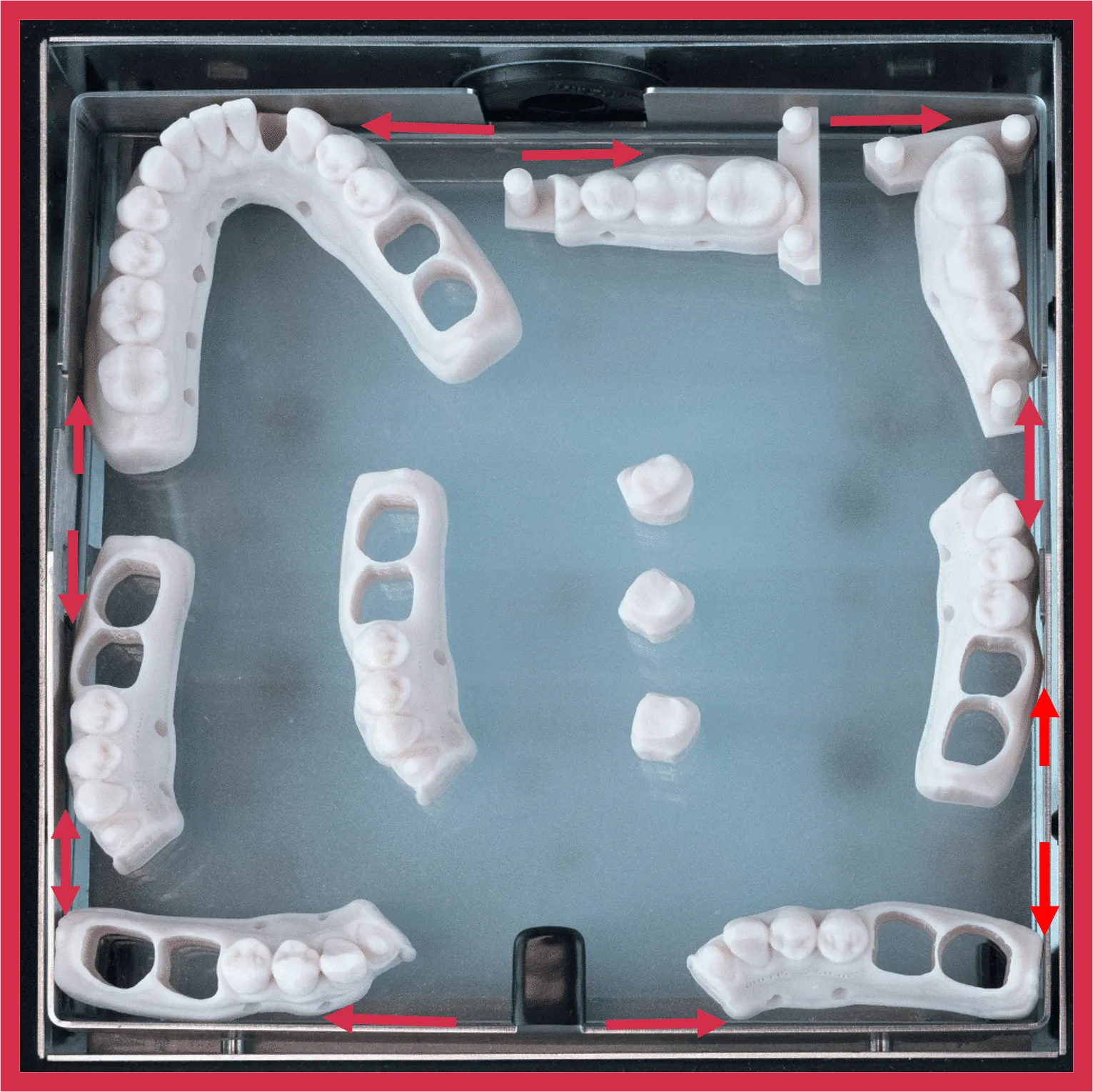

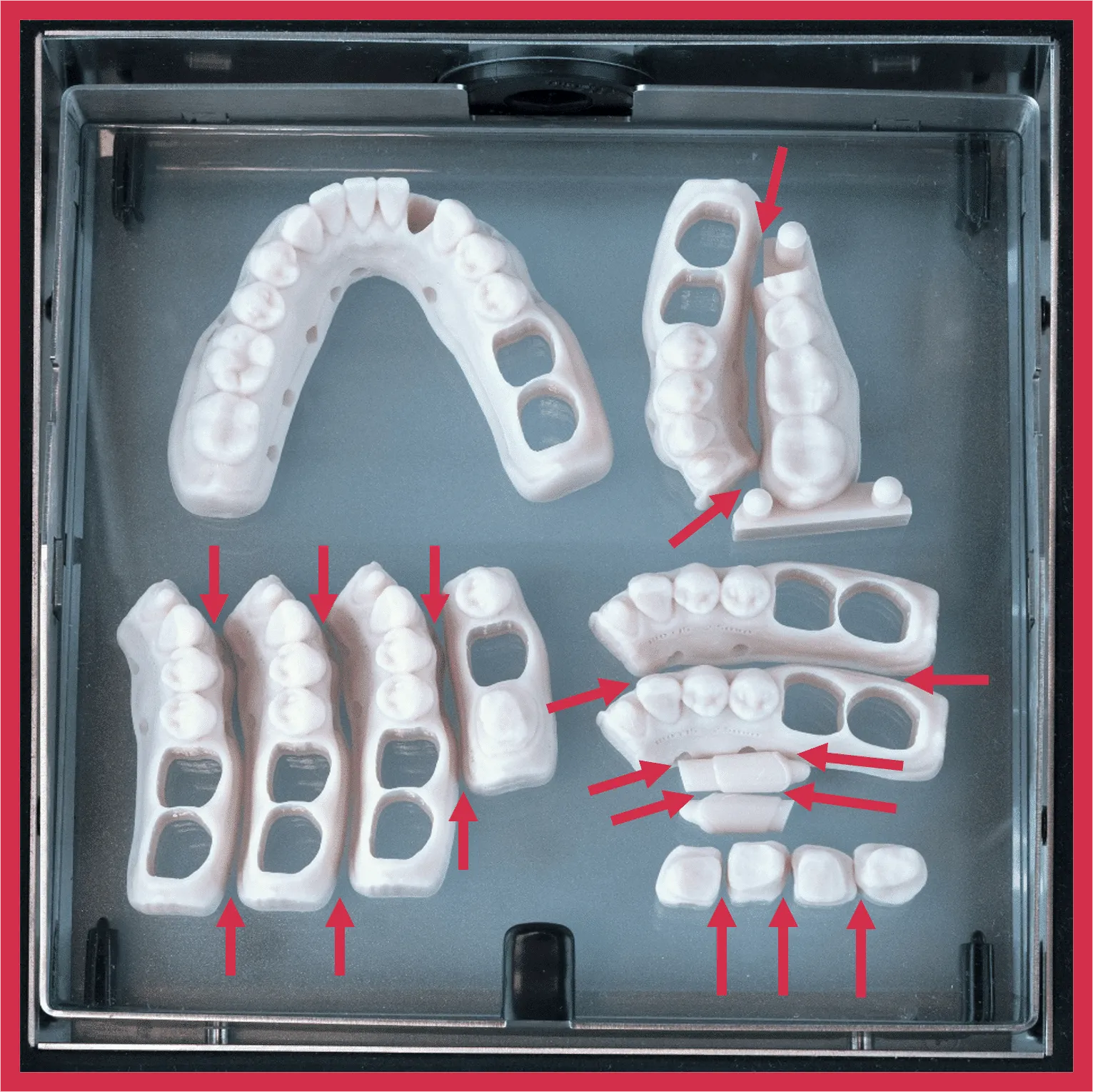

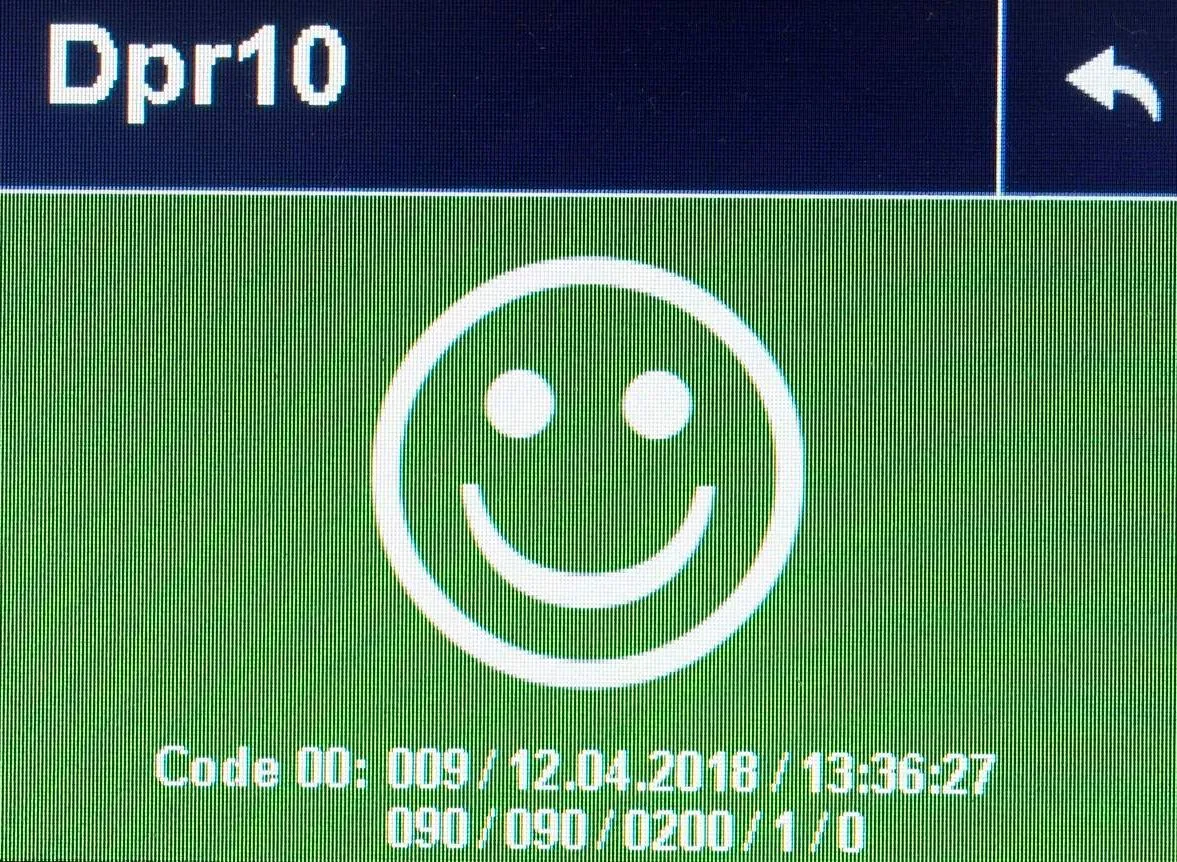

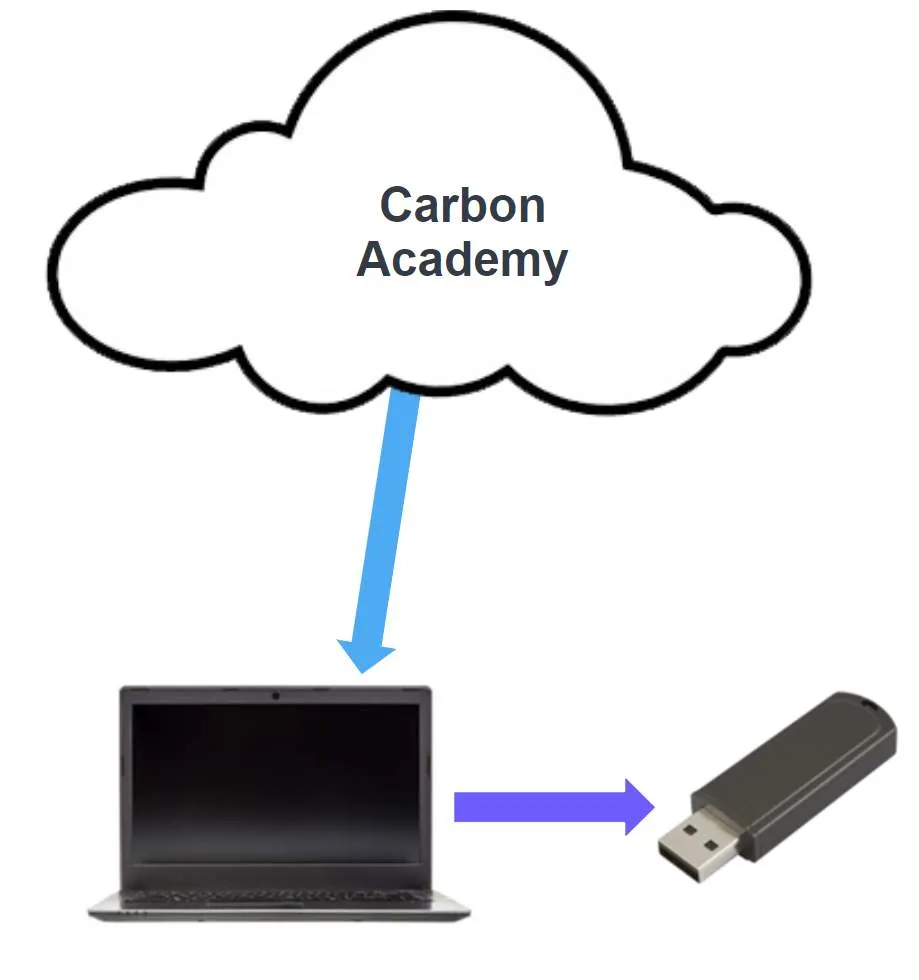

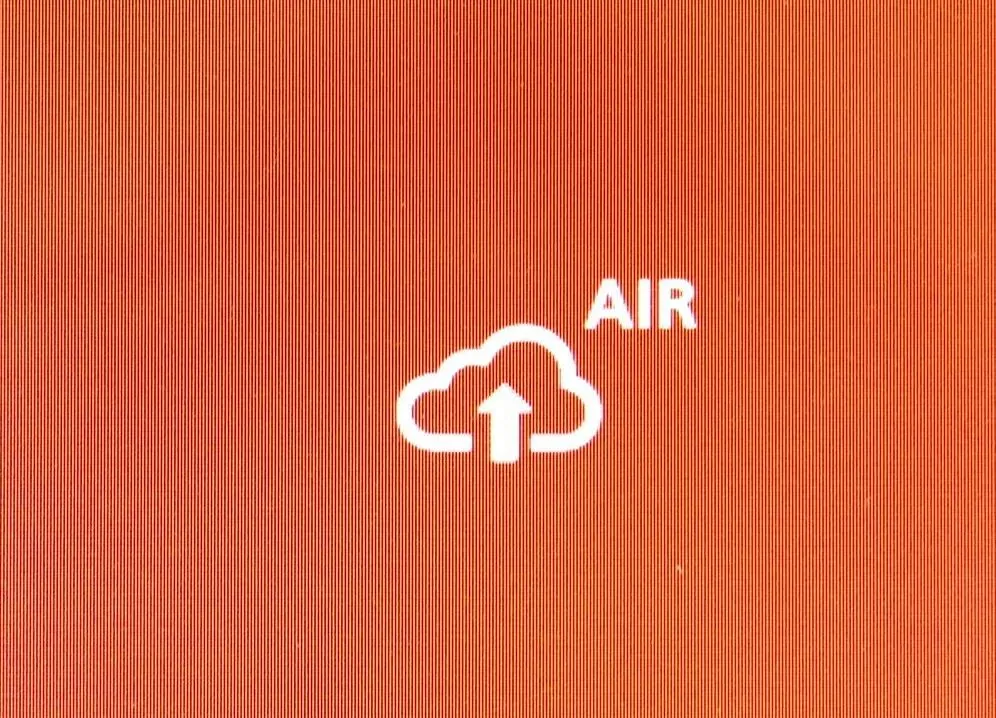

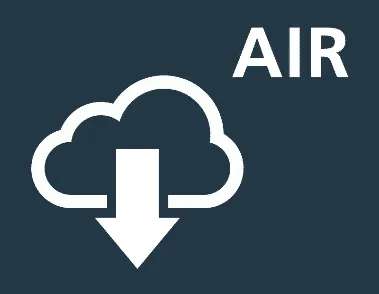

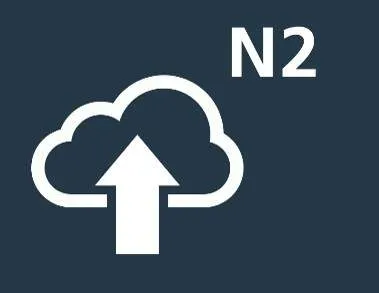

overview the dreve pcu led uses uv light to cure parts, completing the process started during printing, giving parts their final mechanical properties and making parts safe to handle it can create a vacuum in the exposure chamber or fill the exposure chamber with nitrogen to aid curing curing basics led lamps are located above and below the curing chamber parts rest on transparent glass platform uv light comes from above and below and cures most parts without rotating them orientation 1 orientation 1 all surfaces exposed to uv light 1 pass cure all surfaces exposed to uv light 1 pass cure orientation 2 orientation 2 all surfaces exposed to uv light 1 pass cure all surfaces exposed to uv light 1 pass cure orientation 3 orientation 3 significant percentage of surface area not exposed to light part will need to be rotated and cured again to achieve full cure significant percentage of surface area not exposed to light part will need to be rotated and cured again to achieve full cure features light sources light sources on both the top and bottom of chamber allow for consistent curing without the need to flip parts the rotary button is used to select resin programs, start the curing process and perform administrative tasks carbon recommends always using the removable glass platform removable glass platform to cure parts this ensures a more uniform cure since parts will be centered between light sources keeps glass right above lower light source free of resin buildup 1 5” part height maximum when using platform there are 3 different curing environments available vacuum, nitrogen and air see exposure atmospheres below for details led lamps do not generate heat so parts may go through multiple cure cycles without pausing for cooling the unit needs to be configured before use to create the options for proper curing go to dreve pcu led /#configuring the dreve pcu led below front lid handle display rotary button rear usb port power connector power switch nitrogen purge valve nitrogen connector display resin program curing time remaining pressure (mbar) rotary button exposure atmosphere air/vacuum/nitrogen exposure icon on/off vacuum warning indicates vacuum in exposure chamber do not open the door when this is displayed doing so will destroy the sealing in the chamber final process screen indicates exposure process is complete exposure atmosphere vacuum this option creates a vacuum in the exposure chamber and is used for curing many resins including dpr 10 vacuum release must complete before opening the door otherwise, the unit may be damaged nitrogen this option fills the exposure chamber with nitrogen (n2) and is used for curing resins including pac dent rodin sculpture air this option leaves the exposure chamber filled with the ambient air in the room and is not currently used for curing note these options cannot be run at the same time operation note be sure your part is completely dry before curing 1 put on new pair of gloves your gloves will be soiled from washing your part changing your gloves minimizes resin contamination of the pcu led and the workspace 2 insert removable glass platform glass platform inside chamber the glass platform allows for more consistency since parts will be more centered between light sources if your dreve pcu led box did not include a removable glass platform, please contact carbon support 3 turn on the power switch power switch on the back of the unit 4\ center parts center parts on removable glass platform parts should not touch the sides of the chamber or plastic handle to prevent any uncured surfaces parts can be placed close together, but should not overlap or touch other parts 5 use handle to close the lid 6 rotate the rotary button rotate the rotary button until the proper material program is displayed in white 7\ push the rotary button twice rotary button twice to select and start the selected resin program 8 if a vacuum program has been selected, the pressure indicator will begin decreasing once vacuum is achieved ( 150 mbars), the exposure icon and the exposure atmosphere indicator will turn green at the same time, the clock will begin counting down as the parts in the exposure chamber are cured with light 9 a green screen with a smiley face will display once the exposure cycle is complete if the screen is red, you will need to wait for the vacuum to be released so that you can open the lid without damaging the pcu led part placement proper part placement requires that light has a clear path to all part surfaces leave at least 3 mm (0 125 in) around each part to ensure proper curing failure to properly arrange parts will result in partially cured parts that are not fit for use parts touching each other parts touching each other no no light cannot get between touching parts leaving uncured areas light cannot get between touching parts leaving uncured areas parts touching sides no parts touching sides no light cannot get to surfaces where parts touch sides of chamber leaving uncured areas light cannot get to surfaces where parts touch sides of chamber leaving uncured areas parts stacked no parts stacked no light cannot get between touching parts leaving uncured areas light cannot get between touching parts leaving uncured areas parts separated from each other and sides yes parts separated from each other and sides yes light can easily get to all part surfaces light can easily get to all part surfaces maintenance daily wipe glass surfaces (platform, lid, and chamber floor) (platform, lid, and chamber floor) with ipa and lint free kimwipe it is very important to avoid residue build up on these surfaces otherwise, the light intensity will be diminished and your parts may not be fully cured note cleaning of glass surfaces should also be performed when switching from one resin to another configuring the dreve pcu led configuration is necessary before initial install or when new resins or protocols are introduced this process requires a usb flash drive download the configuration file delete old versions of the pcu name txt file on your usb flash drive download the appropriate file dreve pcu led docid\ jlgbnwuiotywrcrmnptbk unzip the file named pcu name txt zip copy pcu name txt file onto usb thumb drive remove usb thumb drive from your computer do not open the file doing so will corrupt the file and make it unusable dreve pcu led configuration files the attached files contain configuration data for the dreve pcu led uv curing unit when uploaded via usb flash drive, they will create profiles to cure dental materials a video on how to upload these configuration files is linked to this course please note that the dreve pcu led cure units can only store 10 cure profiles therefore we offer different configuration files, consisting of different combinations of 10 resins if you need a custom configuration file, please contact carbon support configuration file 1 https //archbee doc uploads s3 amazonaws com/uxbzokjjtgpphjapq8fvm ngdniywel1c9hiuwurect 20250109 223843 zip this file contains the following resin cure programs dpr 10 keysplint soft clear keysplint hard clear and keyguide flexcera smile ultra+, flexcera base, flexcera base ultra+ and smileguard fotodent gingiva keydenture try in fotodent tray 2 0 pac dent rodin sculpture keyprint keyguard keysplint hard tinted configuration file 2 https //archbee doc uploads s3 amazonaws com/uxbzokjjtgpphjapq8fvm iazt mmcr8baxpniu3ffb 20250109 223902 zip this file contains the following resin cure programs dpr 10 keysplint soft clear keysplint hard clear and keyguide pac dent tray fotodent gingiva keydenture try in fotodent cast dentca flash dentca whipmix surgical guide access the configuration menu on the back of the unit, turn the power switch power switch on quickly push down and hold rotary button hold rotary button while pcu powers on hold until display shows configuration level configuration level menu enter admin mode with access code 217 display shows please insert access code please insert access code the first digit is red turn rotary button to change first digit to 2 2 press rotary button to accept the second number will turn red turn rotary button to change next digit to 1 1 press rotary button to accept the second number will turn red turn rotary button to change last digit to 7 7 press rotary button to accept the second number will turn red you are now in admin mode admin mode the screen will change and show the material library, vacuum setup and time settings upload new program data this will install all current carbon resin curing programs onto the dreve pcu led 1 turn rotary button to select data exchange data exchange and push button 2 select config import config import and push button 3\ config import will change to please insert media please insert media in red 4 insert usb drive into port on back of pcu port on back of pcu 5\ after a few moments, text will briefly change to data import data import in green then return to config import 6 scroll up to the back arrow back arrow and push rotary button to return to the configuration level menu 7 remove the usb drive from the back of the unit the dreve pcu led is now updated with the latest carbon curing programs choose resins to display you can select which resin programs to display as options for use for example, if you only print with dpr 10, you can hide all other resins select material library material library and push rotary button the display will show all resin programs all resin programs resins in green text are available for use resins in white text are unavailable for use toggle availability by selecting a resin and pushing the rotary button when you are finished, scroll up to the back arrow back arrow and push rotary button to go to the configuration level menu scroll up to back arrow again and push rotary button to go to the program menu program menu the display will show a list of available resin programs the dreve pcu led unit is now ready for use nitrogen setup the dreve pcu led requires nitrogen to cure certain resins nitrogen must be purchased separately the document below describes options for installing large and small nitrogen cylinders https //archbee doc uploads s3 amazonaws com/uxbzokjjtgpphjapq8fvm zrk6oekijzskdbl1vjaw5 20250519 232729 pdf product manual english & german/deutsch https //archbee doc uploads s3 amazonaws com/uxbzokjjtgpphjapq8fvm m0thjajo6byeh2inrz3rv 20250110 012510 pdf
