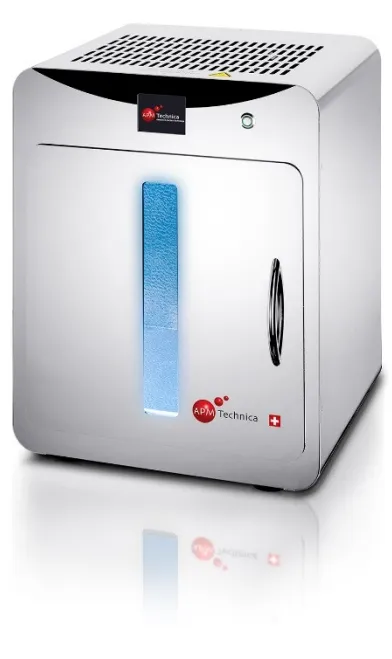

APM LED UV-Cube III

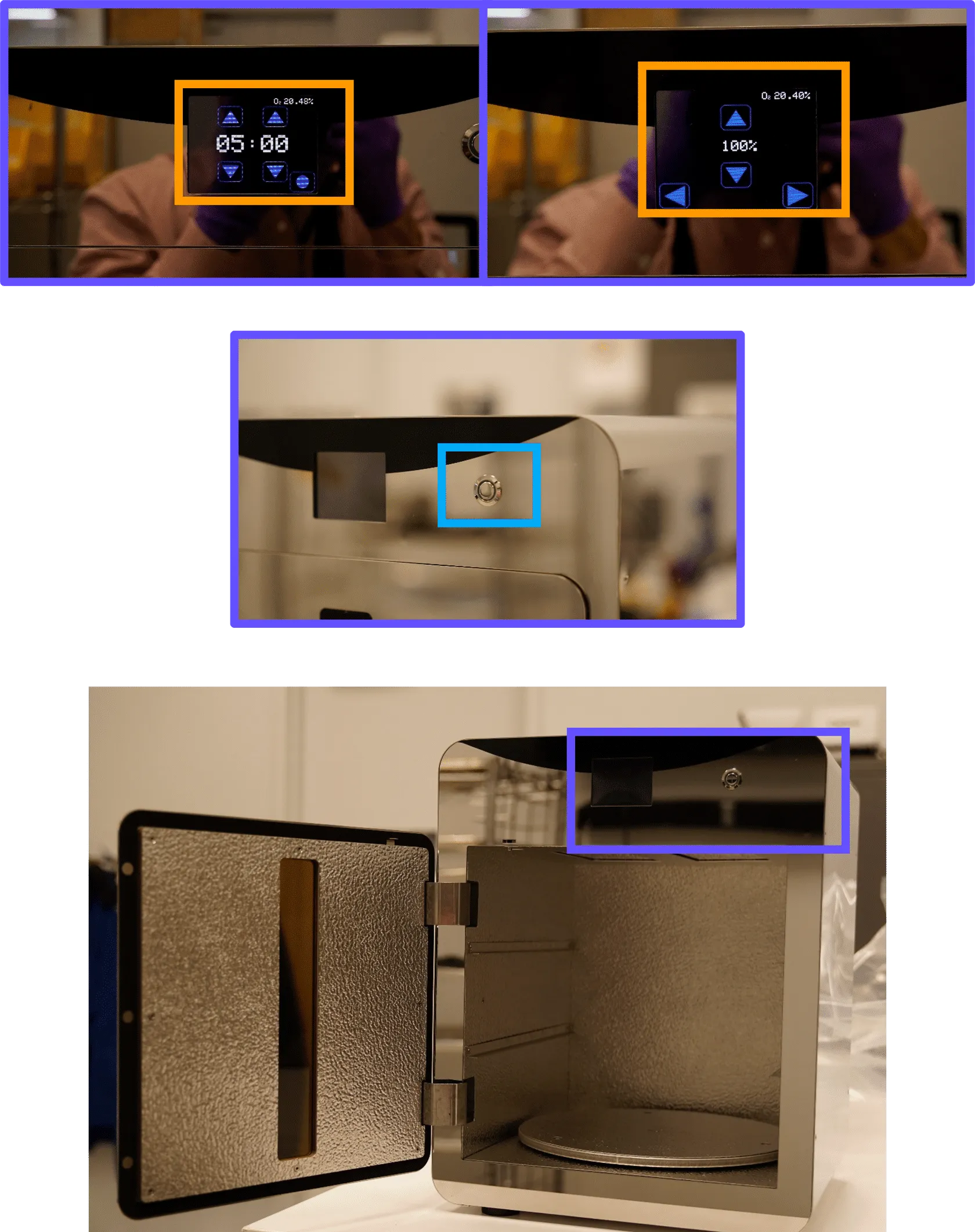

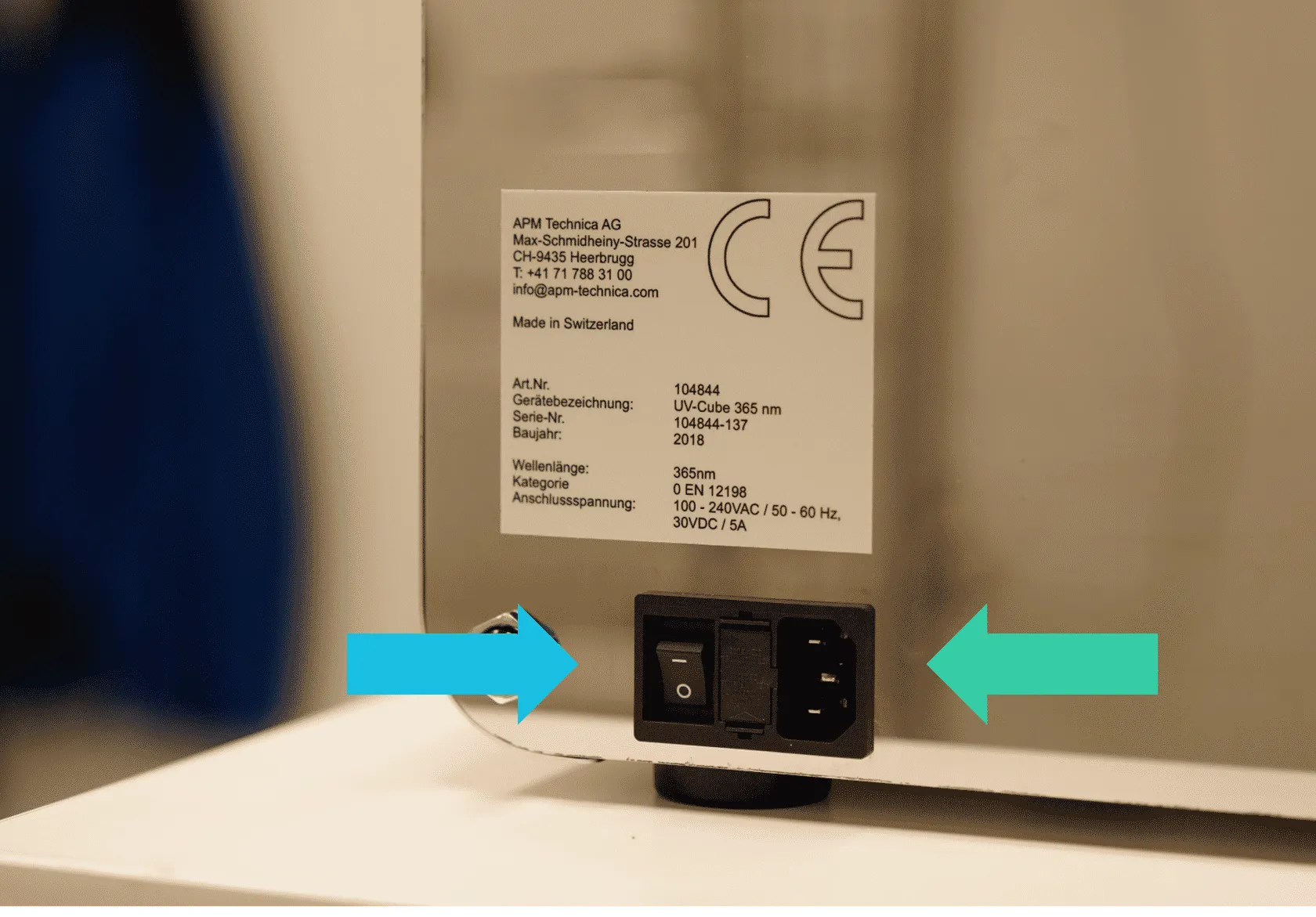

this information also applies to the legacy apm led uv cube ii setting up starting the apm led cube ii oven for the first time plug in your power cord plug in your power cord to the back of the oven, and the bottom left you will receive 3 power cords with your oven, choose the one that fits your outlet properly turn on the power turn on the power at the back of the oven, next to the power cord you should now be able to use the touchscreen and button on the front of your oven note use the oven at 100% intensity (default setting), but turn off your turntable and o2 sensor to turn off the o2 sensor, tap the arrow to get to the correct menu option and uncheck the o2 sensor (tap in the circle so it's no longer colored blue) the o2 % reading in the top right corner should disappear operation be sure your part is completely dry before curing put on a new pair of gloves your gloves will be soiled from washing your part always use clean gloves when operating the touchscreen use arrow buttons on the touch screen arrow buttons on the touch screen to set cure time and intensity according to the resin specific protocols (01 00 = 1 minute 00 seconds) place the parts to be cured in the center of the tray we recommend lining the clear plate with foil to keep them clean and only using 1 level at a time (never stacking parts on multiple levels) do not use both racks at the same time the light will not pass through the top rack if you need to use the bottom rack, remove the top rack before exposing close the door press the silver circular start button silver circular start button rotate the part and repeat until all surfaces have received uv light since the amp led cube iii does not produce heat, pausing between curing each side is not necessary video text use gloved hand to set timer (1 minute per side for uma 90) open door always use gloved hand to open door place part inside and close door press start button and wait for cure cycle to finish 10x speed open door, rotate part to cure oposite side and press start button continue rotating part until all sides have been cured 10x speed open door with gloved and and remove part with ungloved hand ungloved hand prevents transfer of uncured resin to cured part remove part from lab your part is now cured product manual apm led uv cube iii (current) https //archbee doc uploads s3 amazonaws com/uxbzokjjtgpphjapq8fvm njrlf6lmgpxtmlq3u it7 20250110 014417 pdf apm led uv cube ii (legacy) https //archbee doc uploads s3 amazonaws com/uxbzokjjtgpphjapq8fvm ehmysyumnftskzz1ctheh 20250111 002814 pdf
