DPR 10 Drum Pump

12 min

Overview

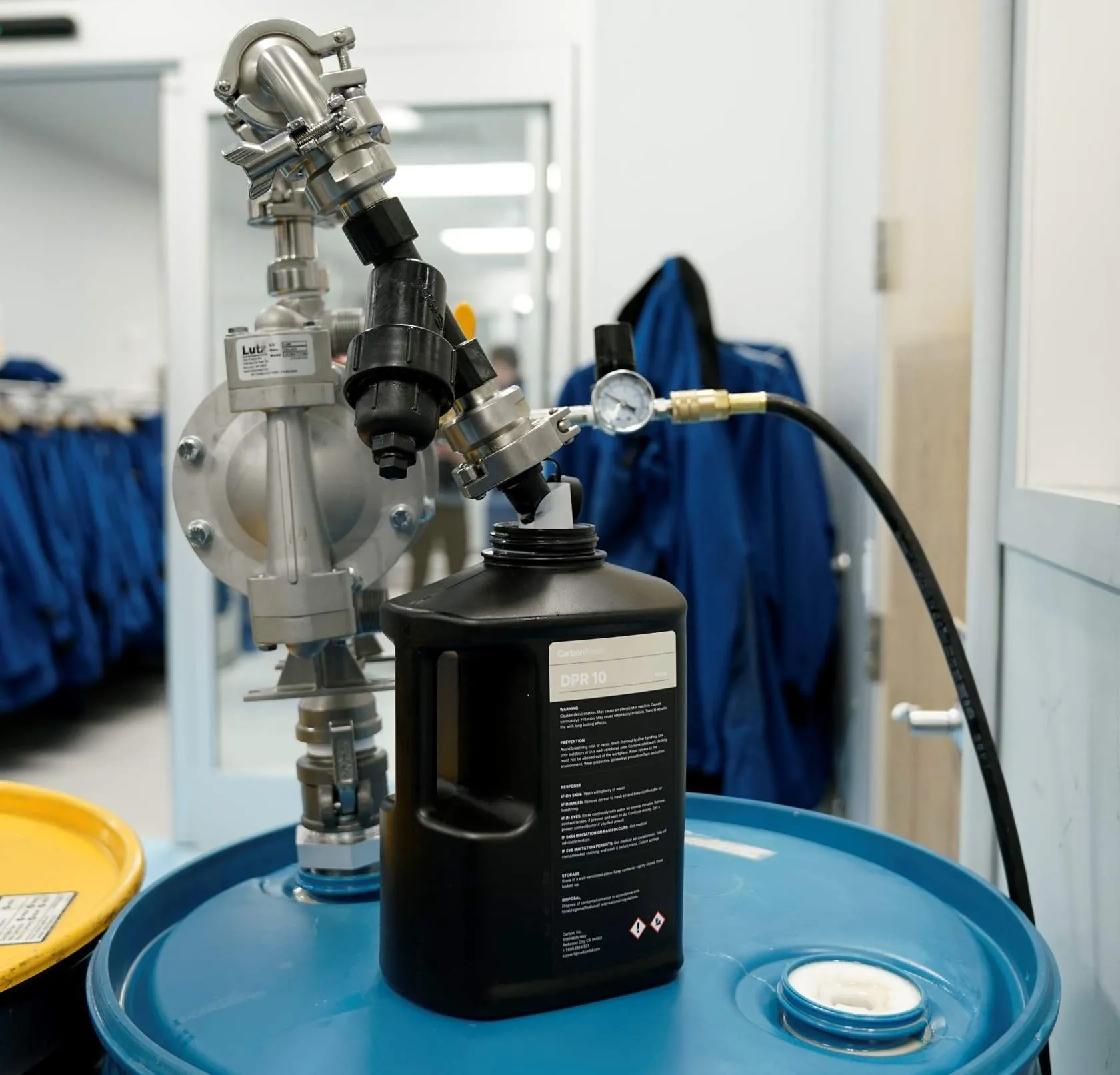

The drum pump is an air-powered device that may be used to pump DPR 10 resin from a 55-gallon drum and dispense it into a secondary container such as a 3.2 liter DPR 10 bottle.

Features

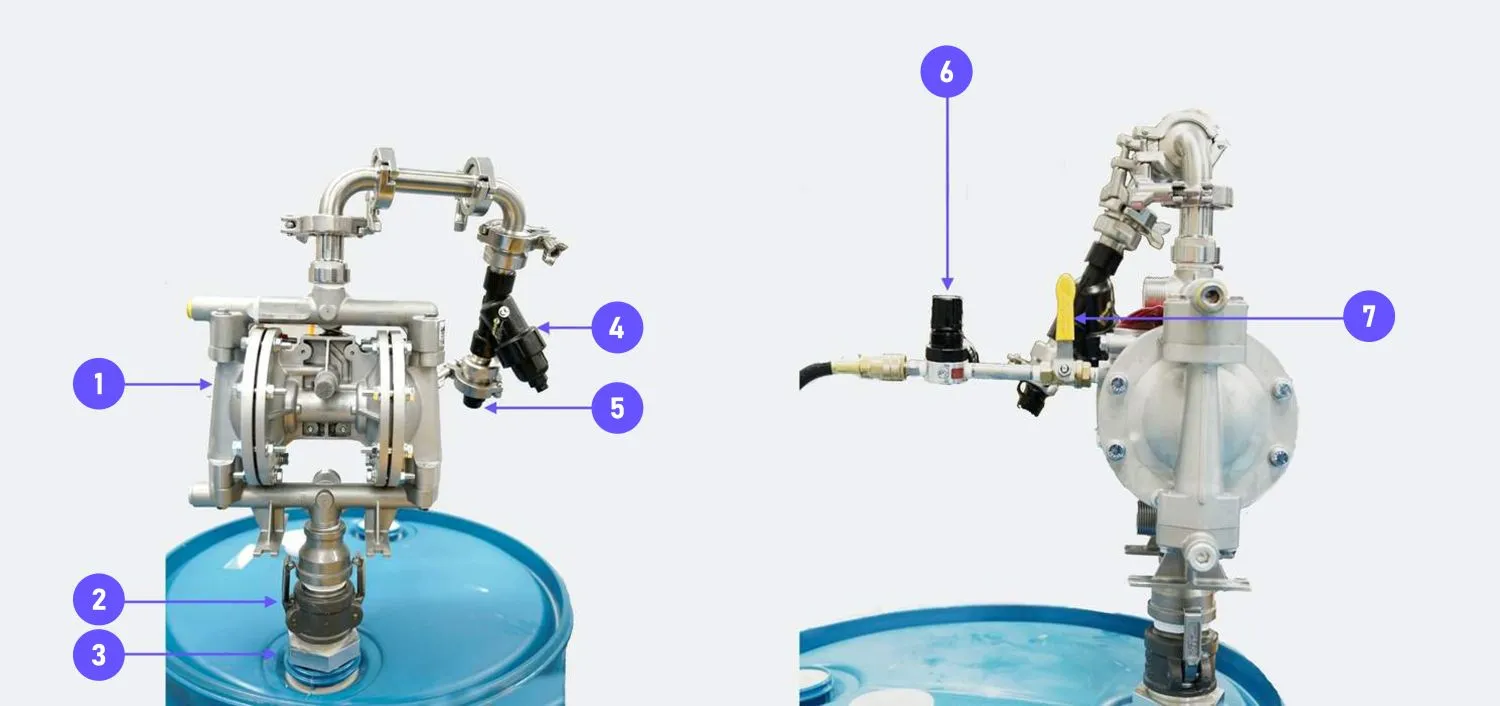

Drum Pump

Pump head

Cam Lock

Draw tube (top)

Strainer

Spigot

Pressure regulator

Air valve

Drum

Closed-head drum

Drums are typically made from HDPE: GP-55 Extrusion blow molded high molecular weight high density polyethylene (HMW-HDPE)

Bung head size fitting are typically 2" BTR and 2" NPS

Installation

Draw Tube Installation

1. Use a drum plug wrench to unscrew the NPS threaded cap from top of 55-gallon drum of DPR 10.

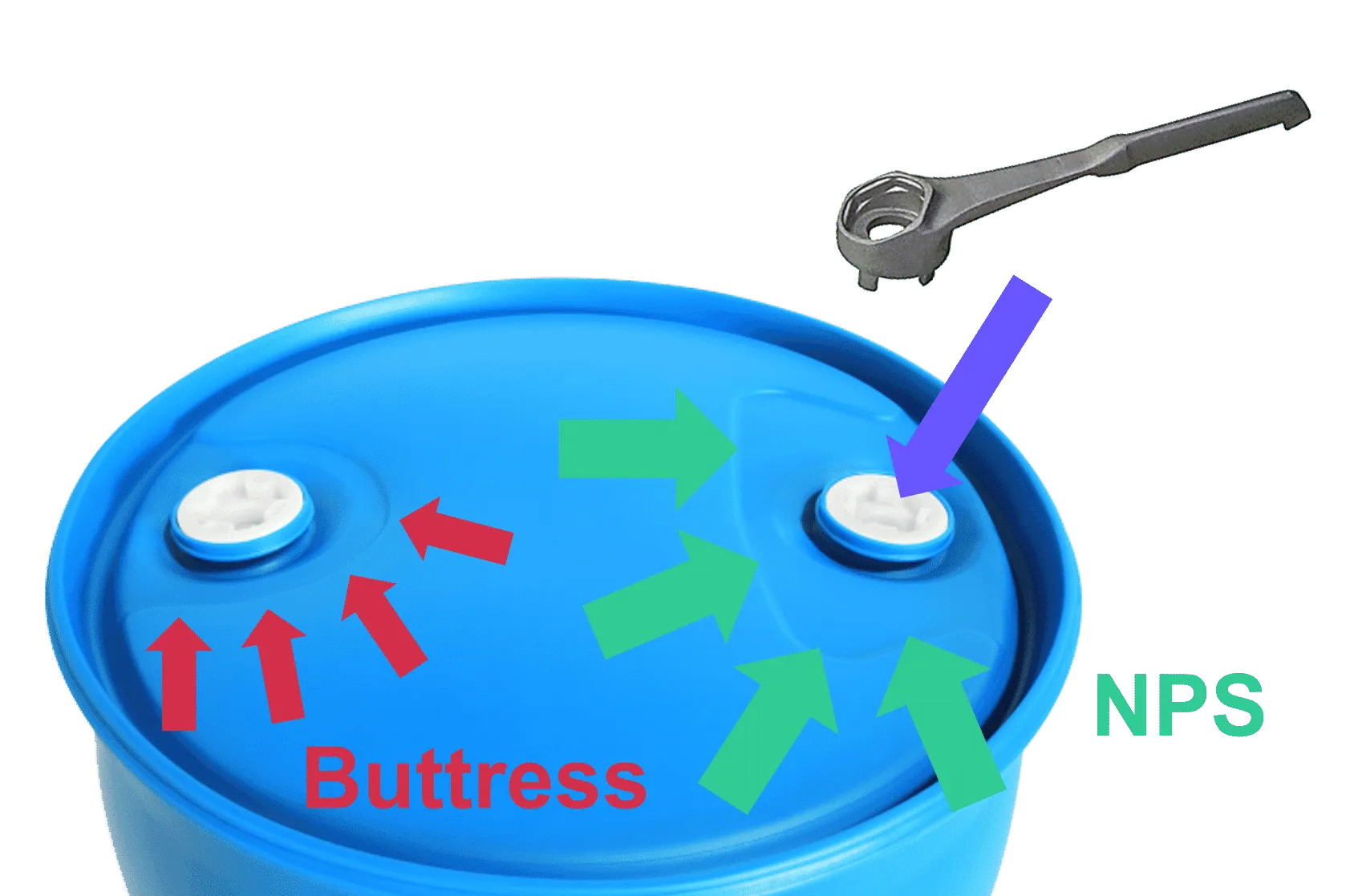

a. NPS threaded cap can be identified by the larger relief area around the opening.

b. The draw tube will not properly thread onto the buttress cap with the smaller relief area.

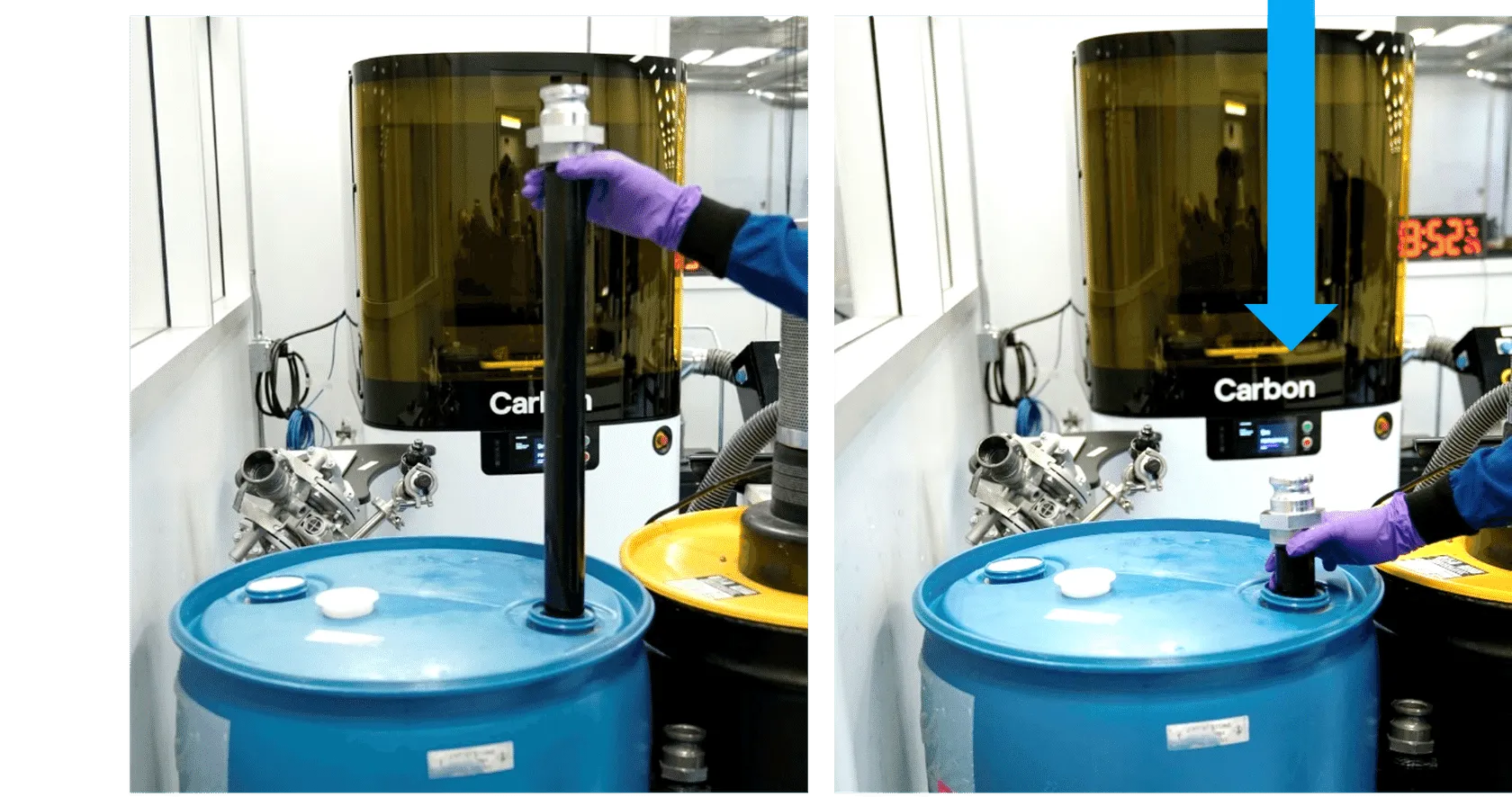

2. Insert draw tube into hole.

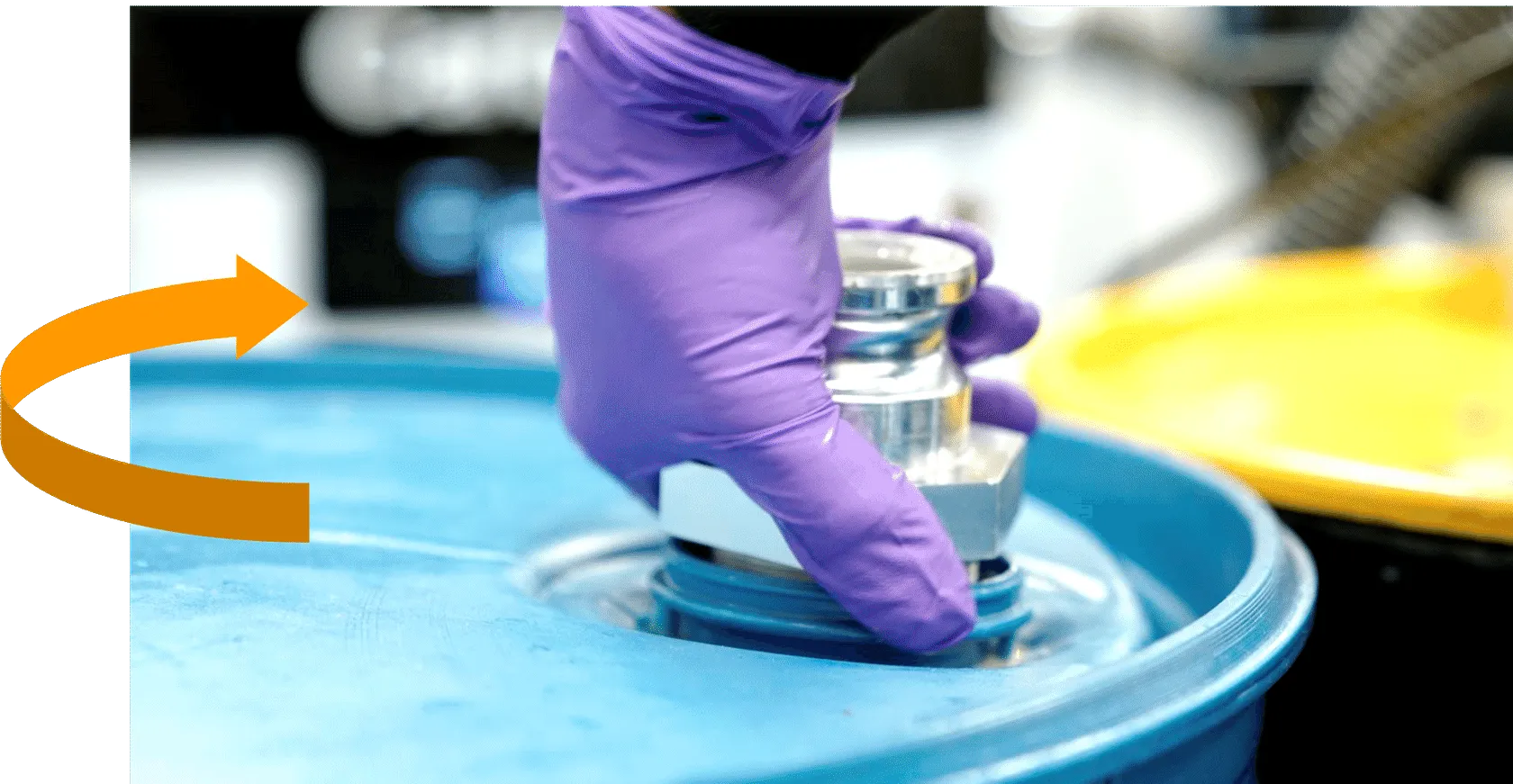

3. Carefully screw tube into drum.

Pump Head Installation

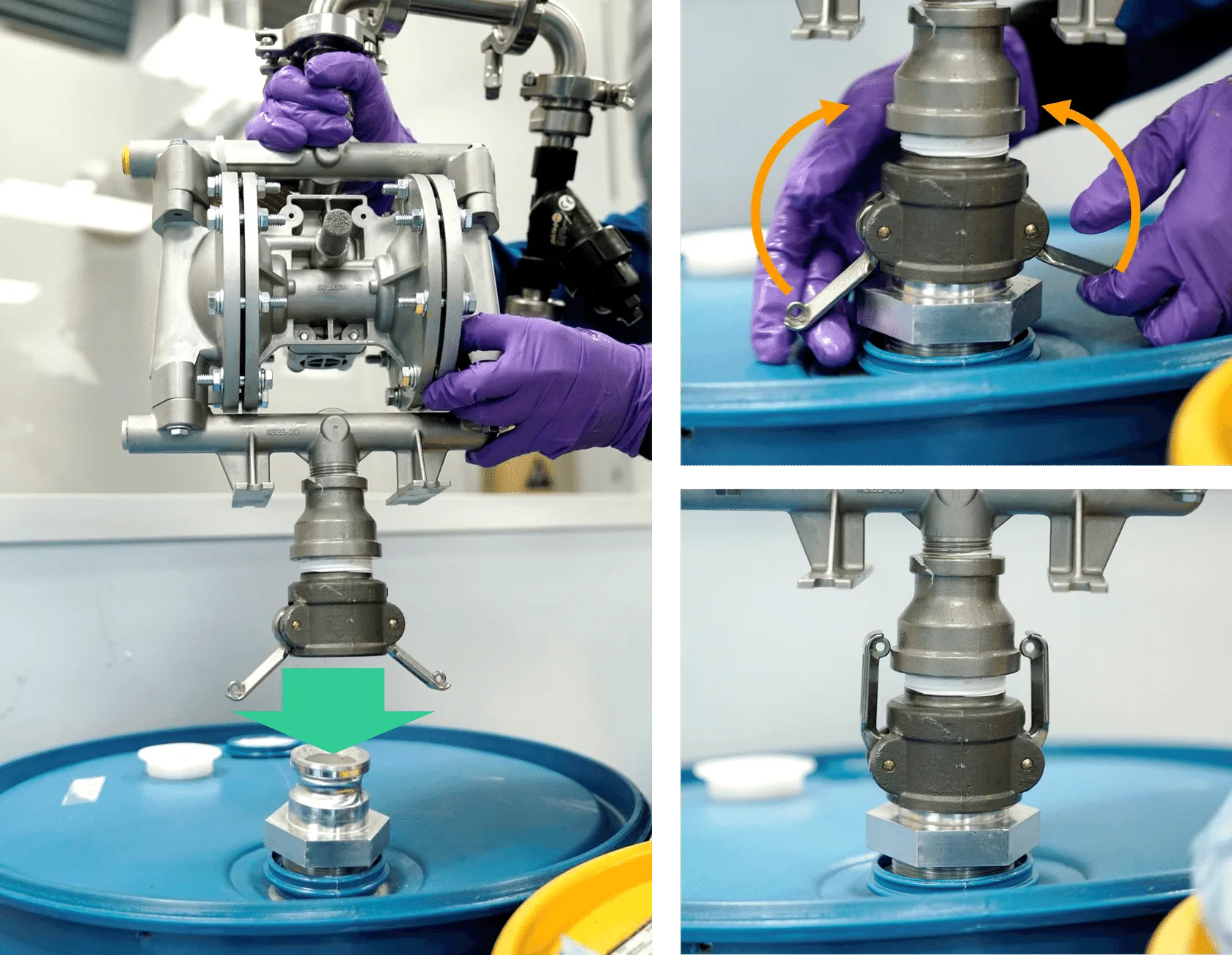

Lower the pump head onto the top of the draw tube.

Flip up the cam locks to secure the pump head to the draw tube.

Connect Compressed Air

Push compressed air line onto male pump fitting.

Air pressure gauge should show 50 psi.

Carbon does not recommend higher pressure as resin can flow too quickly and lead to resin loss.

Adjust regulator as necessary to change air flow.

Operation

Install DPR 10 Bottle

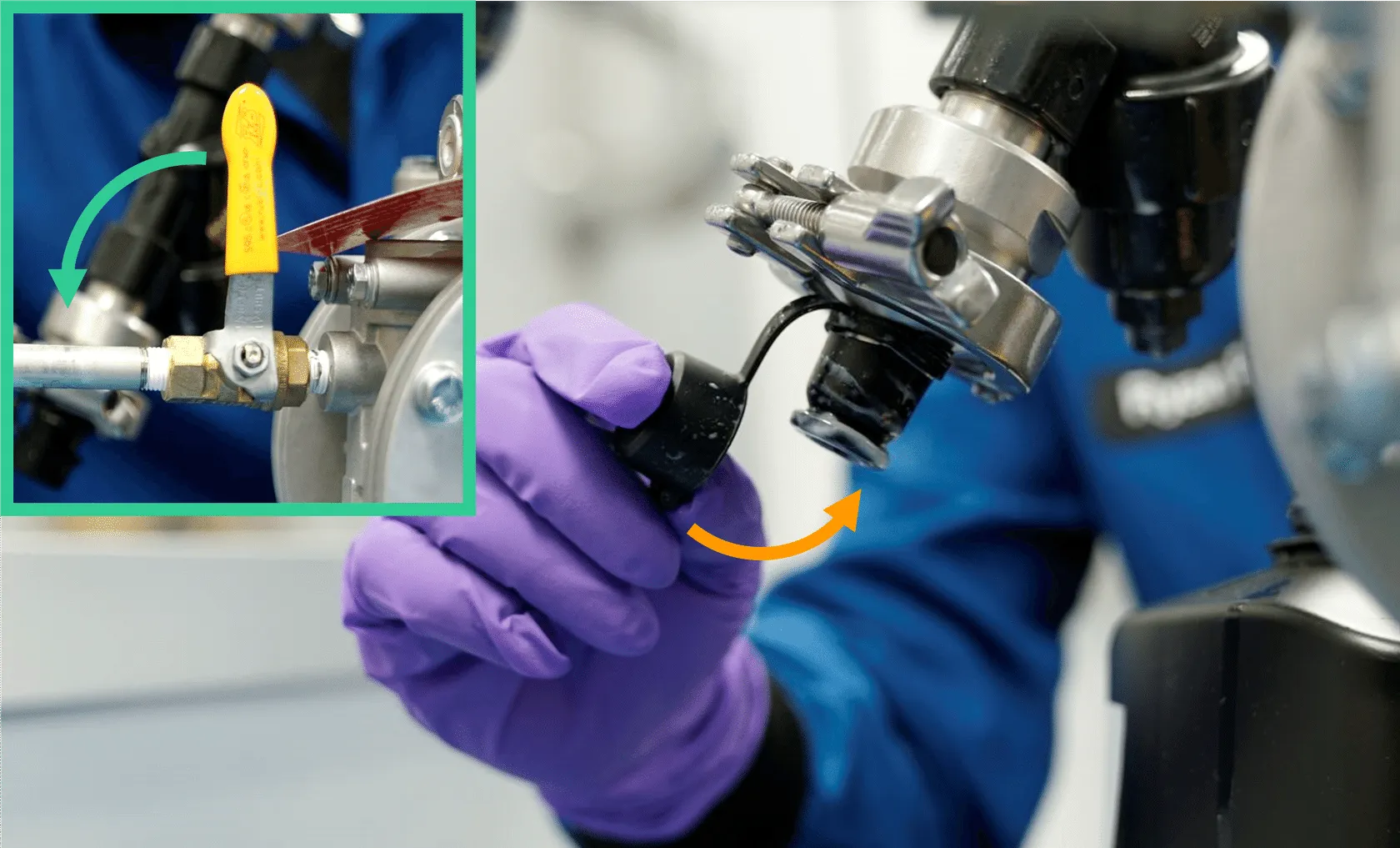

Make sure air valve is in the off (up) position.

Remove spigot cover.

A small amount of resin may run out of spigot, especially if pressure is too high.

Wipe up any spilled resin before continuing.

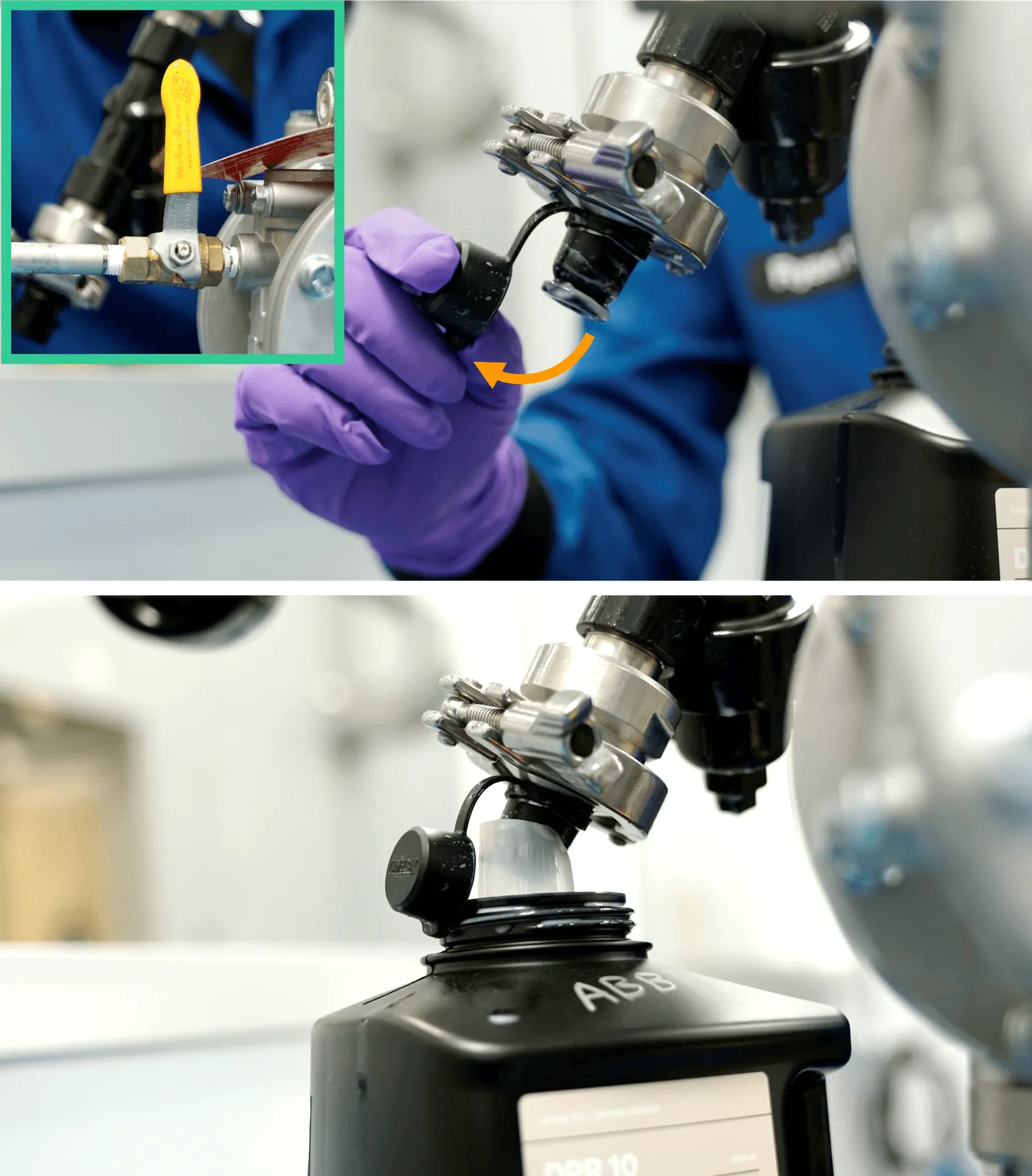

Place mouth of empty DPR 10 bottle under spigot.

Fill Drainback

Turn on air valve.

The pump will make quick chugging noises.

As resin is drawn up through the draw tube, pump noises will slow down.

Continue running pump until the bottle is filled.

Take care not to overfill.

Remove the bottle from spigot.

Wipe spigot with a shop towel.

Replace spigot cover.

Fill Cassette

Use the freshly filled bottle to fill your cassette.

Questions or issues? Contact Carbon Support.

Product Manual

English

Drum Pump 5 inch AODD manual.pdf
