L1 Printer
Accessories
12 min

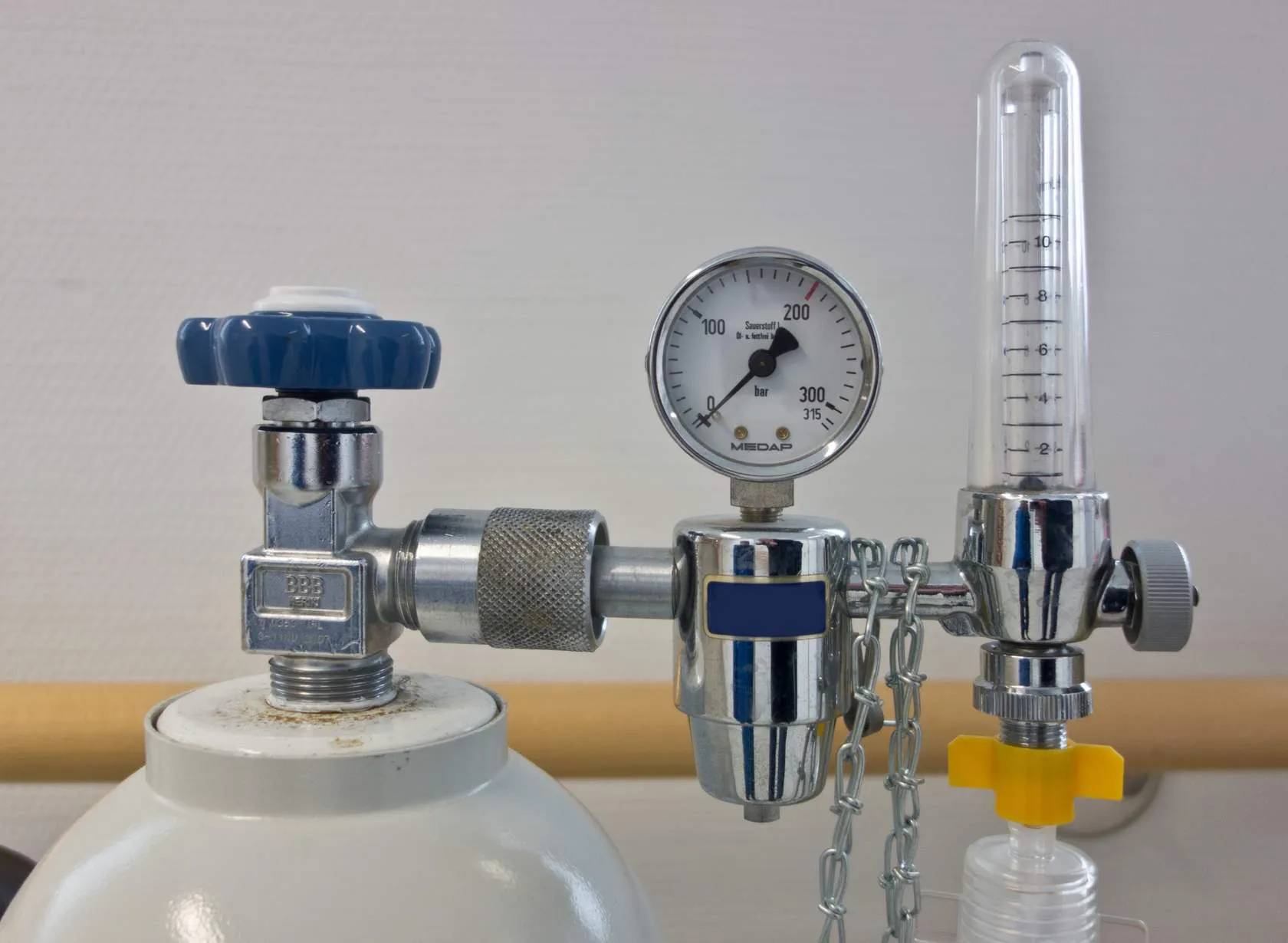

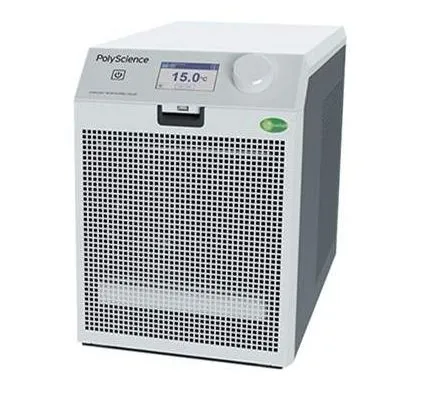

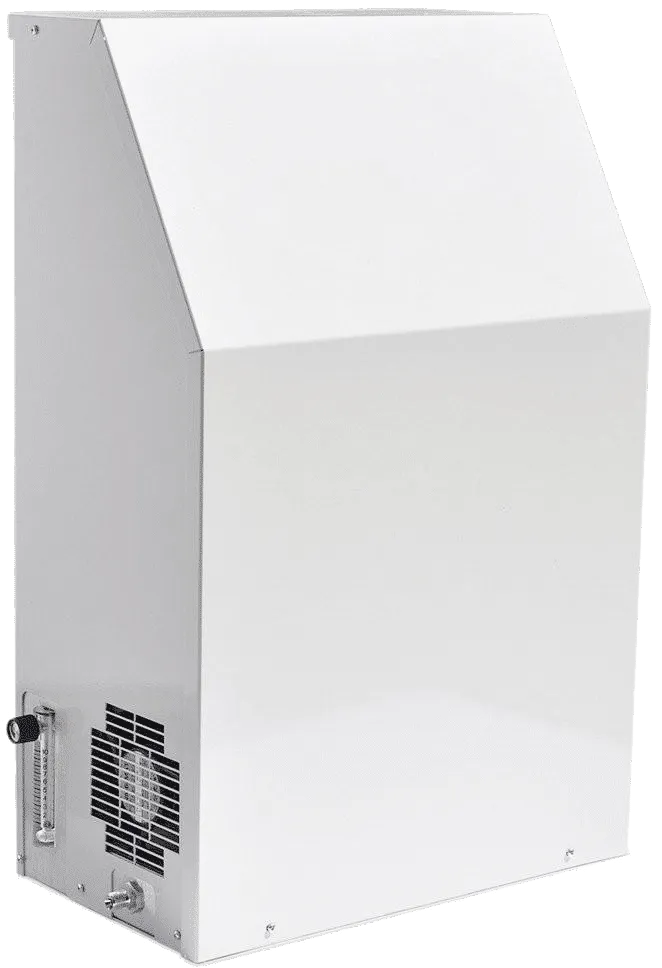

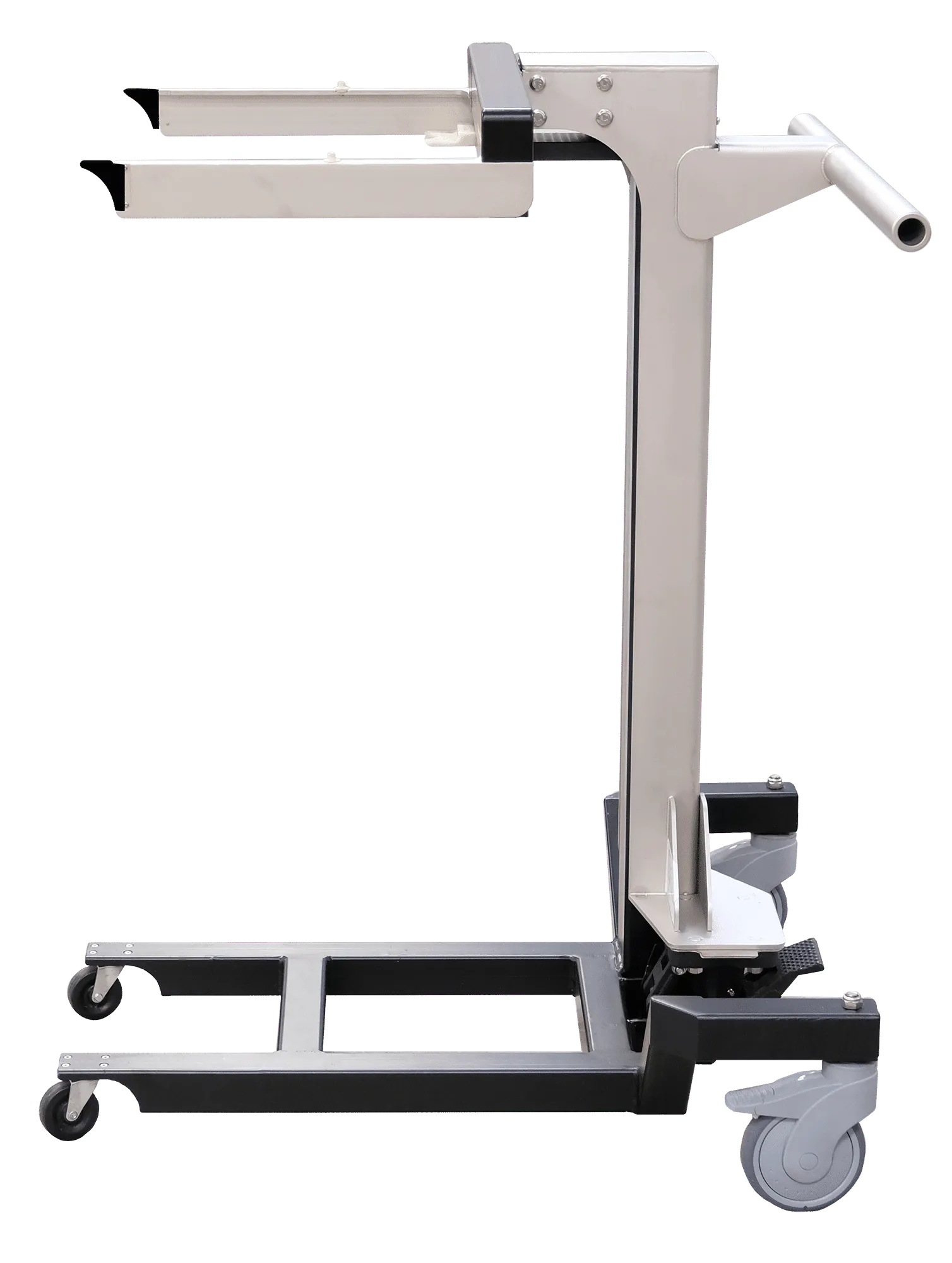

refer to accessories & supplies docid 95twe3ttl 5ihi6dnl4xi for suggested purchasing sources, unless otherwise noted required equipment the l1 printer requires a number of accessories to support operation these include cassette cart chiller oxygen supply (oxygen concentrator or oxygen tank) l1 cassette cart cassette cart the l1 cassette cart is a carbon accessory designed to safely transport and install the large printer cassette it uses a mechanical foot pedal to lift or lower the cassette into position the cassette cart is only designed for use with carbon cassettes and should not be used for any other purpose for more information, go to l1 cassette cart docid\ ibv6gvpwqutiq9fusb89 chiller the chiller removes excess heat from the coolant that is circulated through the l1 printer this keeps the printer cool and functioning normally must be connected to the l1 printer through the coolant connections at the foot of the printer in the rear 3rd party item supports up to 6 printers (60 hz model) for more information, consult the manual manuals and documents docid 2skhklz4pfbvk8eykk9wl february 2021 (part numbers ca10a3t1 41aa1n, ca10a2t1 41aa1n) manuals and documents docid 2skhklz4pfbvk8eykk9wl pre february 2021 (part numbers 6160t21a133d, 6150t21a133e) polyscience chiller oxygen supply an external source of oxygen is necessary to supply the dead zone during printing customers can use an oxygen concentrator or oxygen tank oxygen concentrator mechanical device that actively pulls oxygen from the ambient air must be connected to the l1 printer through the oxygen inlet at the top of the printer can supply up to 10 printers 3rd party item for more information, consult the manuals and documents docid 2skhklz4pfbvk8eykk9wl oxygen tank tanks of oxygen are available in many sizes oxygen tank must be sourced locally l1 nominal flow is 20 ml/min while printing can be connected to multiple l1 printers with typical printer use, a 55" tall, high pressure steel tank (49 l/1 73 ft3) should last 3 6 months transportation and storage is subject to local regulations optional equipment a number of other accessories exist to support the l1 printer l1 cassette hotel l1 platform hotel release film applicator l1 cassette hotel the cassette hotel stores up to 5 cassettes at once can be loaded onto the top of the hotel for inspection or cleaning works with the cassette cart for easy loading and unloading of cassettes from the top of the hotel built on casters for portability for more information, go l1 cassette hotel docid\ ftdxah nqrn4hozppb1ws l1 platform hotel the platform hotel stores up to 8 platforms at once durable and easy to clean stainless steel construction built on casters for portability for more information, go l1 platform hotel docid 4adasjgny 0e3zddrsj8f l1 platform hotel release film applicator release film applicator the release film applicator enables simple, consistent and accurate application of release film to your l1 build platform for more information, go release film applicator docid\ lvdqjhthanq9d 8ztygcg consumables and tools there are a few additional items that you will need to support l1 operation taping knife used to inspect the surface of the platform for damage large disposable container used as a secondary container to receive resin from resin dispenser or mmd resin is then emptied into cassette also used to collect resin from cassette 1 liter (1 quart) or greater size wide silicone spatula required to scoop expired resin from cassette can also be used to check for debris in cassette between prints l1 release film optionally used to facilitate the removal of high adhesion parts from the platform and reduce production time can be ordered from the carbon shop
