Accessories
Smart Part Washer
5min

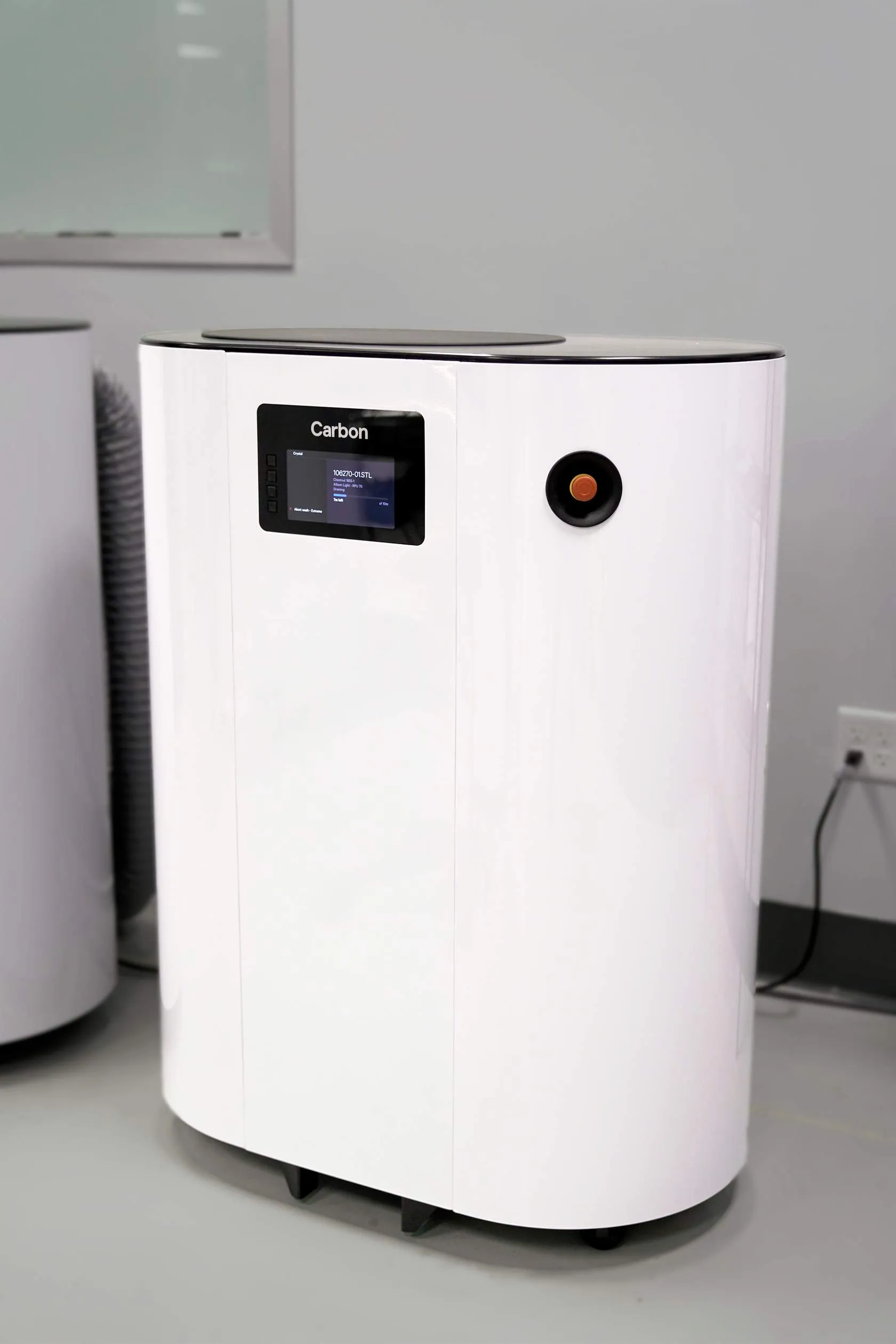

overview the carbon smart part washer provides an effective, repeatable, and traceable washing process with a cycle optimized according to print data collected via the platform (or adapter) nfc tag maximize part quality and yield with optimized wash protocols, every part is consistently cleaned with minimal manual labor, resulting in lower per part cost smart and connected our next generation software provides automatic, part specific wash protocols, process control data for part traceability, and regular software updates manufacturing at scale the smart part washer delivers simple, repeatable part washing, enabling manufacturing at scale and environmental stewardship details printed parts on platform are transferred directly from printer to part washer wash cycles use a combination of solvent agitation and air spinning to wash and dry parts agitation intensity varies based on the wash cycle selected wash cycle duration is automatically set by the resin being washed solvent soil load and fill levels are monitored and displayed all part washer functions can be performed from the front display the smart part washer is an internet connected device as with carbon printers, periodic software updates are pushed directly to the part washer hardware compatibility compatible with m2 and m3 (with accessories docid\ p6zgflme2odrjvpfw5u5c ) m3 max and l1 platforms are not compatible with the smart part washer parts can be removed from the platform and then placed in the accessories docid\ p6zgflme2odrjvpfw5u5c resin compatibility all carbon resins are compatible with the part washer except ce 221 solvent compatibility only solvents validated for the part washer may be used always check that the resin being washed is compatible with the solvent loaded in the part washer reference solvents docid\ o0r4zxsr e4snor4snji0 for more details on the following solvents vf 1 (custom vertrel based formulation) 99% di(propylene glycol) methyl ether (dpm) 99% diacetone alcohol (daa) notes compatible with m2 and m3 (with accessories docid\ p6zgflme2odrjvpfw5u5c ) m3 max and l1 platforms are not compatible with the smart part washer parts can be removed from the platform and then placed in the accessories docid\ p6zgflme2odrjvpfw5u5c user selects the wash cycle depending on resin, geometry, and wash cycle, the parts may require manual spot cleaning after processing in the part washer see the lab reference grids docid\ ujf4k0ny4lye74zohx1r or the specific resin protocol sheet to verify resin compatibility safety features 2014/35/eu low voltage directive including en60204 and applicable test requirements from en61010 2006/42/ec machinery directive and the essential health and safety requirements of the annex 1 of the machinery directive a hazard identification and risk assessment of the tool performed in accordance with european normative standard en iso 14121 1 2007, safety of machinery – risk assessment and semi s10 – safety guidelines for risk assessment
