Accessories
Release Film Remover
23min

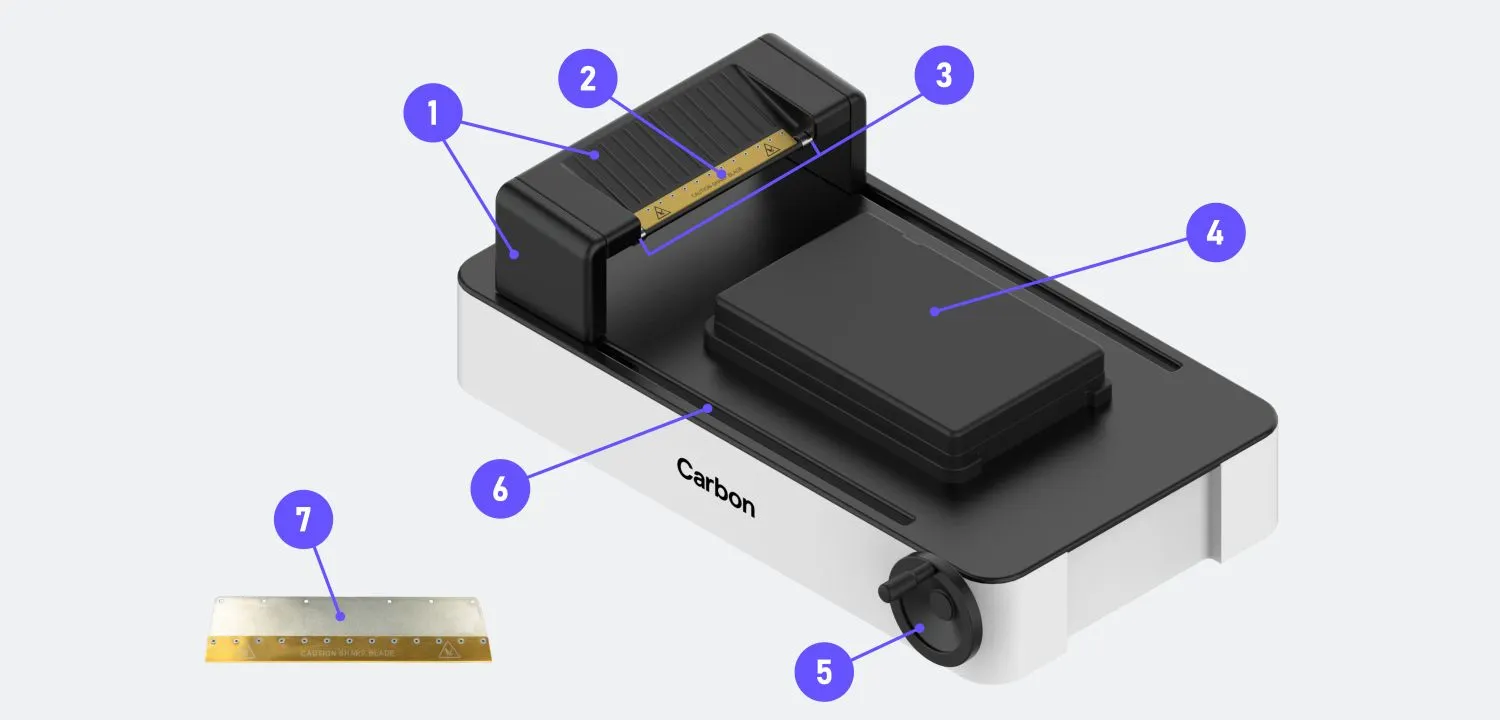

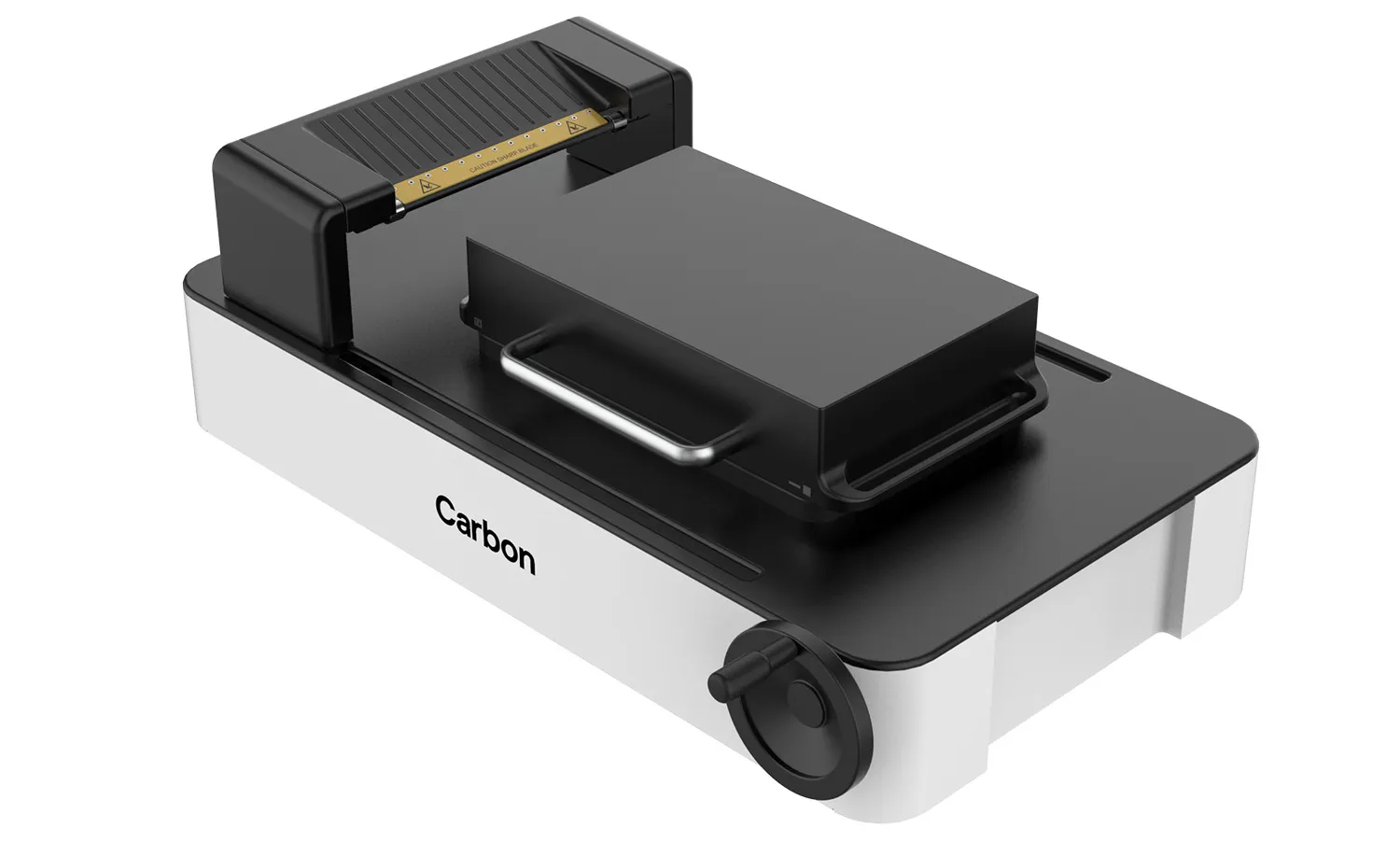

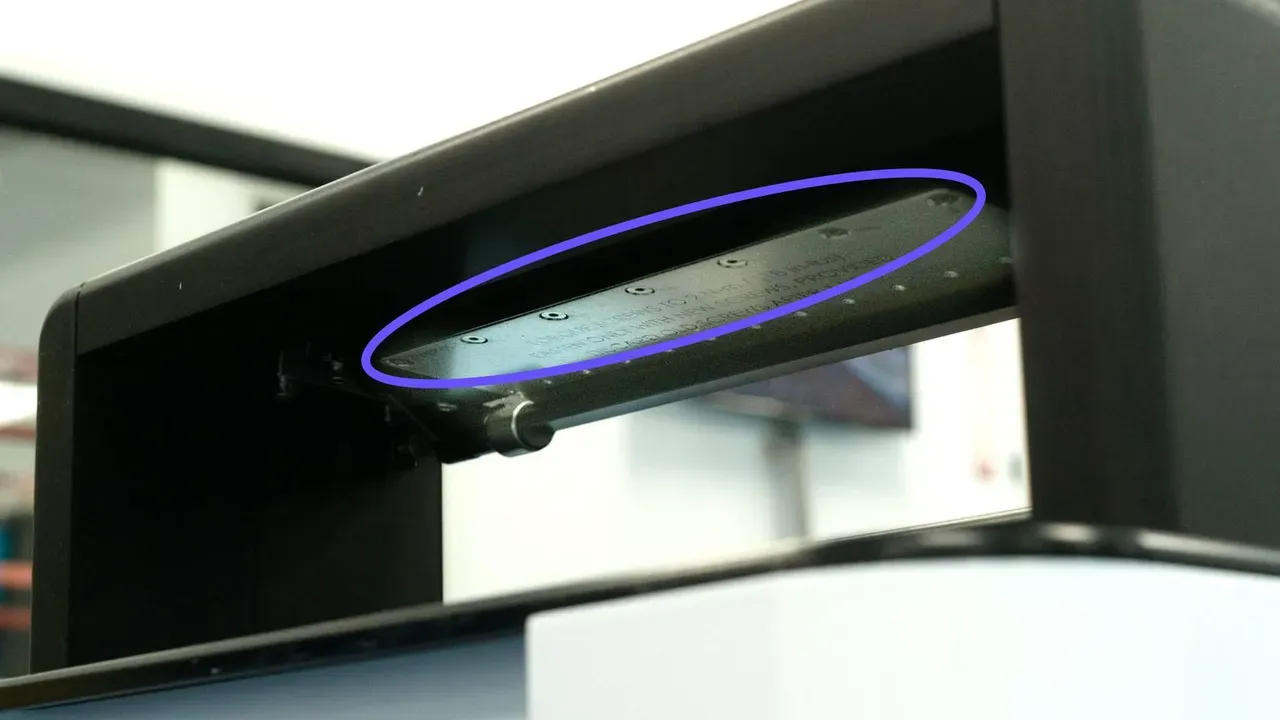

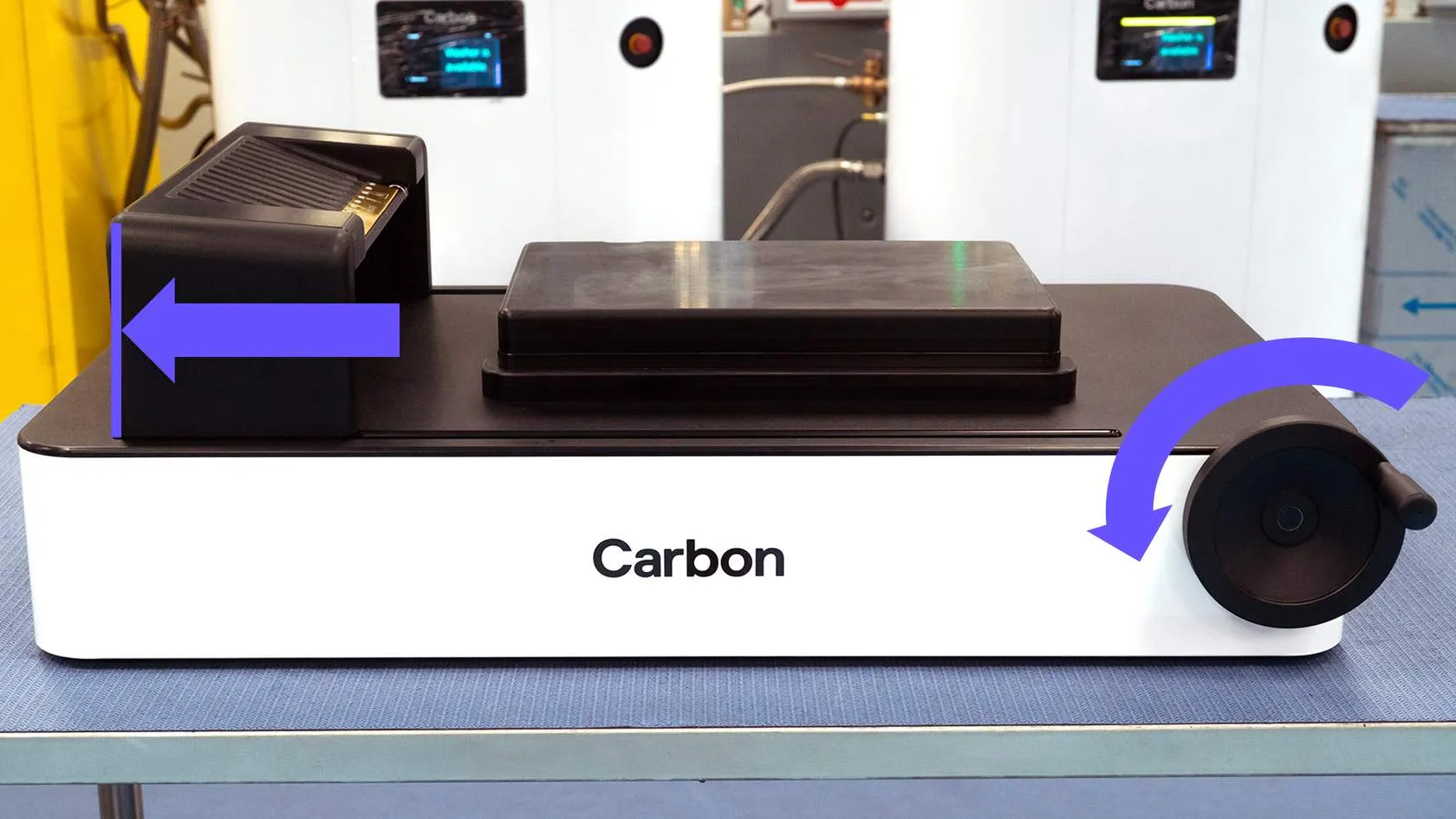

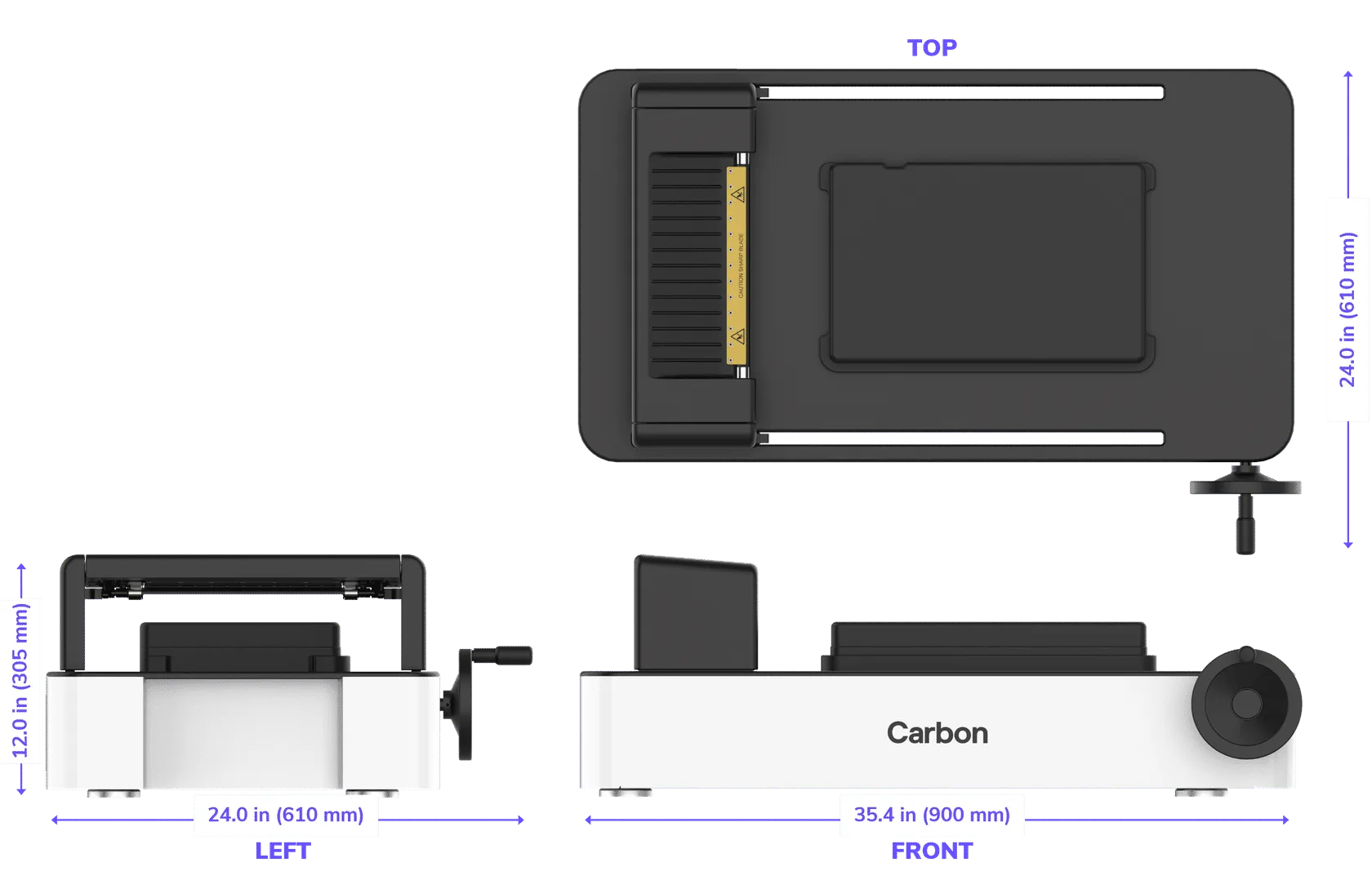

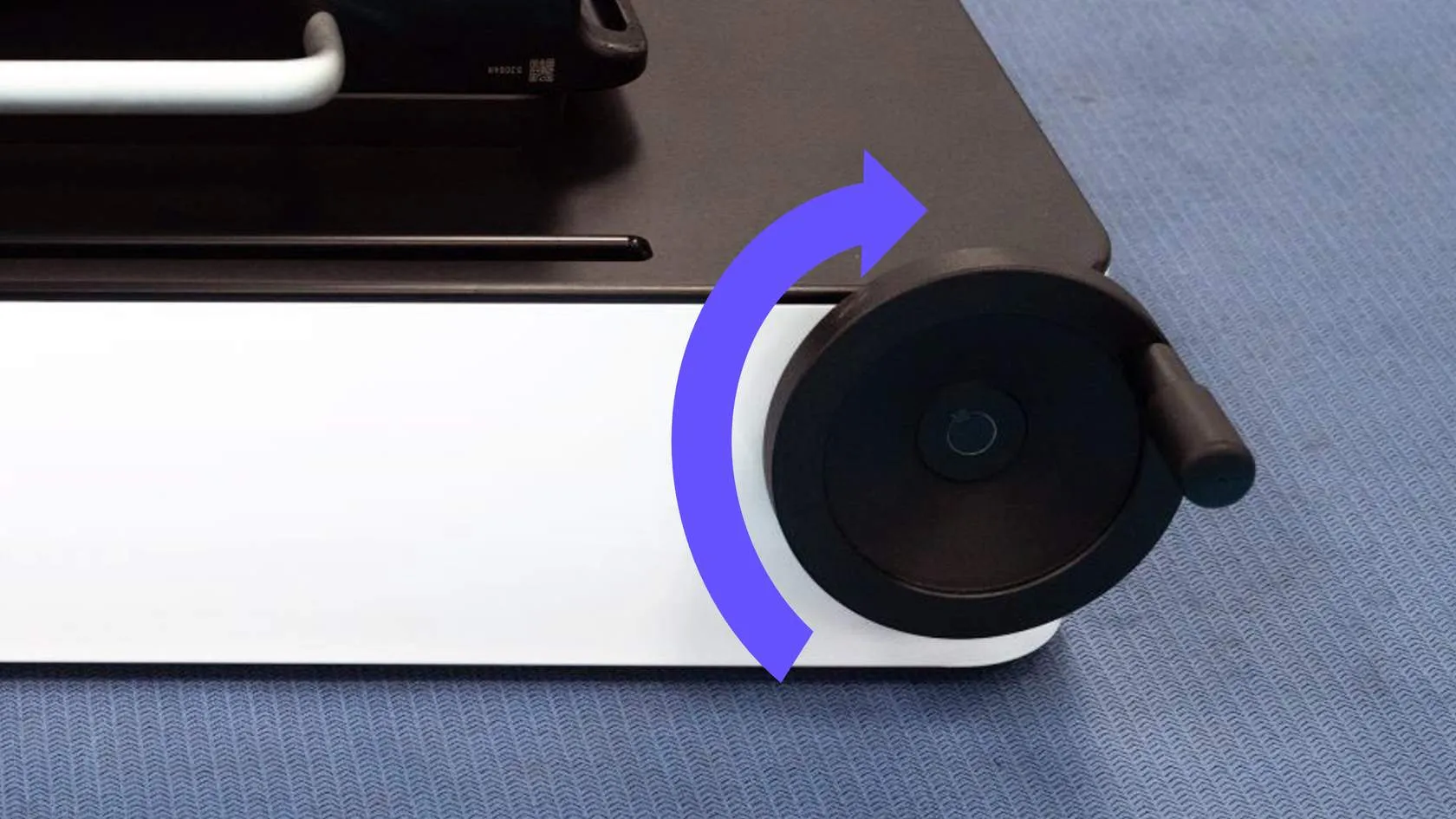

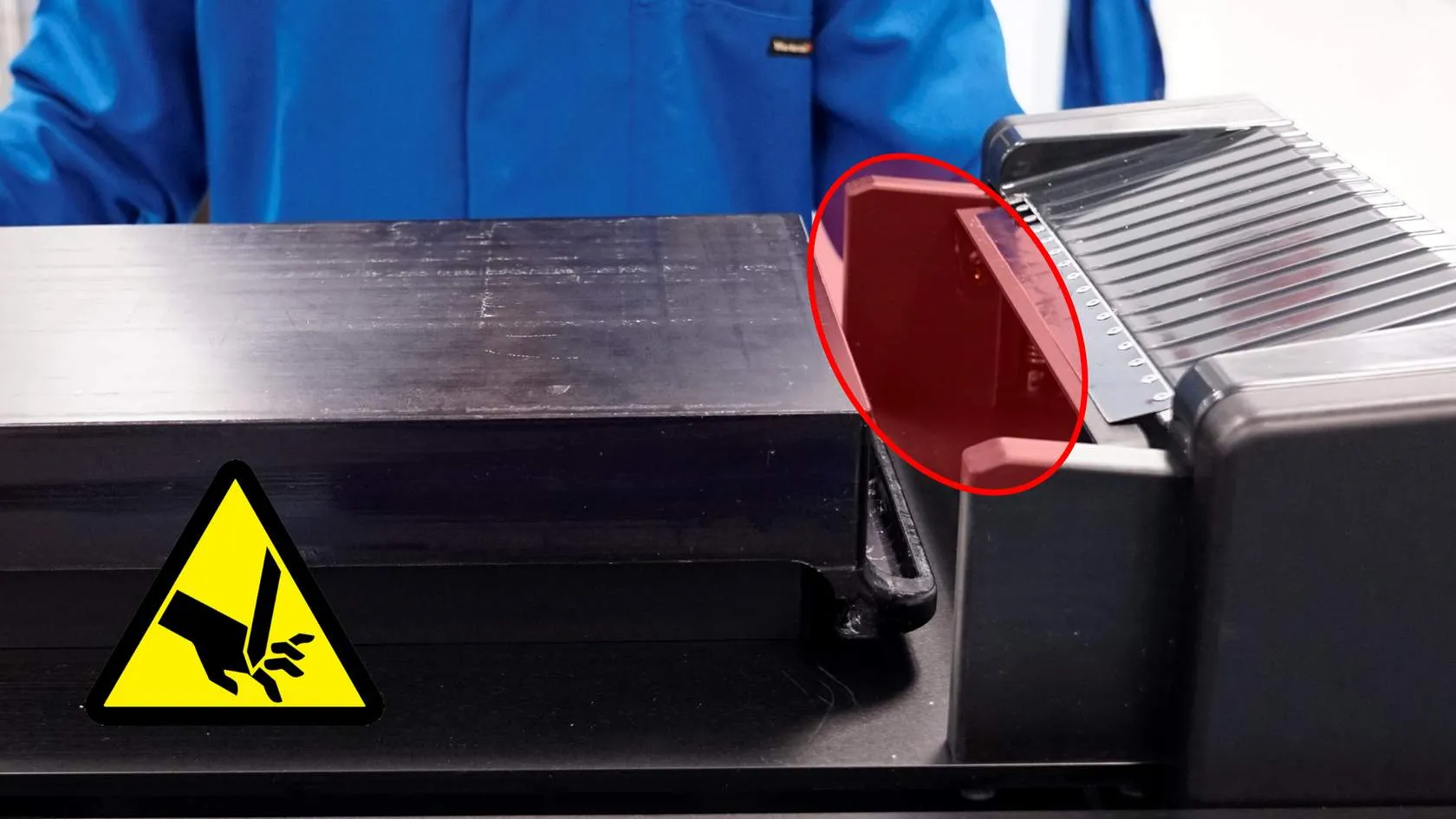

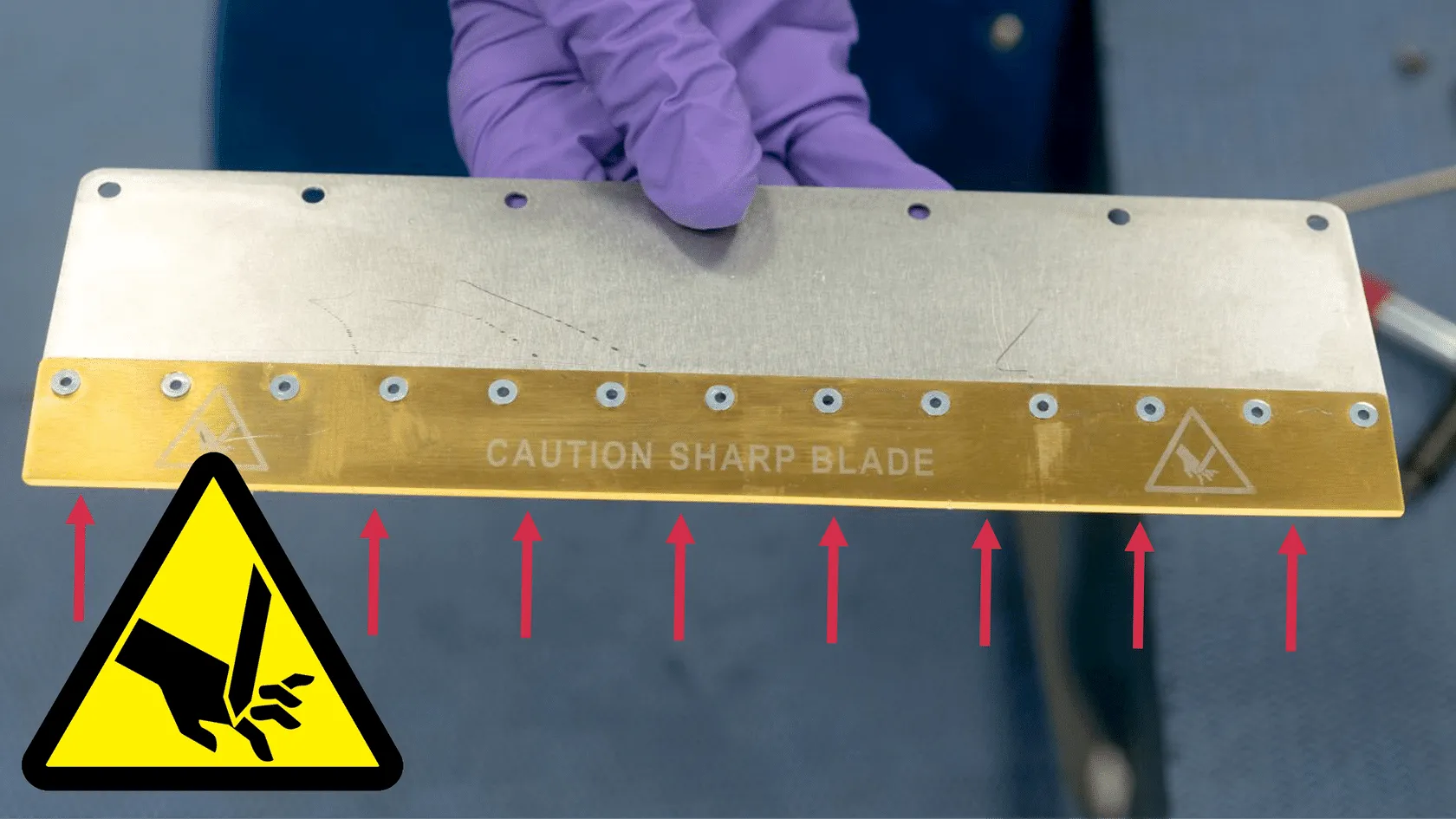

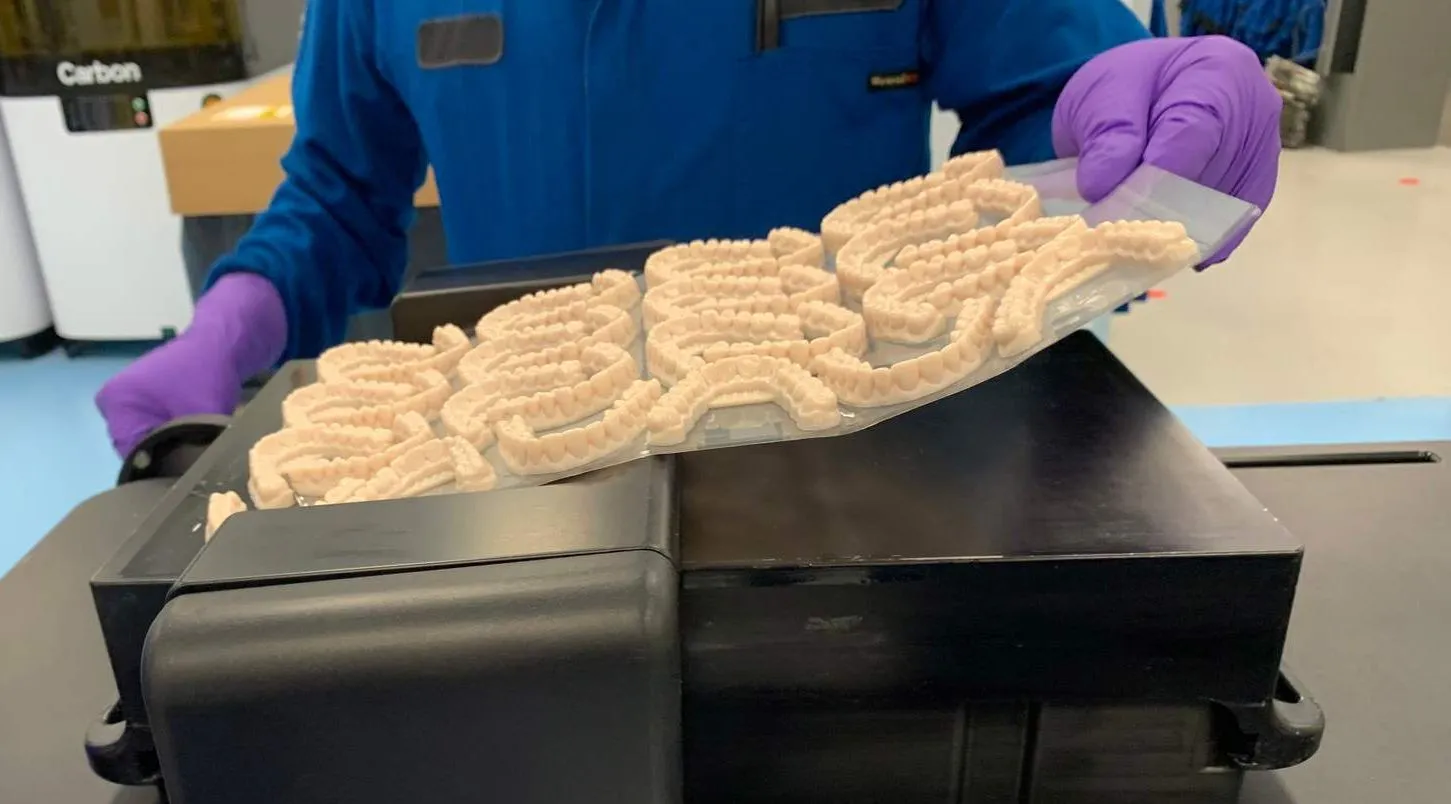

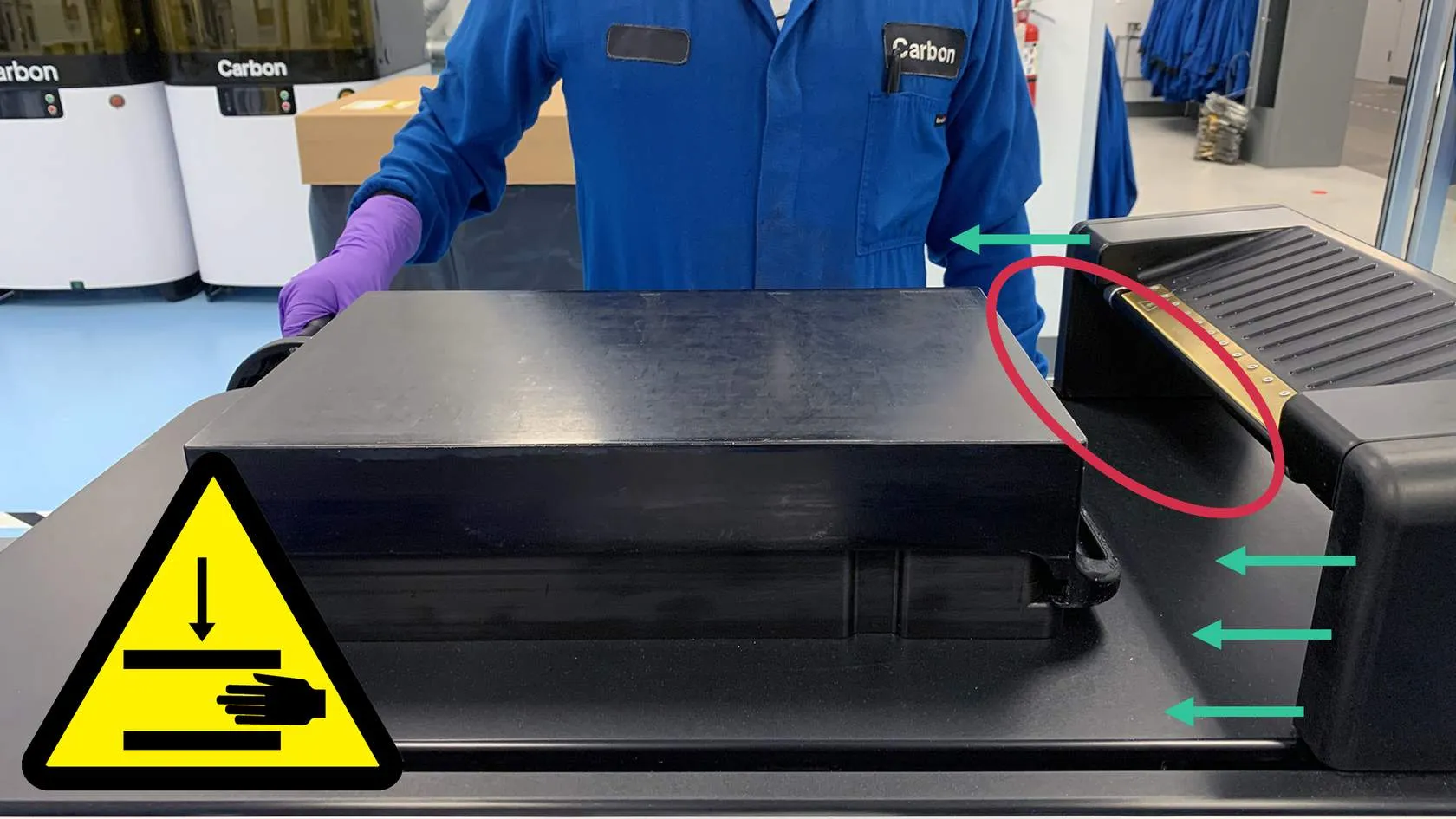

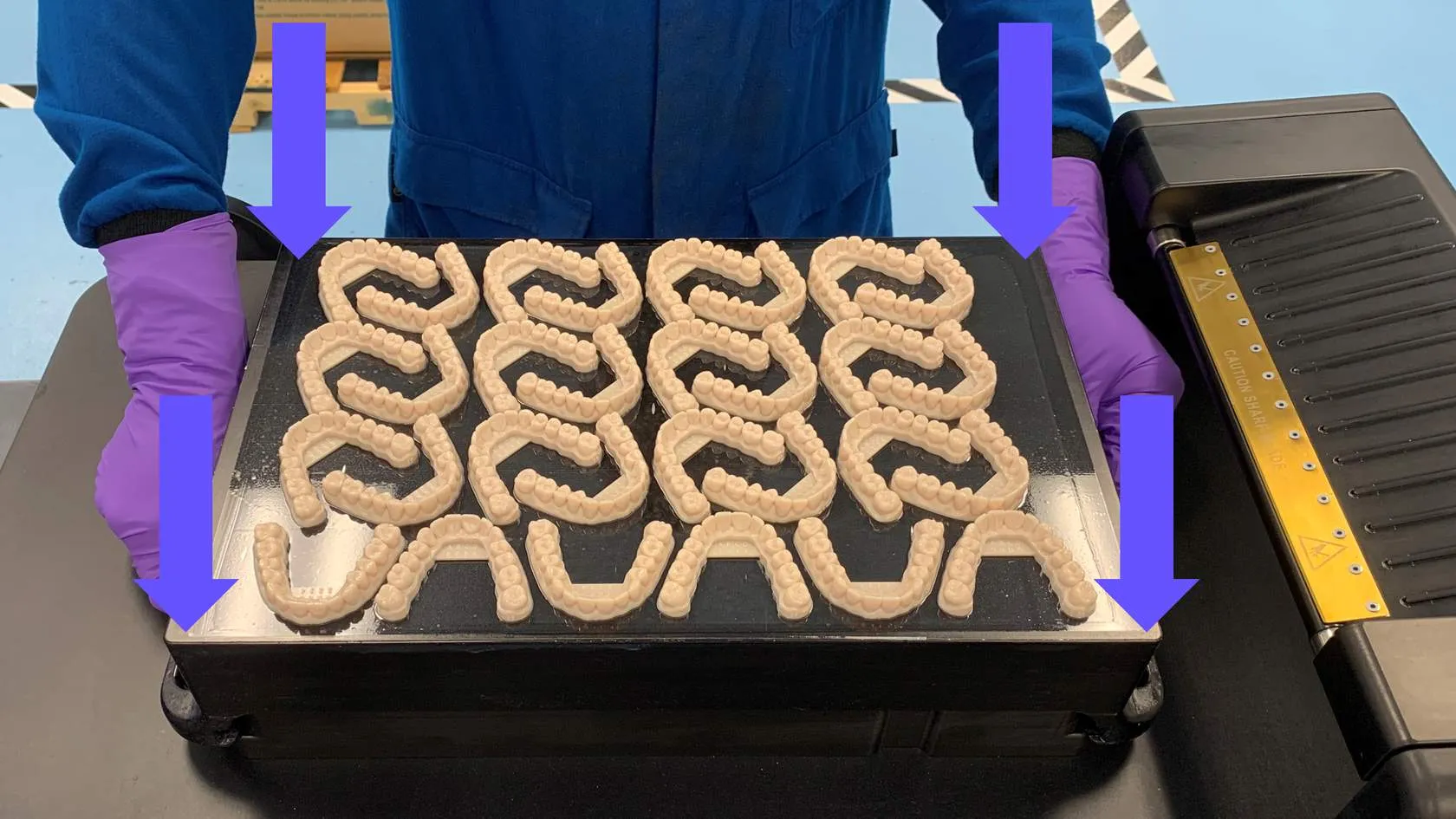

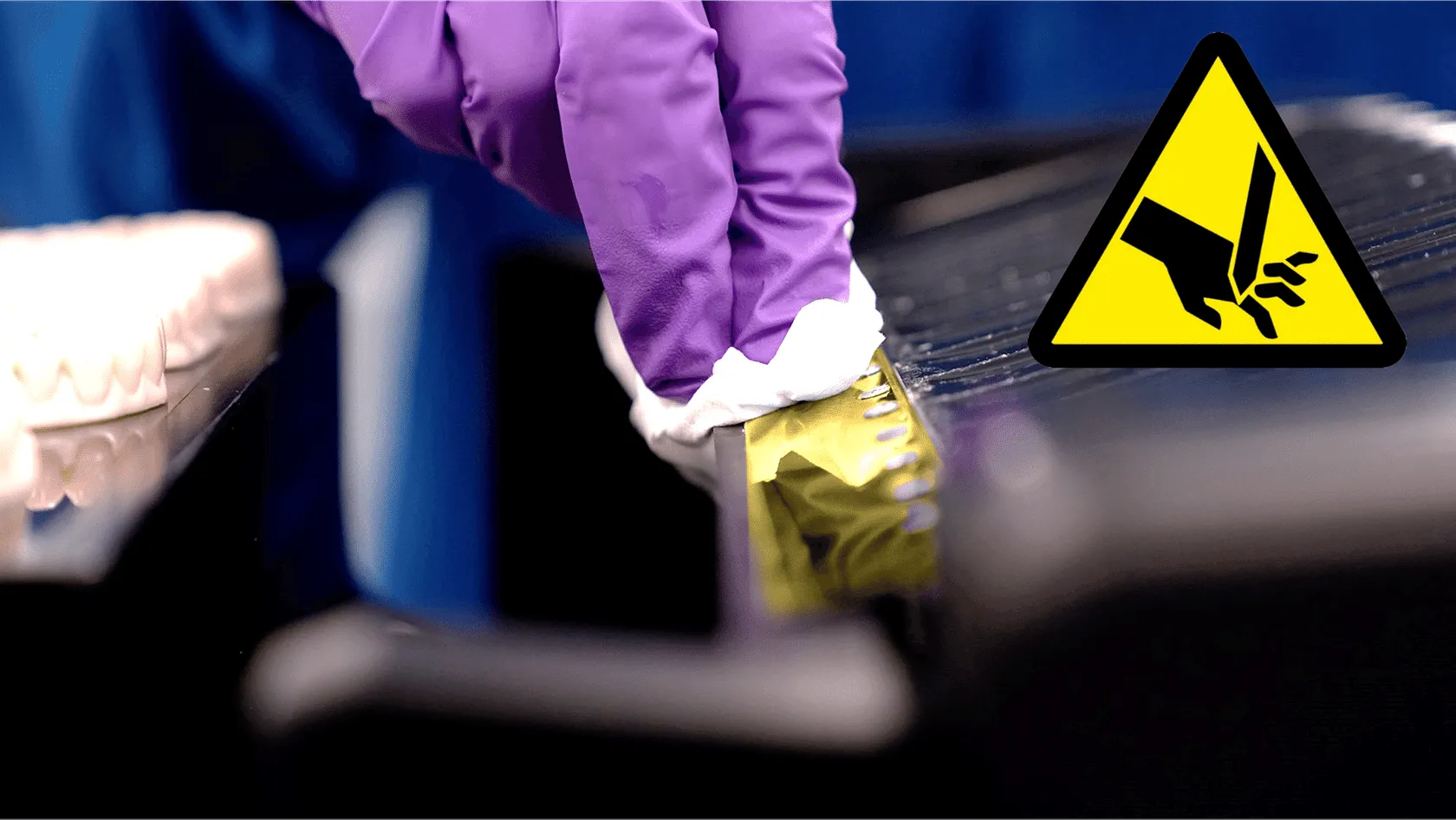

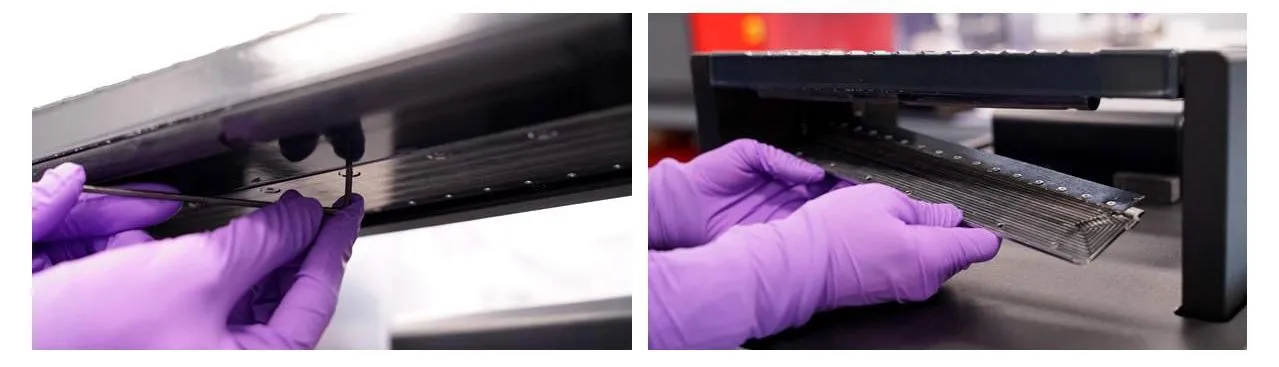

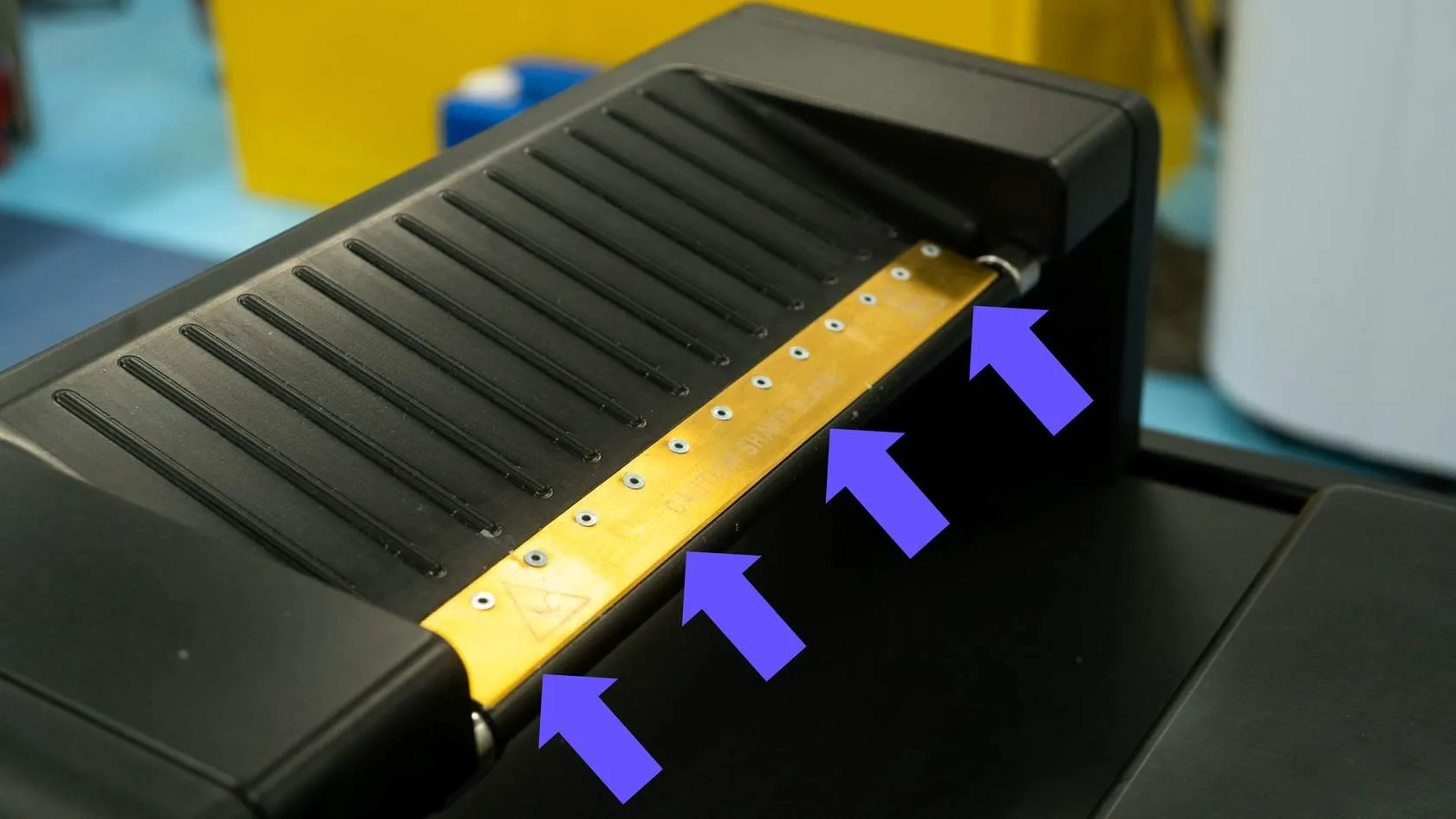

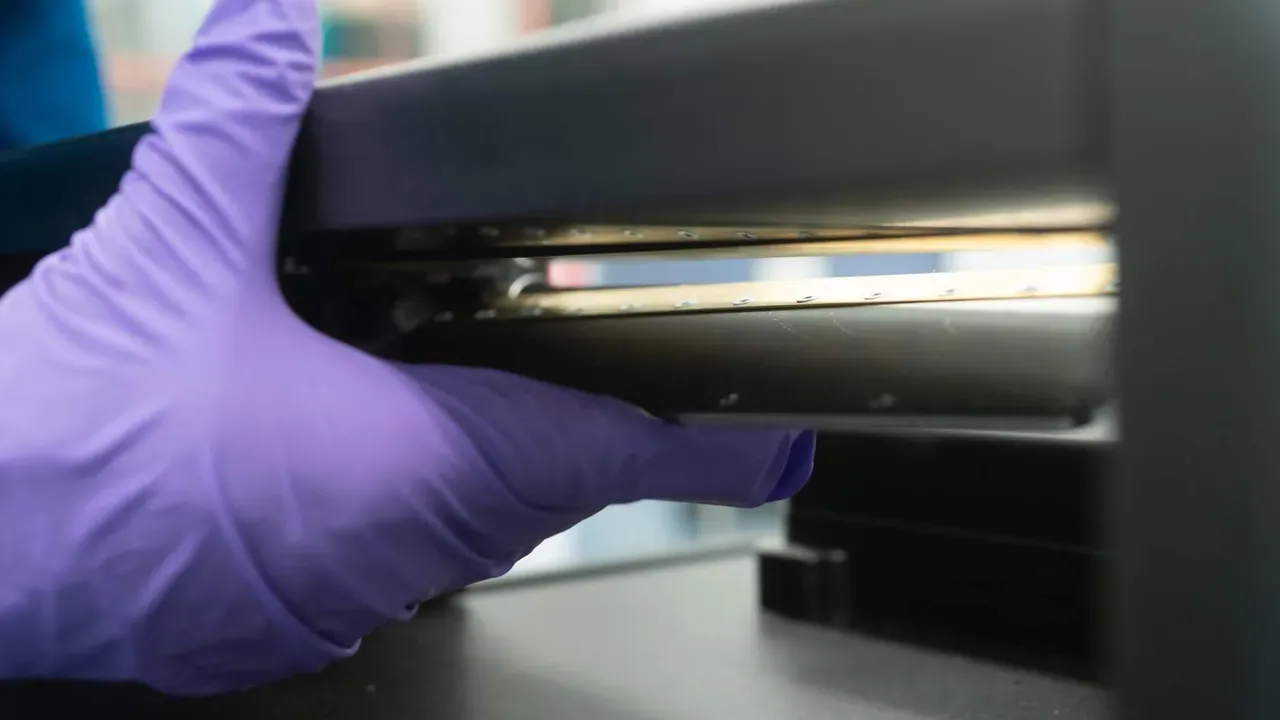

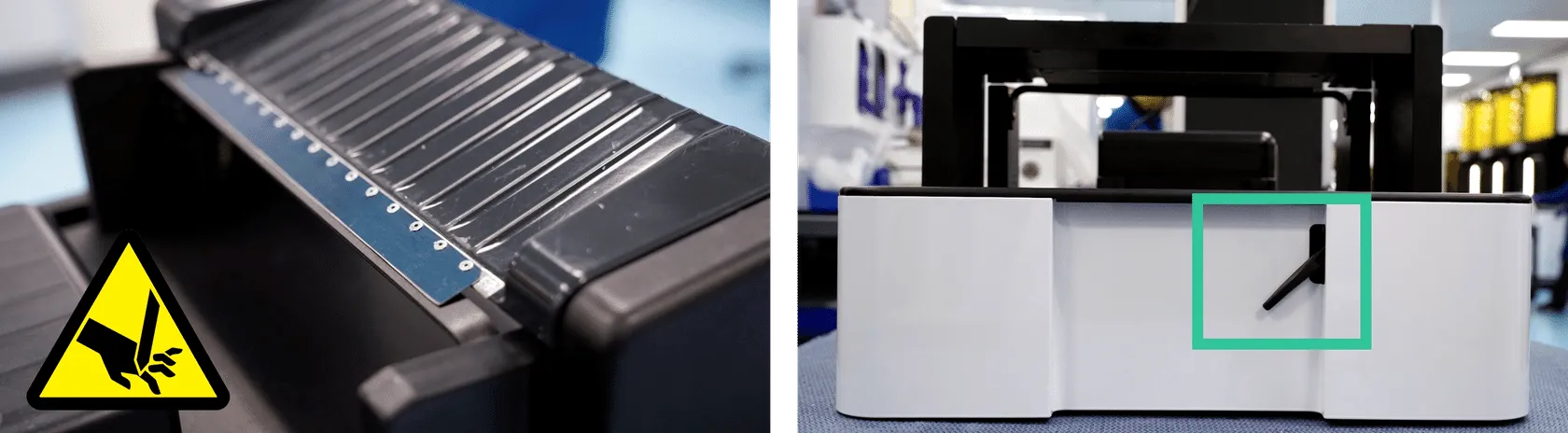

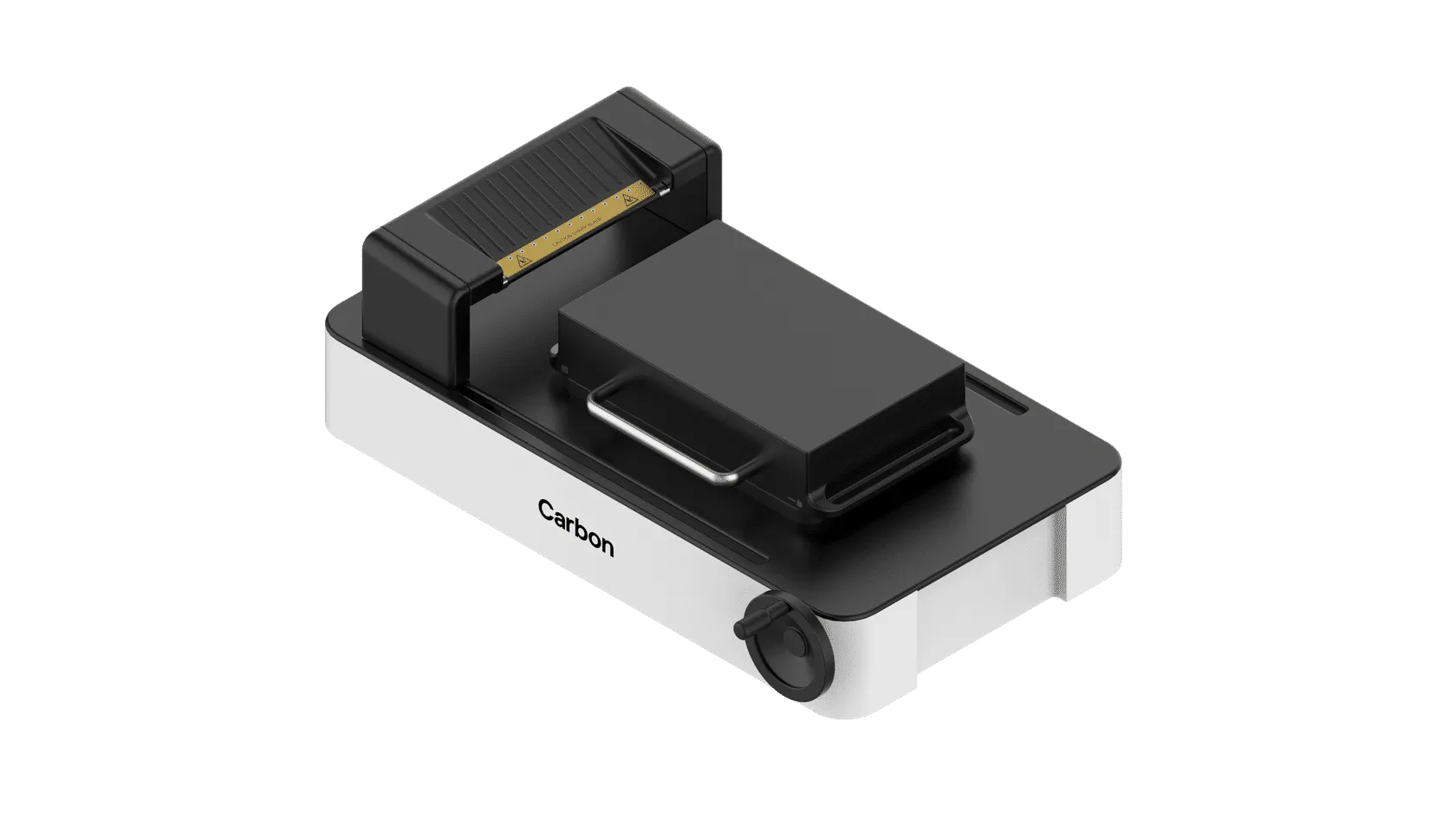

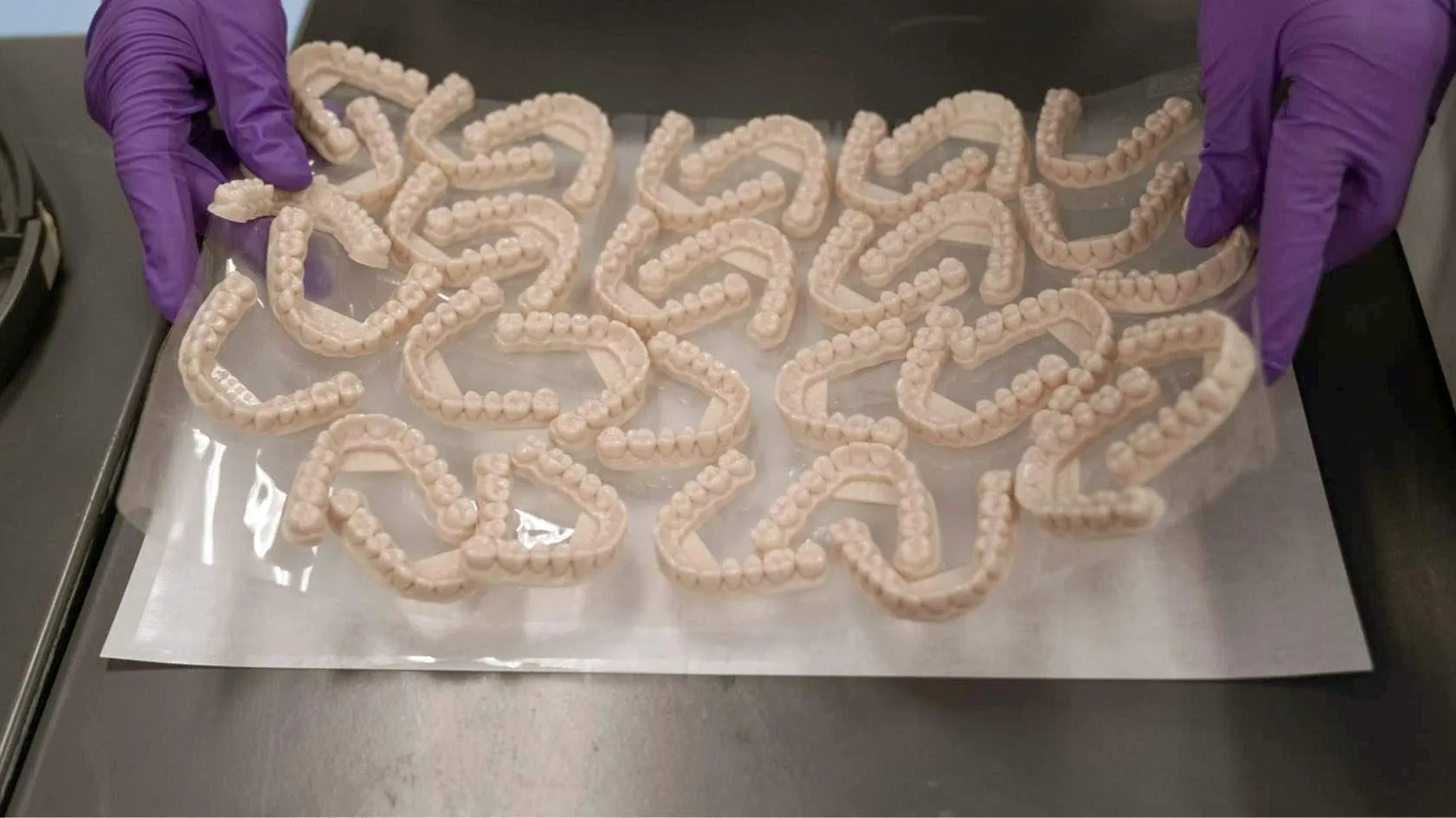

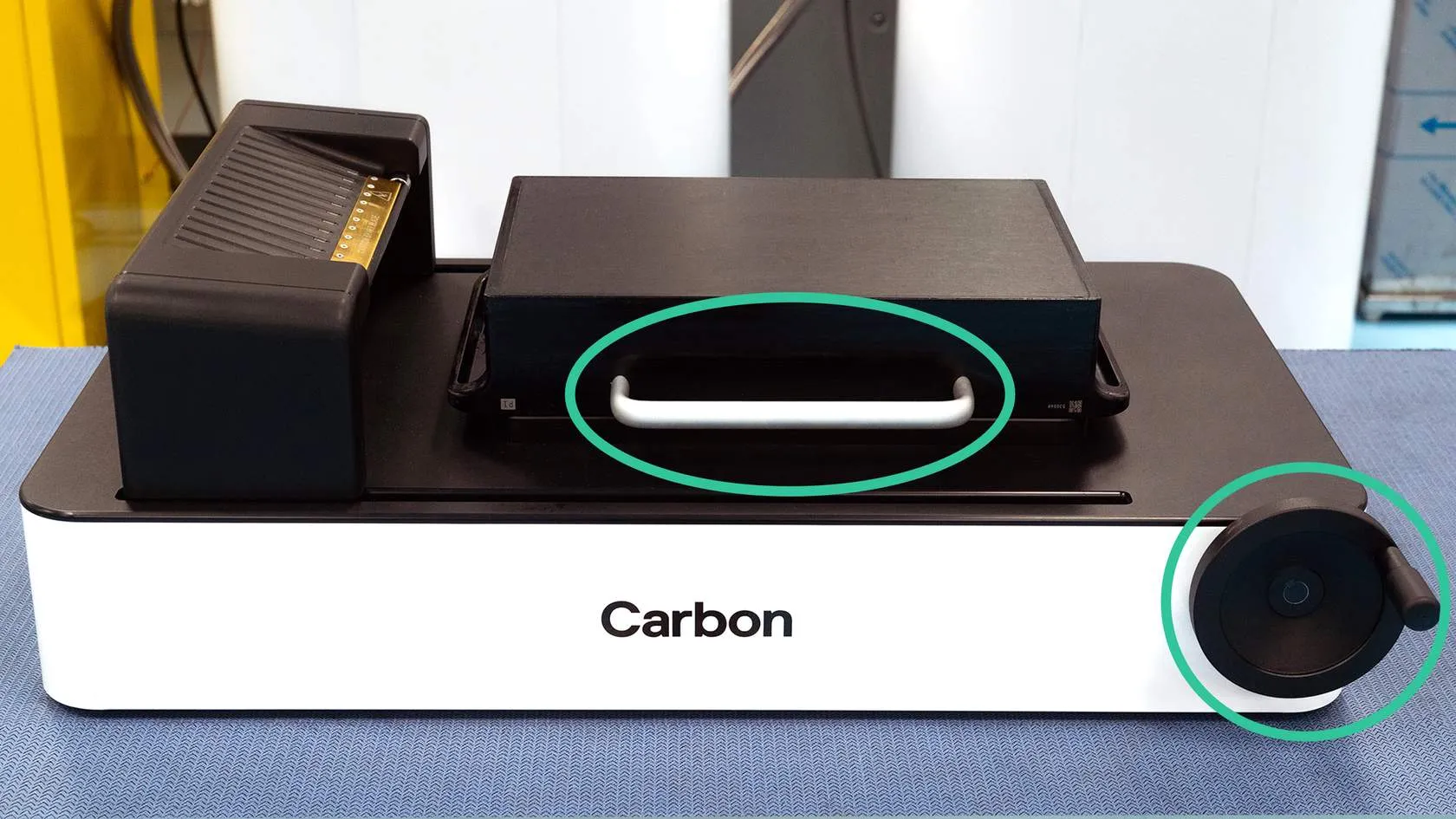

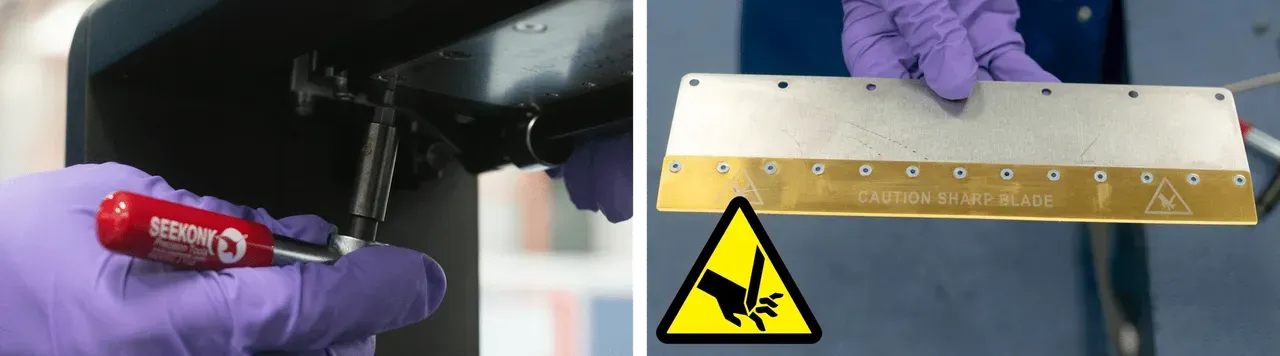

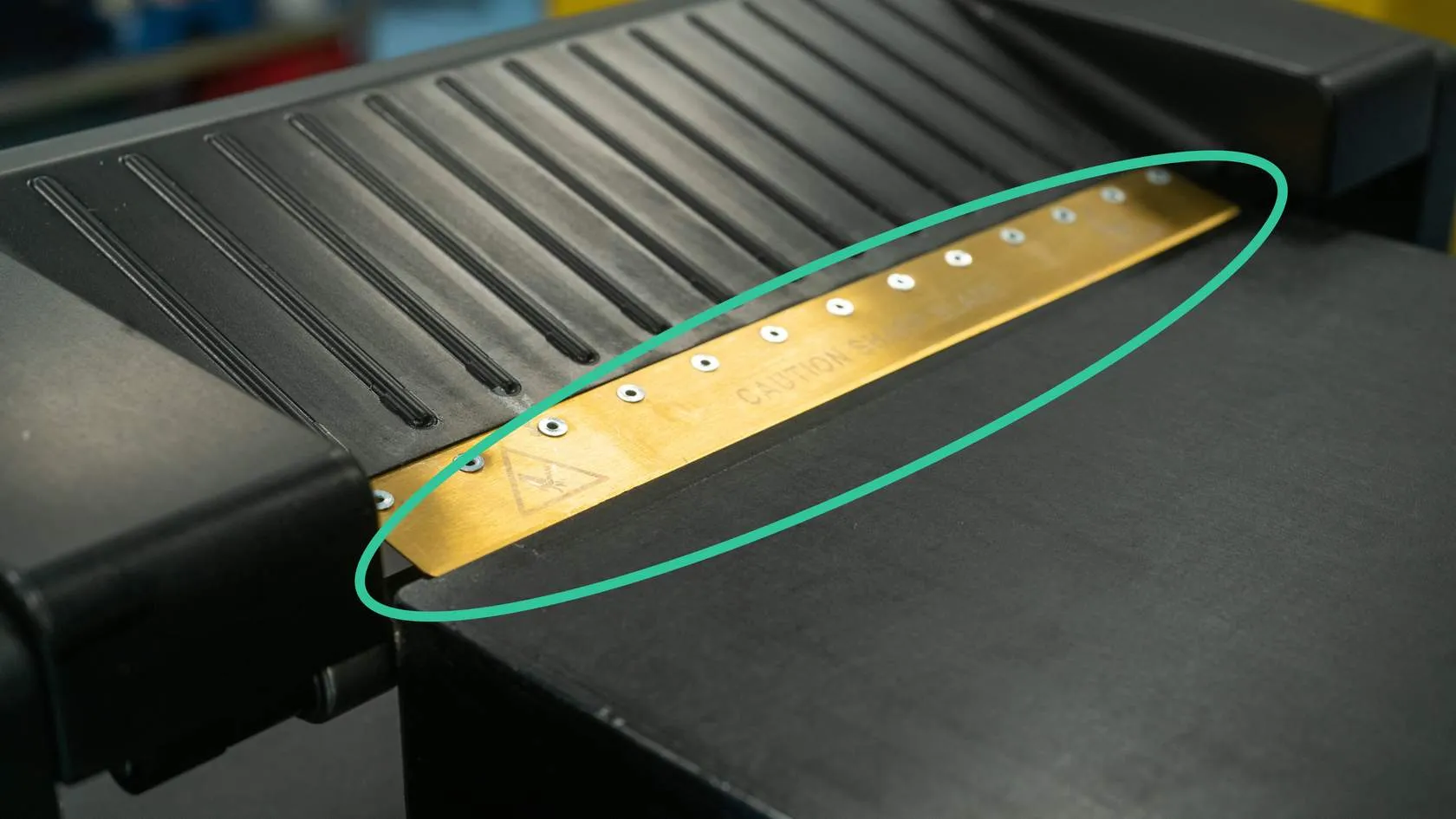

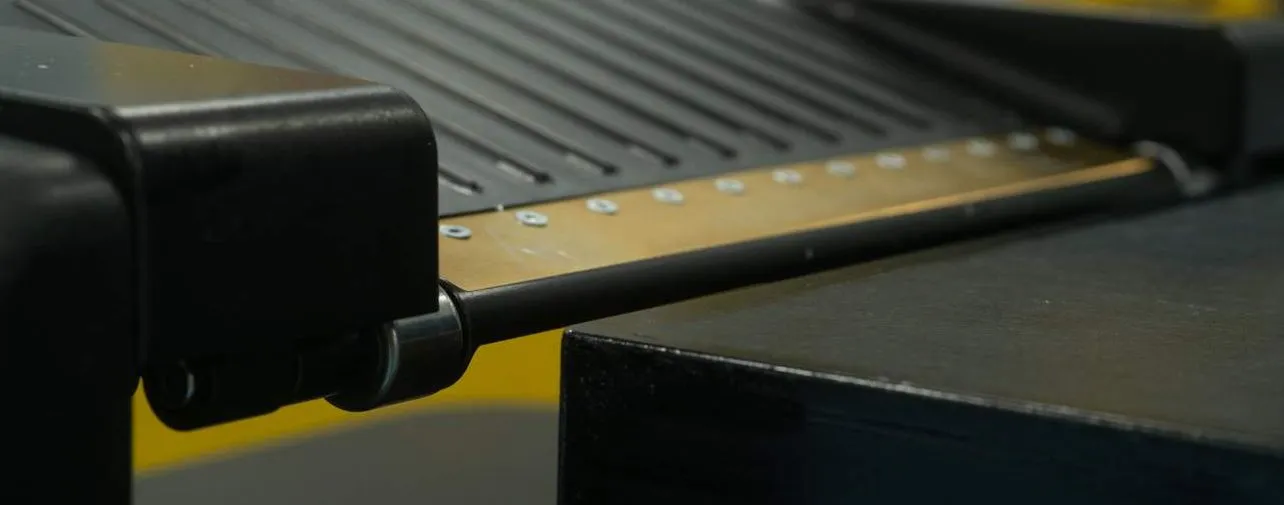

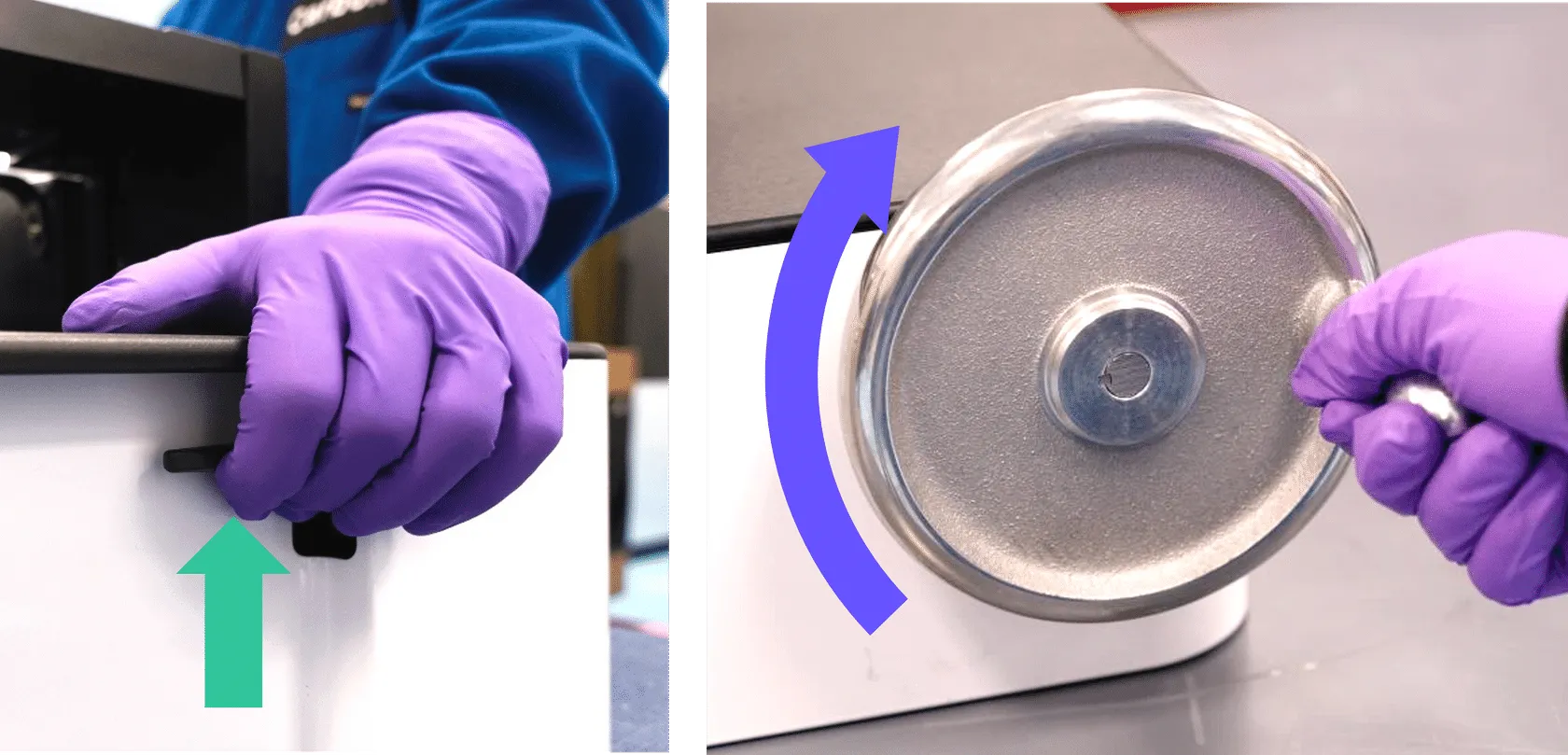

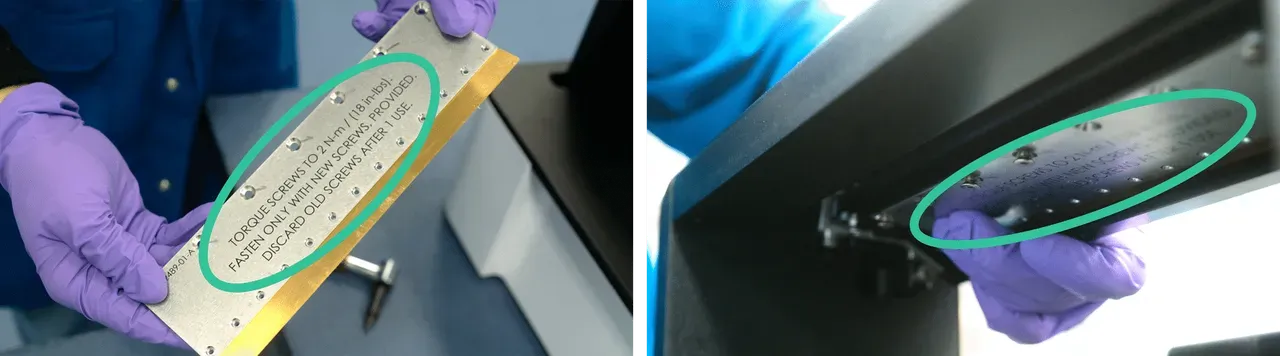

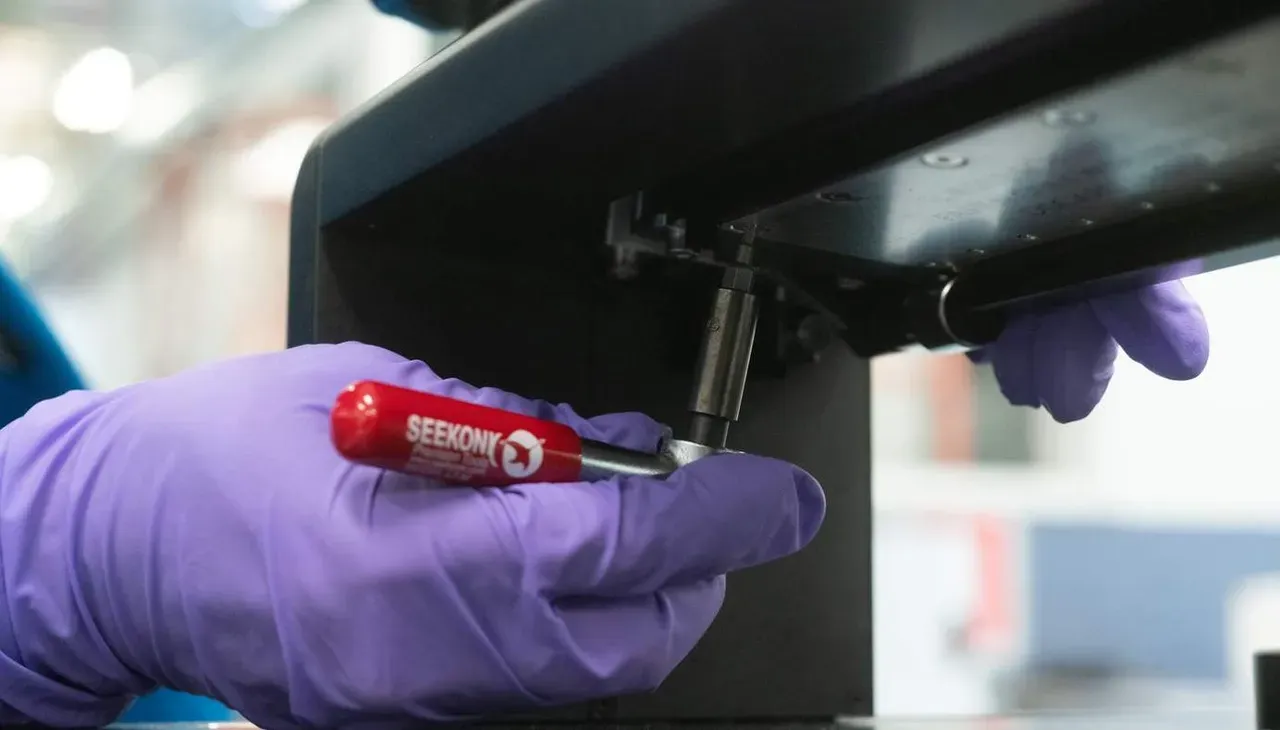

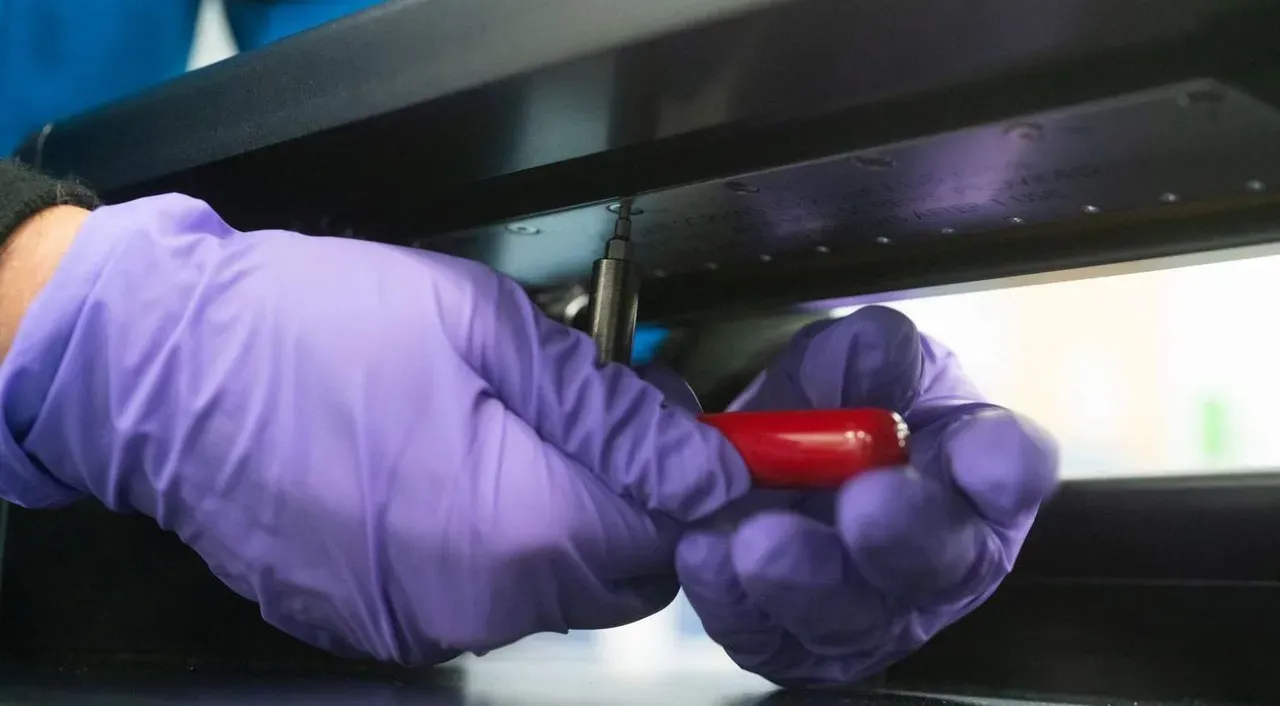

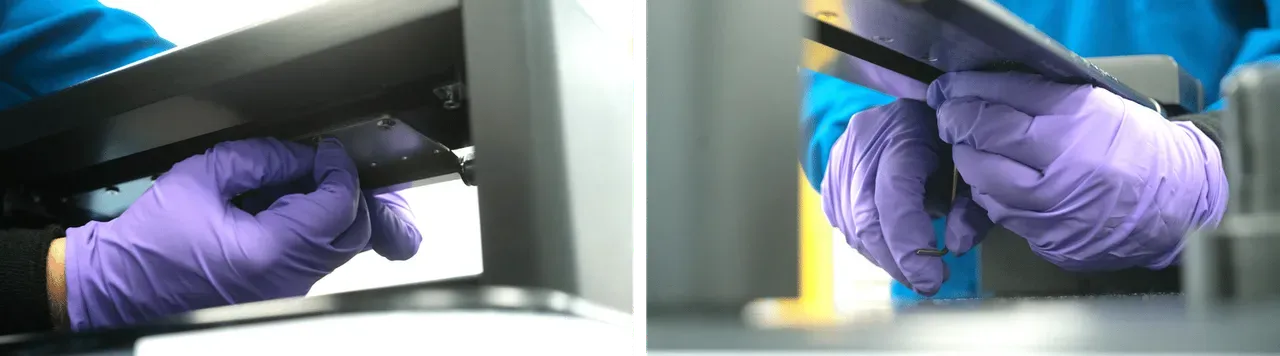

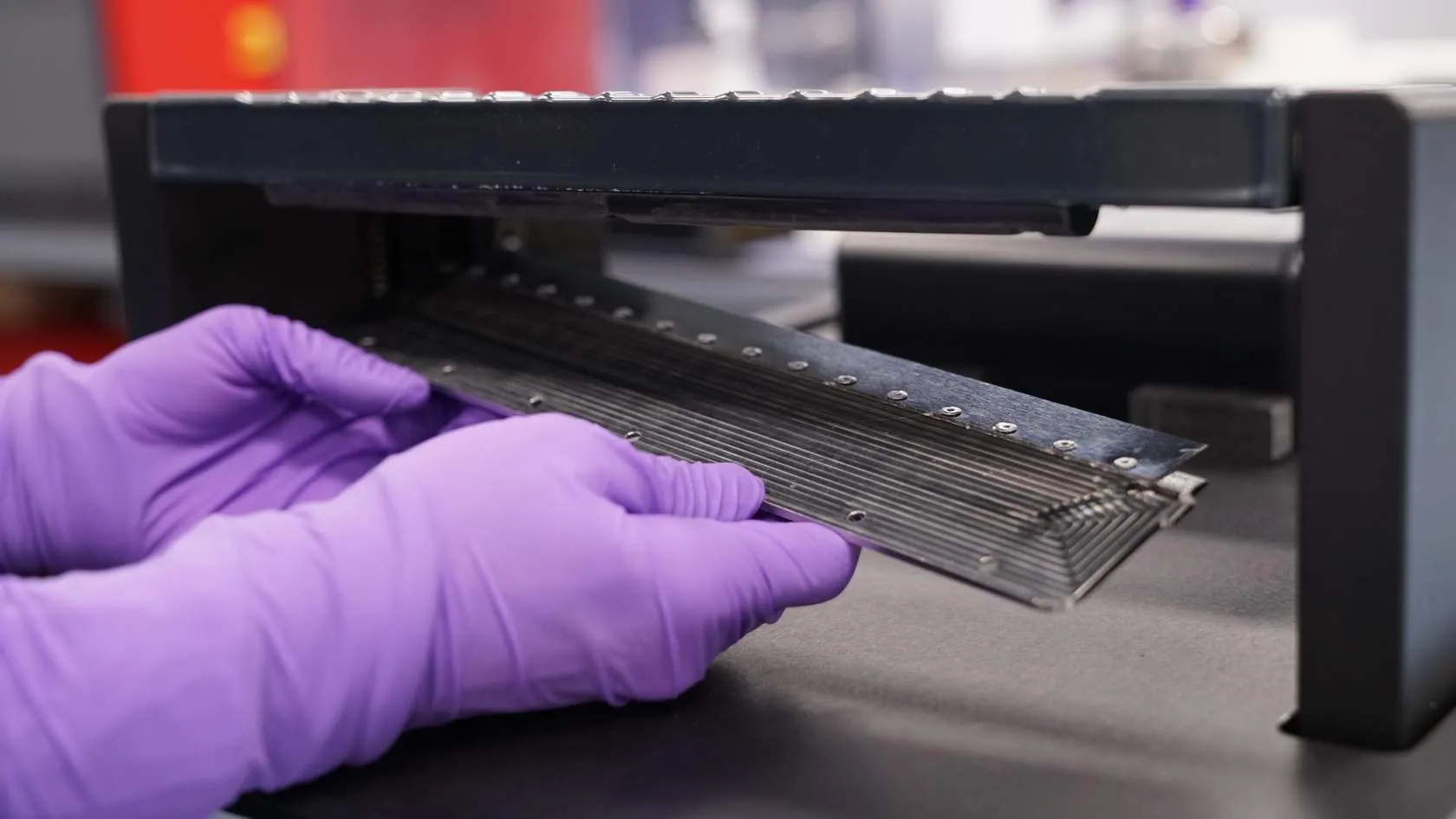

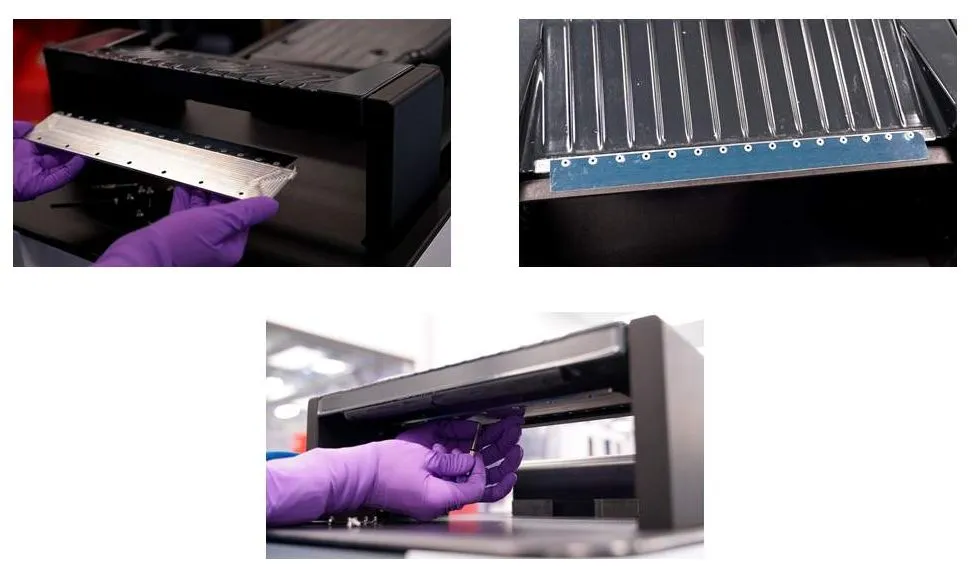

overview the release film remover enables the safe and easy removal of release film docid\ yrnqplrg4ymfck1m5tccv and printed parts from the l1 build platform only use with l1 dpr 10 platforms! stats weight 97 lbs (44 kg) will require 2 people to lift into place or move! dimensions 35 4 x 24 0 x 12 0 in (900 x 610 x 305 mm) features blade carrier when the hand wheel is rotated, the blade carrier moves along the tracks shown with blade carrier in home position blade the gold colored blade removes the release film from the platform it is very sharp to prevent injury, the blade is covered by the blade guard until the blade carrier is very close to the platform blade guard the blade guard covers the edge of the blade, preventing injury to the user the guard rotates down when the blade carrier makes contact with the platform this reveals the blade so that it can scrape the surface of the platform and remove the release film platform mount this feature holds the platform in place to ensure proper alignment with the blade the image above shows the platform installed on the platform holder hand wheel the hand wheel moves the blade carrier forward and backward along the tracks blade carrier tracks these slots in the top surface of the release film remover allow movement of the blade carrier blade assembly the blade assembly needs to be changed if damaged or dull a spare blade assembly is included with your release film remover additional blade assemblies can be purchased from carbon safety safe operation of the release film remover requires that you read and understand the warnings below safety is a combination of common sense, staying alert, and knowing how the release film remover works be aware of the safety instructions below whenever operating the release film remover ⚠️ the blade is very sharp! do not touch the edge of the blade with a bare or gloved finger or hand use caution when changing the blade ⚠️ pinching hazard exists when blade carrier is in motion do not place your hand or fingers between the blade and platform when the blade carrier is in motion operation the following steps will show you how to operate the release film remover equipment preparation 1 the blade carrier should be in the home position if the blade carrier is not in the home position, turn the handle counterclockwise until it reaches the home position 2 inspect the blade it should be clean, flat, and free of blemishes in the cutting area if the blade needs to be cleaned or replaced, see the maintenance section of this training install the platform position the handle of the build platform toward you pick up the platform, using the side grips of the platform place it onto the platform holder of the film remover previous generation note ensure the handle of the platform is on the same side as the hand wheel remove the film 1 turn the hand wheel slowly to move the blade carrier forward, about 1 rotation per second do not put your free hand between the blade carrier and the platform 2 turn the hand wheel until the platform contacts the blade guard the blade guard will move down uncovering the blade 3 continue to turn the hand wheel slowly to allow the blade to run underneath the film if the blade does not run underneath the film, reverse the hand wheel and try again at a slower pace failure to wipe residual resin from the platform before curing will result in a layer of hardened resin this may prevent the blade from getting underneath the release film 4 keep turning the hand wheel until the film is completely removed from the surface of the platform when enough film has been separated from the platform, use your spare hand to hold the parts and film out of the way of the operation of the blade carrier set the film aside 1 move the film (and the attached models) to a clean, non stick surface if you have saved the liner from release film, you can place the release film back on it return blade carrier to the home position 1 turn the handle counterclockwise until the blade carrier reaches the home position operation video video text place loaded platform onto platform holder note platform handle must be on same side as hand wheel turn hand wheel until blade moves under release film with free hand, hold loose film above blade carrier once release film is completely separated, remove it turn hand wheel until blade carrier reaches home position complete maintenance schedule perform regular maintenance on your release film remover to ensure optimal operation frequency task after every use carefully clean blade with an acetone wipe after every use daily vacuum or wipe any exterior surfaces with acetone and a shop towel to remove any residual debris weekly visually inspect remover blade for dullness, dents, or burrs replace if necessary inspect overall unit for damage or loose parts maintenance tasks cleaning the blade over time, residue from the release film will collect on the top of the blade, making it sticky when this happens, the top of the blade will need to be cleaned ensure the blade carrier is in the home position with the blade guard in place using an acetone wipe, remove the film residue by pushing down against the top of the blade and wiping down along the top of the blade continue until the top of the blade is free from residue use caution the blade is sharp! changing the blade assembly the blade will dull over time when the blade needs to be changed, follow the procedure below using the provided blade assembly kit carbon recommends the use of cut resistant gloves when changing the blade assembly locate the provided kit for changing the blade assembly kit contains torque wrench, preset to 2 0 nm part remover hex bit, 2 5 mm new blade assembly note reach out to o rders\@carbon3d com rders\@carbon3d com to order additional blade assemblies “release film plow blades ” locate the screws underneath the blade carrier that attach the blade assembly using the provided hex bit, remove the screws discard the screws new screws are provided in the blade changing kit remove the assembly use caution the blade is sharp! place the new blade assembly into the blade carrier inscribed text should be visible when new assembly is placed in blade carrier install the new screws with provided hex wrench into blade assembly/carrier tighten from middle screw out for best fit torque screws to 2 n m (18 in lbs) with provided preset torque wrench test blade carrier to confirm proper fit with an empty platform installed, operate the release film remover to ensure blade assembly is properly installed the blade should rest flat against the platform once the blade guard is disengaged if the blade does not operate as expected, return the blade carrier to the home position, loosen the screws and reseat the blade assembly uncrating and crating download this document to learn about uncrating your newly delivered release film remover or packing it for safe shipment english https //archbee doc uploads s3 amazonaws com/vmzsbejdeghbwm j2w3hr hjvbxlsukuyfmsdu6owe9 20240815 000459 pdf resources for additional information, follow the links provided below release film applicator docid\ lvdqjhthanq9d 8ztygcg l1 production solution docid\ ejs8ygx5 mrzczlj ru73 (login required) gen 2 aligner model solution docid\ gfedzwmgvhh88vu vp7xp (login required) release film docid\ yrnqplrg4ymfck1m5tccv legacy release film remover the previous generation of the release film remover differs from the latest generation in two ways there is no blade guard a safety brake located on the left side of the remover keeps the blade carrier from moving unless it is disengaged to disengage the brake, pull the lever up with your left hand continue pulling the lever while turning the hand wheel to allow free movement of the blade carrier follow guidance from latest release film remover except as noted below safety cutting hazard exists when blade carrier is in motion or when the blade arm is not in the home position do not place a hand between the blade and platform when the blade carrier is in motion use caution whenever blade carrier is not in the home position operation disengage the brake enable movement of the blade carrier to disengage the brake, pull the lever up with your left hand continue pulling the lever while turning the hand wheel to allow free movement of the blade carrier maintenance changing the blade assembly when the blade dulls, follow the procedure below to change it remove the blade assembly from the blade carrier equipment needed 2 5 mm hex wrench steps locate the screws underneath the blade carrier remove with a 2 5 mm hex wrench remove assembly install the new blade assembly with the new blade into the blade carrier equipment needed new blade assembly 2 5 mm hex wrench steps center the new blade assembly on the blade carrier be sure the blade is resting on the blade guard hold the blade assembly in place and install the screws with your free hand for best fit install middle screw first, working outwards
