L1 Platform Hotel

10min

Overview
The L1 platform hotel allows the convenient storage and transport of up to 8 build platforms while containing resin dripping off parts.

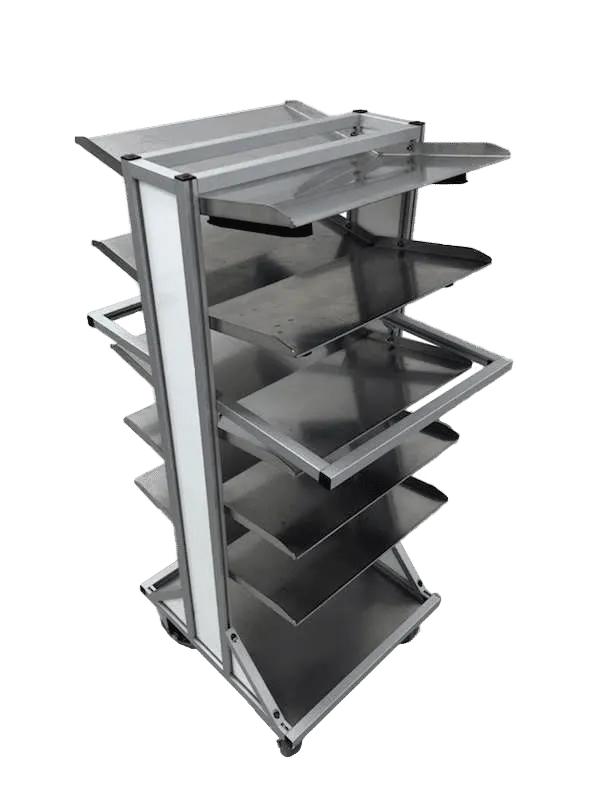

L1 platform hotel
﻿
﻿
Drip trays contain resin fallout and maintain lab cleanliness.
Durable and easy to clean stainless steel construction.
Built on casters for portability.
Top of hotel can be used for storage of supplies such as blue shop towels.
Features
Stats

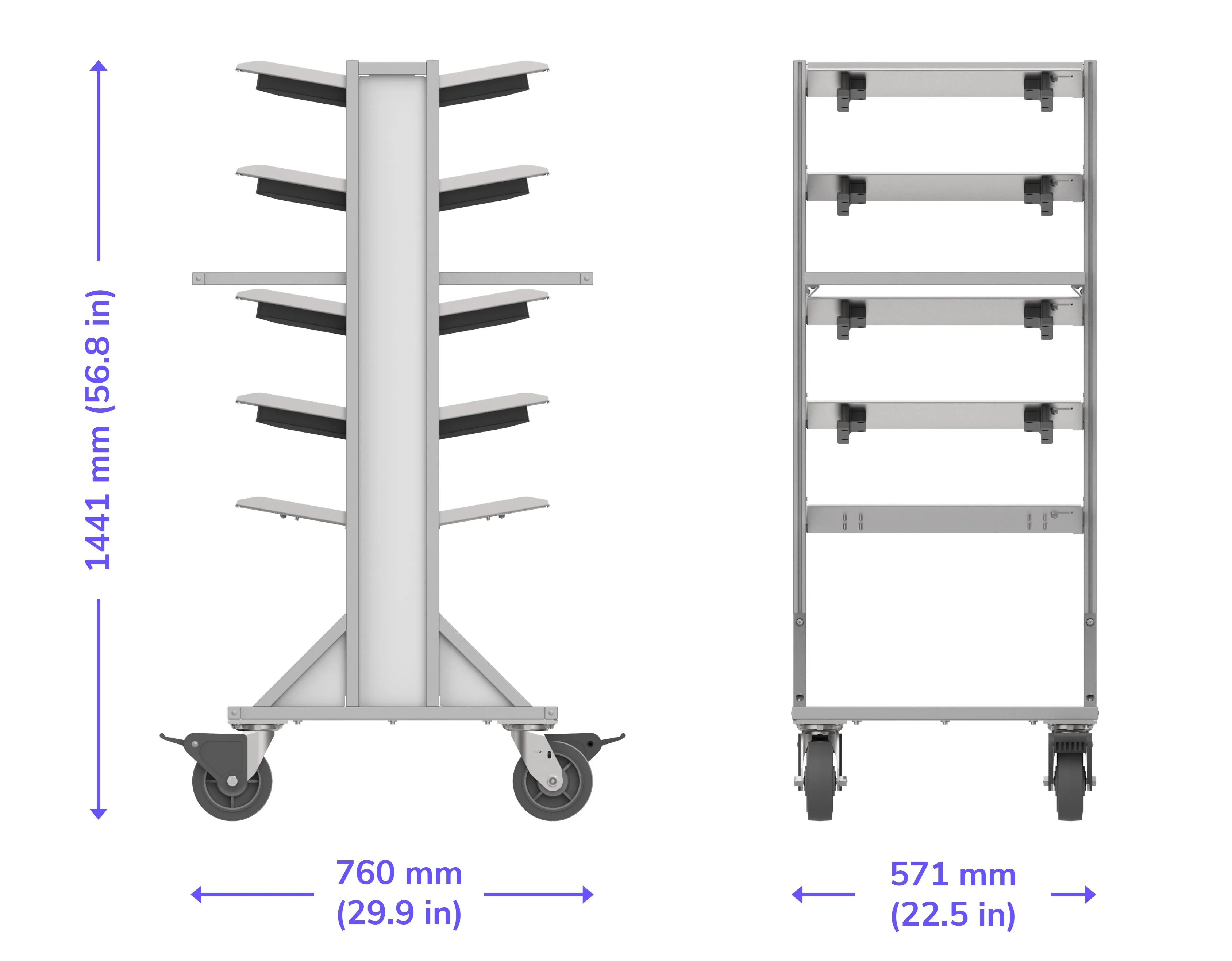

Dimensions: 760 x 571 x 1441 mm (29.9 x 22.5 x 56.8 in)
﻿

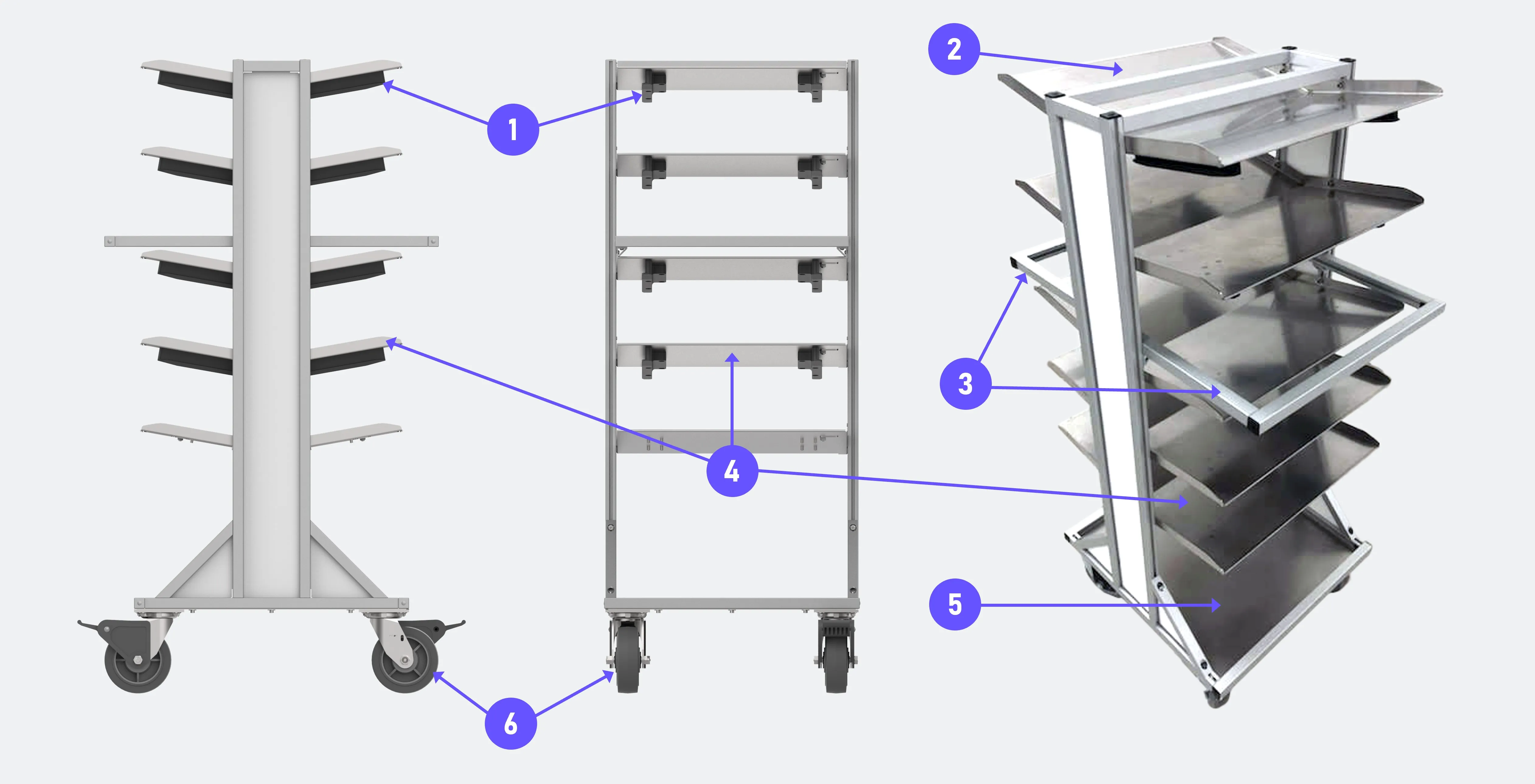

Descriptions
﻿
1
The build platform slides onto these rails using the inward slope to keep the unit secure.
2
Top shelf may be used for storage of frequently used items such as blue shop towels.
3
The primary method to push or pull the hotel around the lab.
4
The angled shelf that supports the platform also acts as a drip tray for the platform suspended above it.
5
A place to temporarily store and transport items around the lab.
6
Enable the smooth transport of the hotel around level lab surfaces.
Operation
Housing Platforms

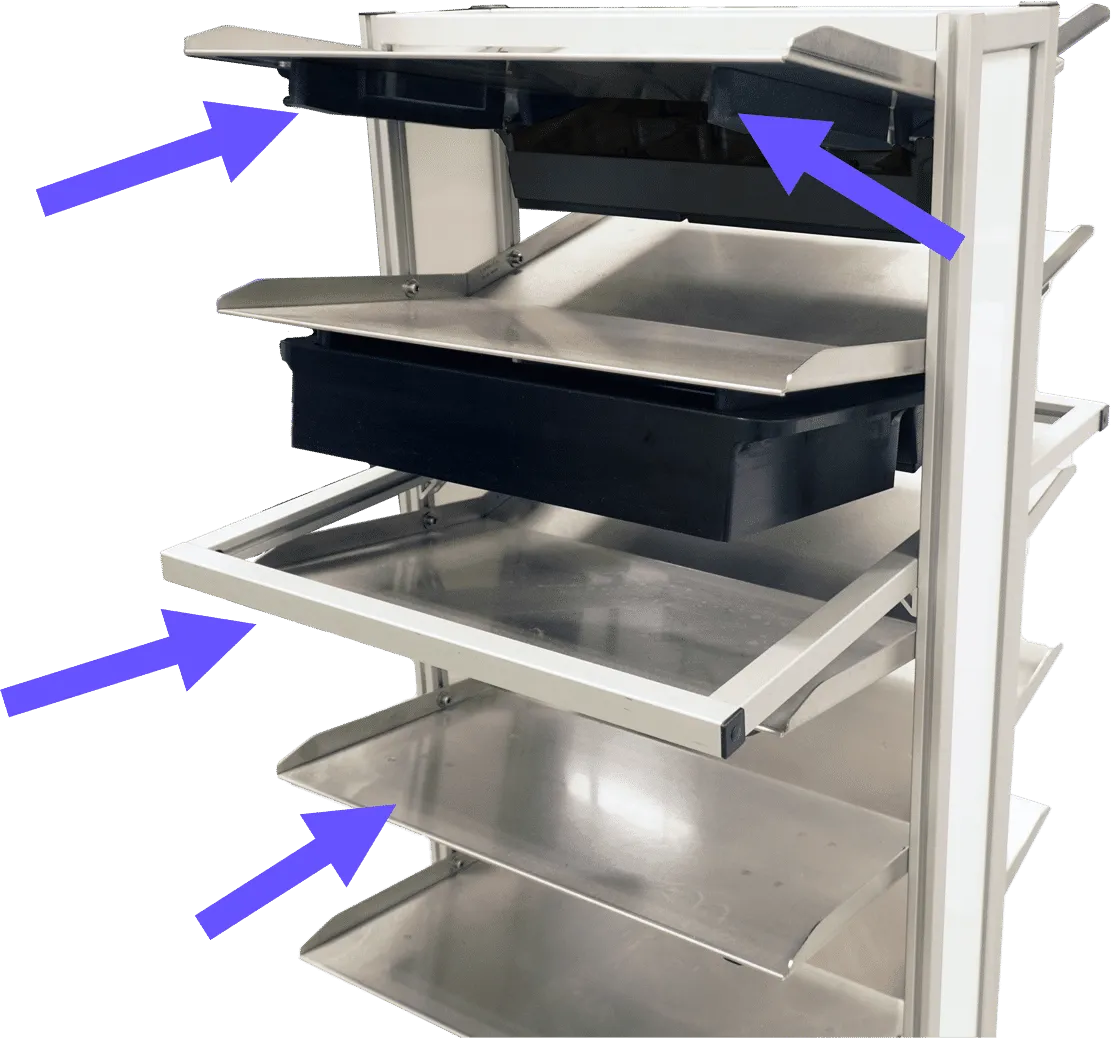

Holding the platform side grips, slide build platform onto the rails on the underside of a shelf.
The platform will be suspended above a drip tray to catch falling resin.
﻿
Moving the Platform Hotel

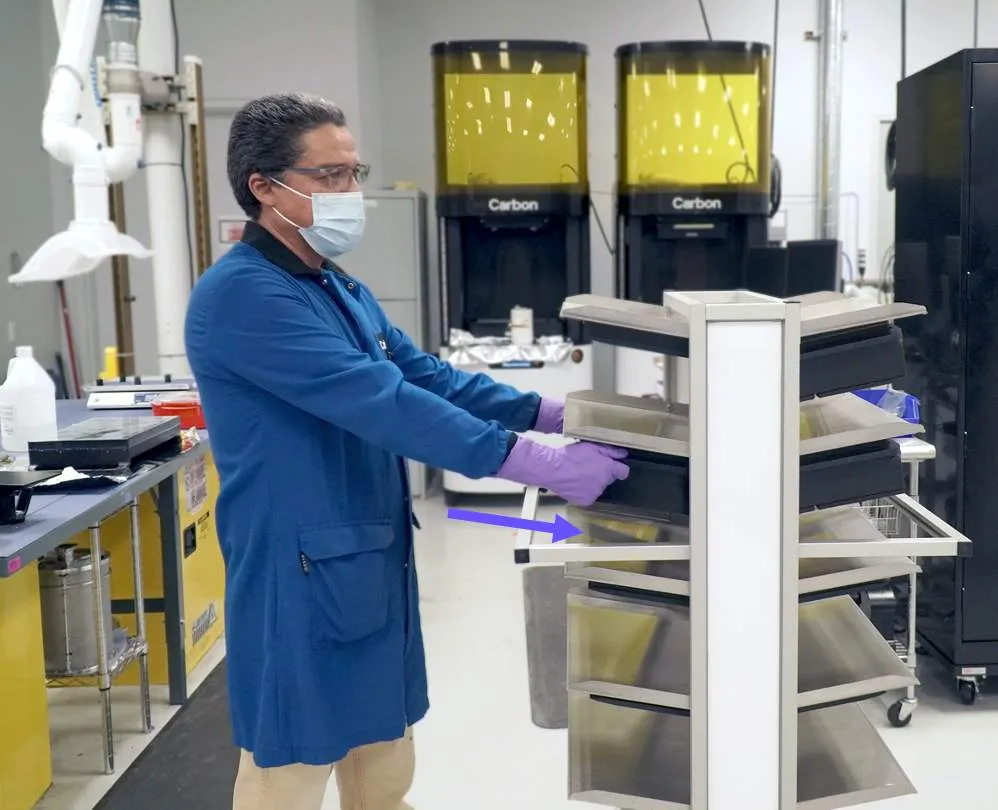

Grasp the handle with both hands.
Carefully push the platform hotel to the desired location.
Make sure the floor is level and free from obstructions.
The platform hotel will weigh more as platforms and other items are added to it.
Storage

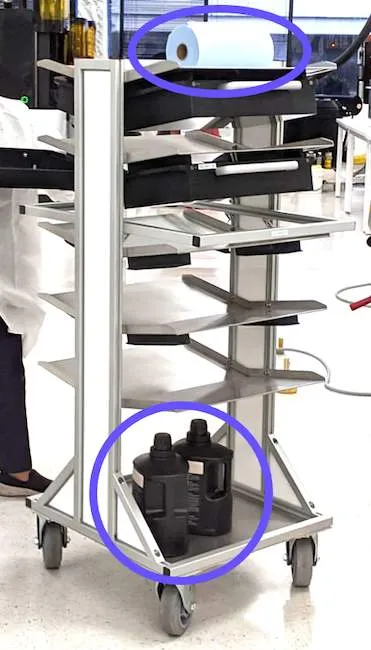

Platform hotel with platforms and resin containers
﻿
﻿
The top and bottom shelves of the platform hotel may also be used to transport resins and other accessories. The four middle shelves are for catching resin dripping off parts.
Note: The top shelf should be used only for storage of lightweight items such as blue shop towels.
Maintenance
Weekly
Clean the platform hotel
Wipe down the platform cart with IPA, acetone and shop towels to remove any excess resin or debris.
Platform rails
Drip tray surfaces
Handles
﻿
Monthly
Check casters
Over time, resin may build up on the casters and will need to be removed with IPA wipes or IPA dampened blue towels to ensure smooth rolling when empty or loaded.
