Accessories
Basket
The basket gives customers an automated washing solution for the L1 printer.
Once removed from the platform, parts can be placed in the interior pocket or the outer pockets.

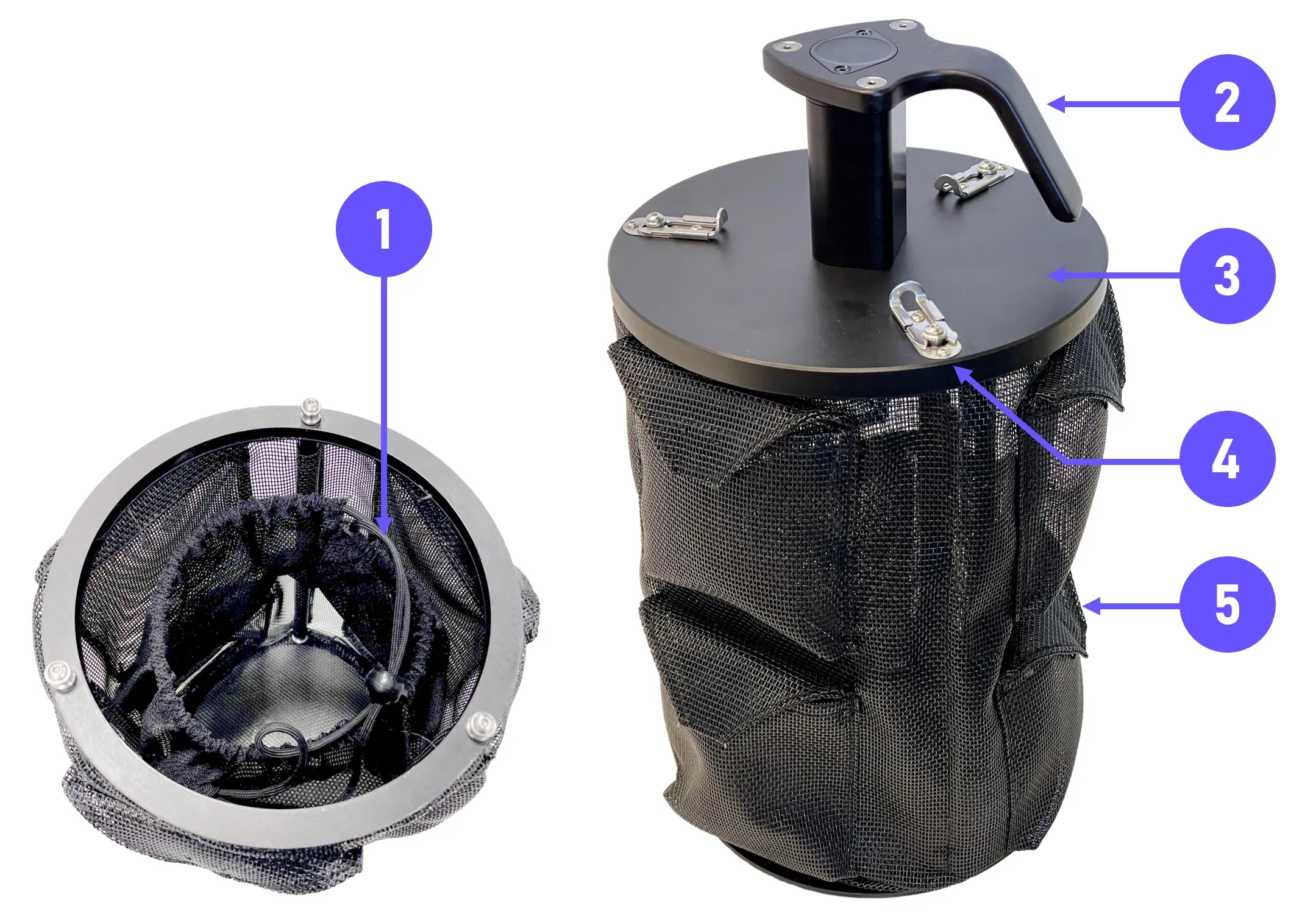

- Inner pocket with cinch closure
- Handle
- Lid
- Latch
- Outer pockets with magnetic closures
M3 Part Washer Adapter
The M3 Part Washer Adapter is only compatible with the legacy M3 platform.
The M3 Platform has a different interface than M2 platforms that requires an adapter to fit in the Smart Part Washer.
Slide adapter onto the locating pins
- Orient with point of triangular component aimed away from handle
- Slide closed both latches to lock in place
Place platform in part washer
Select the print getting washed from the screen
The NFC tag on the adapter knows all of your lab's M3 prints, but you need to tell the washer which one you are washing.
Specifying the print is necessary to ensure the proper wash cycle for your parts.
Follow all other steps for using a Smart Part Washer.
Distiller for VF 1 Solvent
A distiller designed to recycle VF 1 solvent. It is able to recapture 5 - 6 gallons out of 7 gallons of soiled solvent.
The distiller is only for use with VF 1. It is not compatible with other solvents.
- Custom design for Carbon customers.
- Different models for domestic and international customers.
- Includes a reusable ring and disposable liners.

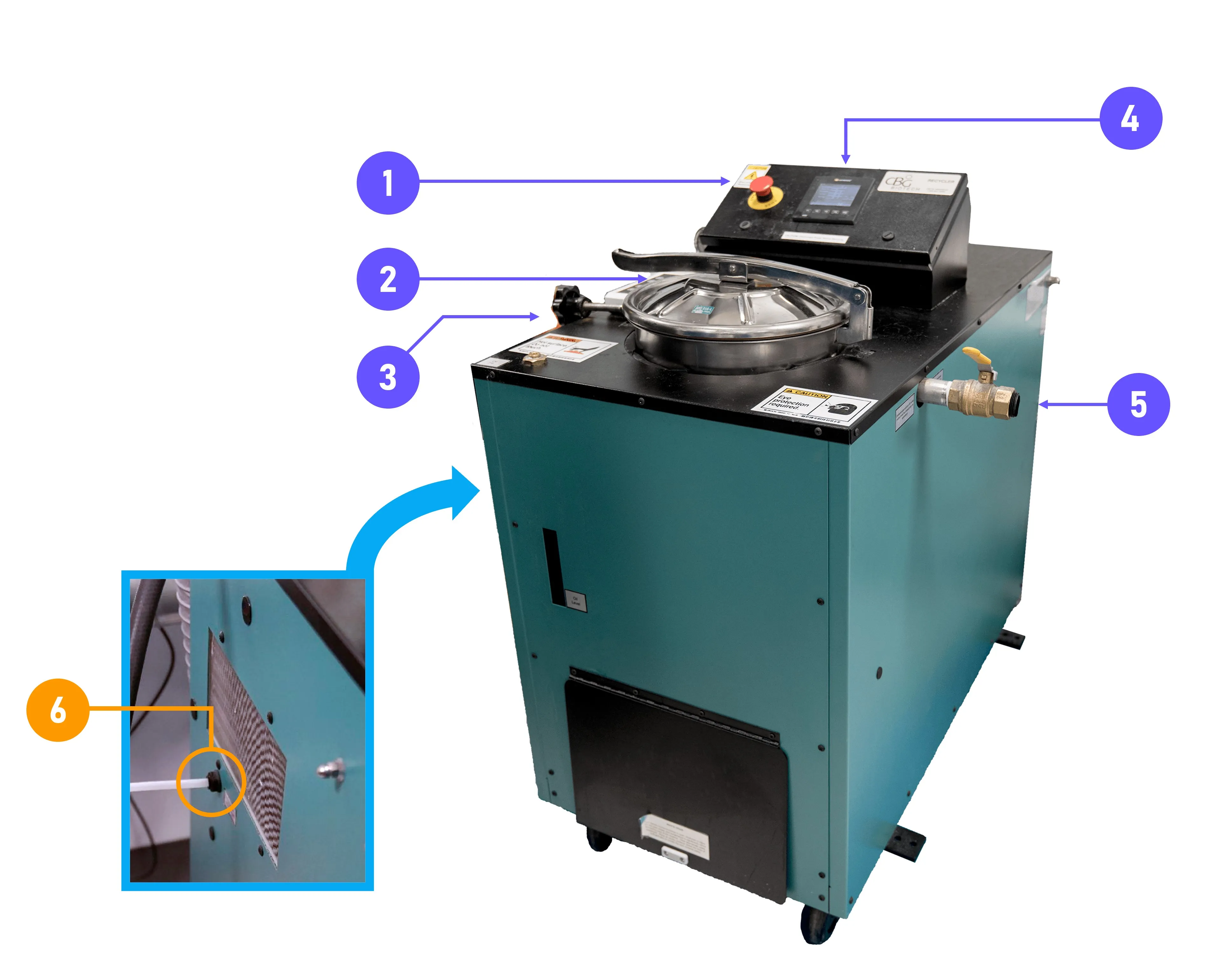

Emergency stop
Distill chamber
Locking screw
Touchscreen display
Drain valve
Distillation outlet
Located on the left side of the distiller
Product Information
CBG TECHNOLOGIES CUSTOM DISTILLER
Model # Carbon S-600
See the manufacturer product manual for more information.
