Weekly

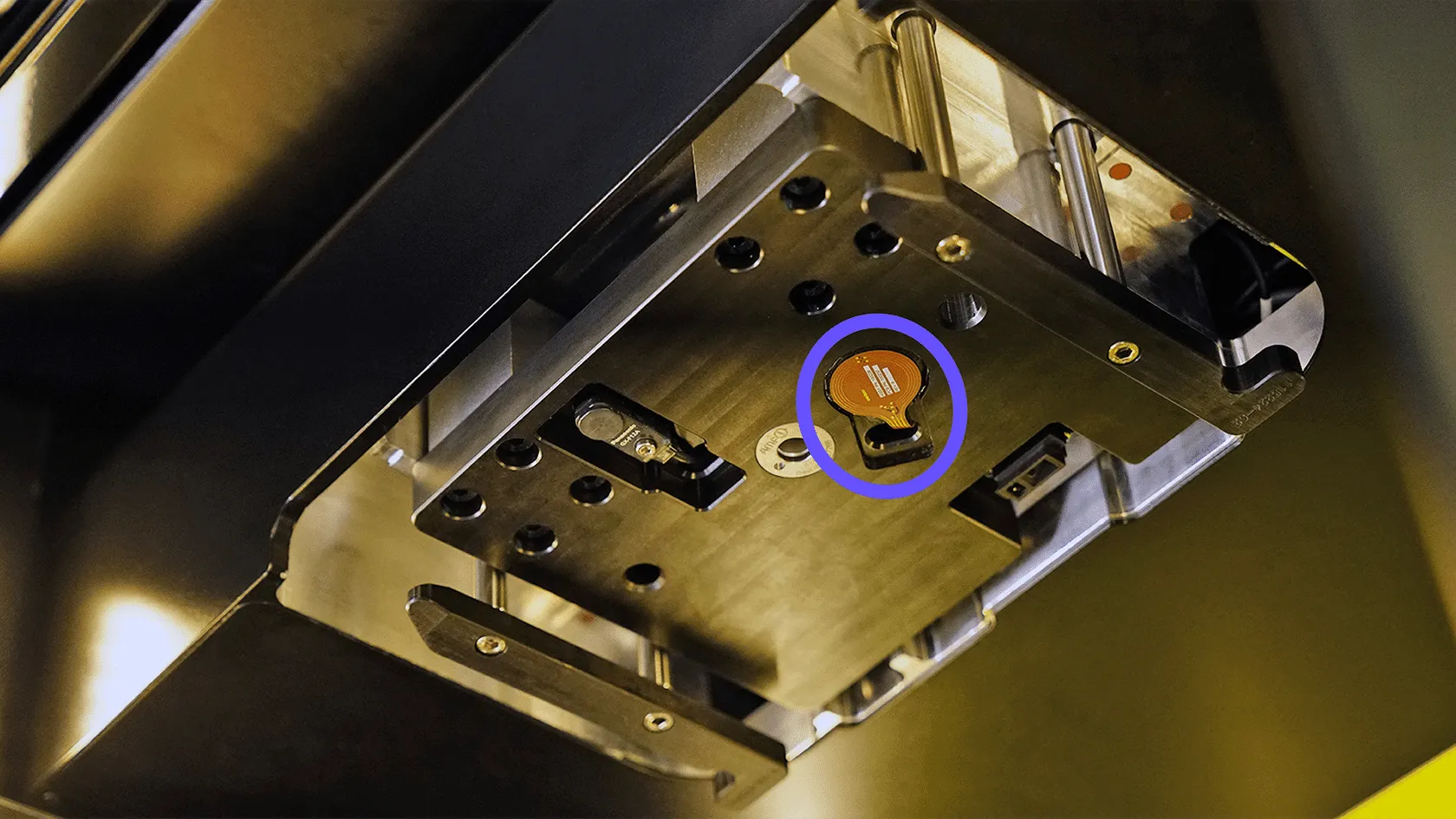

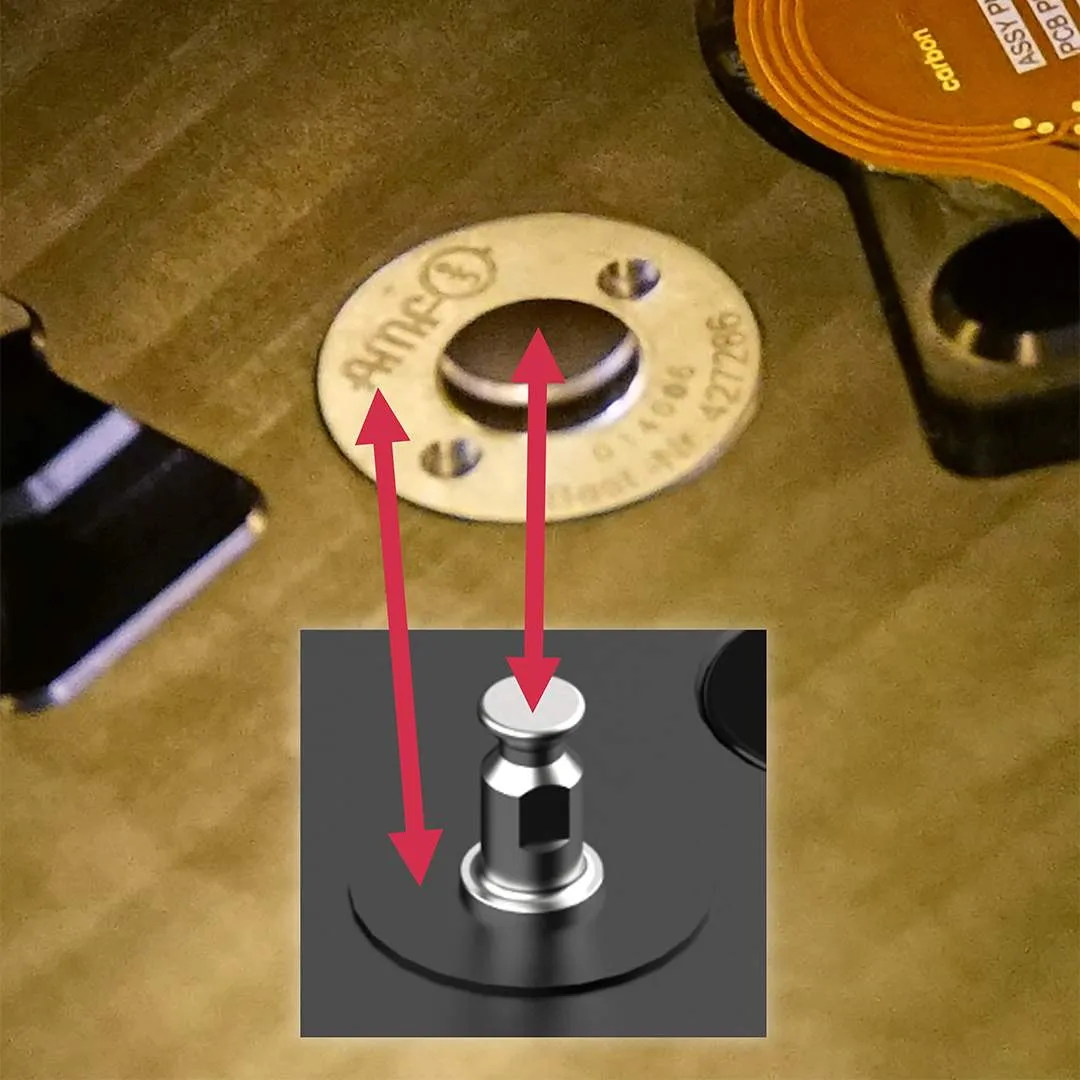

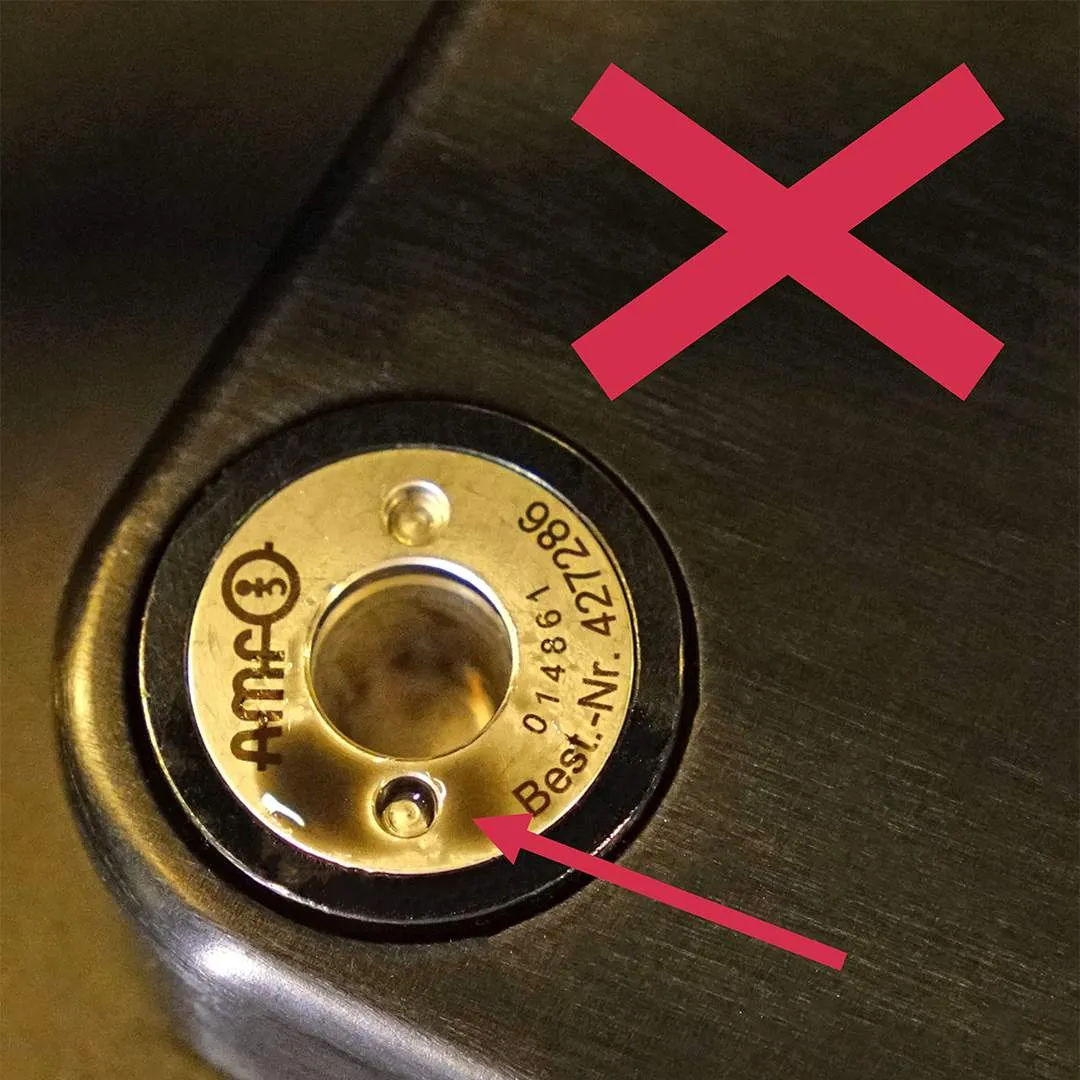

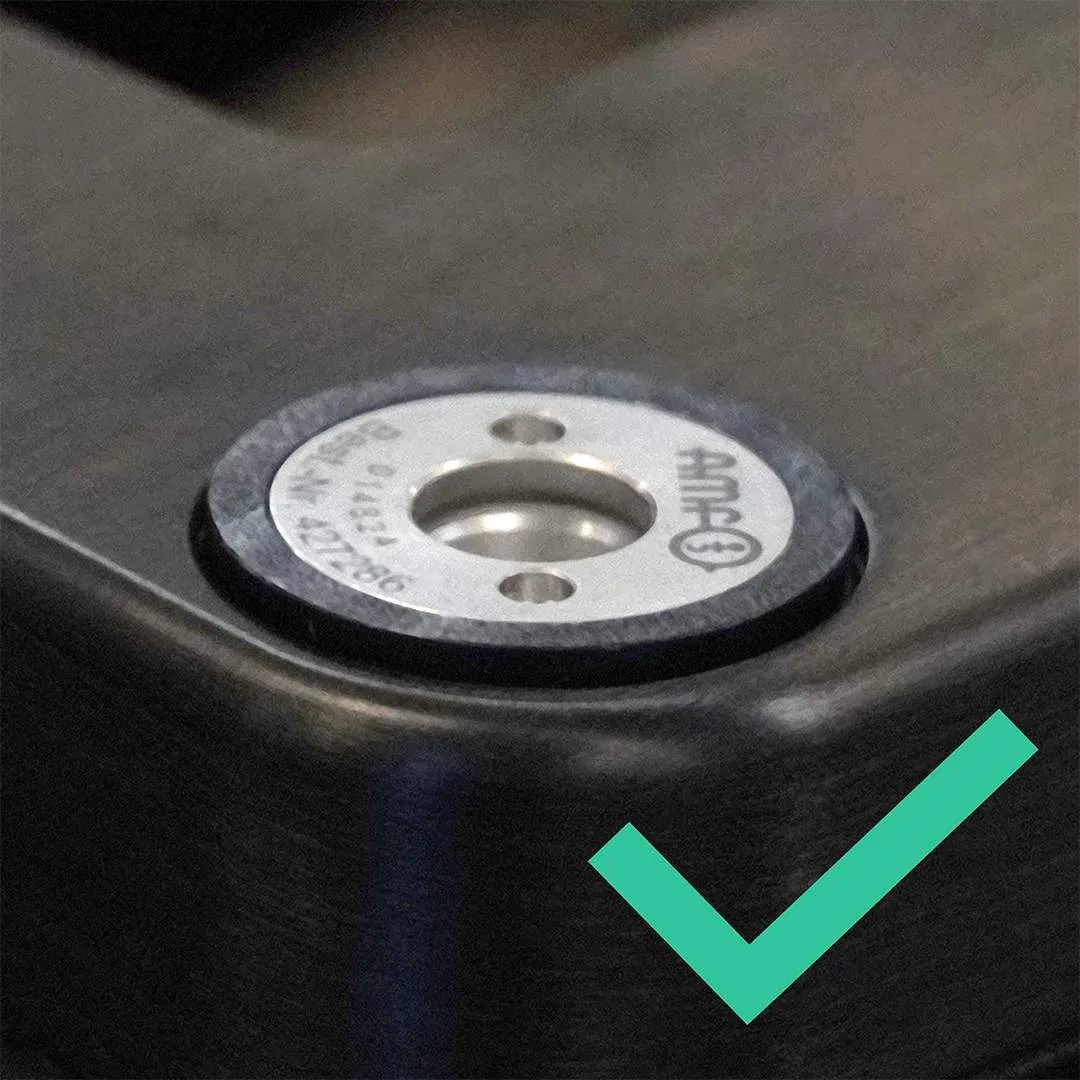

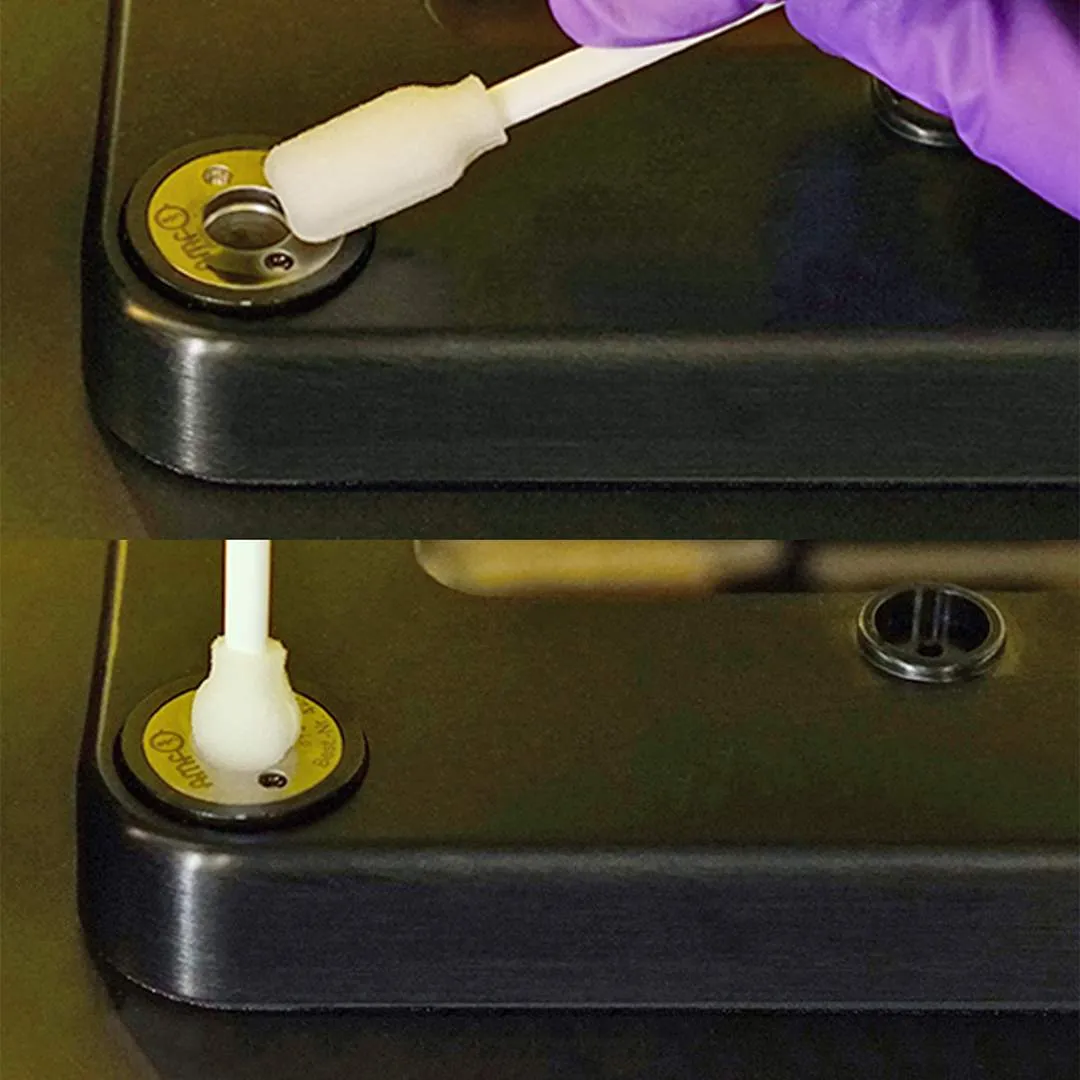

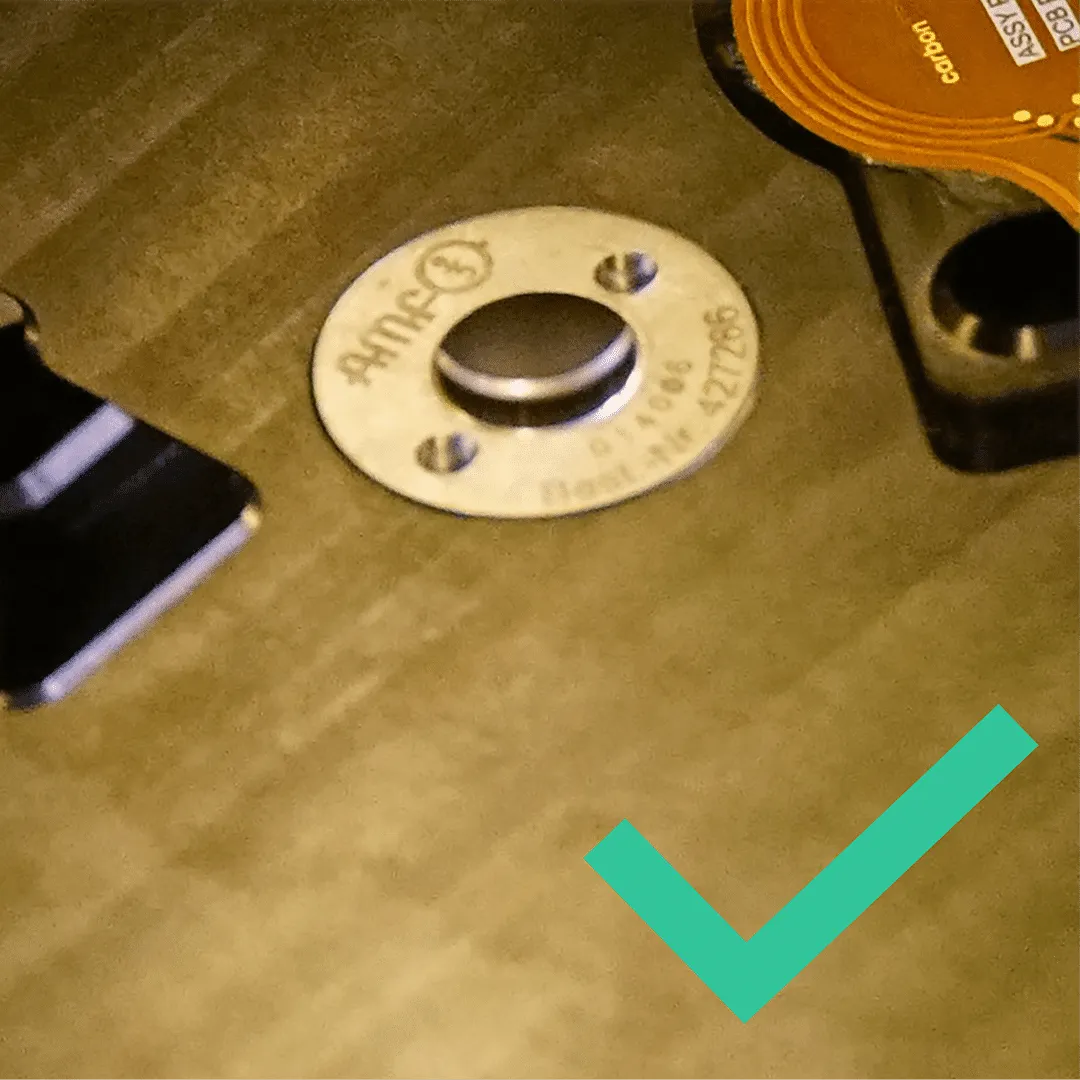

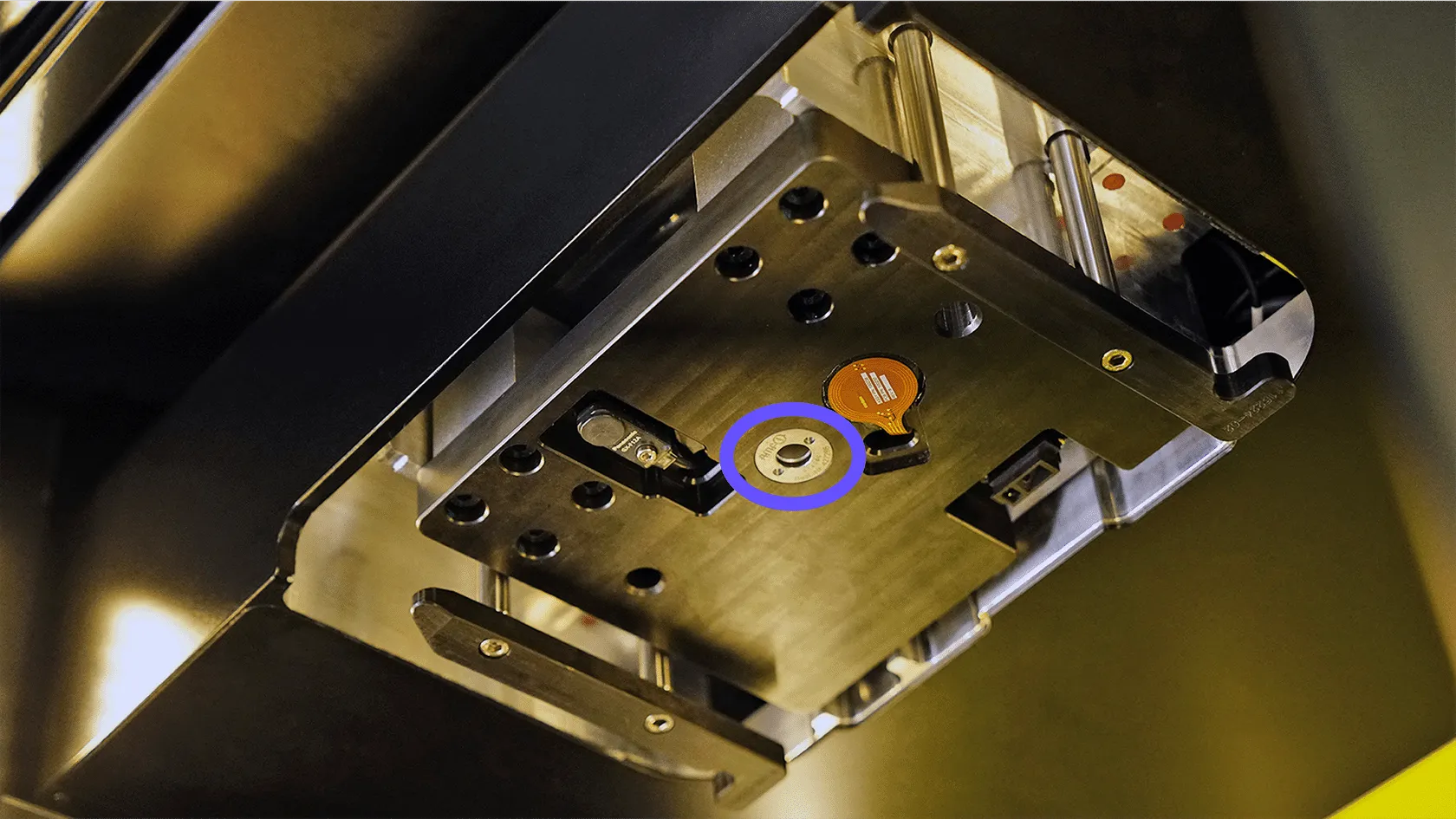

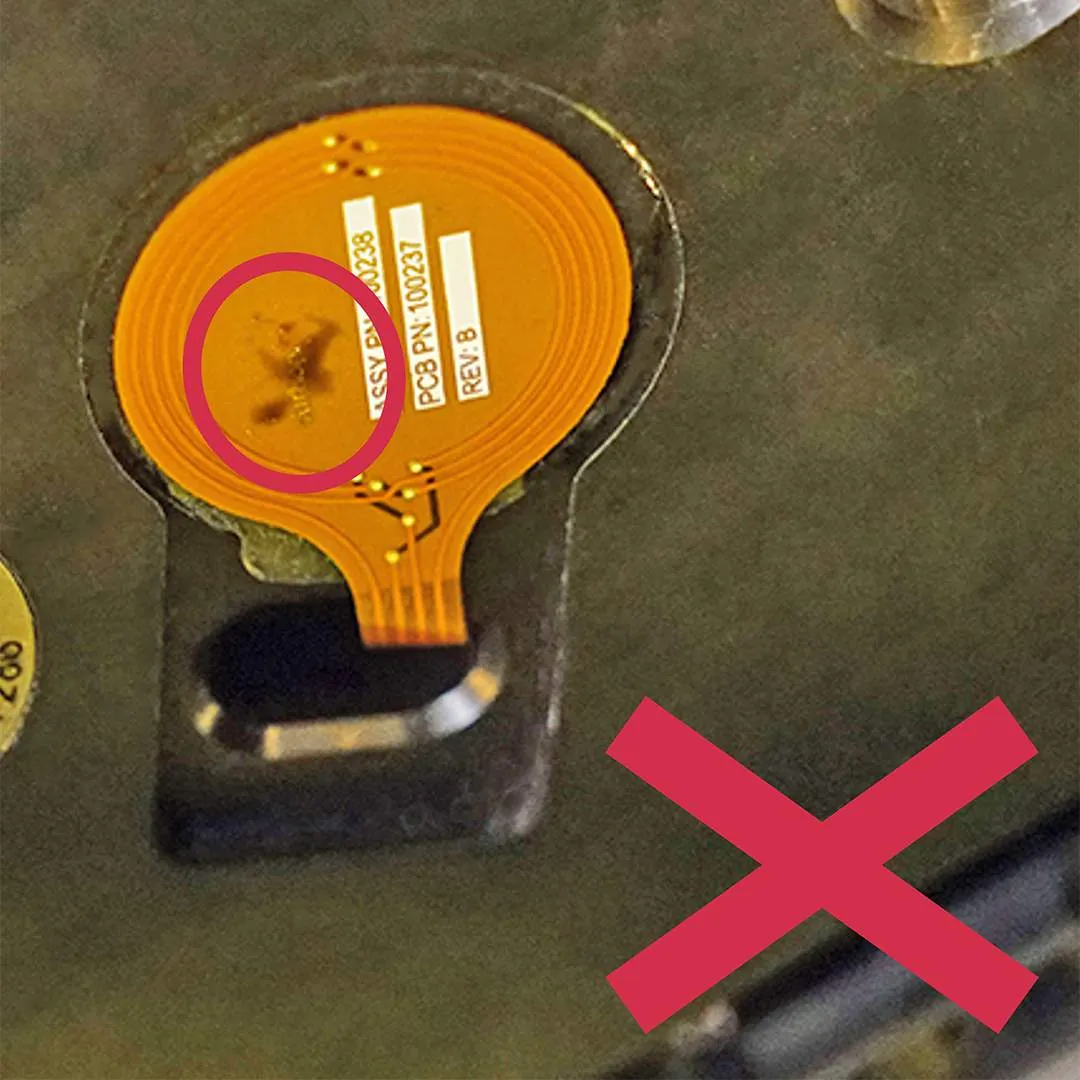

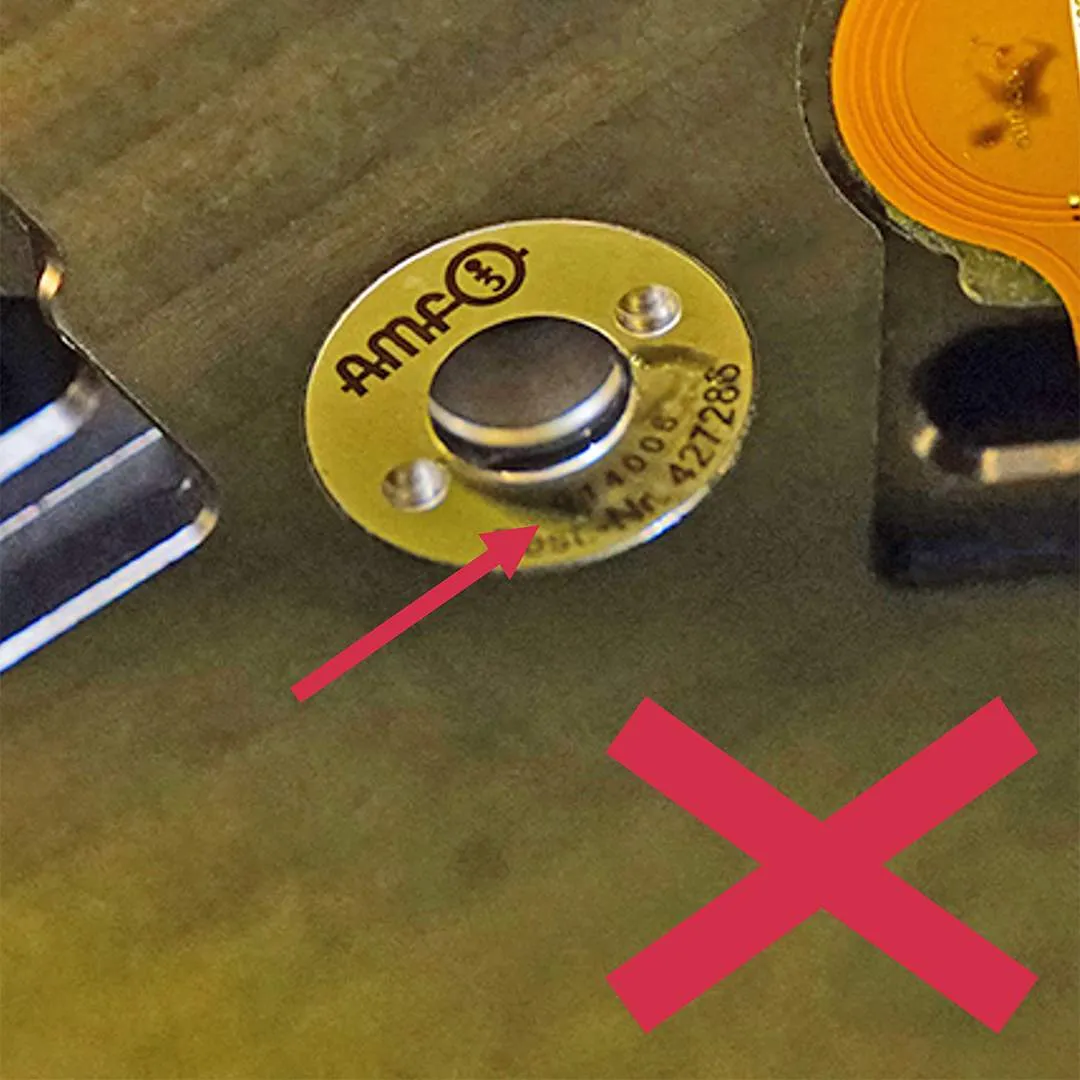

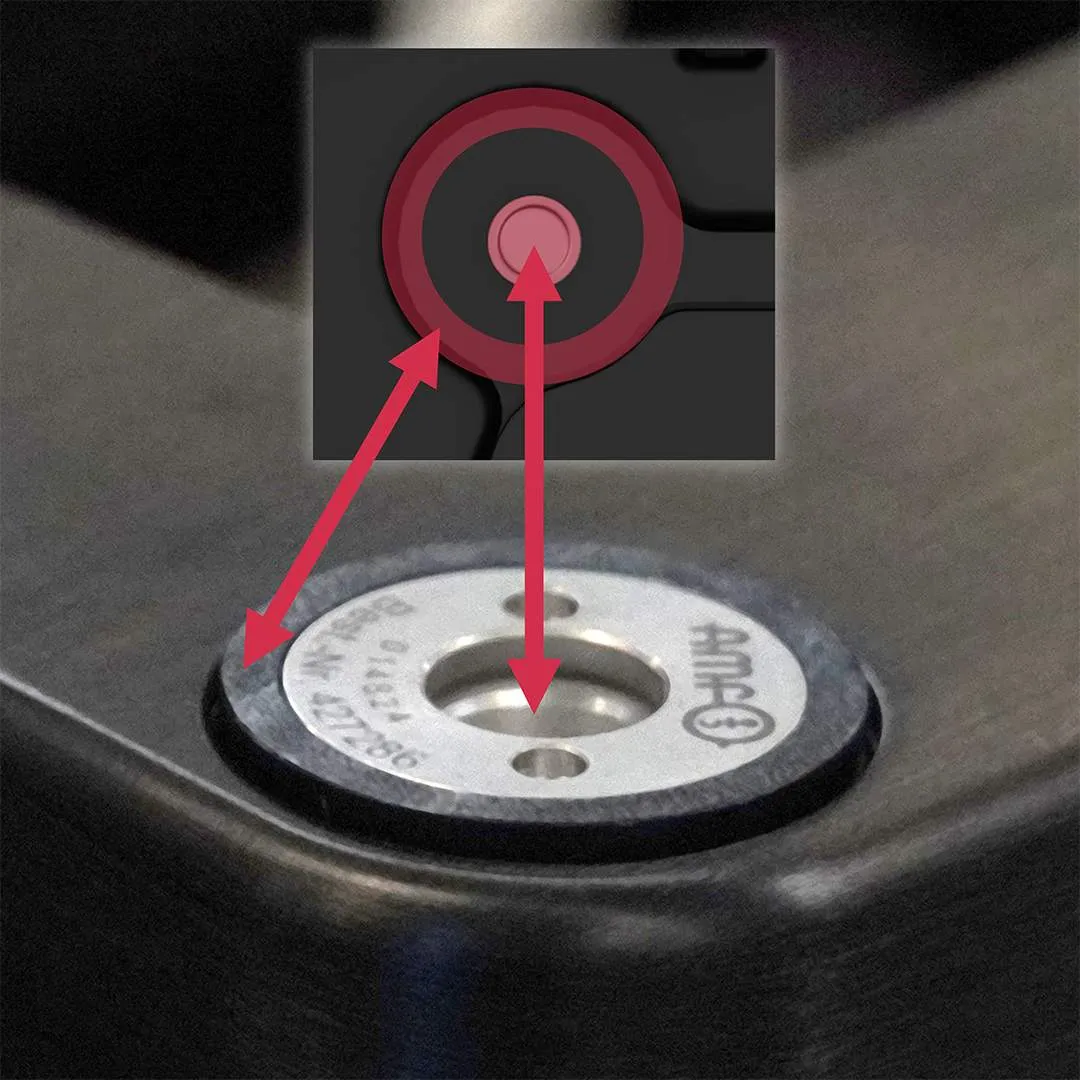

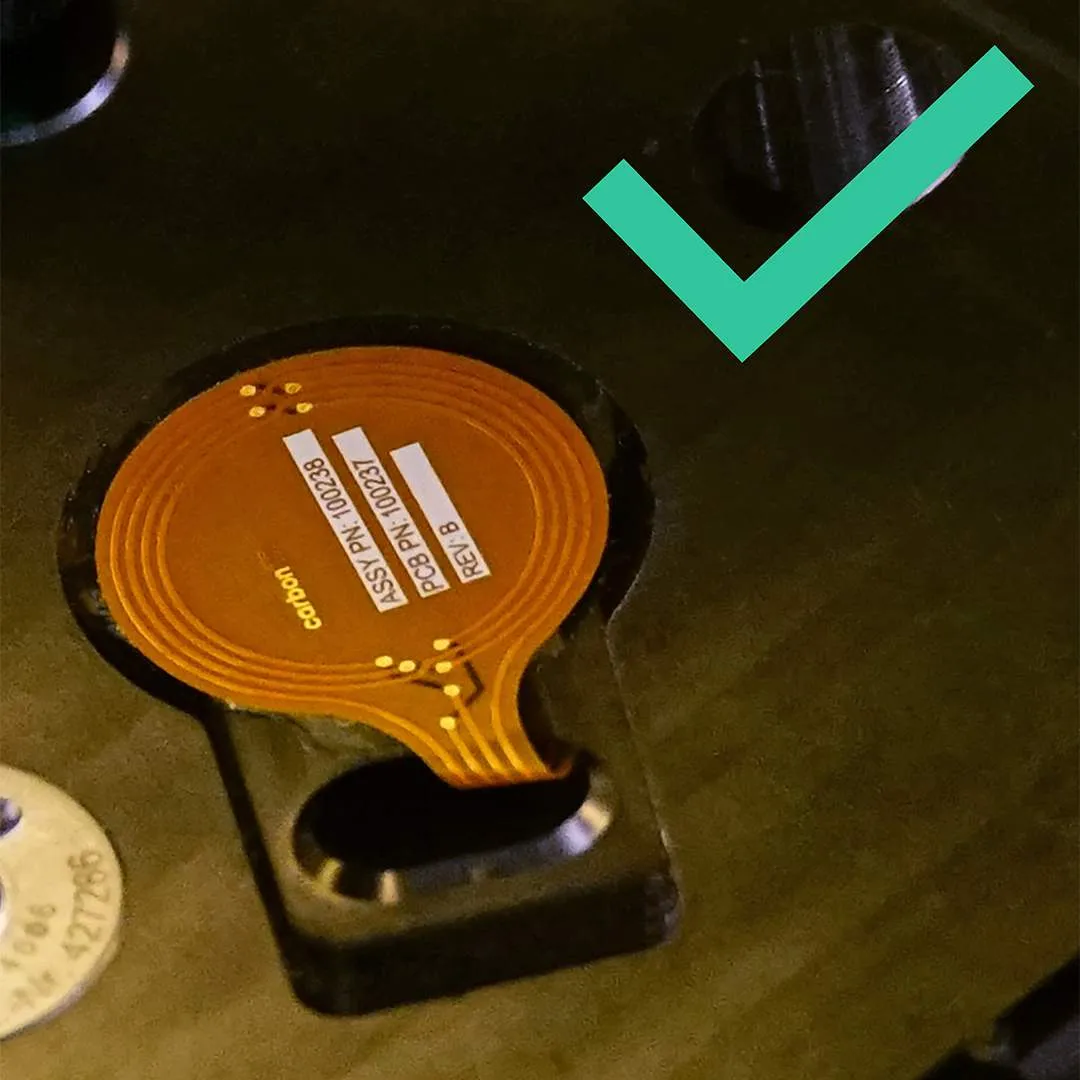

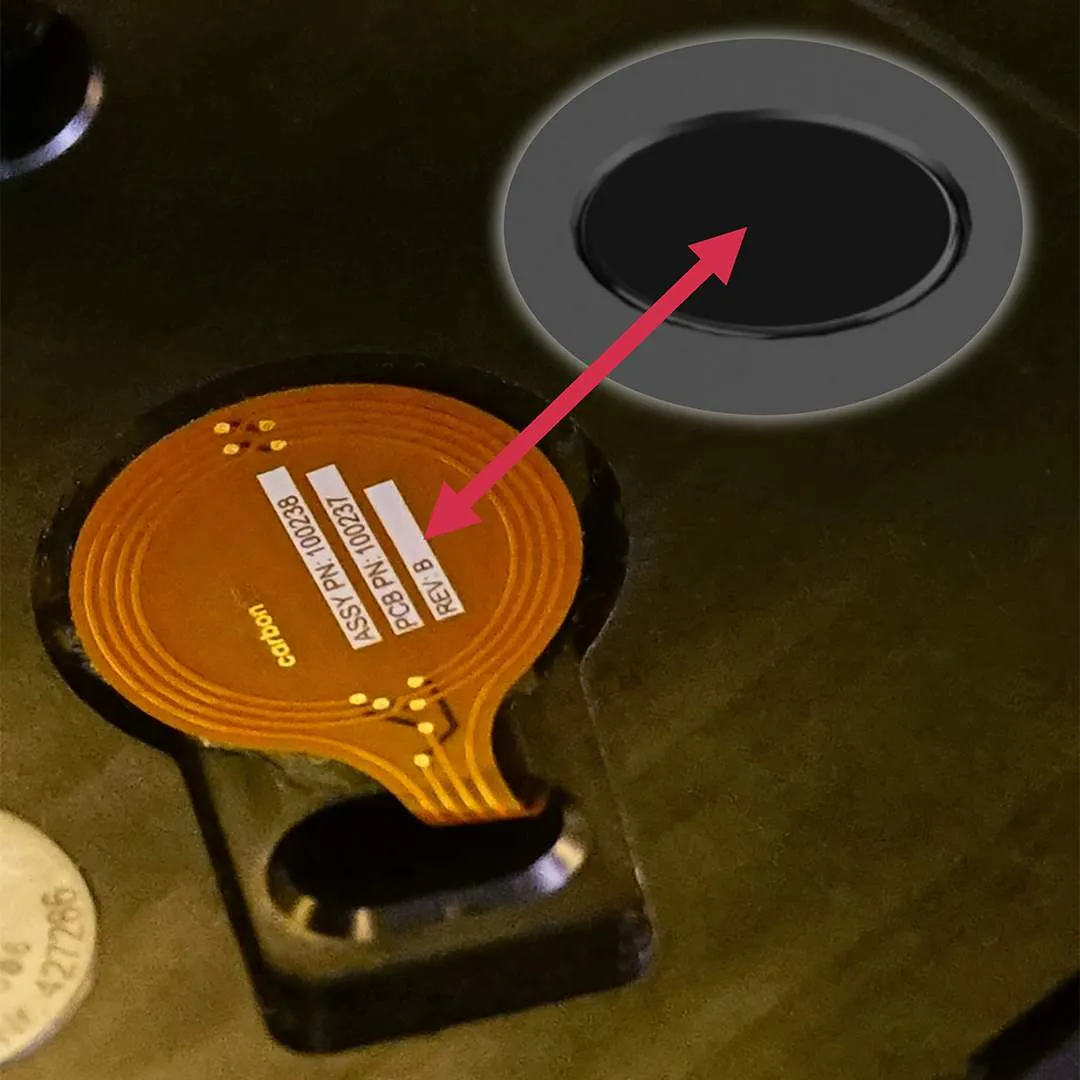

perform these maintenance actions every week weekly docid\ imuk y8klpc7qpxku6yyk weekly docid\ imuk y8klpc7qpxku6yyk weekly docid\ imuk y8klpc7qpxku6yyk weekly docid\ imuk y8klpc7qpxku6yyk weekly docid\ imuk y8klpc7qpxku6yyk weekly docid\ imuk y8klpc7qpxku6yyk weekly docid\ imuk y8klpc7qpxku6yyk weekly docid\ imuk y8klpc7qpxku6yyk weekly docid\ imuk y8klpc7qpxku6yyk weekly docid\ imuk y8klpc7qpxku6yyk put on clean gloves before proceeding print head clamp pot inspection only a clean clamp pot is important to ensure the proper seating of the platform remove the platform inspect the clamp pot on the underside of the build arm for any resin or debris that will affect functionality pay extra attention to critical areas that interface directly with the underside of the platform circular metal area of the clamp pot recess for platform pin critical areas that interface with platformclean clamp pot if you find a dirty clamp pot with resin or other debris, do not clean the hardware yourself contact carbon support platform nfc antenna inspection only the nfc antenna is what the printer reads to identify the platform keeping this clean is critical for printer operation remove the platform inspect the nfc antenna on the underside of the build arm for any resin or debris that will affect functionality pay extra attention to critical areas that interface directly with the underside of the platform round area, shown here with the orange circuitry critical areas that interface with platform if you find a dirty nfc antenna with resin or other debris, do not clean the hardware yourself contact carbon support deck clamp pots inspect deck clamp pots clean deck clamp pots are important to ensure the proper seating of the cassette remove the cassette inspect the 4 clamp pots on the deck for any resin or debris that will affect functionality pay extra attention to critical areas that interface directly with the underside of the cassette black ring around hardware (sits slightly proud of the hardware) recess for cassette pin critical areas that interface with cassetteclean clamp pot clean deck clamp pots if dirty first place the foam insert (included during shipping) or clean aluminum foil on the pedestal to keep any debris from falling into the printer cavity dampen a large swab with ipa, outside of the printer outside of the printer , and blot on a blue shop towel do not apply ipa directly to the clamp pot do not apply ipa directly to the clamp pot clean the clamp pot to remove and resin and dust clean the metal surface and the raised black ring around the hardware clean the recess by inserting the dampened swab if there is cured resin on a clamp pot, or you cannot get one fully clean , contact carbon support cover the pedestal opening heater glass the m3 / m3 max printer comes equipped with two heaters to provide temperature control for highly viscous resins to improve their flow during printing the heaters are covered with glass to prevent resin from accidentally dripping on heating elements and igniting the heater glass must be clean and free of any resin or particulates for normal printer performance ⚠️ the heaters are connected to the power supply and power must be turned off for safety before servicing prepare printer for servicing remove the platform from the homed position remove the cassette power down the printer remove the platform from the homed position remove the cassette power down the printer press power switch to the off position ⚠️ burn hazard the heater may be hot allow to cool 15 minutes after last print before servicing locate heaters heaters reside at the front and back of the projection volume, below where the cassette sits heaters sit partially underneath a short overhang of the deck heater glass clean, undamaged, securely installed inspect heaters for resin, dust and debris | action clean glass for cracked or chipped glass | action replace glass for proper installation | action secure glass glass properly seated on ledge glass properly seated on ledge clips positioned over glass clips positioned over glass resin and dust on glasscracked glass glass not properly seated on ledge glass not properly seated on ledge clips not positioned over glass clips not positioned over glass cleaning heater glass in printer dust or small drips of resin may be cleaned without removing glass from the printer if you can reach the area lightly dampen a blue shop towel with ipa, outside of the printer do not saturate the towel to the point of dripping solvent do not saturate the towel to the point of dripping solvent reach into the opening, and wipe the heater glass with the towel, until it is clean, dry, and without streaks use a light touch to protect the glass removing heater glass to clean, replace, or secure larger resin spills, especially dirty glass, or damaged glass will need to be removed for cleaning or replacing this video also shows how to properly secure the glass if a resin spill has dripped beyond the glass itself, contact carbon support video text 1 locate two glass securing spring clips 2\ push and rotate clips outward to free glass 3\ carefully remove the glass cover \ tilt glass to remove it from printer cavity be careful to avoid the ir sensor when removing 4 clean both sides of glass with ipa \ dampen a blue shop towel \ until clean, dry and streak free 5\ carefully replace glass inside printer's heater \ tilt glass to replace it in printer cavity \ ensure glass rests on metal clips on each side of reflector \ press down metal bar at center of assembly to sit below glass \ hold glass in place with thumb \ push and rotate clip back over glass \ push and rotate 2nd clip back over glass the heater glass is tempered for safety and to increase durability, but it is still susceptible to breaking if not handled with care the printer will not operate if the heater glass has not been properly secured in place restore printer power power printer back on restore system power power printer back on press power switch to the on position restore system power press restore system power on the touchscreen to power on all hardware sub systems for operation spill window glass the light engine projects light through the spill window onto the cassette window to cure resin if the spill window is not clean, it may affect part quality prepare printer for servicing remove the platform from the homed position remove the cassette power down the printer remove the platform from the homed position remove the cassette power down the printer press power switch to the off position inspect spill window inspect the light engine spill window inside the projection volume for any smudges, resin, dust or debris that will affect print performance clean spill windowdirty spill window (click on image to zoom in for better view) clean glass if dirty lightly dampen a blue shop towel with ipa, outside of the printer do not saturate the towel to the point of dripping solvent do not saturate the towel to the point of dripping solvent reach into the opening, and wipe the spill window glass with the towel, until it is clean, dry, and without streaks if cured resin cannot be removed in this manner, contact carbon support return printer to operation power printer back on restore system power power printer back on press power switch to the on position restore system power press restore system power on the touchscreen to power on all hardware sub systems for operation printer door cleaning the door weekly is important to ensure the door retains anti static properties by using an anti static acrylic cleaner in addition, cleaning removes dust, fingerprints, and small amounts of resin ensure the printer door is in the closed(up) position never use a dry cloth or alternative cleaners to wipe the door using a dry cloth or unapproved cleaners can create a static electric charge on the door this door had a static charge and pulled liquid resin dripping from completed parts onto the inside of the door this can cause resin to reach prohibited areas be sure to click on the image to the right to see the resin droplets on the door static charge pulled resin drips onto the printer door open service door locate the access lock hole on the left side of the printer insert an 8 mm allen wrench into the hole and turn an 1/4 of a turn clockwise do not turn counter clockwise the door will release and open clean the printer door dampen a lint free polishing cloth with accessories & supplies docid 95twe3ttl 5ihi6dnl4xi (anti static acrylic cleaner) outside of the printer wipe the outside of the yellow door with the moistened cloth, including the door's apron at the top and bottom wipe the inside of the yellow door with the moistened cloth, including the door's apron at the top and bottom close the service door by pressing shut until you hear the latch dampen polishing cloth with brillianize wipe outside of printer door wipe inside of printer door close service door press door shut firmly , as you would a car door, until the latch clicks; insufficient force can result in a partial latch note the yellow door is made of acrylic and should never be exposed to chemical cleaners, acetone, or scouring compounds acetone will permanently damage the door front exterior panel to clean the white front panel dampen a lint free polishing cloth with brillianize (anti static acrylic cleaner) outside of the printer wipe the white outside panel on the service door never use acetone to clean white panels e stop check to ensure the emergency stop is functioning correctly, engage the e stop to confirm the printer enters a halted state then disengage the e stop and restore system power touchscreen display it is strongly recommended to apply a screen protector to the printer's touchscreen display with or without the screen protector, you must clean the screen weekly to prevent a resin build up clean touchscreen display avoid starting a print accidentally during cleaning remove the platform or make sure the print queue is empty touchscreen will say printer is available printer is available when queue is empy lightly dampen a blue shop towel with ipa and wipe screen with protector until clean do not use ipa wipes, which have a high water content do not use acetone general lab weekly lab maintenance should include the following tasks clean working surfaces use ipa and/or acetone to clean benchtops if used, change bench coverings clean floor to remove debris and resin spills/smears/drips check inventory of lab supplies make sure there are enough consumable supplies available if not, order more these are examples of important supplies ipa acetone gloves shop towels wipes
