Alerts and Errors
4min

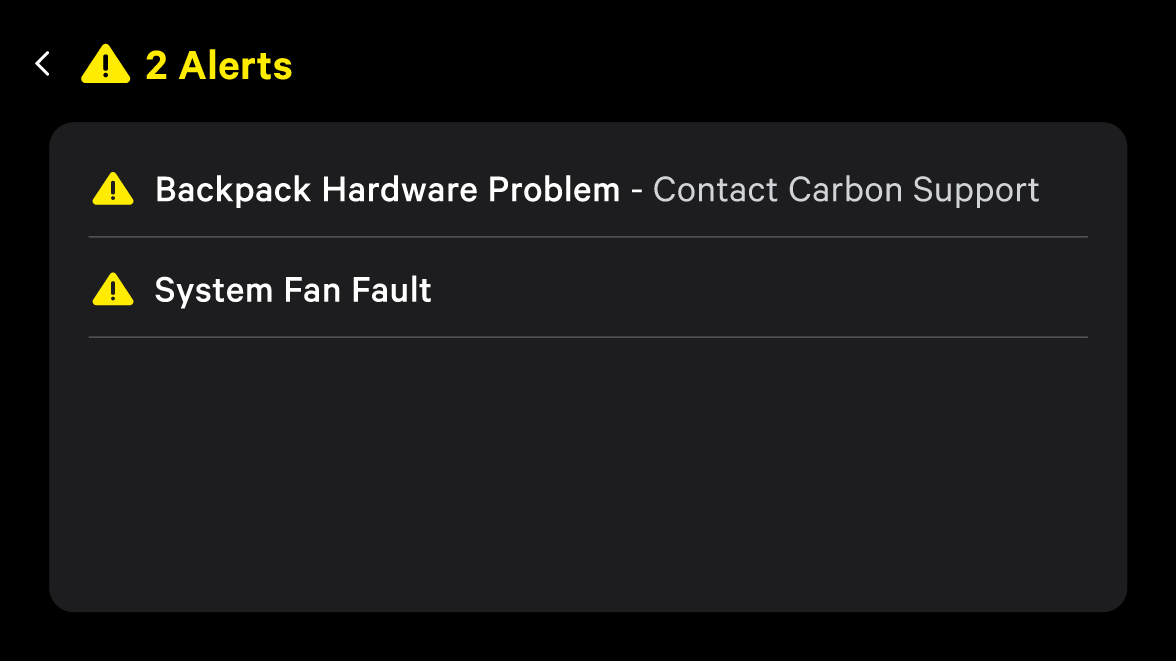

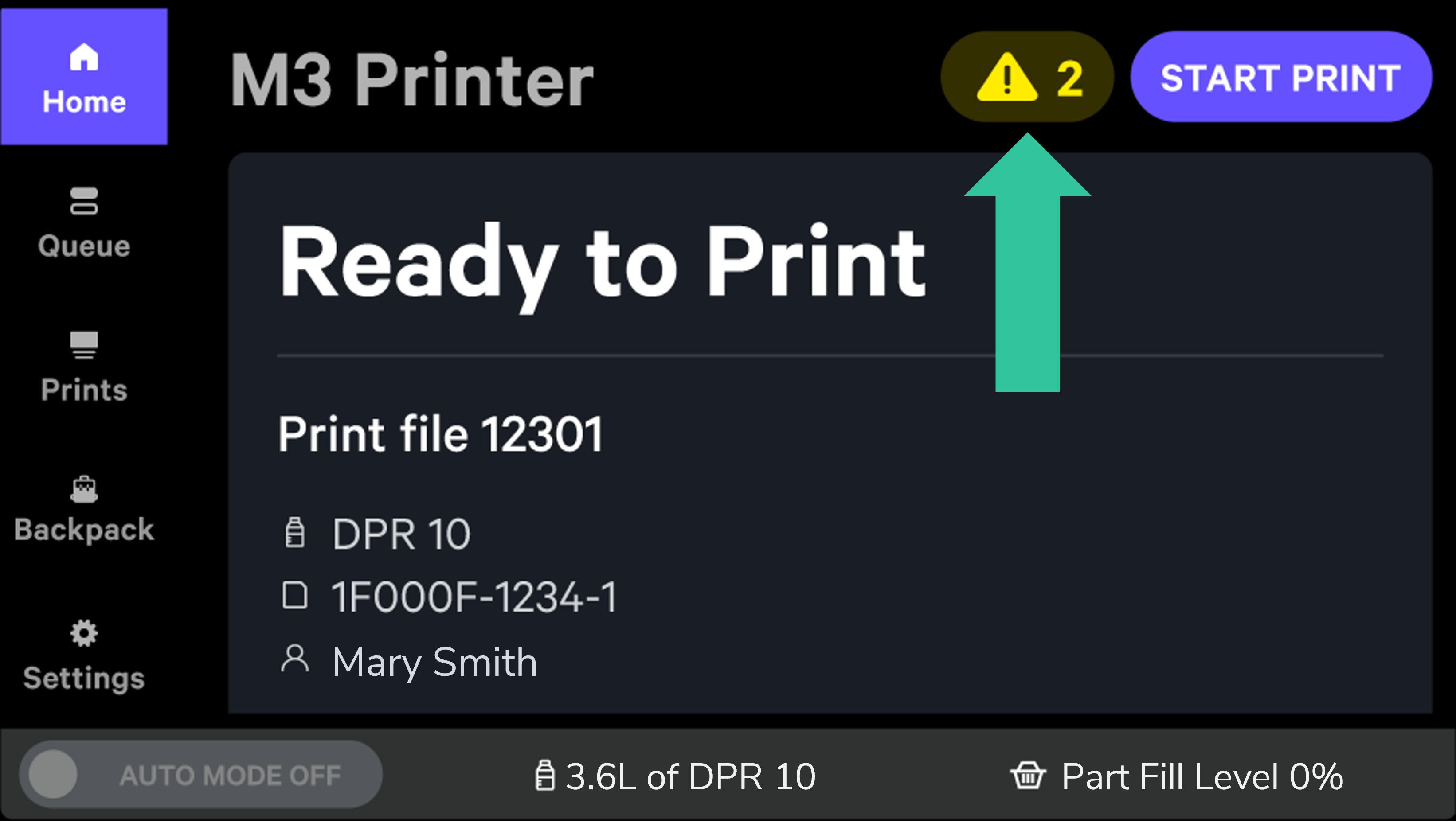

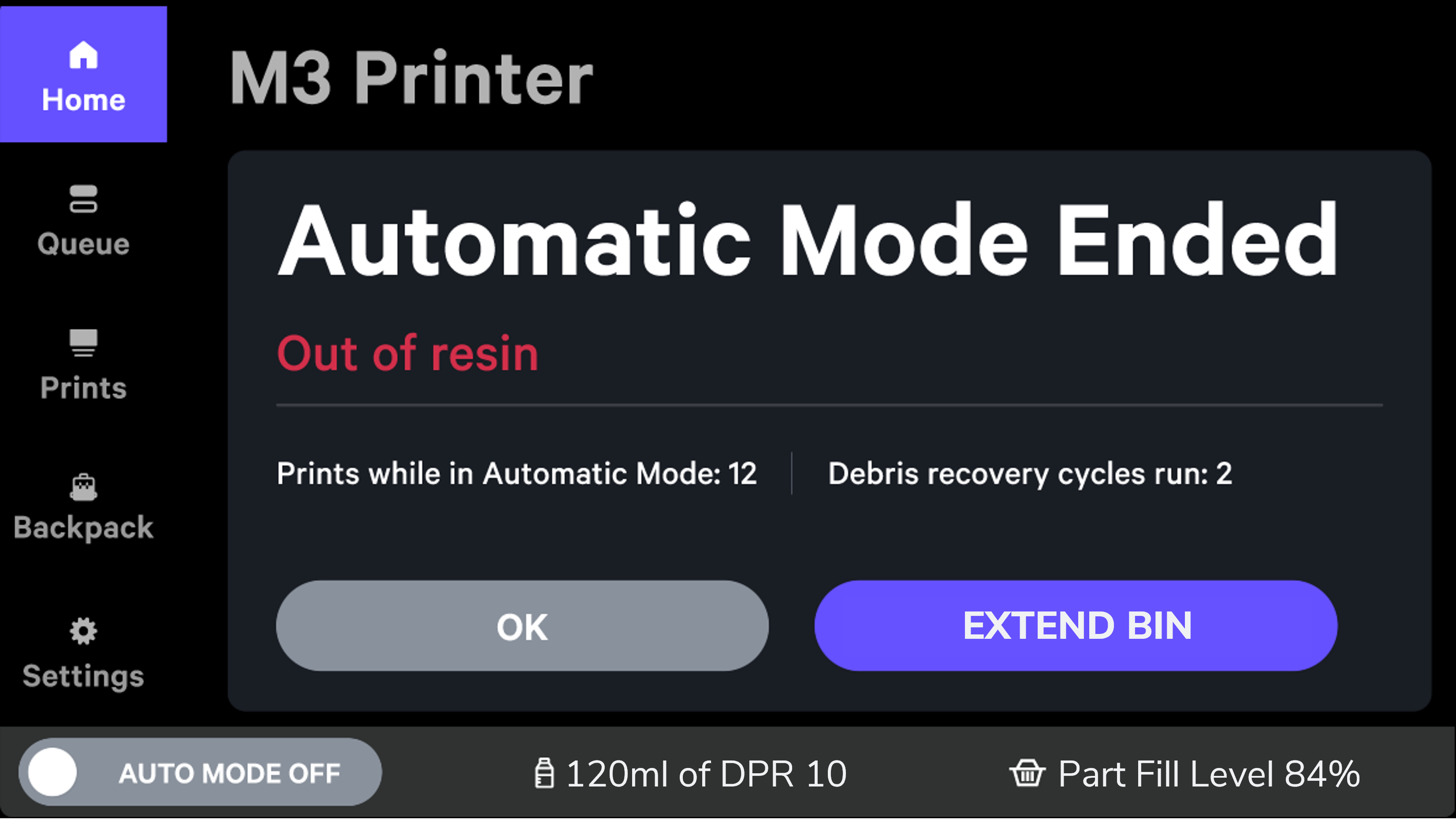

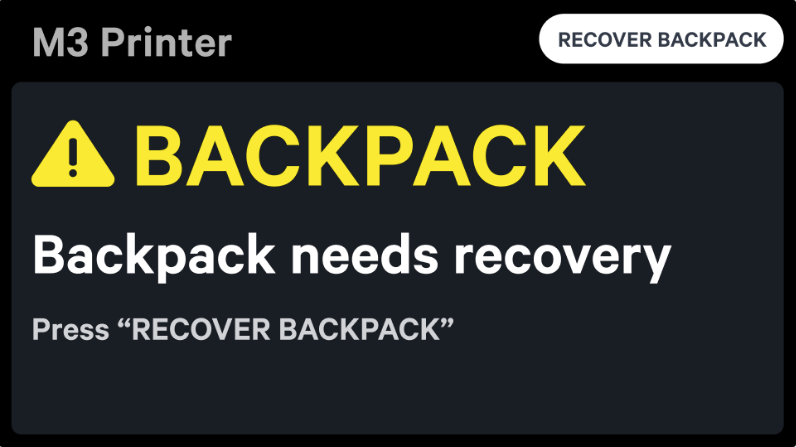

alerts if there are any alerts, a triangular yellow icon will show at the top of the touchscreen display the icon will display the number of alerts click on the icon to see a detailed view of the alerts some alerts must be resolved before automatic mode can be activated recover backpack whenever an m3 printer with an ao backpack is restarted/power cycled (including during and after the installation of a software update), the printer screen will display a “backpack needs recovery” screen press the “recover backpack” button on the screen to return the machine to normal operation recover backpack this is expected behavior, and is not an indication of a problem with the printer, the backpack, the power cycle, or the software update errors parts basket full if the parts basket is full, automatic mode will end resolution empty the parts basket out of resin if there is not enough resin in the tank to print the next project in the queue, automatic mode will end resolution swap the empty resin tank for a full one large debris detected if debris larger than 1 2 mm is detected, automatic mode will end resolution inspect the cassette and remove the large debris if necessary, use the pour stand to filter the resin
