SprintRay OnX Tough 2

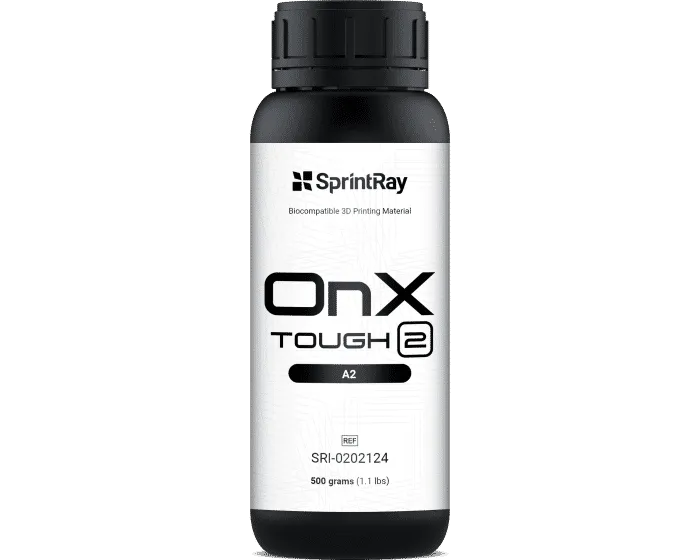

overview sprintray™ onx tough 2 resin is now available for carbon m series printers in the u s , ideal for creating durable, aesthetically pleasing fixed hybrid dentures and implant retained prostheses this innovative material features advanced nanofusion™ technology, ensuring high fracture toughness and lifelike aesthetics onx tough 2 exemplifies sprintray and carbon's dedication to advancing digital dentistry natural aesthetics provides natural looking enamel shades for aesthetically superior fixed hybrid dentures and prostheses superior durability a nano ceramic hybrid material brings superior strength, with a work of fracture >1000 j/m² and fracture toughness of 2 62 mpa m1/2 fda clearance onx tough 2 is the only 3d printing resin fda cleared for fixed hybrid dentures and implant retained prostheses, merging the accuracy, consistency, and reliability of carbon printers, allowing labs to produce highly realistic and durable dental restorations choose sprintray onx tough 2 for your fixed hybrid dentures, and experience what carbon reliability with industry leading material can help you deliver to your clinicians onx tough 2 is available for the following indications hybrid denture prosthetics implant supported denture prosthetics monolithic full and partial removable dentures preformed denture teeth to be used in a denture this resin is not currently compatible with the docid\ iffh3q8 wlk liqr87bd5 resource links https //www carbon3d com/materials/onx tough 2 https //sprintray com/oracle/uploads/2023/12/ifu 020 4 sprintray onx tough 2 ifu pdf https //support sprintray com/s/materials/material usage documentation select the appropriate region and resin protocol this downloadable handout provides important usage information, including instructions about storage, washing and curing print it out and bring it into the lab! dental post processing grids one of our most popular downloads! this table provides washing and curing instructions for all supported dental resins print it and use it in the lab as a quick reference images of dental post processing grids english german/deutsch spanish/español resin shades available carbon has validated five shades of sprintray onx tough 2 resin a1 a2 b1 bleach hollywood white general orientation & support information hide the platform use toggle platform (or press b ) to hide the platform before orienting parts this will make it easier to see overhangs and place supports occlusal surfaces towards platform digital models should be oriented with the occlusal surfaces facing the platform does not apply to try ins or full arch denture teeth does not apply to try ins or full arch denture teeth necessary to maintain accuracy ensures supports are on the occlusal surfaces enabling greater accuracy for mating surfaces monolithic/try in geometries can be oriented 60 degrees 60 degrees to 90 degrees 90 degrees , where 90° is fully vertical with the anterior teeth facing the platform no overhangs on interface orient parts so that interfaces and margins are free from overhangs and therefore do not require supports supports leave nubs which require more finishing and can affect fit with mating parts or teeth use patch and fence tools to create supports patch tool the docid\ vubpoaitblm11am9 qj1p speeds up support creation by automatically supporting an area with just a few clicks it is useful for supporting larger areas of overhang that would take longer to support manually it is often useful to support your parts with this tool before manually adding supports fence tool docid\ vubpoaitblm11am9 qj1p are manually placed by the user and are best suited on linear overhangs or smaller areas fences provide stability while leaving smaller nubs than the default bars option review docid\ vubpoaitblm11am9 qj1p in docid\ oid4znztzyelttpvj984a course for more information all on x (aox) the following information applies to full arches only aox application should be oriented horizontally and require above platform supports orientation 1\ click on orient orient or shift + o shift + o in the top bar in the printer interface 2 in the lower right corner of the bottom bar, turn on overhang detection overhang detection or v key v key and set to 40 60 degrees areas that need support will appear red red 3\ orient the occlusal surfaces facing down, parallel to the platform surfaces that have overhangs will require supports these supports affect fit and will require finishing to ensure proper seating supporting follow the application specific recommendations below support all overhangs as needed using the patch or fence tools in most cases, patch is the only tool that will be required review docid\ vubpoaitblm11am9 qj1p in docid\ oid4znztzyelttpvj984a course for more information example of well supported aox crowns, bridges and veneers crowns, veneers and bridges have similar requirements no overhangs on margins no overhangs on interface surfaces minimum overhangs on buccal/lingual surfaces orientation 1\ click on orient orient or shift + o shift + o in the top bar in the printer interface 2 in the lower right corner of the bottom bar, turn on overhang detection overhang detection or v key v key and set to 40 60 degrees areas that need support will appear red red 3\ orient each part so that the margin and interface are free of overhangs 4\ refine orientation to minimize overhangs on other surfaces the margin and interface of each part should now be free of overhangs the remaining surfaces should have a minimal amount of overhangs margins and interfaces that have overhangs will require supports these supports affect fit and will require finishing to ensure proper seating supporting follow the application specific recommendations below support all overhangs as needed using the docid\ vubpoaitblm11am9 qj1p or docid\ vubpoaitblm11am9 qj1p tools review docid\ vubpoaitblm11am9 qj1p in docid\ oid4znztzyelttpvj984a course for more information incisors and canines in addition to supporting overhangs, these teeth require additional supports to maximize accuracy and print success secondary fence supports offset to the lingual side of the incisal edge/cusp tip two rows of fences on the labial surface located at approximately 1/4 and 3/4 of the tooth height the example below shows the additional supports needed on a veneer for an incisor secondary fence on lingual side 1 support overhang at incisal edge with a single fence 2 add secondary fence approximately 1 mm to the lingual side 3 generated supports 4 side view of generated supports two fences on the labial surface 1 labial surface of veneer for incisor 2 add fences approximately 1/4 and 3/4 of the tooth height 3 generated supports 4 side view of generated supports examples of well supported parts crown veneer bridge denture try ins the following information applies to upper and lower denture try ins denture try ins have the following general requirements orient try ins with anterior facing platform minimize overhangs on intaglio surfaces no overhangs on occlusal tooth surfaces orientation 1\ click on orient orient or shift + o shift + o in the top bar in the printer interface 2 in the lower right corner of the bottom bar, turn on overhang detection overhang detection or v key v key and set to 40 60 degrees areas that need support will appear red red 3\ orient the occlusal surfaces roughly parallel to the platform 4 rotate model so the occlusal surfaces are 90 degrees to occlusal side there will be overhangs on molars and labial surfaces surfaces that have overhangs will require supports these supports affect fit and will require finishing to ensure proper seating supporting follow the application specific recommendations below support all overhangs as needed using the patch or fence tools in most cases, patch is the only tool that will be required when using patch tool, set fence spacing to 2 mm if redundant bar supports are added, they may be manually deleted don't forget to support t bars and the inner edge anterior labial surfaces review docid\ vubpoaitblm11am9 qj1p in docid\ oid4znztzyelttpvj984a course for more information t bars t bars also require supports use fence supports to quickly support t bars press esc key to end a fence inner lingual edge of lower try in typically, only a single fence is needed to support the lingual edge example of well supported try ins denture teeth full arches the following information applies to full arches only unlike other applications, denture teeth require placement of supports on basal surfaces no overhangs on occlusal tooth surfaces orientation 1\ click on orient orient or shift + o shift + o in the top bar in the printer interface 2 in the lower right corner of the bottom bar, turn on overhang detection overhang detection or v key v key and set to 40 60 degrees areas that need support will appear red red 3\ orient the occlusal surfaces facing up , parallel to the platform 4 rotate 30 degrees up to lingual side surfaces that have overhangs will require supports these supports affect fit and will require finishing to ensure proper seating supporting follow the application specific recommendations below support all overhangs as needed using the patch or fence tools in most cases, patch is the only tool that will be required limit supports to basal surfaces review docid\ vubpoaitblm11am9 qj1p in docid\ oid4znztzyelttpvj984a course for more information example of well supported full arch nesting select the layout tab layout tab (shift + l) in the top menu bar under auto layout, select gen2 gen2 gen2 usually gives the most effecient packing for dental devices enter at least 1 mm 1 mm in padding padding models require a minimum of 1 mm of space between them leave optimize starting rotation unchecked this leaves your parts in their previous orientations leave allowed rotations at the default setting this gives the software maximum flexibility to fit the most possible parts on the build platform press the auto layout auto layout button to arrange your parts screen shot showing button locations if necessary, nesting can be changed manually click and drag parts to adjust their position modify z rotation by using the spin tool or manual rotations under the orient tab (shift + o) use the part list tab as needed to more easily select models and focus on them print preparation print controls click print controls print controls or shift + p shift + p in the top menu bar slicing slice thickness should be standard (100 µ) reducing the slice thickness by choosing the fine (50 µ) or super fine (25 µ) settings will increase print time and may reduce part quality and accuracy project analysis select the project analysis project analysis tab click start analysis and wait for the processing to complete note the required resin volume and print time click add to queue manufacturer instructions for use consult the manufacturer ifu for dispensing, printing, washing, curing, bonding and finishing information https //sprintray com/oracle/uploads/2023/12/ifu 020 4 sprintray onx tough 2 ifu pdf questions & support for questions about the resin properties, printing, washing or curing your parts, please contact the sprintray support team phone (800) 914 8004 email support\@sprintray com for questions about your carbon printer or carbon software settings used for this resin, please contact carbon email mailto\ support\@carbon3d com phone 1 (650) 285 6307 option 2 printer ui on the dashboard, select the prints prints tab select one of the printed projects select one of the printed projects click request help request help in the lower right corner
