Pac-Dent Rodin Titan

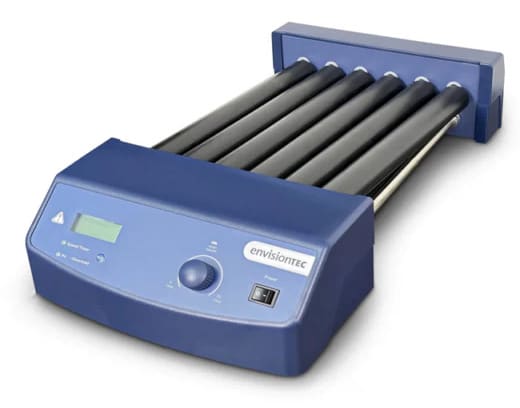

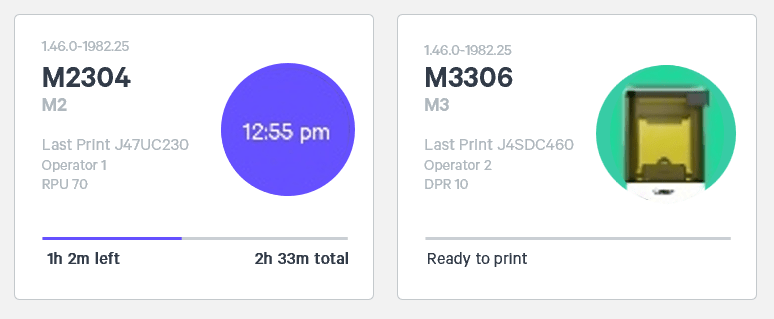

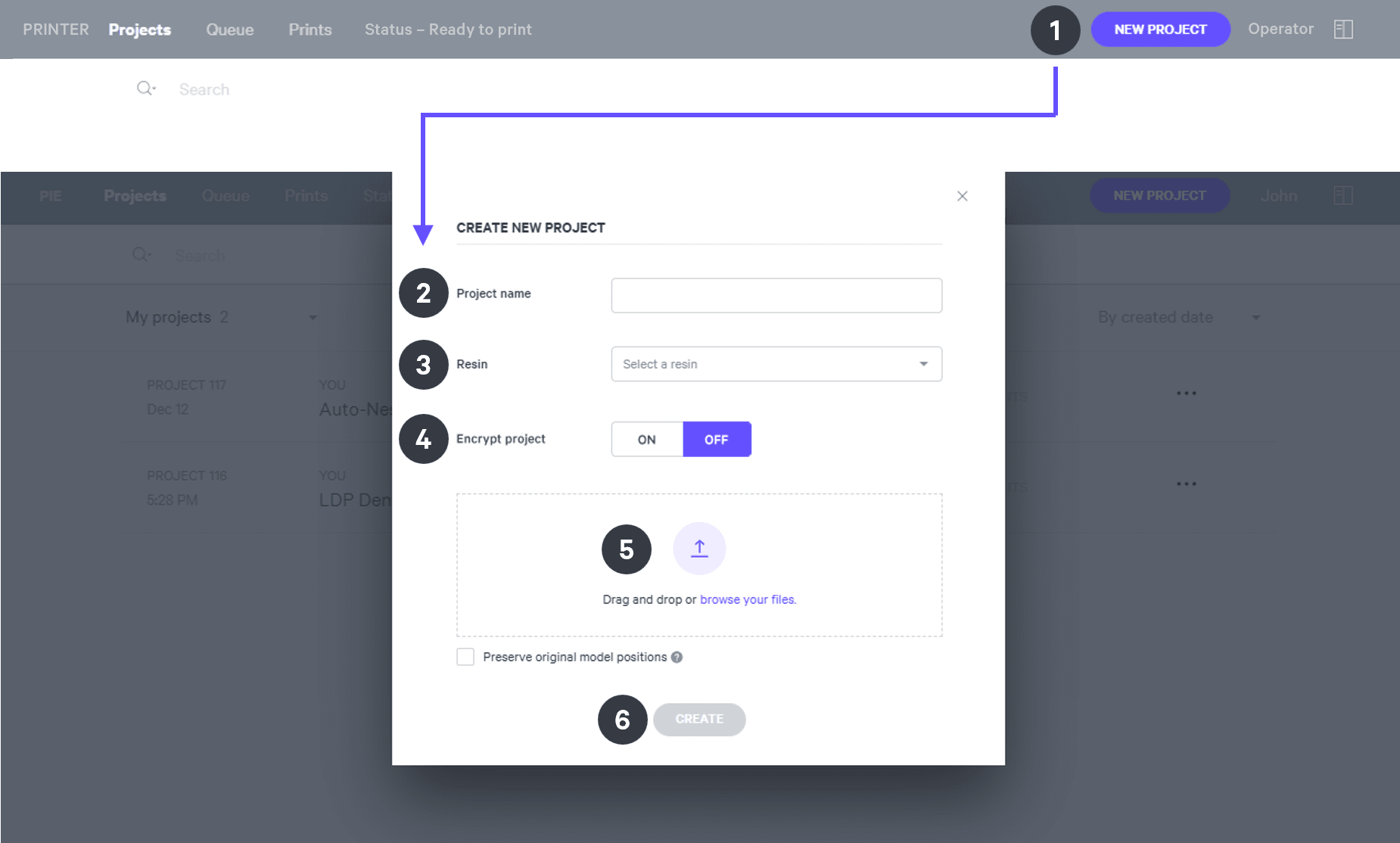

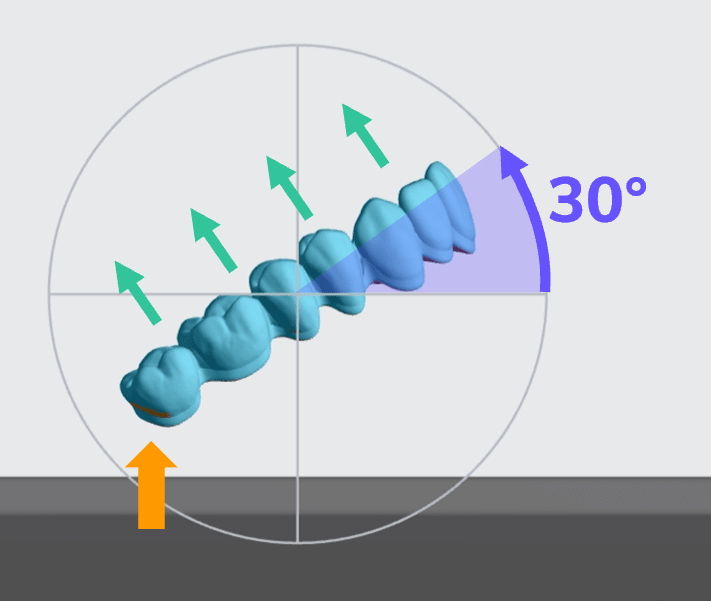

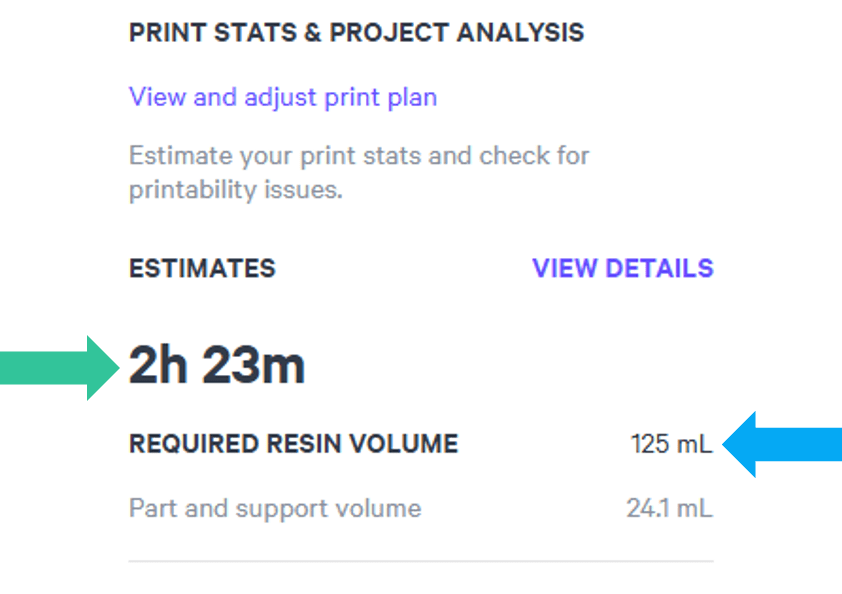

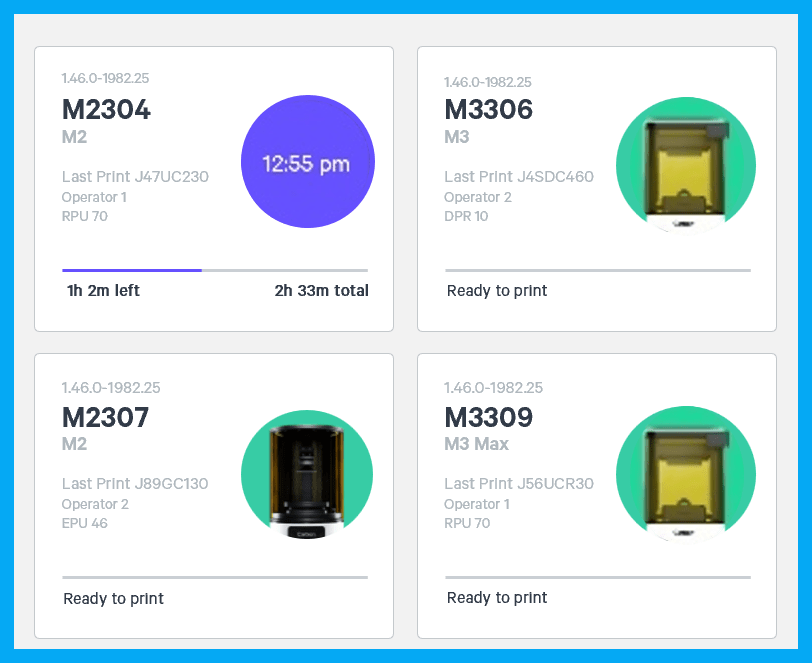

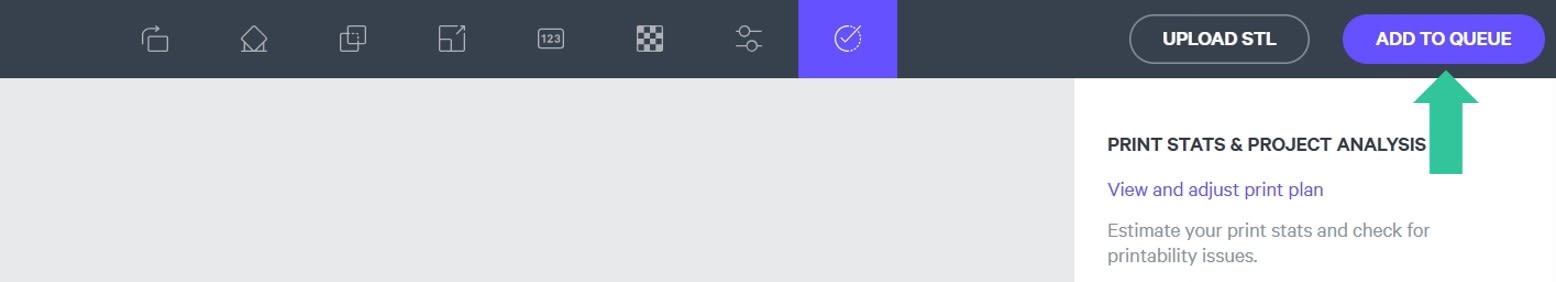

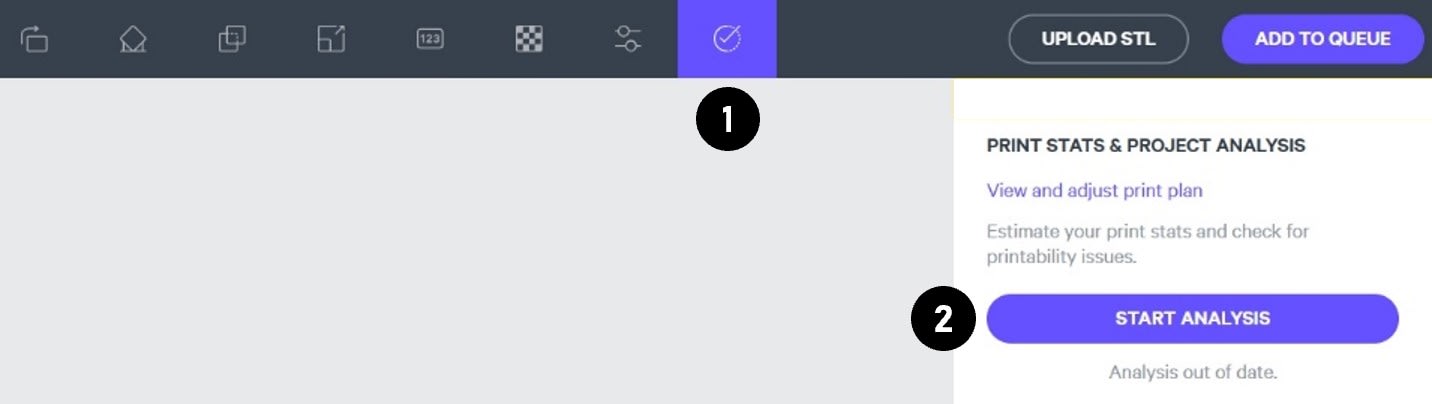

overview pac dent rodin® titan is a new resin designed for full arch dental restorations and provisional hybrid dentures it combines the mechanical strength of its previous version with significantly increased flexibility for exceptional impact resistance this class ii ceramic nanohybrid resin, with over 51% ceramic filler content, maintains high performance and aesthetics its modified flexibility is specifically optimized for printing high quality full arch restorations for various denture designs, including monolithic and screw retained options carbon has validated the following shades a1, a2, a3, b1, c2, om1 and om3 this resin is not currently compatible with the ao polishing cassette docid\ iffh3q8 wlk liqr87bd5 resource links about the material https //www carbon3d com/materials/rodin titan manufacturer instructions for use https //cdn shopify com/s/files/1/0117/1488/7761/files/66c37eb3cab9713e0847057f rodin titan ifu 041824 1736979715996 pdf safety data sheet https //cdn shopify com/s/files/1/0117/1488/7761/files/sds rodin denture base 2 0 resin 1741130150418 pdf protocol this downloadable handout provides important usage information, including instructions about storage, washing and curing print it out and bring it into the lab! design see ifu above for manufacturer design recommendations digital preparation connect to printer connect to the printer software using your web browser expand for steps open browser enter https //print carbon3d com https //print carbon3d com/ in the url field enter url in browser latest version of chrome recommended if you are not automatically logged in, enter your email and password and click log in click log in if you have multiple printers, select the printer select the printer that you wish to use to create the project you may queue the build to other printers select printer create project after you have chosen the printer, you must create a new project expand for steps create a project click new project you can also drag your files from a file browser window and drop it on top of the new project icon enter a new project name in the resin dropdown, select your resin only use encrypt project docid 1bt3mas8msvxq9cdza67c if you want to require a password to access the project carbon cannot provide support for encrypted projects drag and drop your part files into the dotted box or click browse your files and select them in a file browser window click create after a few moments you will see the project printer interface with your parts on the platform all on x (aox) orientation for detailed information about orienting parts, read orient docid\ rmnxtq1niahxzoc4bzxwu the following information applies to full arches only rotate aox device to be parallel to the platform parallel to the platform with occlusal surfaces facing the platform occlusal surfaces facing the platform surfaces that have overhangs will require supports these supports affect fit and will require finishing to ensure proper seating supporting see supports docid\ vubpoaitblm11am9 qj1p for detailed information this example demonstrates support of part parallel to the platform select the supports docid\ vubpoaitblm11am9 qj1p tab in the top bar or press shift + s in the bottom bar, toggle overhang detection docid 1bt3mas8msvxq9cdza67c on and set the angle to 40 60 degrees also in the bottom bar, set toggle platform docid 1bt3mas8msvxq9cdza67c to off set part position to above support overhangs with patches docid\ vubpoaitblm11am9 qj1p and/or fences docid\ vubpoaitblm11am9 qj1p in most cases, patch is the only tool that will be required support t bars with fences crowns, bridges and veneers orientation for detailed information about orienting parts, read orient docid\ rmnxtq1niahxzoc4bzxwu rotate each part so that the margin and interface are free of overhangs occlusal surfaces should face the platform occlusal surfaces should face the platform minimize overhangs on buccal/lingual surfaces margins and interfaces that have overhangs will require supports these supports affect fit and will require finishing to ensure proper seating supporting see supports docid\ vubpoaitblm11am9 qj1p for detailed information support all overhangs as needed using the patch docid\ vubpoaitblm11am9 qj1p or fence docid\ vubpoaitblm11am9 qj1p tools select the supports docid\ vubpoaitblm11am9 qj1p tab in the top bar or press shift + s in the bottom bar, toggle overhang detection docid 1bt3mas8msvxq9cdza67c on and set the angle to 40 60 degrees also in the bottom bar, set toggle platform docid 1bt3mas8msvxq9cdza67c to off set part position to above support overhangs with fences docid\ vubpoaitblm11am9 qj1p and/or patches docid\ vubpoaitblm11am9 qj1p follow the application specific recommendations below incisors and canines in addition to supporting overhangs, these teeth require additional supports to maximize accuracy and print success secondary fence supports offset to the lingual side of the incisal edge/cusp tip two rows of fences on the labial surface located at approximately 1/4 and 3/4 of the tooth height the example below shows the additional supports needed on a veneer for an incisor secondary fence on lingual side points on incisal edge 1 support overhang at incisal edge with a single fence secondary fence 2 add secondary fence approximately 1 mm to the lingual side resulting supports 3 generated supports side view of supports 4 side view of generated supports two fences on the labial surface labial surface of veneer 1 labial surface of veneer for incisor two rows of fences on labial surface 2 add fences approximately 1/4 and 3/4 of the tooth height generated supports 3 generated supports side view 4 side view of generated supports examples of well supported parts crown well supported crown veneer well supported veneer bridge well supported bridge denture try ins the following information applies to upper and lower denture try ins orientation for detailed information about orienting parts, read orient docid\ rmnxtq1niahxzoc4bzxwu rotate try ins to be 60 90 degrees 60 90 degrees with the anterior at the platform anterior at the platform if the try in is less than 90 degrees from the platform, then orient so the occlusal side is facing the platform upper and lower try in typically, there will be overhangs on molars and labial surfaces surfaces that have overhangs will require supports these supports affect fit and will require finishing to ensure proper seating supporting see supports docid\ vubpoaitblm11am9 qj1p for detailed information select the supports docid\ vubpoaitblm11am9 qj1p tab in the top bar or press shift + s in the bottom bar, toggle overhang detection docid 1bt3mas8msvxq9cdza67c on and set the angle to 40 60 degrees also in the bottom bar, set toggle platform docid 1bt3mas8msvxq9cdza67c to off set part position to above support overhangs with fences docid\ vubpoaitblm11am9 qj1p and/or patches docid\ vubpoaitblm11am9 qj1p follow the application specific recommendations below support all overhangs as needed using the patch or fence tools in most cases, patch is the only tool that will be required when using patch tool, set fence spacing to 2 mm if redundant bar supports are added, they may be manually deleted don't forget to support t bars and the inner edge the example below shows a lower try in oriented at 90 degrees (vertical) to the platform anterior labial surfaces t bars t bars also require supports use fence supports to quickly support t bars press esc key to end a fence inner lingual edge of lower try in typically, only a single fence is needed to support the lingual edge example of well supported try ins well supported upper try inwell supported lower try in denture teeth full arches the following information applies to full arches only unlike other applications, denture teeth require placement of supports on basal surfaces orientation for detailed information about orienting parts, read orient docid\ rmnxtq1niahxzoc4bzxwu rotate full arch denture teeth 30 degrees up 30 degrees up with the posterior at the platform posterior at the platform occlusal surfaces should face away from the platform occlusal surfaces should face away from the platform surfaces that have overhangs will require supports these supports affect fit and will require finishing to ensure proper seating supporting see supports docid\ vubpoaitblm11am9 qj1p for detailed information select the supports docid\ vubpoaitblm11am9 qj1p tab in the top bar or press shift + s in the bottom bar, toggle overhang detection docid 1bt3mas8msvxq9cdza67c on and set the angle to 40 60 degrees also in the bottom bar, set toggle platform docid 1bt3mas8msvxq9cdza67c to off set part position to above support overhangs with fences docid\ vubpoaitblm11am9 qj1p and/or patches docid\ vubpoaitblm11am9 qj1p in most cases, patch is the only tool that will be required limit supports to basal surfaces example of well supported full arch well supported full arch nesting dental nesting select the layout tab (shift + l) in the top menu bar under auto layout, select gen2 gen2 usually gives the most efficient packing for dental devices enter at least 1 mm in padding models require a minimum of 1 mm of space between them leave optimize starting rotation unchecked this leaves your parts in their previous orientations leave allowed rotations at the default setting this gives the software maximum flexibility to fit the most possible parts on the build platform press the auto layout button to arrange your parts if necessary, nesting can be changed manually click and drag parts to adjust their position modify z rotation by using the spin tool or manual rotations under the orient tab (shift + o) use the part list tab docid 1bt3mas8msvxq9cdza67c as needed to more easily select models and focus on them print controls click print controls print controls or shift + p shift + p in the top menu bar print controls tab slicing set slice thickness to standard (100 µm) reducing the slice thickness by choosing the fine (50 µm) or super fine (25 µm) settings will increase print time and may reduce part quality and accuracy print profile the default print profile https //learn carbon3d com/software/print controls#zhtms is tuned to optimize accuracy of aox geometries starting with software v1 46, select the print profile pac dent rodin titan non aox indications to reduce print time and maintain accuracy for non aox geometries project analysis start analysis on the top menu bar, select the project analysis tab (shift + a) press start analysis after a short time, the result of the project analysis will be displayed note the print time print time and the required resin volume required resin volume click add to queue add to queue printing & post processing consult the manufacturer ifu for dispensing, printing, washing, curing, bonding and finishing information instructions for use https //support sprintray com/s/materials/material usage documentation additional notes roll resin overnight carbon recommends rolling the resin bottle overnight for the best accuracy of aox implant holes dispensing due to the higher viscosity of this resin, add an additional 200 ml of resin to the required resin volume provided by the project analysis printing on m series printers, using software versions before v1 45 may result in print issues for m3 and m3 max, there may be false positives for debris detection mix resin between prints it is strongly recommended to mix resin in the cassette when adding resin between prints this will help to maintain resolution of aox implant holes questions & support for questions about the resin properties, printing, washing or curing your parts, please contact the rodin support team submit support ticket https //rodin 3d com/contact us/ for questions about your carbon printer or carbon software settings used for this resin, please contact carbon https //learn carbon3d com/carbon support email support\@carbon3d com mailto\ support\@carbon3d com phone u s and canada 1 650 285 6307 option 2 germany +49 6102 5790849 uk +44 (0) 2082 647484 printer ui on the dashboard, select the prints prints tab select one of the printed projects select one of the printed projects click request help request help in the lower right corner
