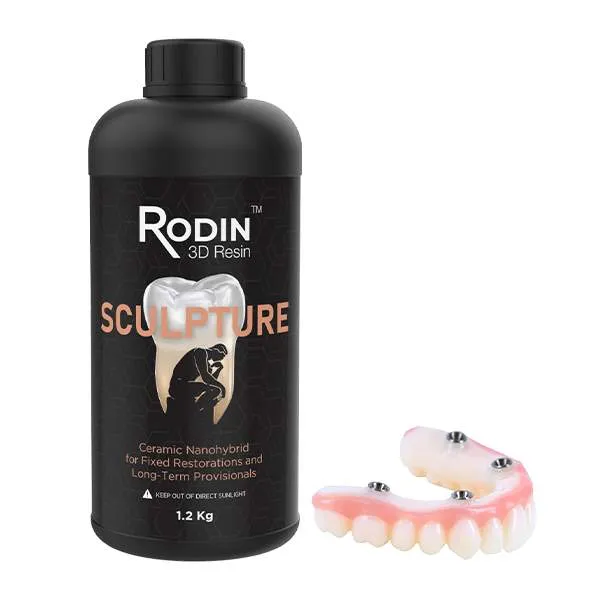

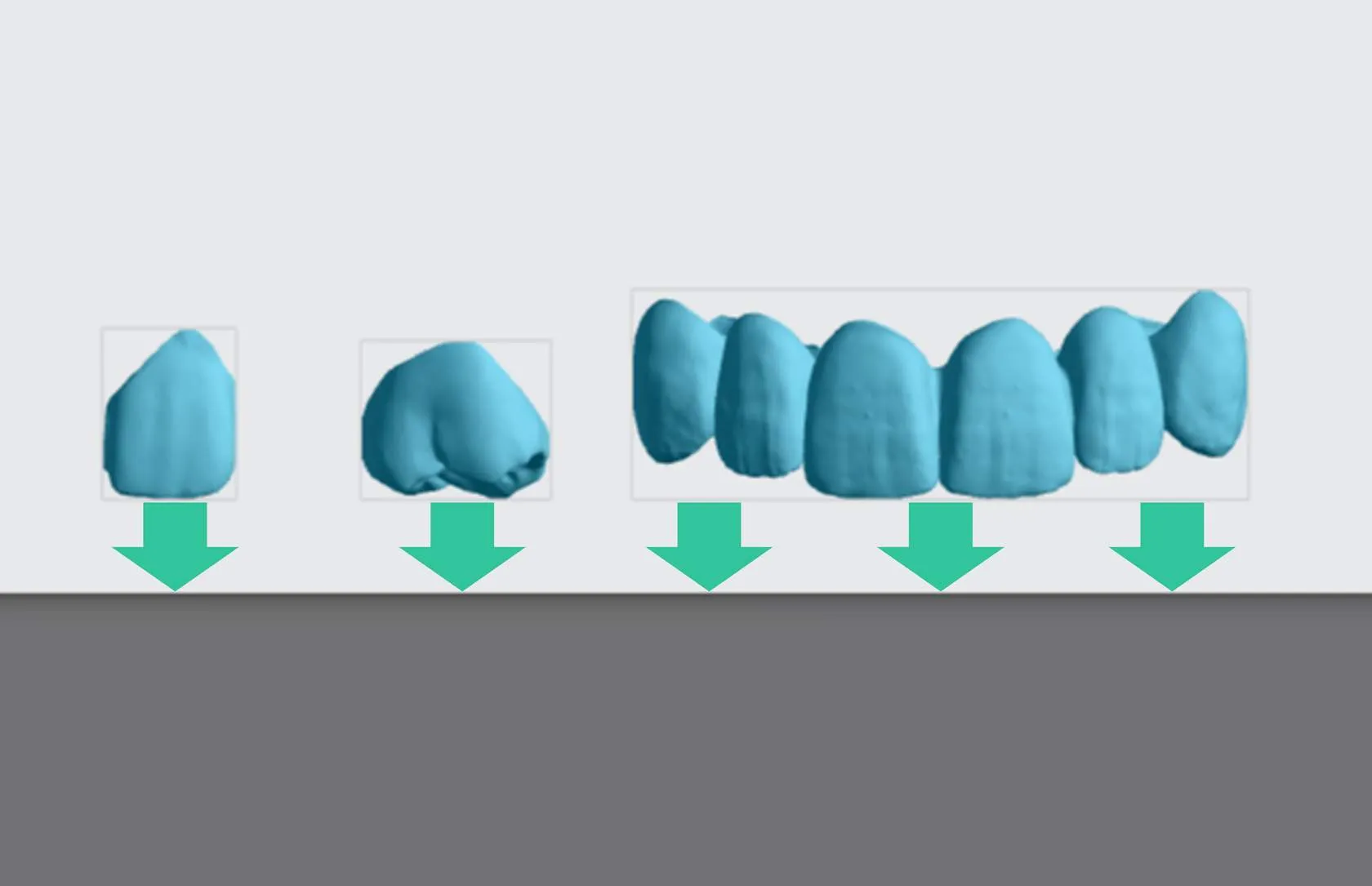

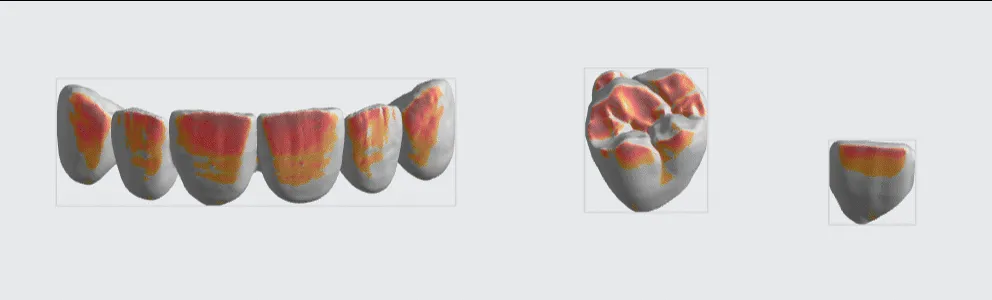

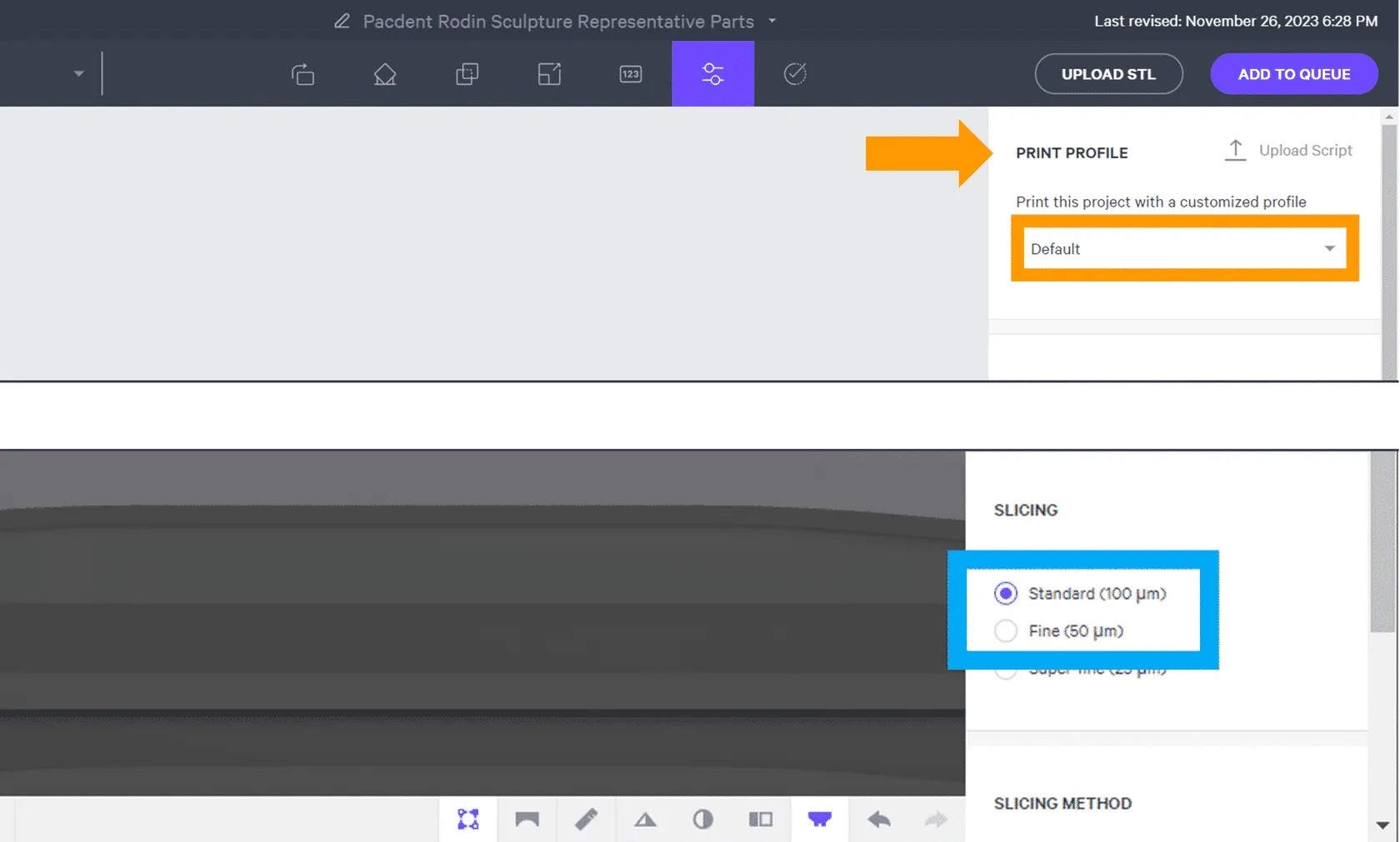

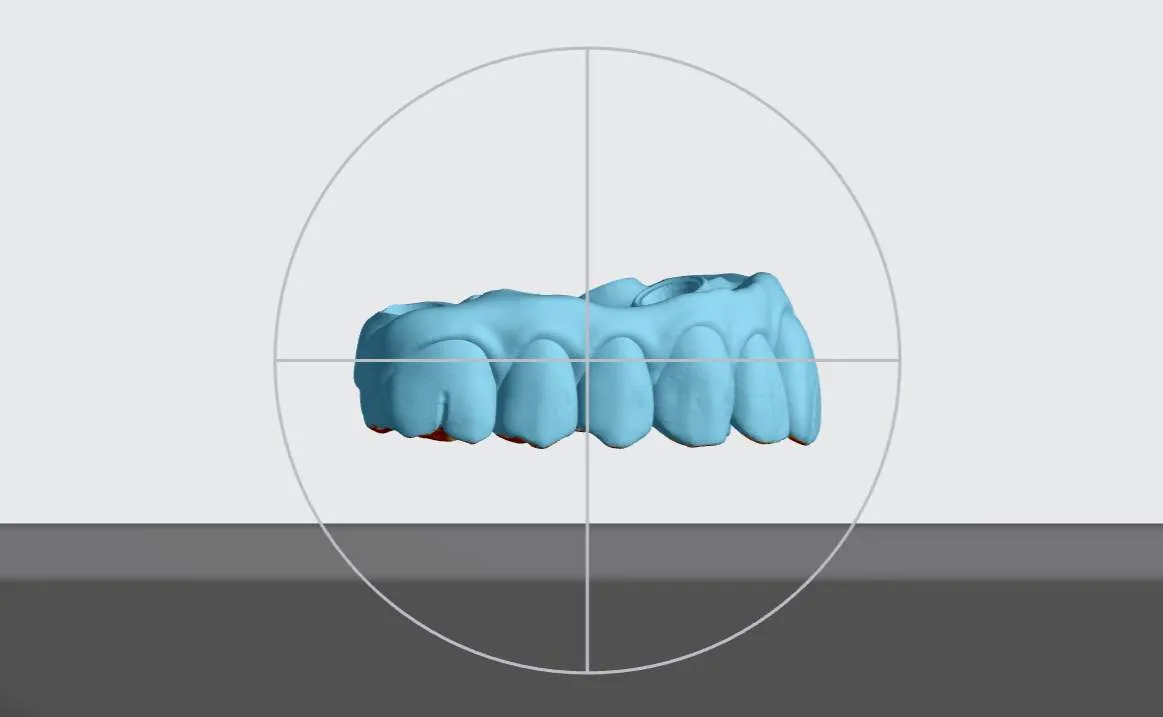

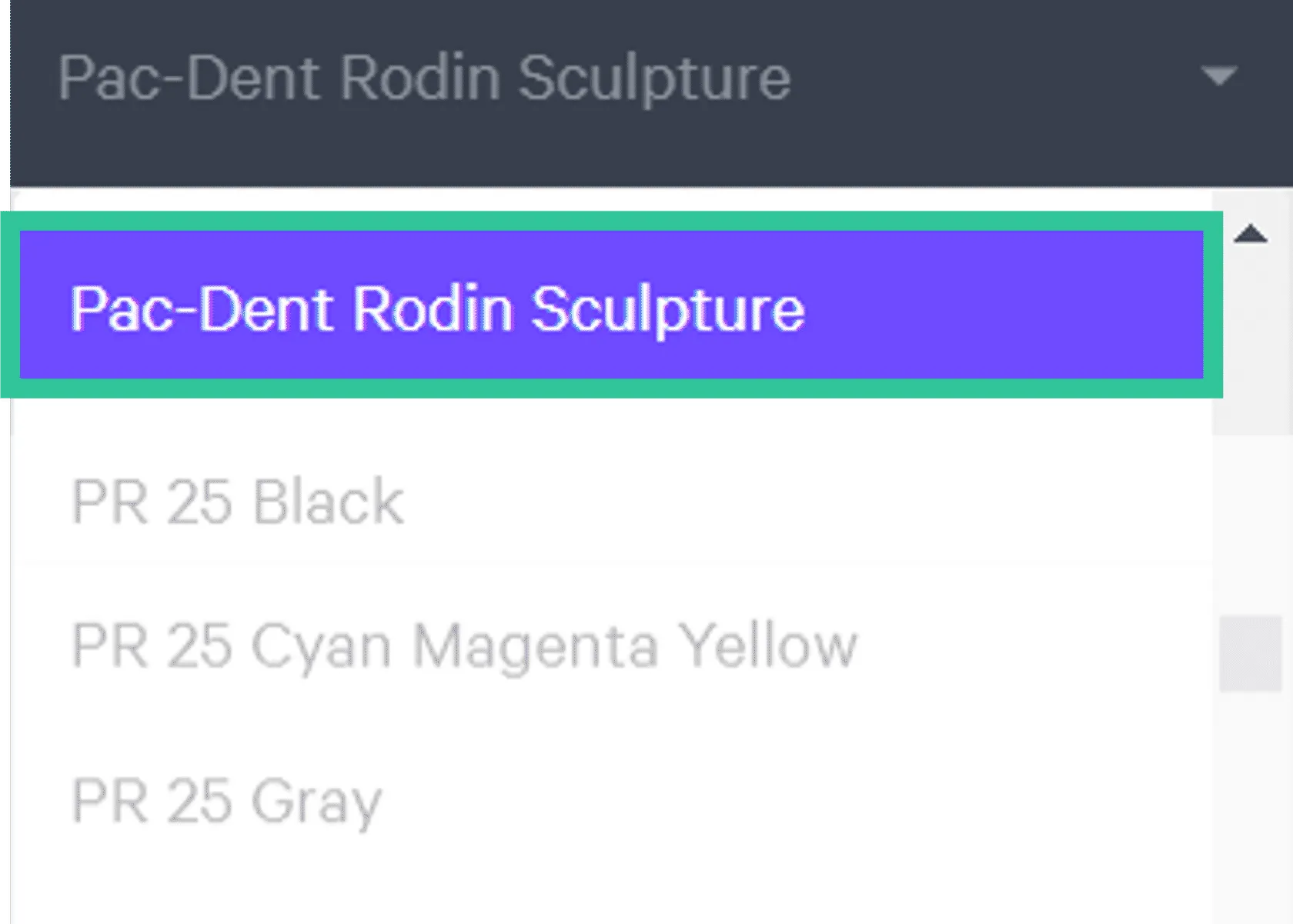

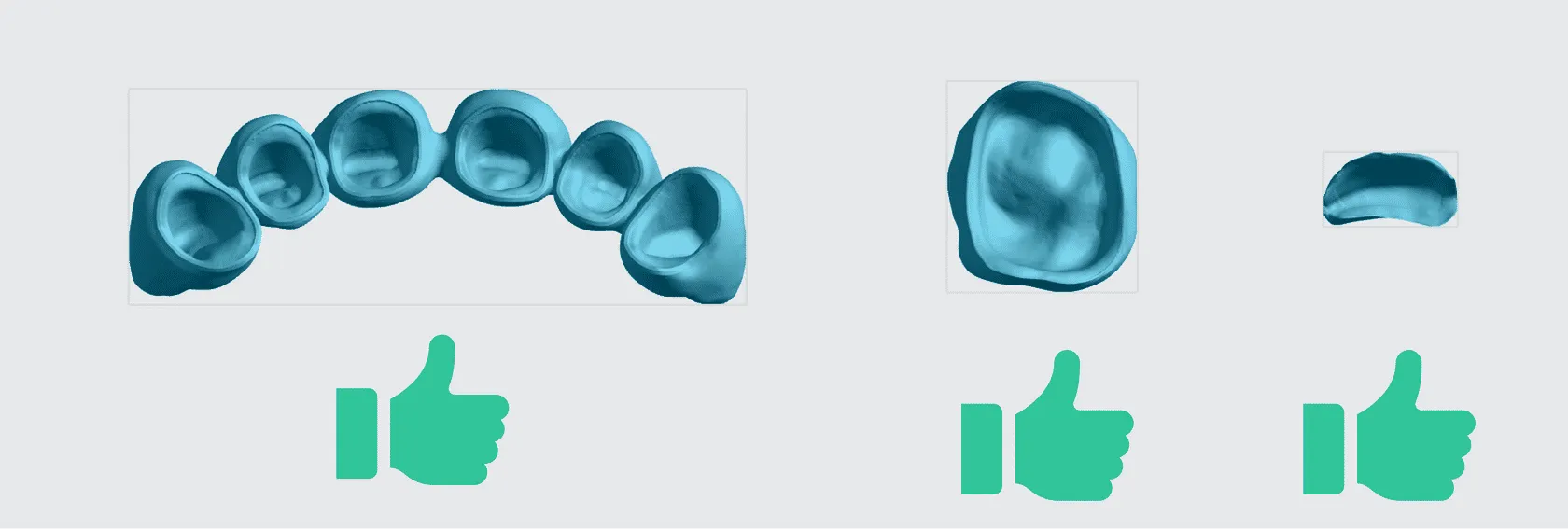

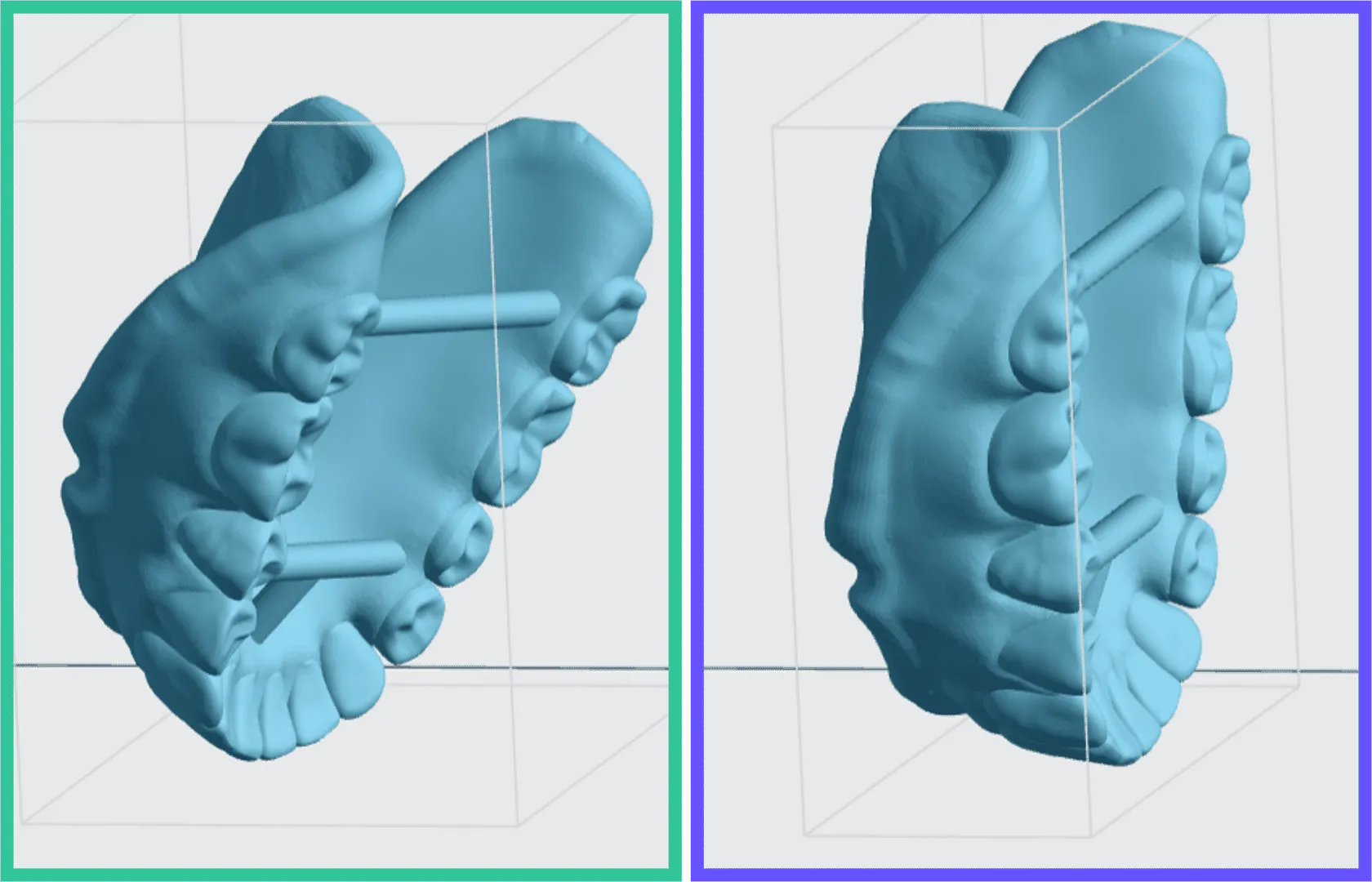

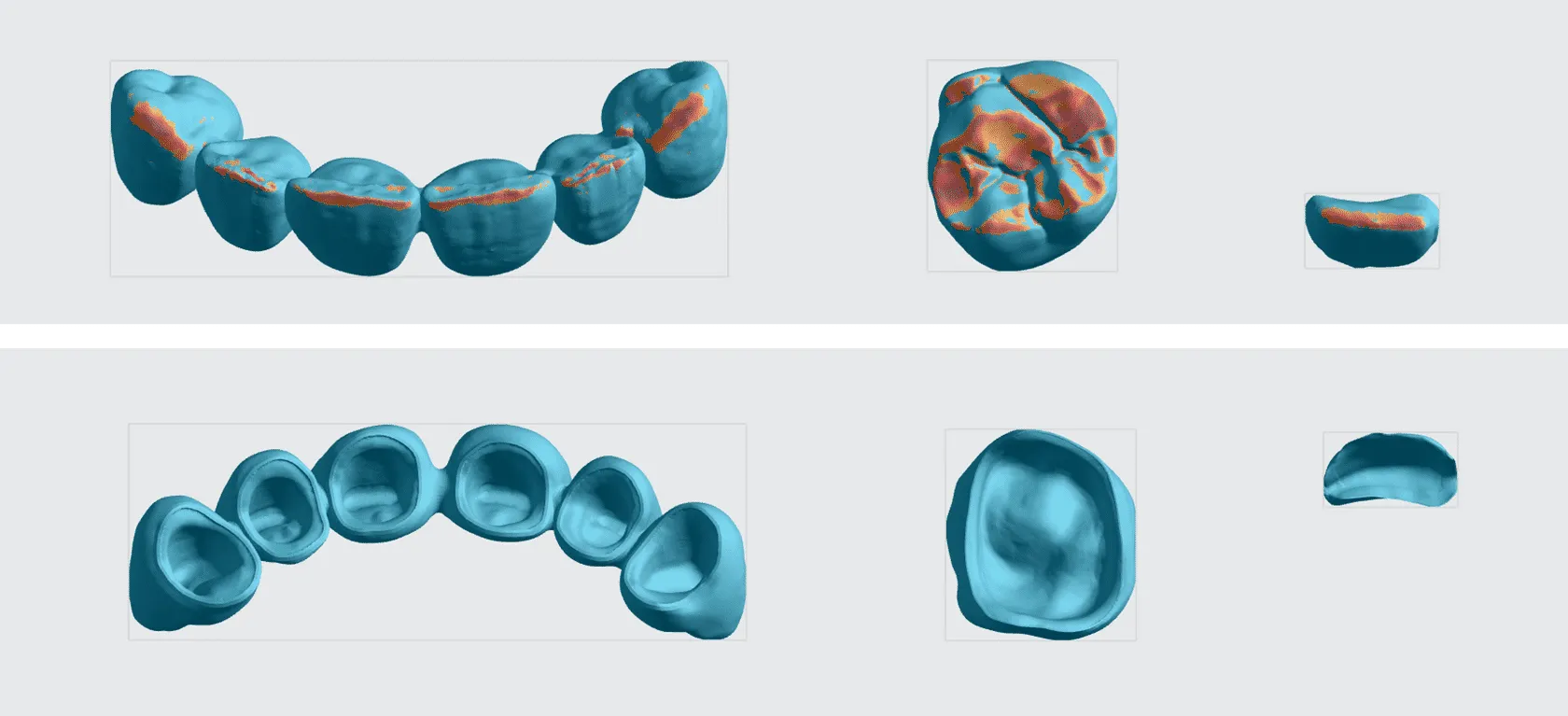

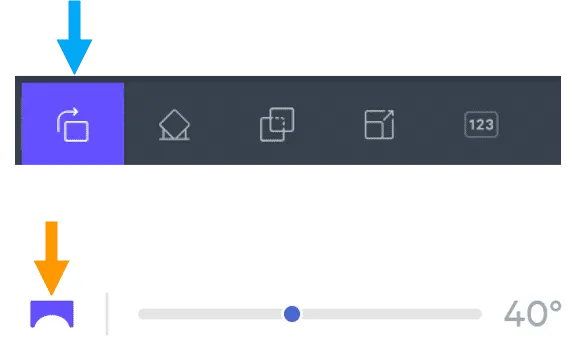

overview pac dent rodin™ sculpture is now available for carbon m series printers to produce artificial teeth for dental prostheses, which are one of the main components in the fabrication of removable permanent full dentures, individual permanent full single crowns and permanent partial crowns in anterior and posterior region, including inlays and onlays, temporary bridges, individual permanent veneers, individual and removable monolithic full and partial dentures for later individualization by light curing color composite pastes or liquids all on x (aox) application bottle of rodin sculpture resin carbon has validated six shades of pac dent rodin™ sculpture resin a1, a2, a3, bl, b1, c2 for design recommendations, see pac dent's instructions for use here this guide will cover the orientation and supporting of the digital models for the applications listed above this resin is not currently compatible with the ao polishing cassette docid\ iffh3q8 wlk liqr87bd5 resource links about the material manufacturer instructions for use safety data sheet select the sds tab protocol this downloadable handout provides important usage information, including instructions about s torage dispensing washing curing print it out and bring it into the lab example protocol sheet handout https //archbee doc uploads s3 amazonaws com/vmzsbejdeghbwm j2w3hr my7hjhoxytuyv4iggf9vm 20240828 204605 pdf dental post processing grids one of our most popular downloads! this table provides washing and curing instructions for all supported dental resins print it and use it in the lab as a quick reference images of dental post processing grids english https //archbee doc uploads s3 amazonaws com/uxbzokjjtgpphjapq8fvm mrhbajqatds qt4qdwu9l 20250505 221416 pdf german/deutsch https //archbee doc uploads s3 amazonaws com/uxbzokjjtgpphjapq8fvm sebslaiwuzndri1gcllop 20241125 214312 pdf spanish/español https //archbee doc uploads s3 amazonaws com/uxbzokjjtgpphjapq8fvm 2i0uhzofua4ayjfusl1v2 20241203 180542 pdf preparation tips resin menu options carbon offers one resin option in the printer ui for use with pac dent rodin™ sculpture prepare resin before printing before dispensing the resin from the bottle, use a plastic spatula to stir the bottom of the bottle for several minutes before dispensing or mix using an automated bottle roller for 30 minutes if the bottle has been in storage for excess of a month, it is recommended to roll the bottle for 1 hour to allow ceramic fillers to reintegrate back into suspension for latest instructions, see rodin™ 3d resin's ifu here minimum resin amount this material is more prone to resin starvation defects due to its viscosity properties so when dispensing resin for a print, pour at least the required resin amount into the cassette using your preferred measuring technique as of printer software v1 45, it is no longer necessary to dispense double the amount of recommended resin this is now included in the printer software calculation general orientation & support information hide the platform use toggle platform (or press b ) to hide the platform before orienting parts this will make it easier to see overhangs and place supports occlusal surfaces towards platform digital models should be oriented with the occlusal surfaces facing the platform does not apply to try ins or full arch denture teeth does not apply to try ins or full arch denture teeth necessary to maintain accuracy ensures supports are on the occlusal surfaces enabling greater accuracy for mating surfaces monolithic/try in geometries can be oriented 60 degrees 60 degrees to 90 degrees 90 degrees , where 90° is fully vertical with the anterior teeth facing the platform no overhangs on interface orient parts so that interfaces and margins are free from overhangs and therefore do not require supports supports leave nubs which require more finishing and can affect fit with mating parts or teeth interfaces are free of overhangs use patch and fence tools to create supports patch tool the supports speeds up support creation by automatically supporting an area with just a few clicks it is useful for supporting larger areas of overhang that would take longer to support manually it is often useful to support your parts with this tool before manually adding supports fence tool supports are manually placed by the user and are best suited on linear overhangs or smaller areas fences provide stability while leaving smaller nubs than the default bars option review supports docid\ vubpoaitblm11am9 qj1p in printer ui docid\ oid4znztzyelttpvj984a course for more information all on x (aox) the following information applies to full arches only aox application should be oriented horizontally and require above platform supports orientation 1 click on orient orient or shift + o shift + o in the top bar in the printer interface 2 in the lower right corner of the bottom bar, turn on overhang detection overhang detection or v key v key and set to 40 60 degrees areas that need support will appear red red icons for orient and overhang detection 3 orient the occlusal surfaces facing down, parallel to the platform occlusal surface facing platform surfaces that have overhangs will require supports these supports affect fit and will require finishing to ensure proper seating supporting follow the application specific recommendations below support all overhangs as needed using the patch or fence tools in most cases, patch is the only tool that will be required review supports docid\ vubpoaitblm11am9 qj1p in printer ui docid\ oid4znztzyelttpvj984a course for more information example of well supported aox well supported aox crowns, bridges and veneers crowns, veneers and bridges have similar requirements no overhangs on margins no overhangs on interface surfaces minimum overhangs on buccal/lingual surfaces occlusal surfaces are oriented to minimize overhangs margin and interface are free of overhangs orientation 1 click on orient orient or shift + o shift + o in the top bar in the printer interface 2 in the lower right corner of the bottom bar, turn on overhang detection overhang detection or v key v key and set to 40 60 degrees areas that need support will appear red red icons for orient and overhang detection 3 orient each part so that the margin and interface are free of overhangs 4 refine orientation to minimize overhangs on other surfaces the margin and interface of each part should now be free of overhangs the remaining surfaces should have a minimal amount of overhangs crown and veneers showing minimal overhangs margins and interfaces that have overhangs will require supports these supports affect fit and will require finishing to ensure proper seating supporting follow the application specific recommendations below support all overhangs as needed using the supports or supports tools review supports docid\ vubpoaitblm11am9 qj1p in printer ui docid\ oid4znztzyelttpvj984a course for more information incisors and canines in addition to supporting overhangs, these teeth require additional supports to maximize accuracy and print success secondary fence supports offset to the lingual side of the incisal edge/cusp tip two rows of fences on the labial surface located at approximately 1/4 and 3/4 of the tooth height the example below shows the additional supports needed on a veneer for an incisor secondary fence on lingual side points on incisal edge 1 support overhang at incisal edge with a single fence secondary fence 2 add secondary fence approximately 1 mm to the lingual side resulting supports 3 generated supports side view of supports 4 side view of generated supports two fences on the labial surface labial surface of veneer 1 labial surface of veneer for incisor two rows of fences on labial surface 2 add fences approximately 1/4 and 3/4 of the tooth height generated supports 3 generated supports side view 4 side view of generated supports examples of well supported parts crown well supported crown veneer well supported veneer bridge well supported bridge denture try ins the following information applies to upper and lower denture try ins denture try ins have the following general requirements orient try ins with anterior facing platform minimize overhangs on intaglio surfaces no overhangs on occlusal tooth surfaces orientation 1 click on orient orient or shift + o shift + o in the top bar in the printer interface 2 in the lower right corner of the bottom bar, turn on overhang detection overhang detection or v key v key and set to 40 60 degrees areas that need support will appear red red icons for orient and overhang detection 3 orient the occlusal surfaces roughly parallel to the platform 4 rotate model so the occlusal surfaces are 90 degrees to occlusal side there will be overhangs on molars and labial surfaces animation showing rotation of try in surfaces that have overhangs will require supports these supports affect fit and will require finishing to ensure proper seating supporting review supports docid\ vubpoaitblm11am9 qj1p in printer ui docid\ oid4znztzyelttpvj984a course for more information follow the application specific recommendations below support all overhangs as needed using the patch or fence tools in most cases, patch is the only tool that will be required when using patch tool, set fence spacing to 2 mm if redundant bar supports are added, they may be manually deleted don't forget to support crossbars and the inner edge anterior labial surfaces crossbars crossbars also require supports use fence supports to quickly support crossbars press esc key to end a fence inner lingual edge of lower try in typically, only a single fence is needed to support the lingual edge example of well supported try ins well supported upper try inwell supported lower try in denture teeth full arches the following information applies to full arches only unlike other applications, denture teeth require placement of supports on basal surfaces no overhangs on occlusal tooth surfaces orientation 1 click on orient orient or shift + o shift + o in the top bar in the printer interface 2 in the lower right corner of the bottom bar, turn on overhang detection overhang detection or v key v key and set to 40 60 degrees areas that need support will appear red red icons for orient and overhang detection 3 orient the occlusal surfaces facing up , parallel to the platform 4 rotate 30 degrees up to lingual side animation showing rotation of full arch surfaces that have overhangs will require supports these supports affect fit and will require finishing to ensure proper seating supporting follow the application specific recommendations below support all overhangs as needed using the patch or fence tools in most cases, patch is the only tool that will be required limit supports to basal surfaces review supports docid\ vubpoaitblm11am9 qj1p in printer ui docid\ oid4znztzyelttpvj984a course for more information example of well supported full arch well supported full arch nesting select the layout tab layout tab (shift + l) in the top menu bar under auto layout, select gen2 gen2 gen2 usually gives the most effecient packing for dental devices enter at least 1 mm 1 mm in padding padding models require a minimum of 1 mm of space between them leave optimize starting rotation unchecked this leaves your parts in their previous orientations leave allowed rotations at the default setting this gives the software maximum flexibility to fit the most possible parts on the build platform press the auto layout auto layout button to arrange your parts screen shot showing button locations if necessary, nesting can be changed manually click and drag parts to adjust their position modify z rotation by using the spin tool or manual rotations under the orient tab (shift + o) use the part list tab as needed to more easily select models and focus on them print preparation print controls click print controls print controls or shift + p shift + p in the top menu bar location of print controls button on menu bar print profile and slicing for print profile, select the default default profile under slicing , select either standard (100 µm) standard (100 µm) or fine (50 µm), fine (50 µm), depending on your preference leave all other values at their default values button locations fine (50 µm) slice thickness will result in increased print times compared to standard (100 µm) project analysis select the project analysis project analysis tab click start analysis and wait for the processing to complete note the required resin volume and print time click add to queue location of project analysis button manufacturer instructions for use manufacturer instructions for use questions & support for questions about the resin properties, printing, washing or curing your parts, please contact the rodin support team submit support ticket https //rodin 3d com/contact us/ for questions about your carbon printer or carbon software settings used for this resin, please contact carbon email support\@carbon3d com phone 1 (650) 285 6307 option 2 printer ui on the dashboard, select the prints prints tab select one of the printed projects select one of the printed projects click request help request help in the lower right corner
