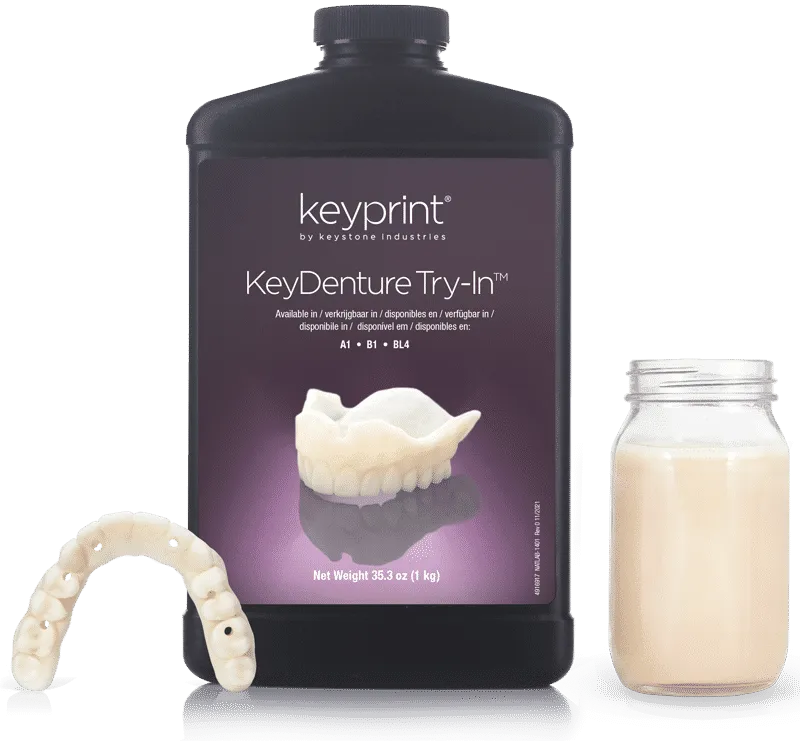

Keystone KeyDenture Try-In

overview keystone keydenture try in™ is available for carbon m series printers to produce try ins for dentures this guide will cover the preparation, printing, and post processing of your digital models with keystone keydenture try in™ resin this resin is not currently compatible with the docid\ iffh3q8 wlk liqr87bd5 resource links https //www carbon3d com/materials/keydenture try in https //keyprint keystoneindustries com/wp content/uploads/2022/02/keydenture tryin ifu web pdf https //keyprint keystoneindustries com/keydenture try in/ protocol this downloadable handout provides important usage information, including instructions about storage, washing and curing print it out and bring it into the lab! dental post processing grids one of our most popular downloads! this table provides washing and curing instructions for all supported dental resins print it and use it in the lab as a quick reference images of dental post processing grids english german/deutsch spanish/español performance qualification certificate post processing instructions are provided by keystone industries in the performance qualification certificate consult the first table in the document below for post processing information download the certificate https //docs carbon3d com/files/technical data sheets/pq certificate carbon m2 m3 keydenture tryin pdf general orientation & support information hide the platform use toggle platform (or press b ) to hide the platform before orienting parts this will make it easier to see overhangs and place supports use patch and fence tools to create supports patch tool the docid\ vubpoaitblm11am9 qj1p speeds up support creation by automatically supporting an area with just a few clicks it is useful for supporting larger areas of overhang that would take longer to support manually it is often useful to support your parts with this tool before manually adding supports fence tool docid\ vubpoaitblm11am9 qj1p are manually placed by the user and are best suited on linear overhangs or smaller areas fences provide stability while leaving smaller nubs than the default bars option review docid\ vubpoaitblm11am9 qj1p in docid\ oid4znztzyelttpvj984a course for more information orienting because try ins are organic surfaces with no well defined flat areas, we do not recommend using snap to platform proper orientation of denture try ins is critical to achieving the required accuracy, detail, and surface quality try ins should be oriented at 90 degrees to the platform with the anterior facing the platform workflow 1\ click on orient or shift + o in the top bar in the printer interface 2 in the lower right corner of the bottom bar, turn on overhang detection or v key and set to 40 degrees areas that need support will appear red red 3\ orient the try in so it is about parallel to the platform 4 rotate the models 90 degrees with the anterior facing the platform the model should be standing vertically, perpendicular to the platform supporting users can support denture try ins with patches, fences or a combination of the two carbon encourages you to experiment with both and use what works best for your geometries and workflow patch support workflow enter support mode and select patch do not use automatic supports this mode will cover a large portion of the intaglio surfaces, which will result in an unusable part click support (or press shift + s) in the dark gray bar at the top of screen under position , select above platform to lift parts off the platform under the manual tab select patch patch settings click on an area needing support (shown in red by the overhang detection tool) the area will turn green once selected and the patch settings will appear in the settings, increase the overhang to 50º select fence from the primary support type drop down check the boundary fence box leave all other settings at their defaults add patch supports click on all additional areas requiring support previously selected areas will turn purple click generate all confirm that adequate supports have been created fence support workflow fences are ideal for supporting model walls that face the platform easy to remove contact points require less finishing do not use automatic supports this mode will cover a large portion of the intaglio surfaces, which will result in an unusable part enter support mode and select fence click support (or press shift + s) in the dark gray bar at the top of screen under position , select above platform to lift parts off the platform under the manual tab select fence add fence supports click on fences fences click a series of points series of points on the model to define the fence use 40º overhang detection 40º overhang detection to find areas that need support fences are only required at the edges click esc key and then hold down e key to reposition points the support attributes support attributes may be left in the default settings click generate all generate all to create the fence geometry repeat as needed properly oriented and supported denture try ins oriented at 90º supported above platform fence supports nesting select the layout tab layout tab (shift + l) in the top menu bar under auto layout, select gen2 gen2 gen2 usually gives the most effecient packing for dental devices enter at least 1 mm 1 mm in padding padding models require a minimum of 1 mm of space between them leave optimize starting rotation unchecked this leaves your parts in their previous orientations leave allowed rotations at the default setting this gives the software maximum flexibility to fit the most possible parts on the build platform press the auto layout auto layout button to arrange your parts screen shot showing button locations if necessary, nesting can be changed manually click and drag parts to adjust their position modify z rotation by using the spin tool or manual rotations under the orient tab (shift + o) use the part list tab as needed to more easily select models and focus on them print preparation print controls click print controls print controls or shift + p shift + p in the top menu bar slicing slice thickness should be standard (100 µ) reducing the slice thickness by choosing the fine (50 µ) or super fine (25 µ) settings will increase print time and may reduce part quality and accuracy project analysis select the project analysis project analysis tab click start analysis and wait for the processing to complete note the required resin volume and print time click add to queue manufacturer instructions for use https //keyprint keystoneindustries com/wp content/uploads/2022/02/keydenture tryin ifu web pdf questions & support for questions about the resin properties, printing, washing or curing your parts, please contact the keystone technical team email customerservice\@keystoneind com phone u s and canada 1 800 333 3131 eu +49 77 31 91 21 01 for questions about your carbon printer or carbon software settings used for this resin, please contact carbon email mailto\ support\@carbon3d com phone 1 (650) 285 6307 option 2 printer ui on the dashboard, select the prints prints tab select one of the printed projects select one of the printed projects click request help request help in the lower right corner
