DENTCA Crown & Bridge for Carbon Printers
Overview

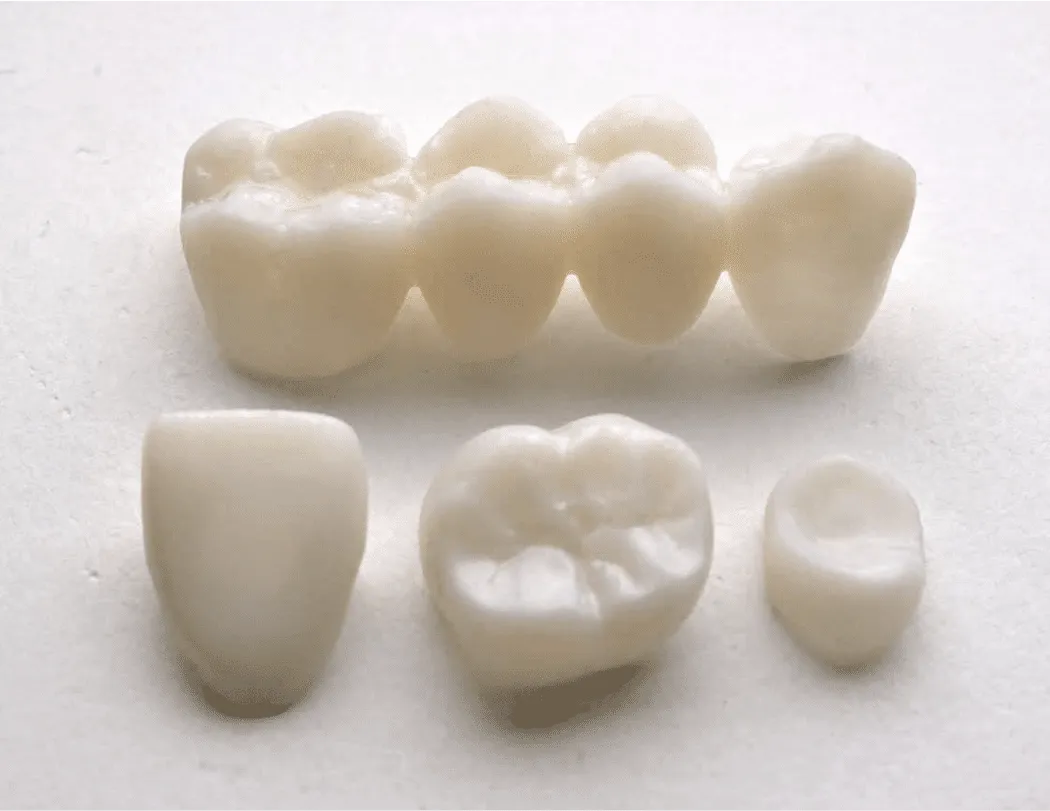

DENTCA® Crown & Bridge for Carbon printers is now available for Carbon M Series printers to produce temporary crowns and bridges.
DENTCA Crown & Bridge for Carbon printers currently comes in 6 shades:
- A1, A2, A3, A3.5, B1, B2, BL1
This guide will cover digital pre-processing of your temporary crowns and bridges to properly prepare them for printing.
This resin is not currently compatible with the AO Polishing Cassette.
Resource Links
Protocol
This downloadable handout provides important usage information, including instructions about storage and post-processing. Print it out and bring it into the lab!
Dental Post-Processing Grids
One of our most popular downloads! This table provides washing and curing instructions for all supported dental resins.
Print it and use it in the lab as a quick reference.
German/Deutsch
Spanish/Español
Design

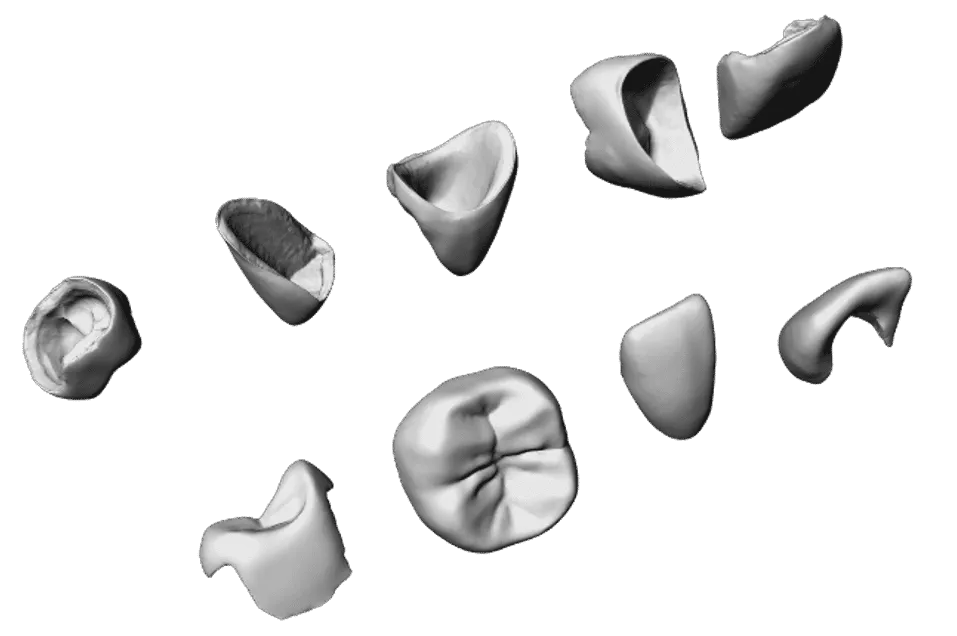

Crowns
Carbon recommends designing your crowns as usual. DENTCA® Crown & Bridge for Carbon printers requires no special considerations.

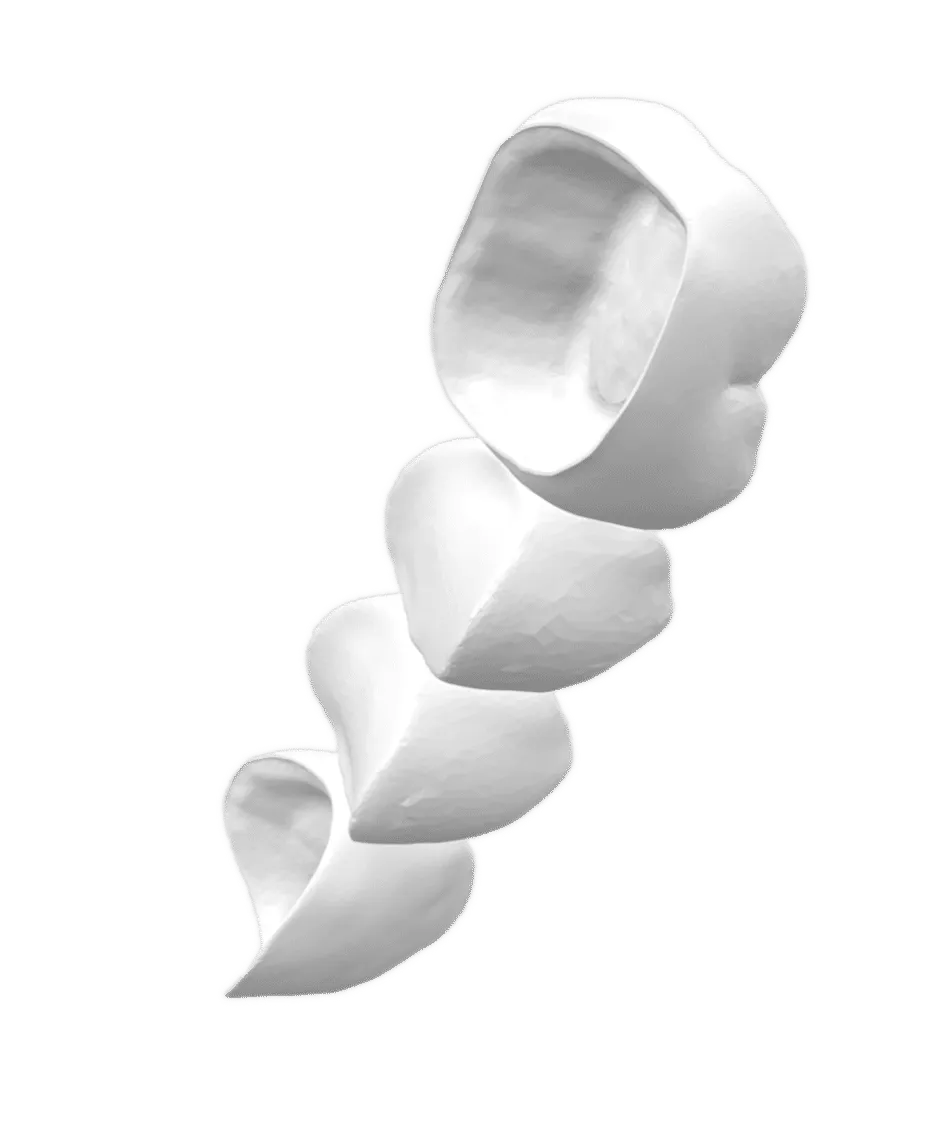

Bridges
Carbon recommends designing your bridges as usual. DENTCA® Crown & Bridge for Carbon printers requires no special considerations.
General Orientation & Support Information
Hide the Platform
Use Toggle platform (or press B) to hide the platform before orienting parts. This will make it easier to see overhangs and place supports.
Use Fence tool to create supports
Fence tool
- Fence supports are manually placed by the user and are best suited on linear overhangs or smaller areas.
- Fences provide stability while leaving smaller nubs than the default Bars option.
Review Supports in Printer UI course for more information.
Crowns
Proper Orientation of Crowns
Carbon recommends:
- No overhangs on crown margins.
- No overhangs on interface surfaces.
- Minimum overhangs on buccal/lingual crown surfaces.
Following these recommendations will maximize accuracy and minimize the need for manual finishing.
Orienting

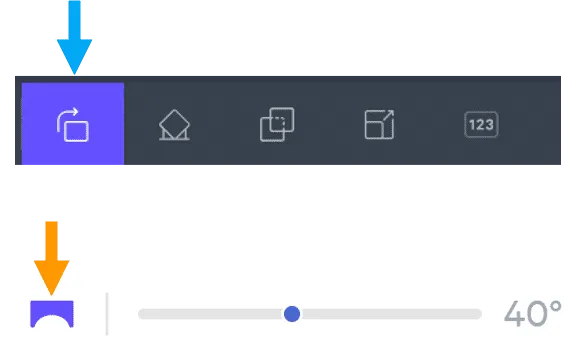

- Click on Orient or Shift + O in the main bar in the printer software.

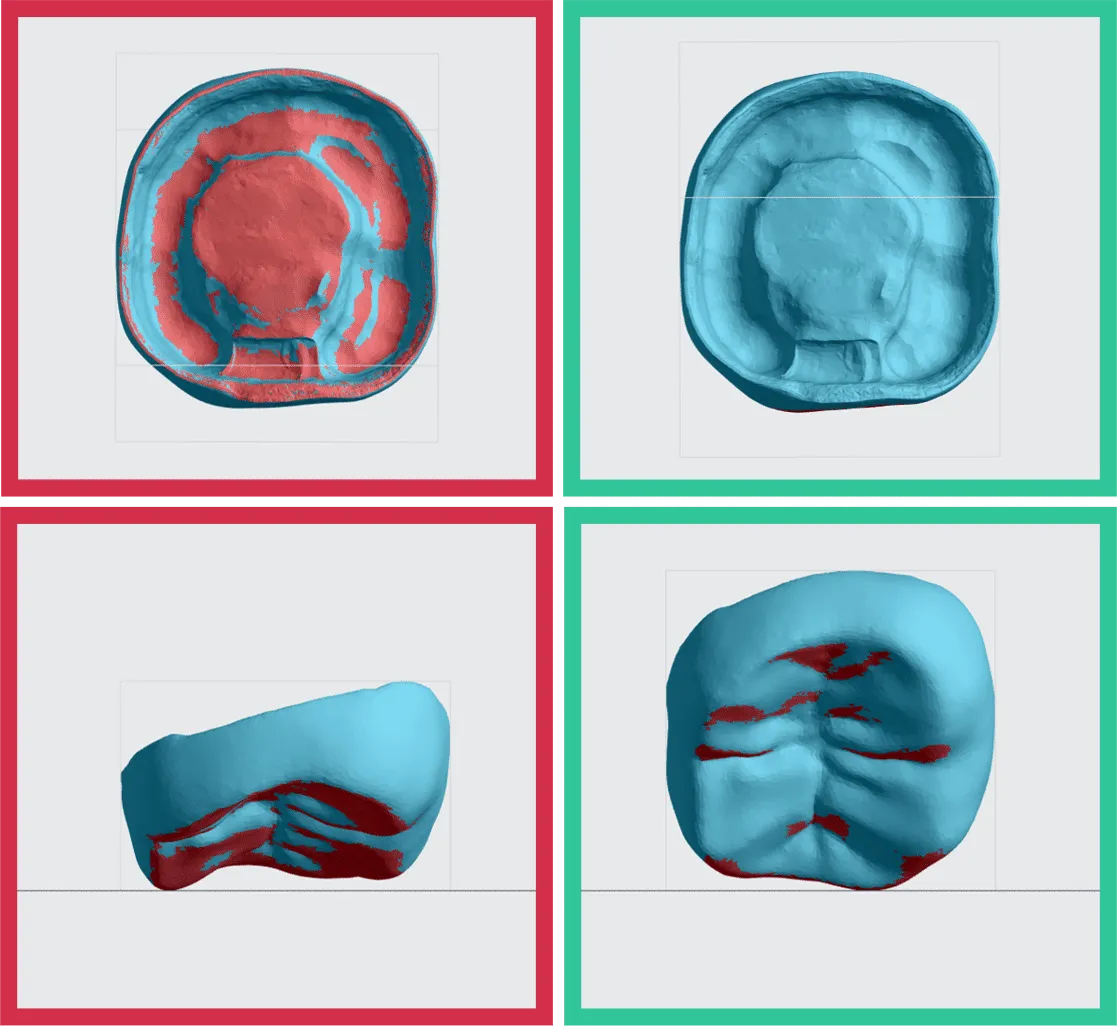

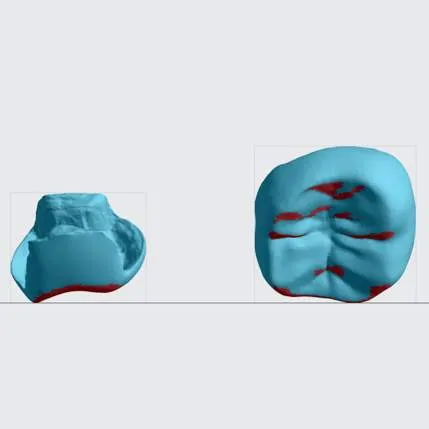

- In the lower right corner, turn on Overhang Detection or V key set to 40 degrees to indicate areas that need support in red.

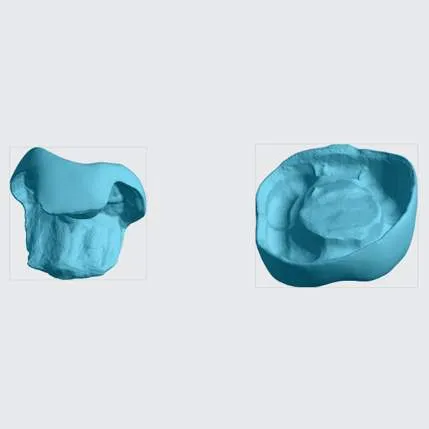

3. Orient each crown so that the margin and interface are free of overhangs. 4. Refine orientation to minimize overhangs on other crown surfaces.

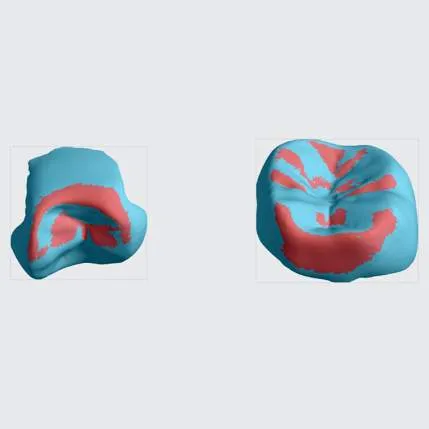

The margin and interface of each crown should now be free of overhangs. The remaining surfaces should have a minimal amount of overhangs.
Note: Margins and interfaces that have overhangs will require supports. These supports affect fit and will require finishing to ensure proper seating.
Supporting

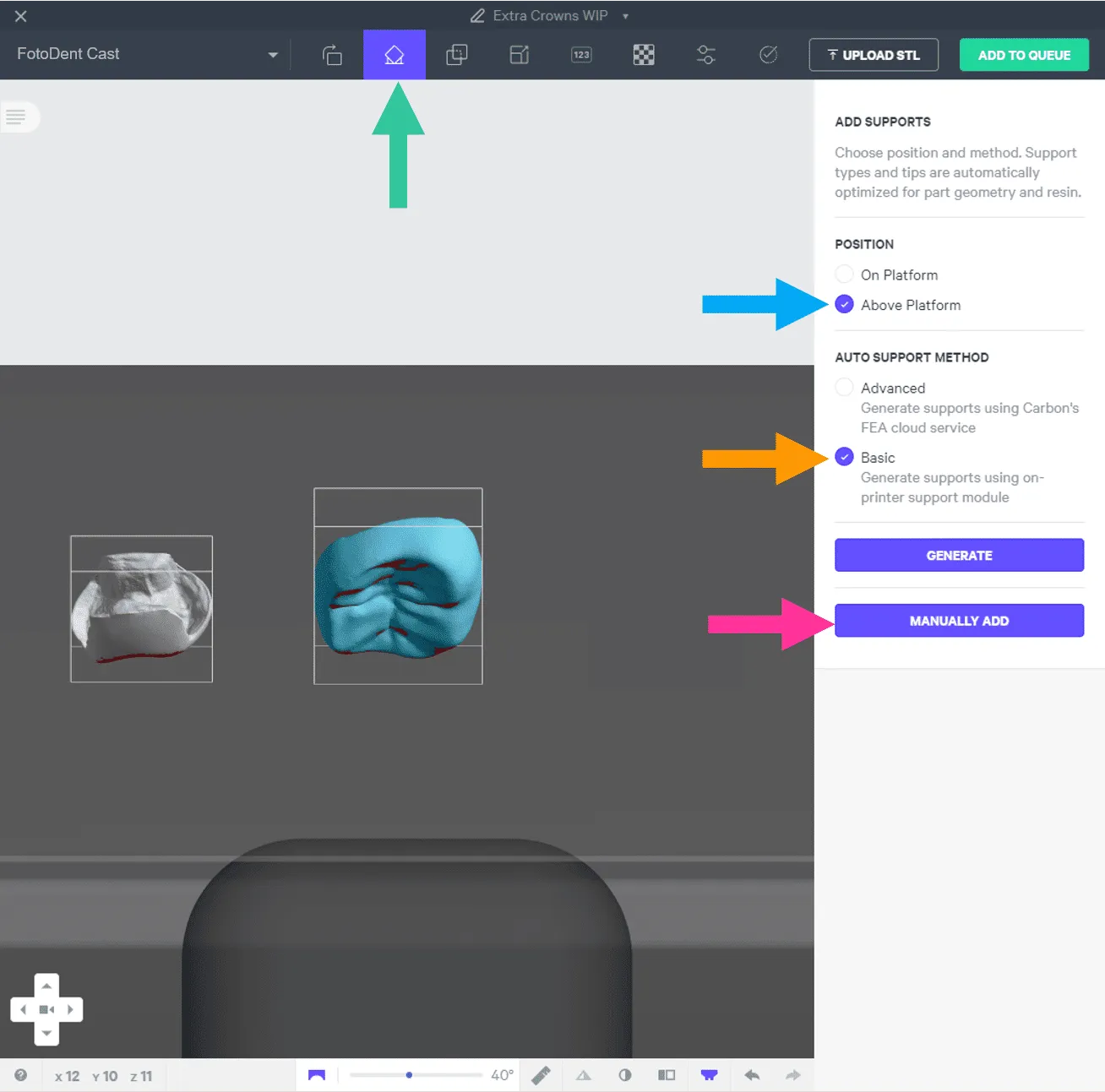

- Click Support or Shift + S in the dark gray bar.
- Under Position, select Above Platform to lift parts off the platform.
- Skip Auto Support Method as this mode is not recommended.
- Click Manually Add to go to the Support editing interface.

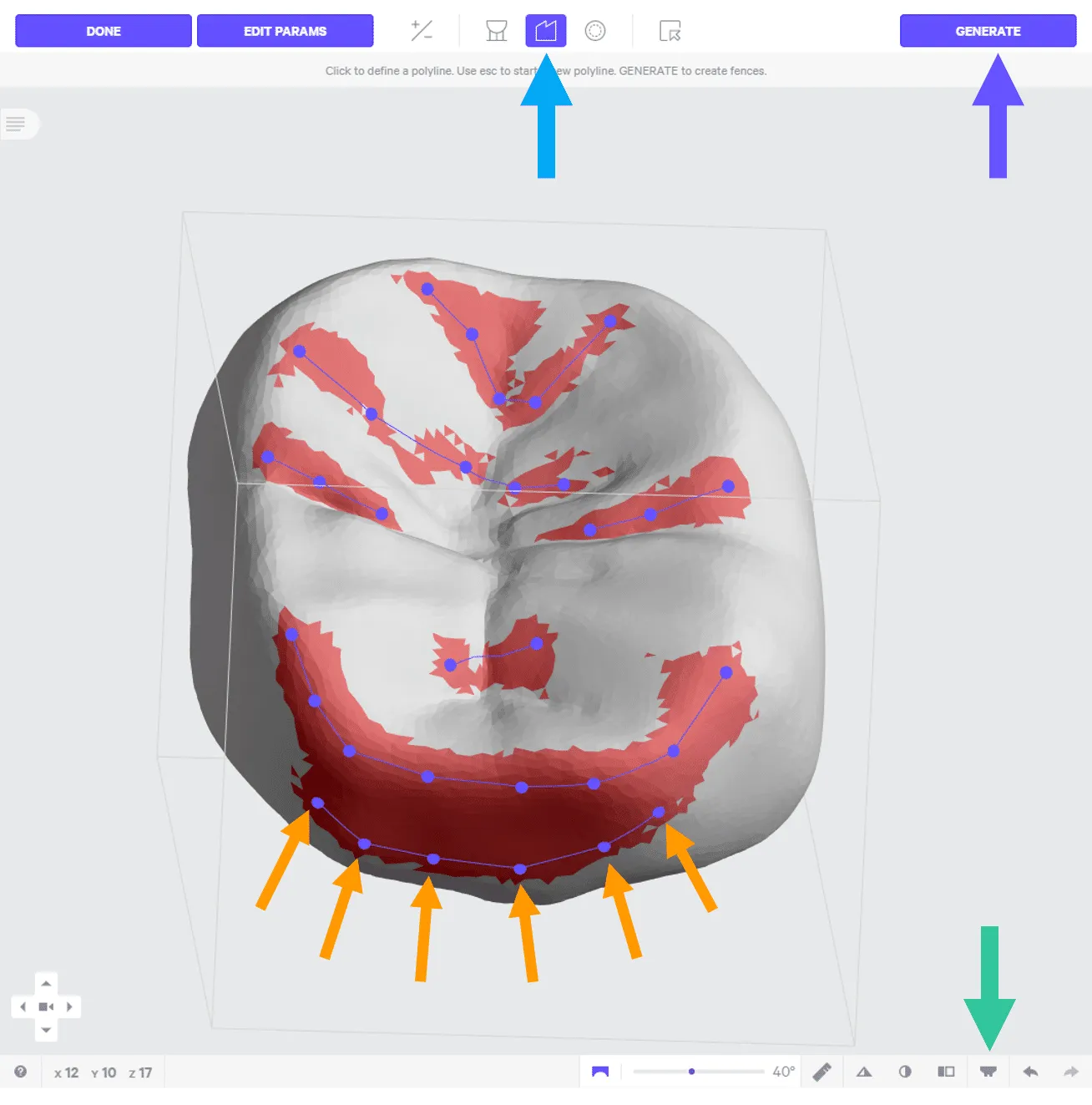

Add Fence Supports
- Click Toggle Platform button in the lower tool bar to hide the platform. This will enable better visibility during fence creation.
- Click the fences icon in the top menu bar.
- Click a series of points in an area of overhang to define the fence.
- If an overhang region is large, apply fencing to the edges of the region as well as the center.
- Click ESC key and then hold down E key to reposition points.
- Click Generate to create the fence geometry. This may take a few minutes.
- Repeat as needed.
Bridges
Proper Orientation of Bridges
Carbon recommends:
- No overhangs on crown margins.
- No overhangs on interface surfaces.
- Minimum overhangs on buccal/lingual crown surfaces.
Following these recommendations will maximize accuracy and minimize the need for manual finishing.
Orienting
- Click on Orient or Shift + O in the main bar in the printer software.

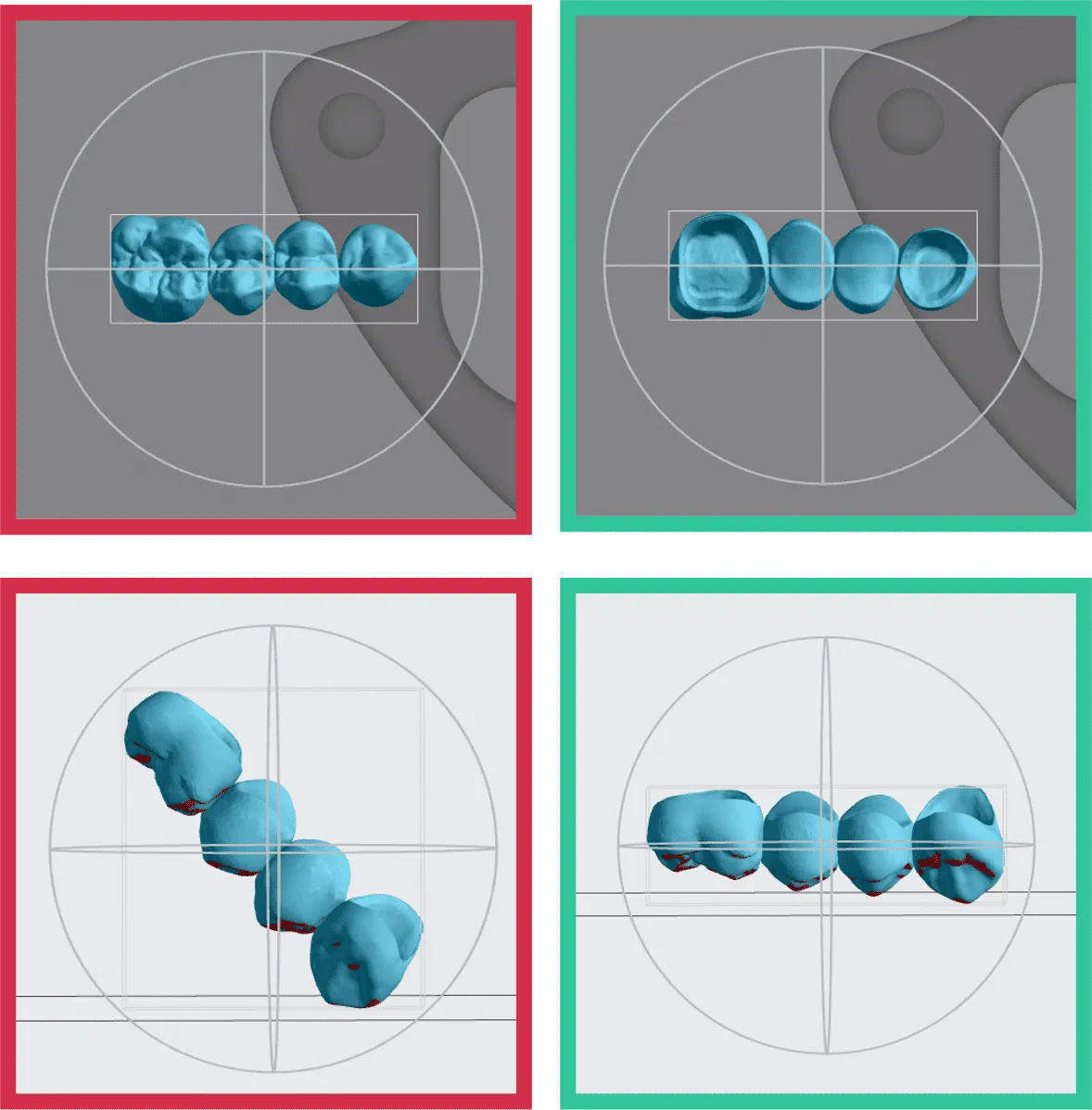

- In the lower right corner, turn on Overhang Detection or V key set to 40 degrees to indicate areas that need support in red.
3. The bridge margin and interface should face away from the platform (occlusal surface will face platform). 4. Keep parts roughly parallel to the platform.
The margin and interface of each bridge should now be free of overhangs. The remaining surfaces should have a minimal amount of overhangs.
Supporting

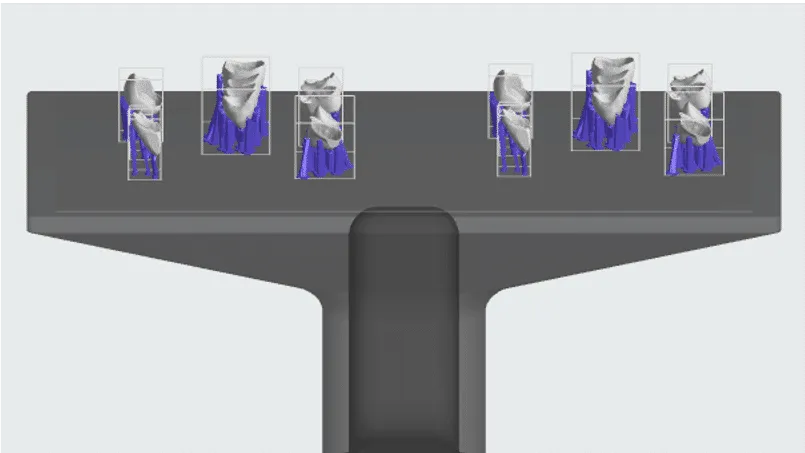

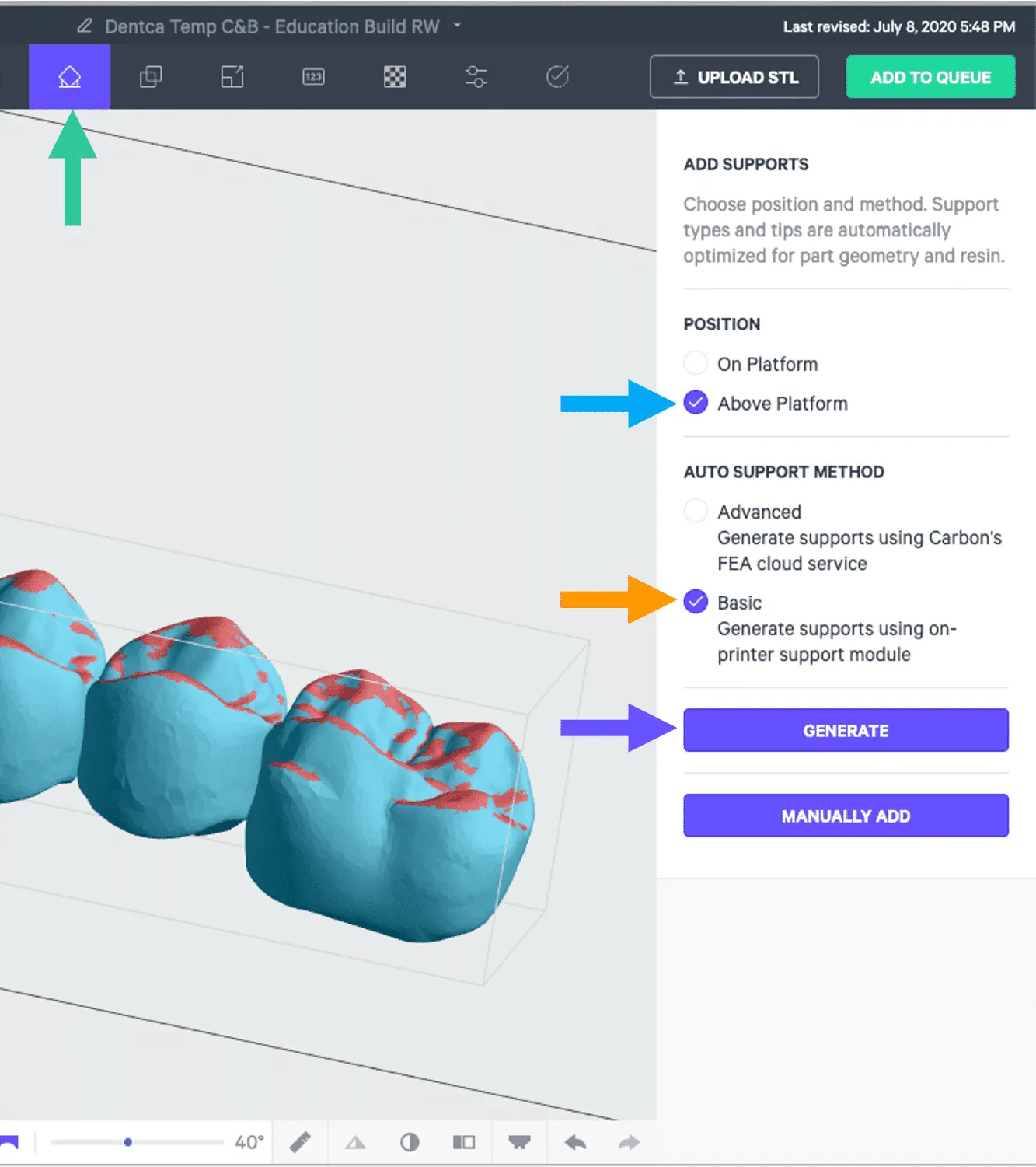

- Click Support or Shift + S in the dark gray bar.
- Under Position, select Above Platform to lift parts off the platform.
- Under Auto Support Method select Basic and click Generate.
Nesting
- Select the Layout tab (Shift + L) in the top menu bar.
- Under Auto Layout, select Gen2.
- Gen2 usually gives the most effecient packing for dental devices.
- Enter at least 1 mm in Padding.
- Models require a minimum of 1 mm of space between them.
- Leave Optimize starting rotation unchecked.
- This leaves your parts in their previous orientations.
- Leave Allowed rotations at the default setting.
- This gives the software maximum flexibility to fit the most possible parts on the build platform.
- Press the Auto Layout button to arrange your parts.
If necessary, nesting can be changed manually:
- Click and drag parts to adjust their position.
- Modify Z rotation by using the Spin tool or manual rotations under the Orient tab (Shift + O).
- Use the Part List tab as needed to more easily select models and focus on them.
Print Preparation
Print Controls

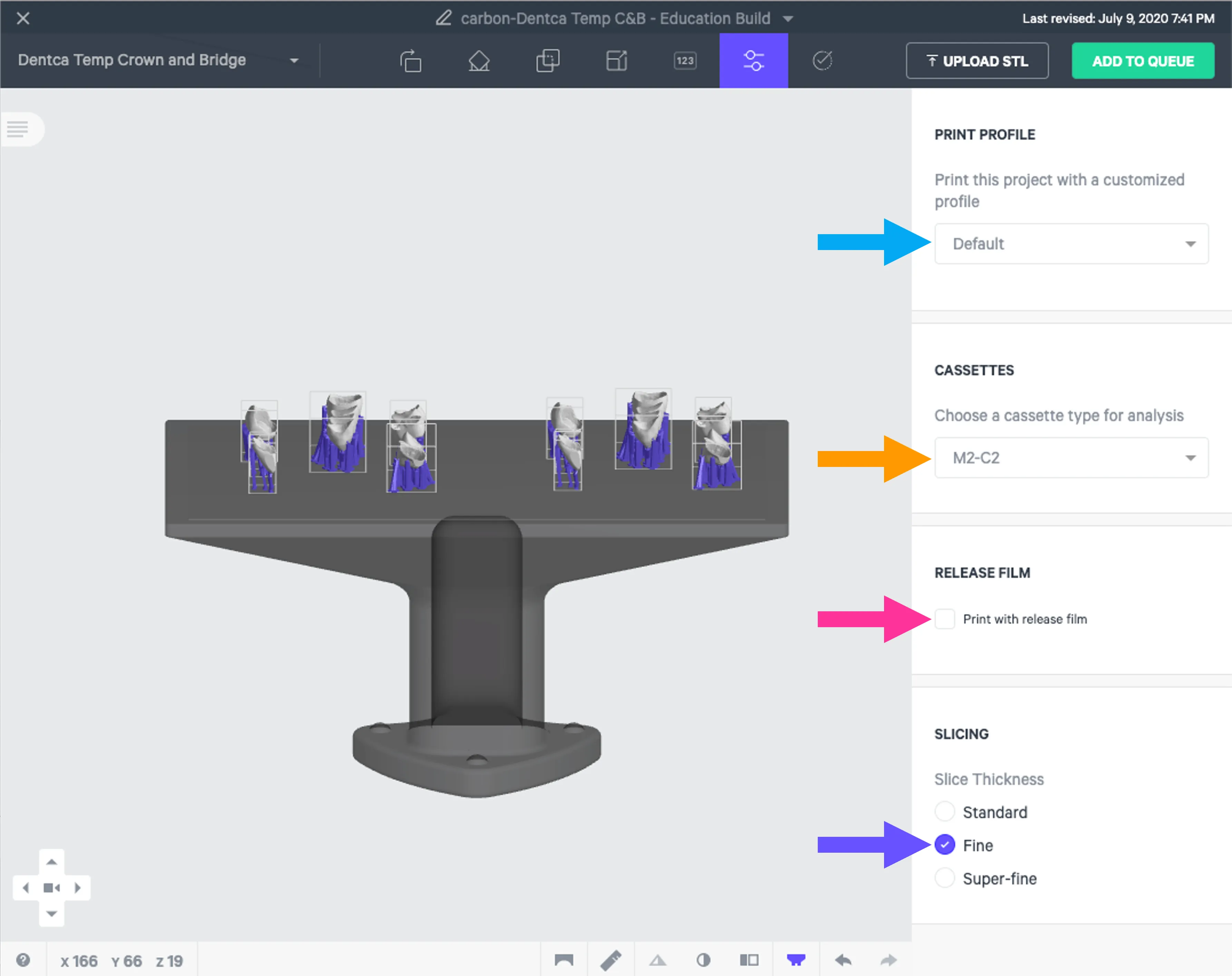

Click Print Controls or Shift + P in the top menu bar.
- Under Print Profile select Default.
- Choose your cassette type.
- Printing with release film can make part removal easier once printing is complete. If using release film, select Print with release film.
- Under Slicing, select Fine (50 µ) setting.
Project Analysis
- Select the Project Analysis tab.
- Click Start Analysis and wait for the processing to complete.
- Note the required resin volume and print time.
- Click Add to Queue.
Manufacturer Instructions for Use
