Smart Part Washer
Switching Solvents
7min

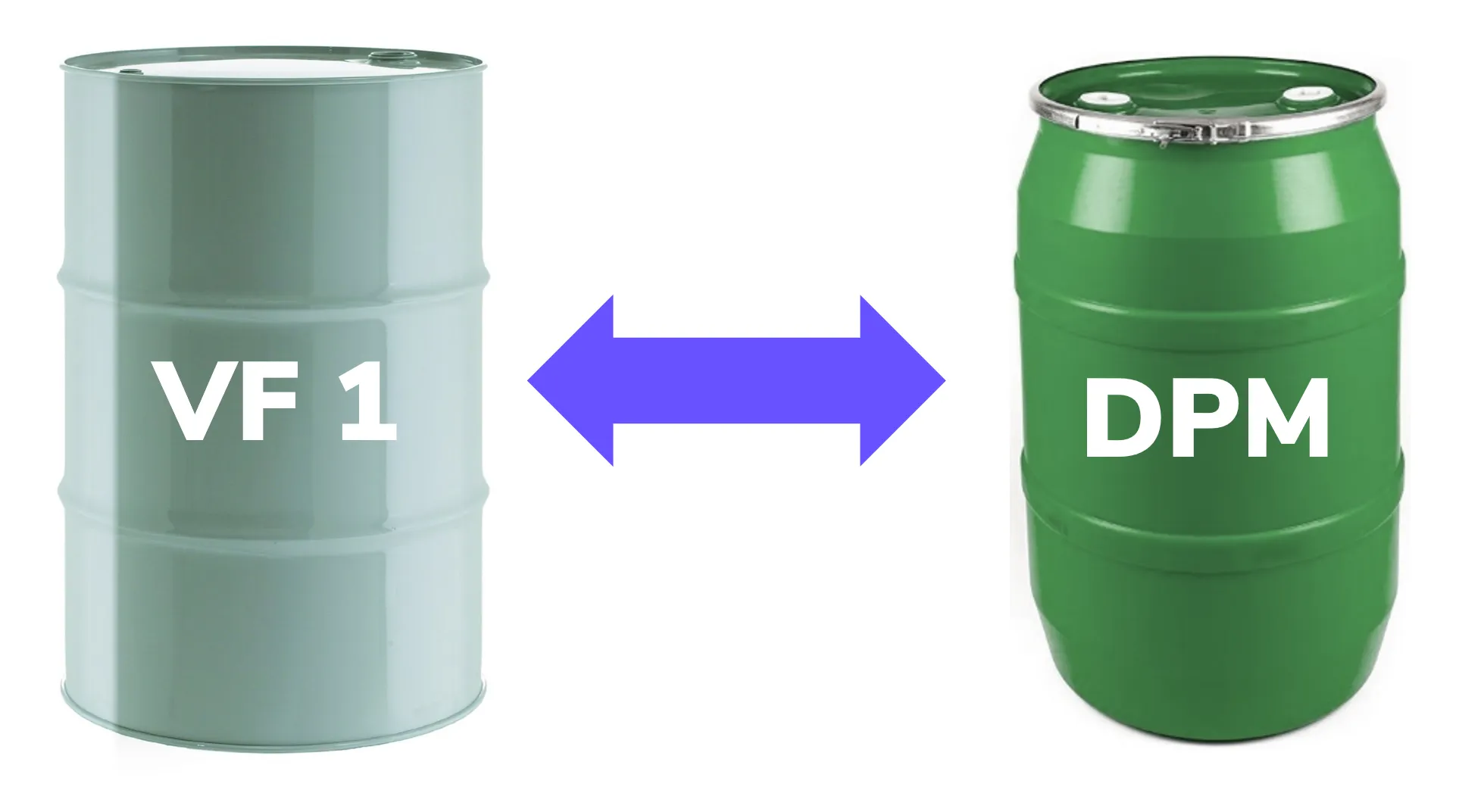

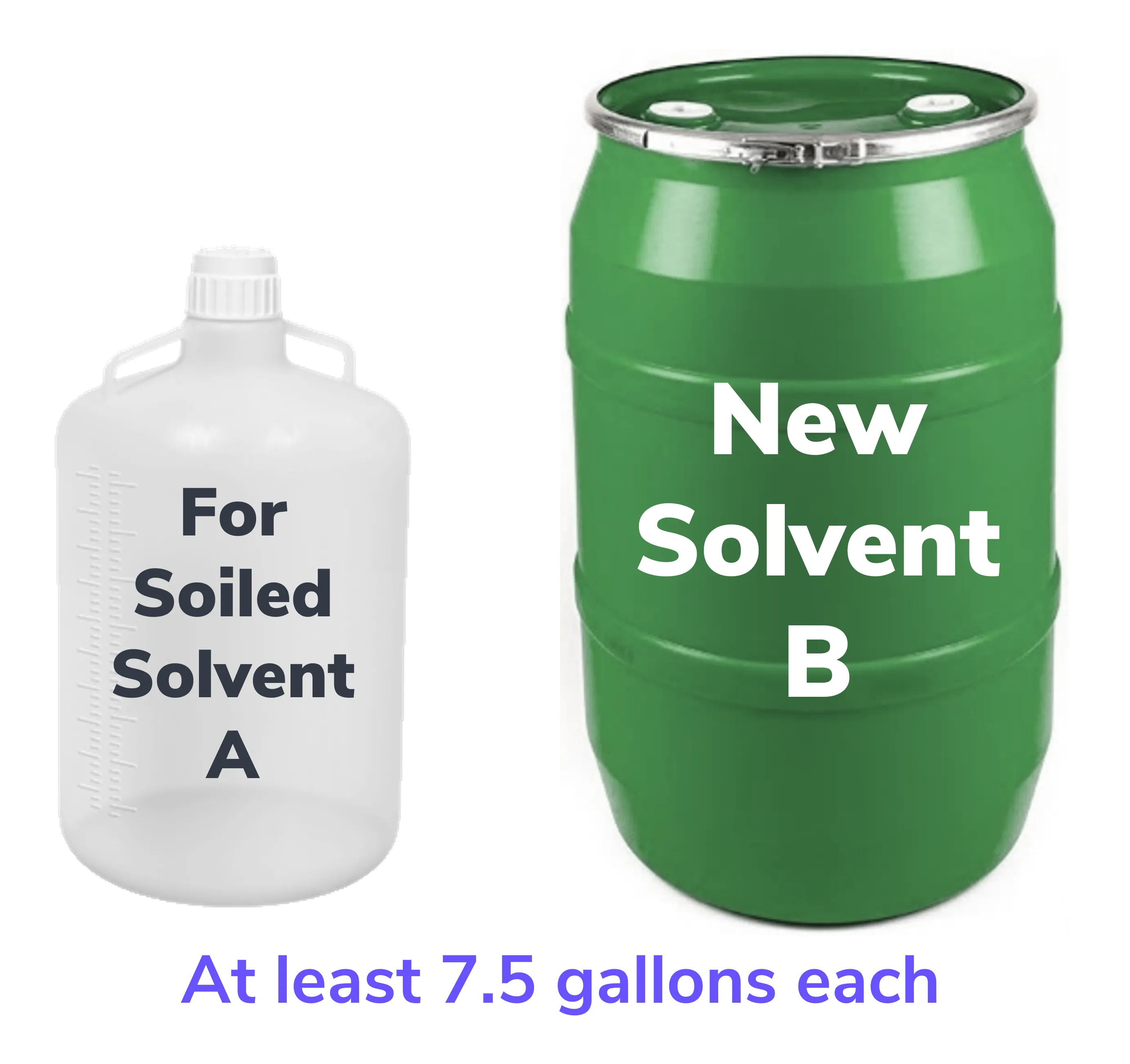

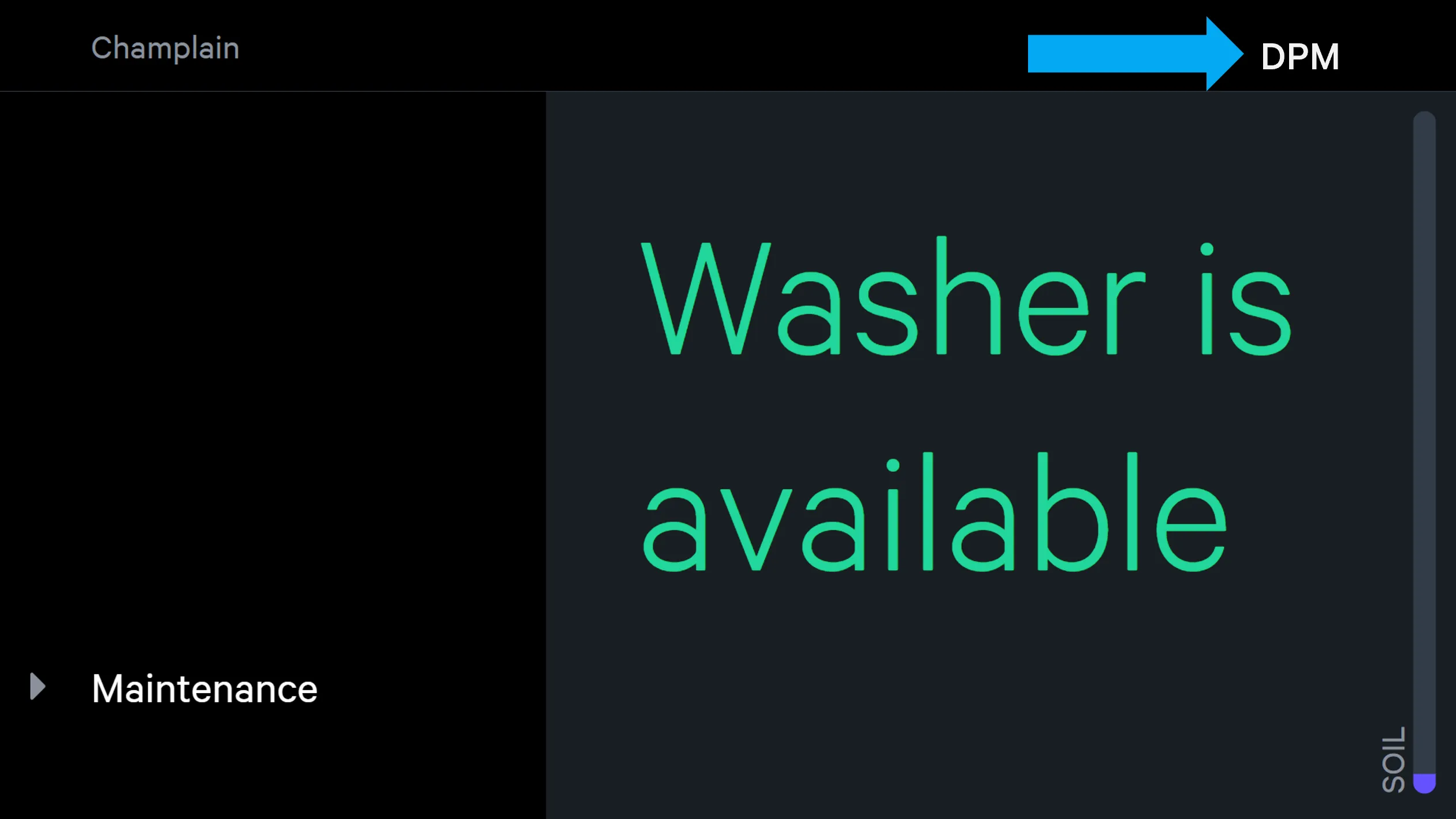

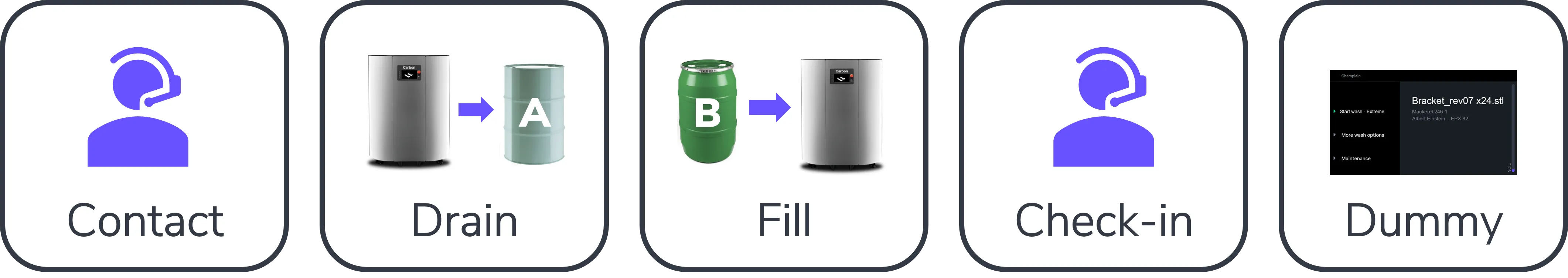

overview you may want to switch solvents at some point the basic procedure for changing solvents is contact customer support to discuss changing solvents drain current, soiled solvent from smart part washer fill smart part washer with new, clean solvent contact customer support to confirm that the new solvent is loaded so carbon can update your smart part washer settings this can take up to 2 business days run dummy wash for washer to activate new washing parameters notes customers can switch between vf 1 and dpm switching from dpm to vf1 requires an extra flushing step required equipment switching from dpm container large enough to contain 7 5 gallons of soiled solvent a container with at least 7 5 gallons of new solvent b switching from vf1 custom distiller to receive soiled vf1 for distilling container with at least 7 5 gallons of new solvent b containers must conform to local regulations for handling liquid waste and/or solvents required software switching solvents in your smart part washer requires software upgrades to your printer and washer the following software versions are required printer v1 21 or later smart part washer v1 3 0 340 9 or later as usual, software updates are pushed to your hardware and require opt in through the browser safety follow standard safety protocols as described in the safety docid\ n1jcsmvcdugnwef2wovvn section workflow contact customer support contact customer support and communicate your desire to switch solvents email support\@carbon3d com phone 1 (650) 285 6307, option #2 a representative will help you prepare for the switch drain current solvent follow standard draining process in draining, filling and distillation docid\ glj5y8genbuifqwpey3y4 above vf 1 needs to be drained into the distiller dpm needs to be drained into container of at least 7 5 gallons flushing dpm switching from dpm to vf 1, requires a flush between draining dpm and filling with vf 1 after draining soiled dpm solvent from washer, fill washer with clean dpm perform dummy wash with empty platform using extreme wash cycle drain dpm the smart part washer is now ready to be filled with the new solvent fill with new solvent follow standard filling process in draining, filling and distillation docid\ glj5y8genbuifqwpey3y4 above contact customer support to update settings now that the smart part washer is filled with the new solvent, the washer software needs to be configured for the new solvent without this update, your smart part washer will not function properly contact customer support and communicate your new solvent choice email support\@carbon3d com phone 1 (650) 285 6307, option #2 customer support will remotely update your smart part washer settings to the new solvent this update can take up to 2 business days in most cases it will be faster dummy wash now that your washer has been made aware of the new solvent, the system needs to update its washing parameters this is accomplished by running a dummy wash cycle with an empty platform activate the foot switch to raise the lid and expose the platform latch place an empty platform into the platform latch as usual, the part washer will read the platform nfc tag and display the project name and print data specific to the last print project that the platform was used for select start wash default to begin dummy wash cycle the lid will automatically close and the wash cycle will begin when the wash cycle is complete, raise lid and remove the empty platform confirm the solvent name in the upper right corner of the display upper right corner of the display has updated to reflect the new solvent your smart part washer is now ready to wash parts with the new solvent!
