M1/M2 Printer
Features
20min

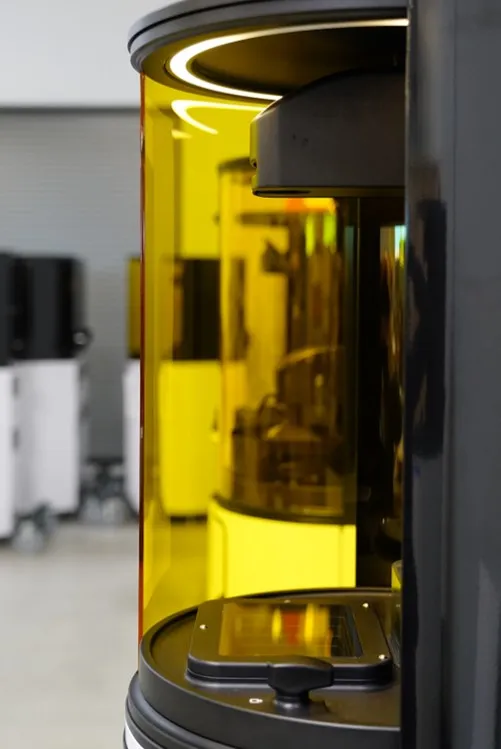

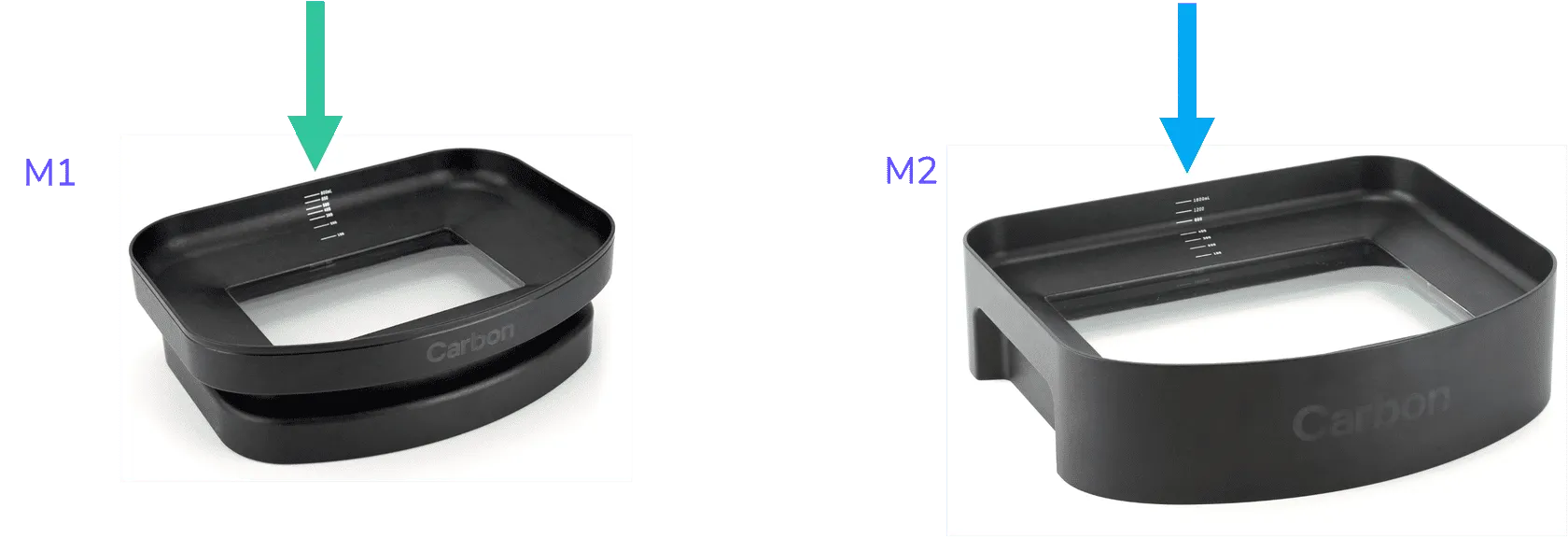

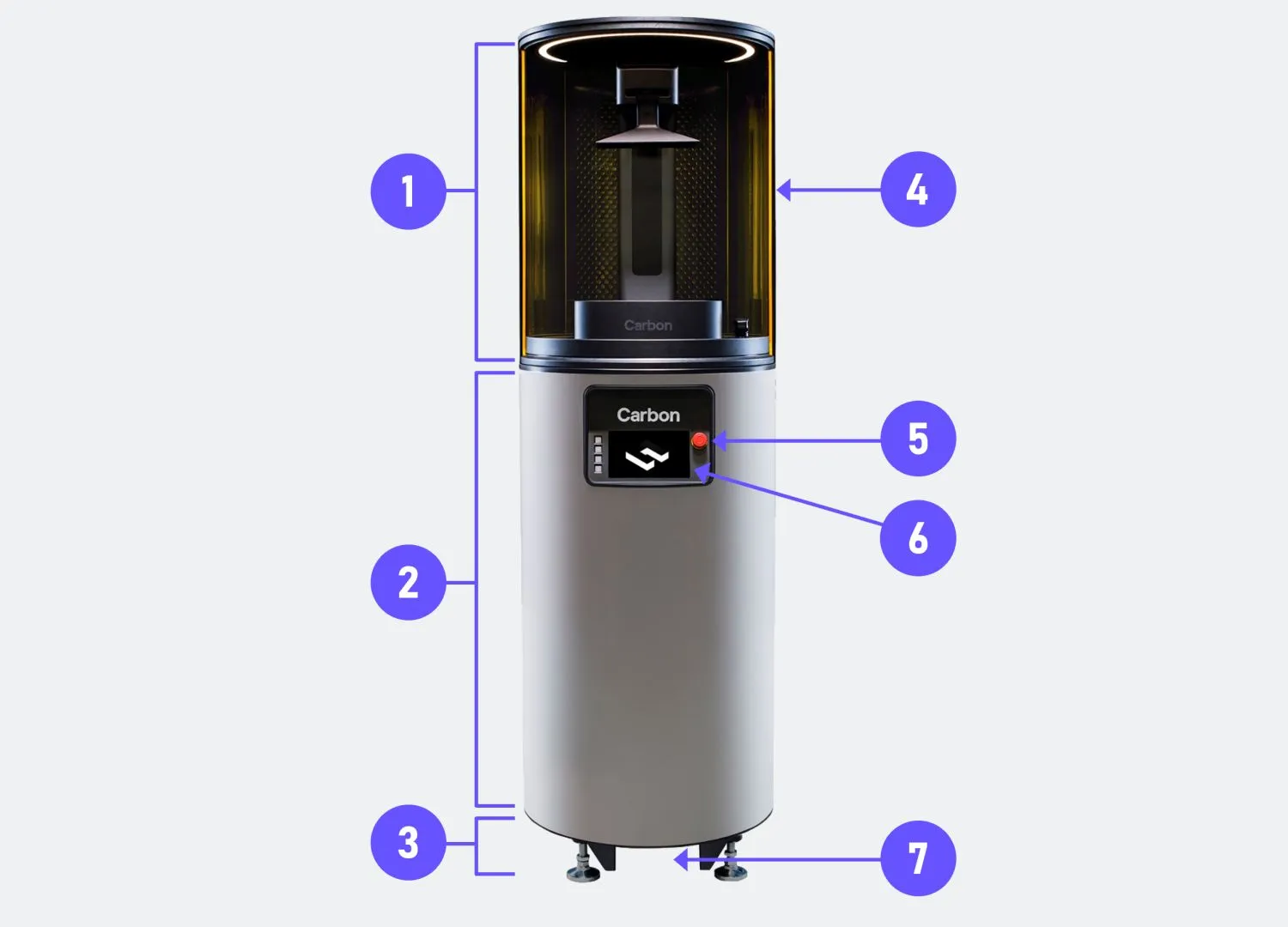

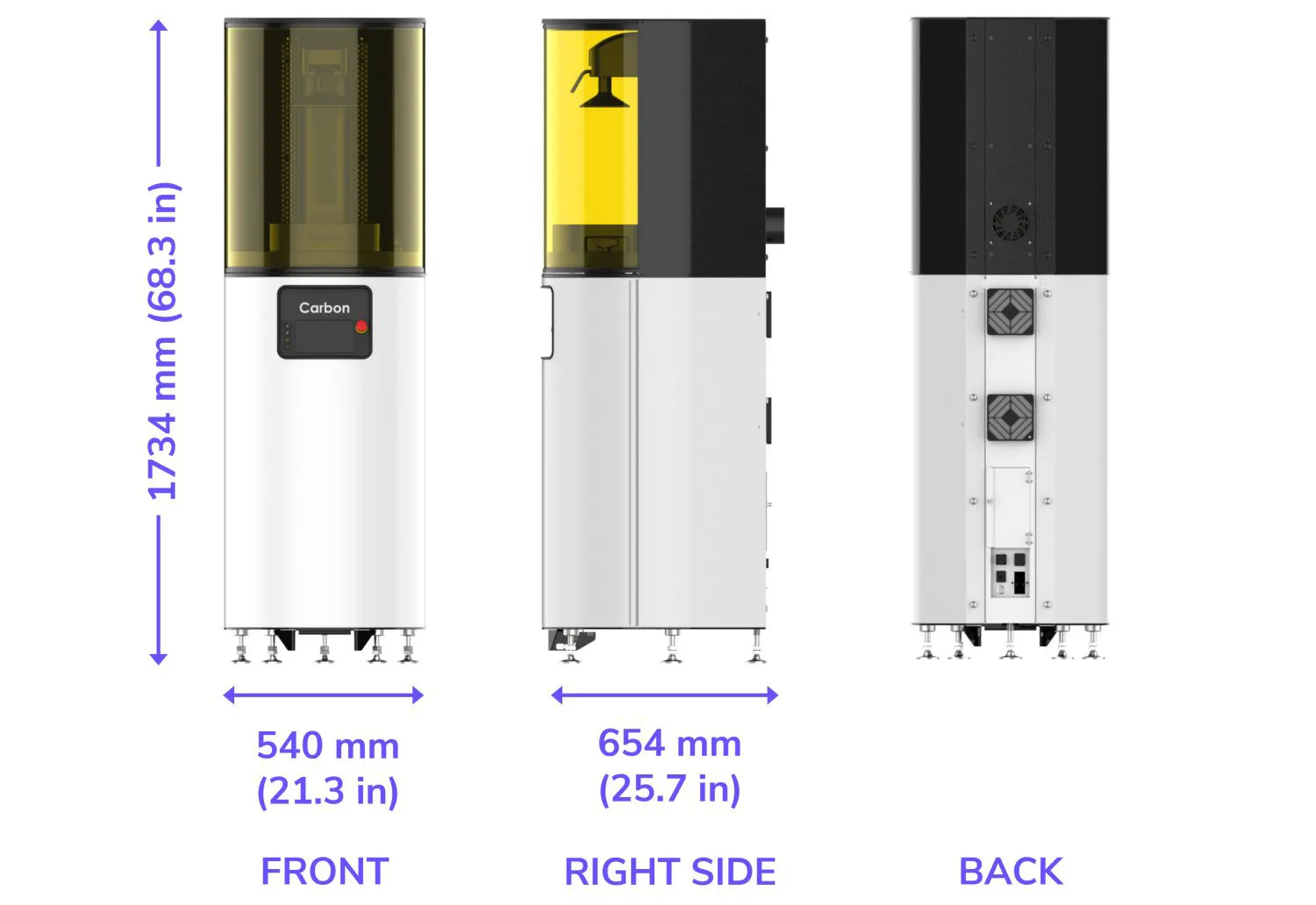

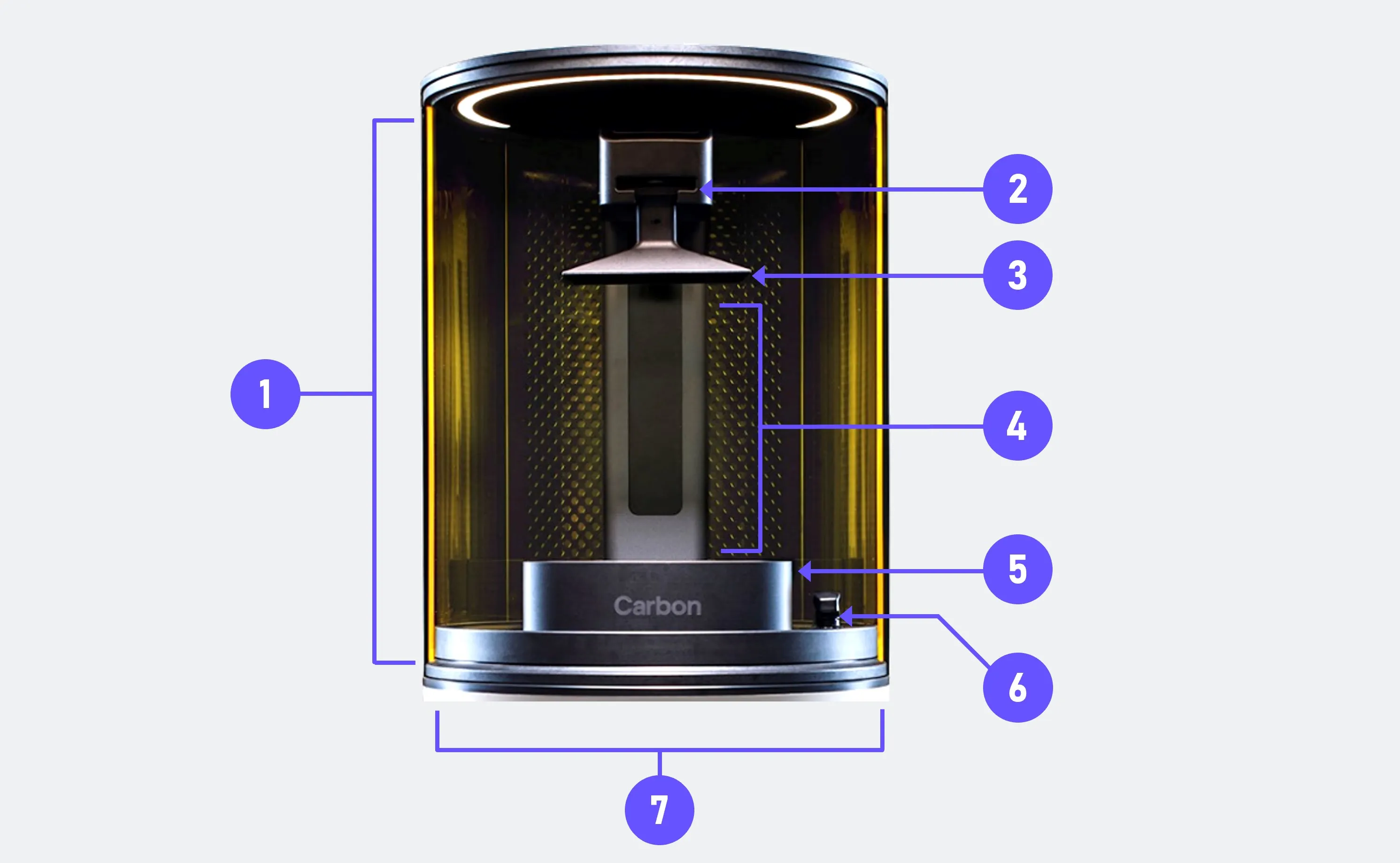

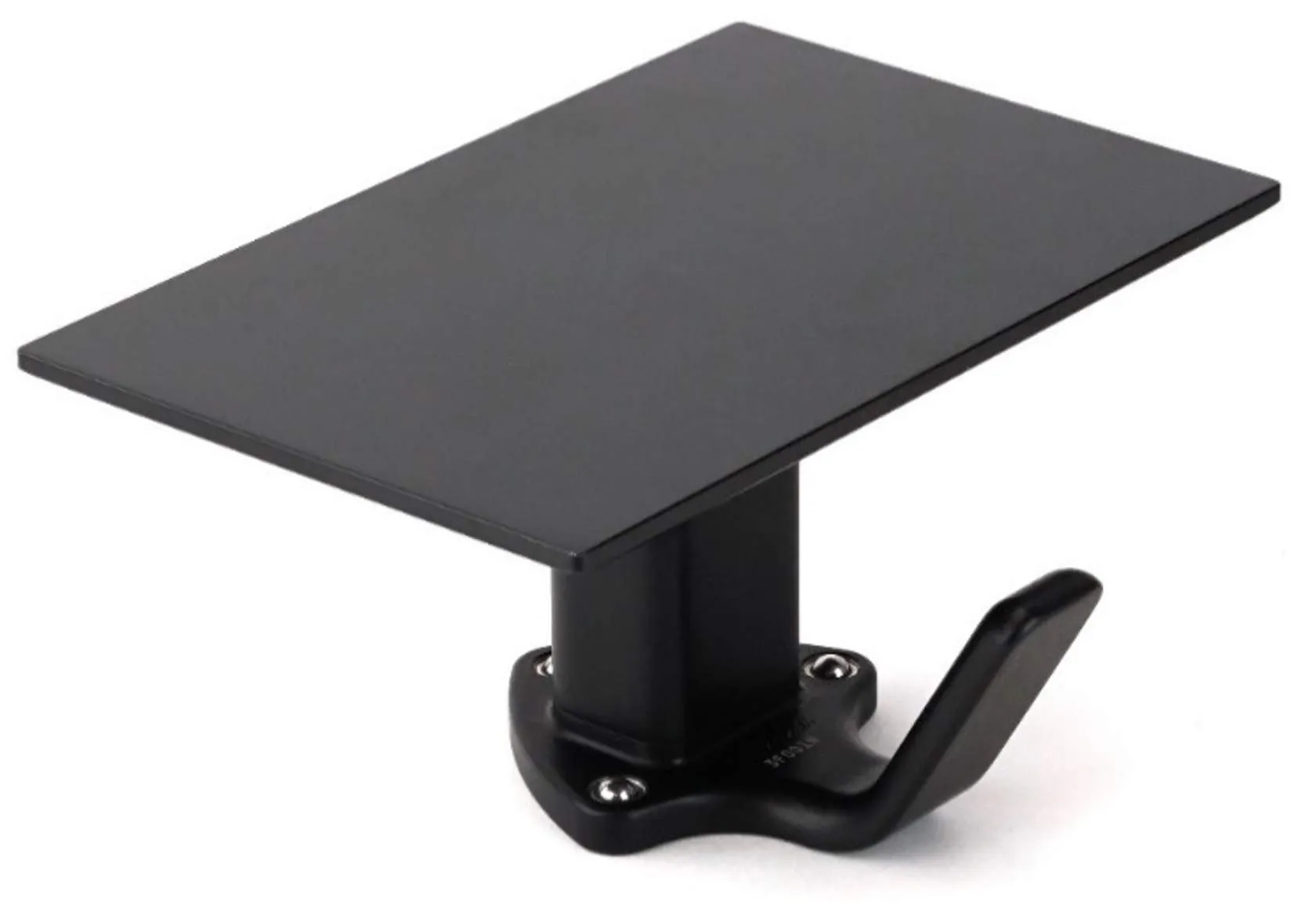

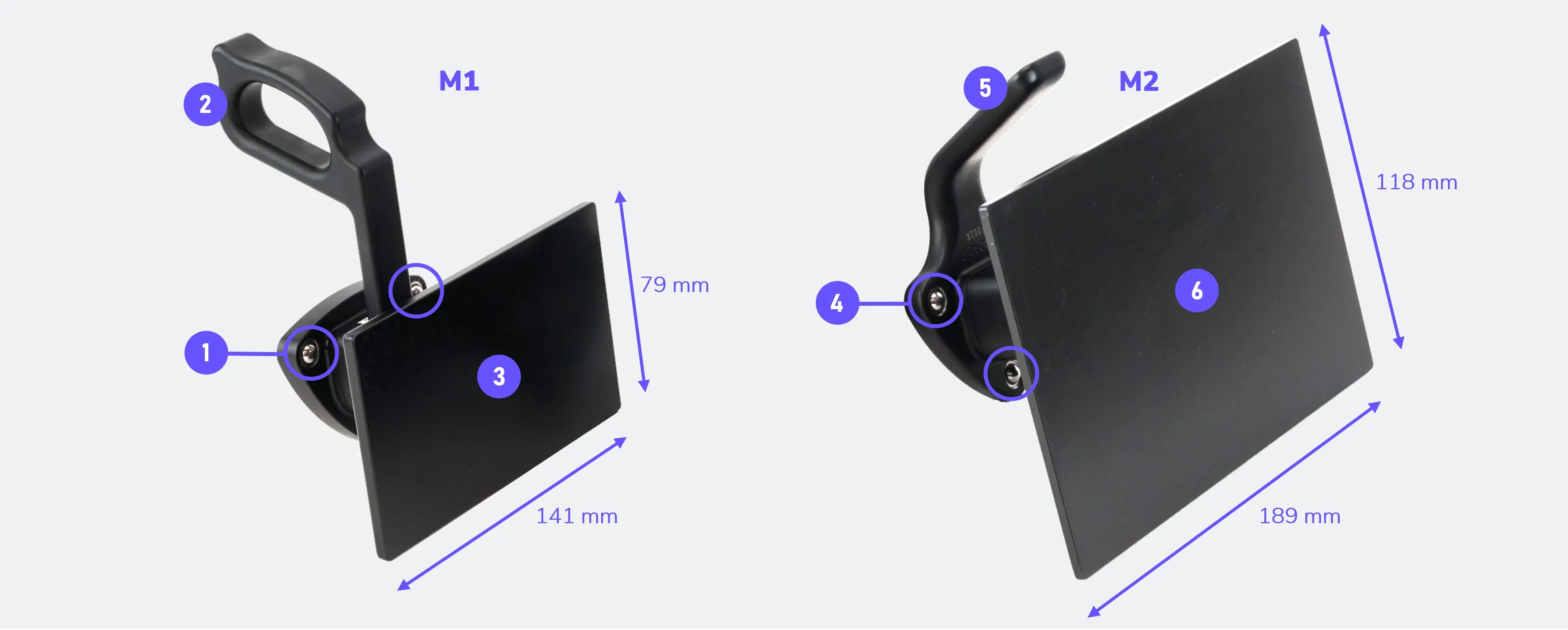

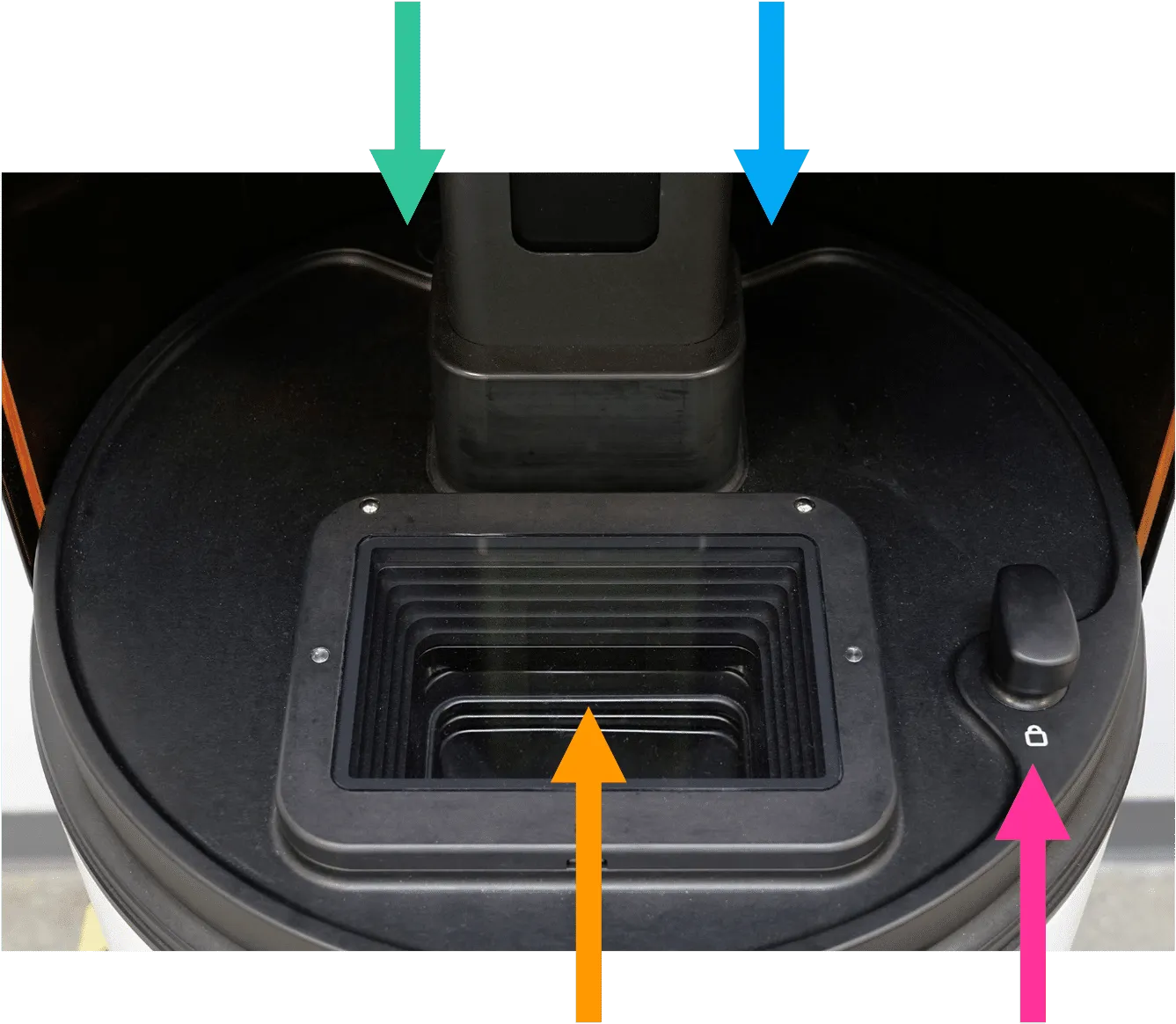

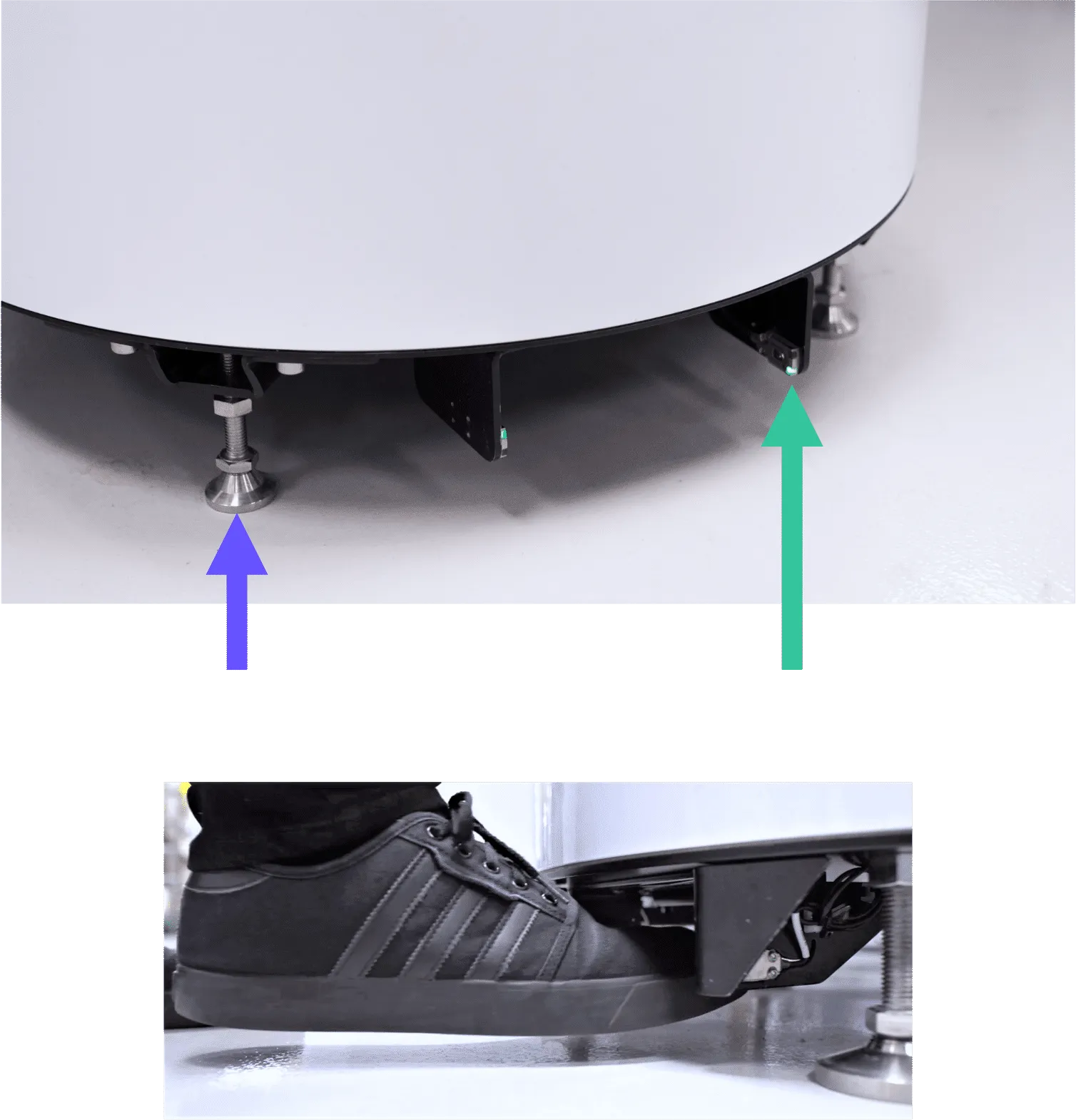

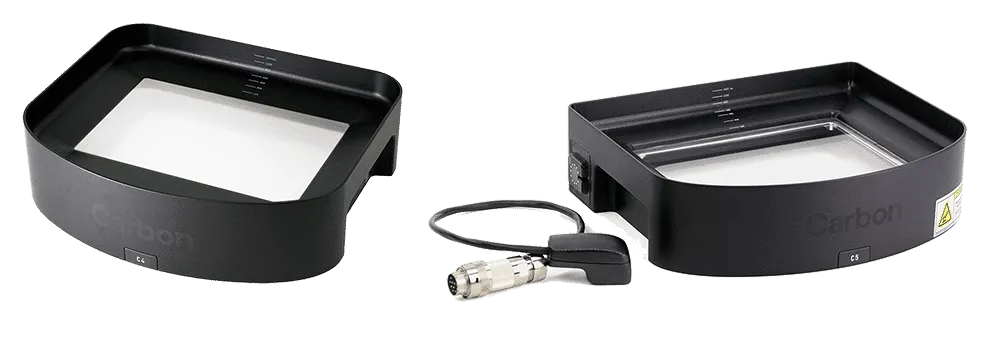

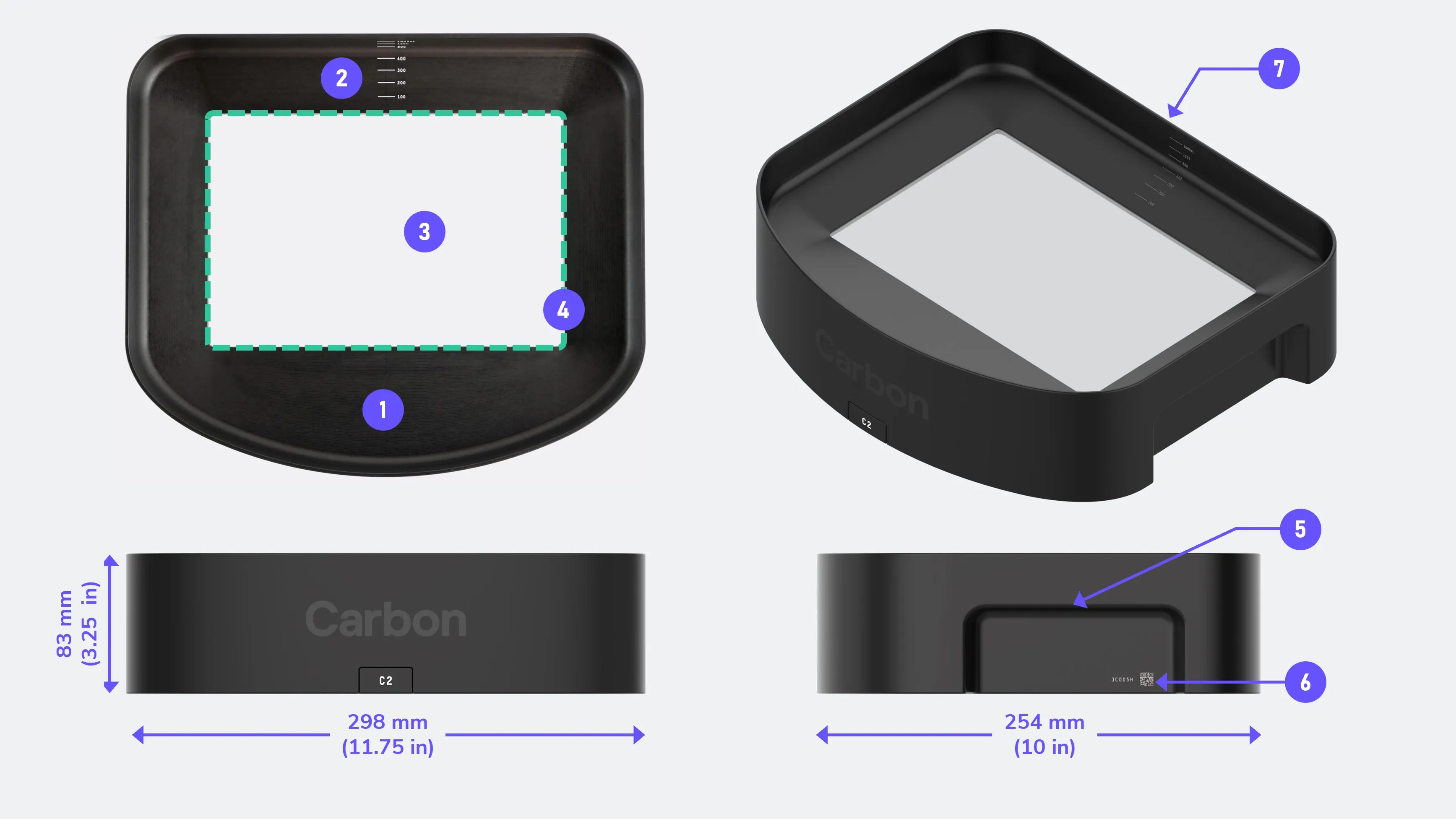

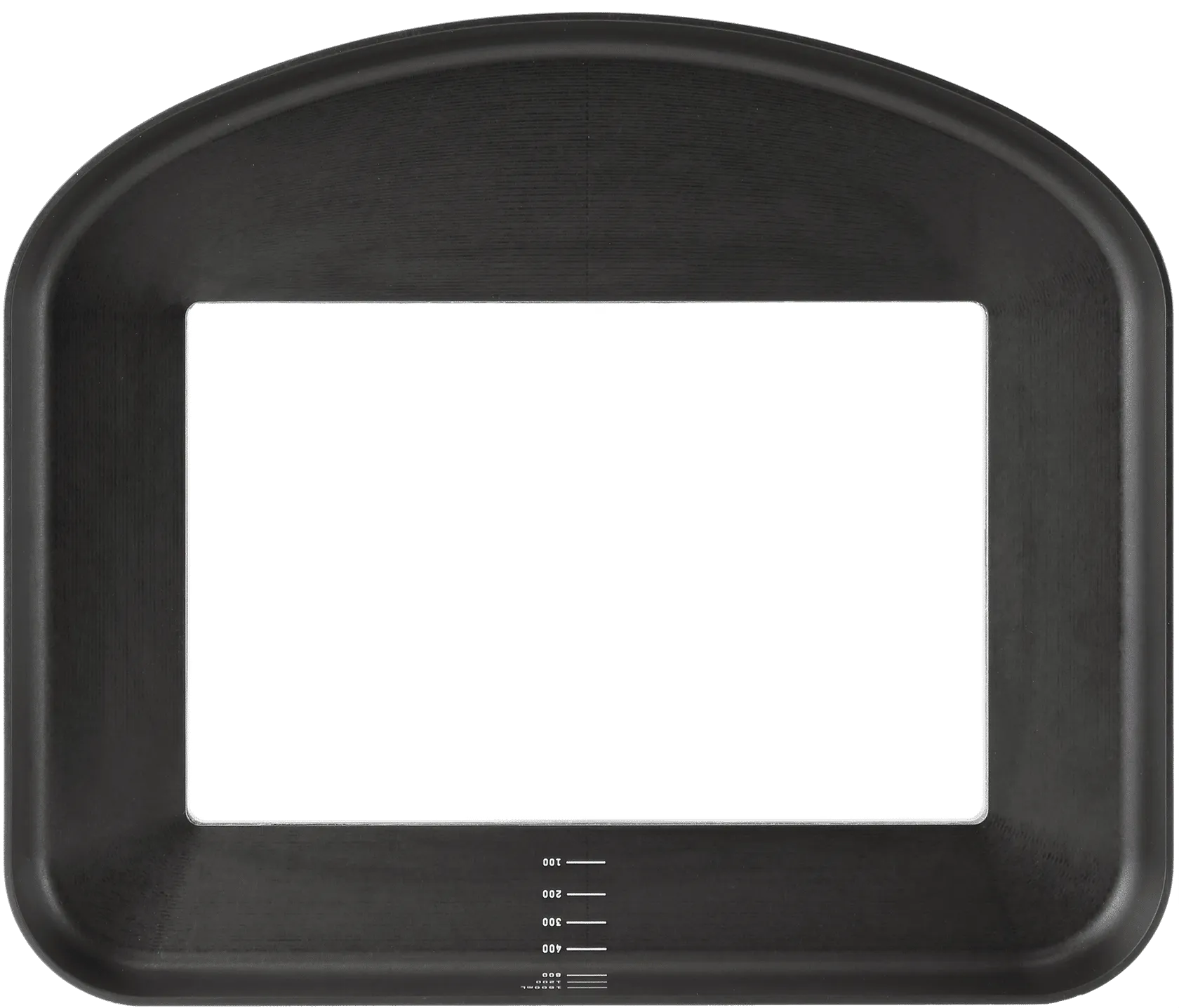

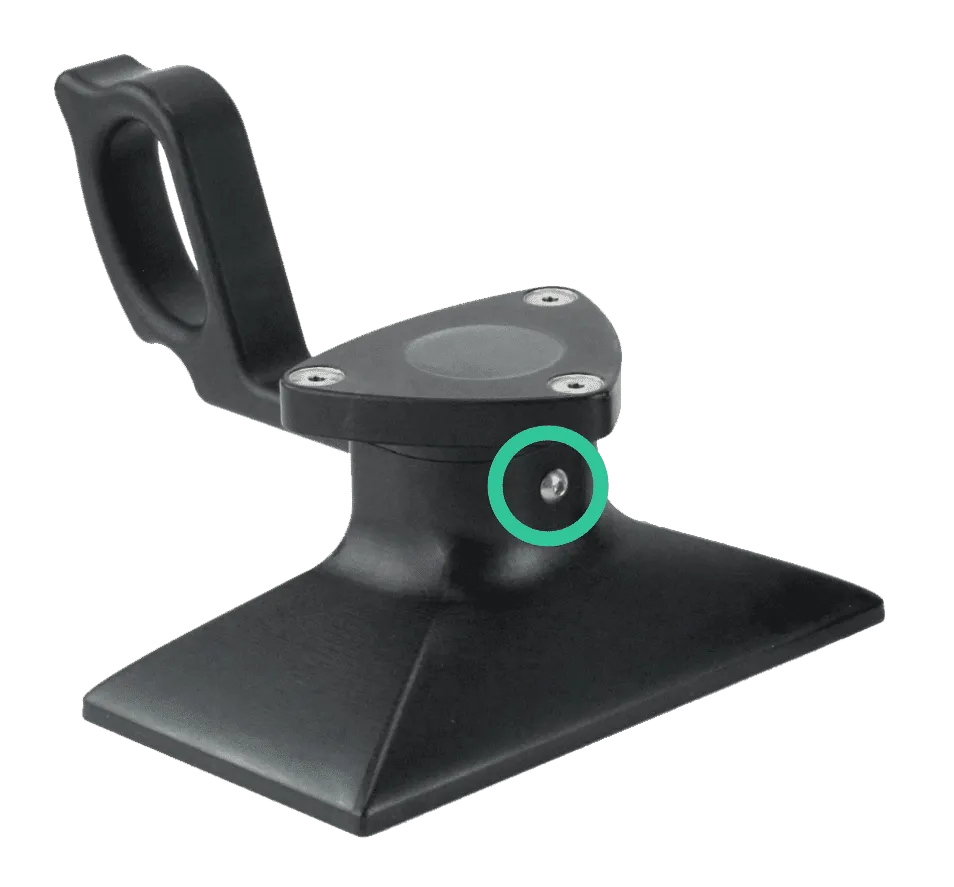

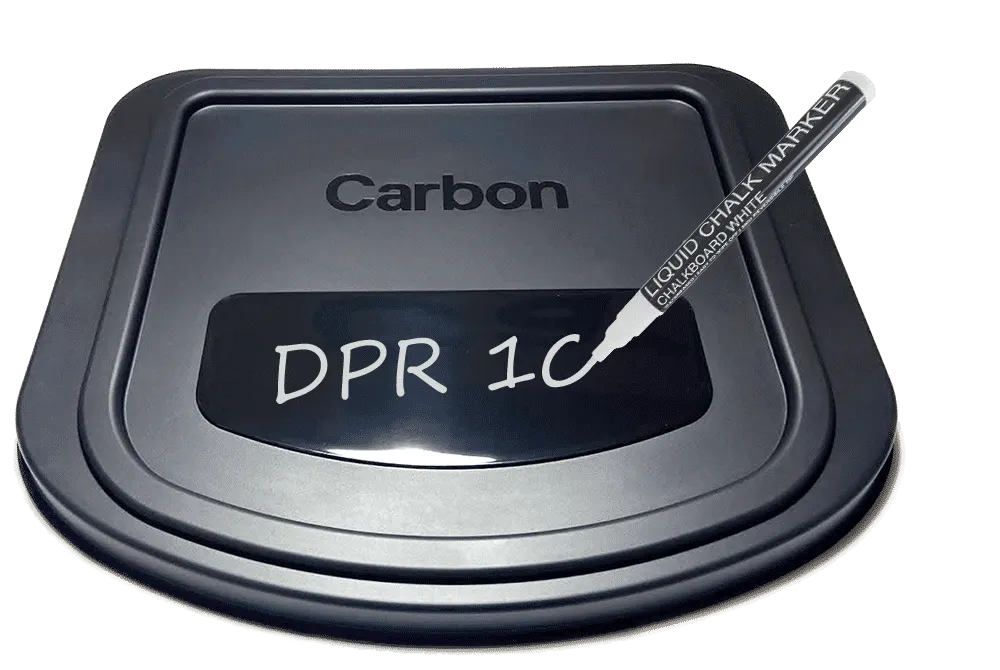

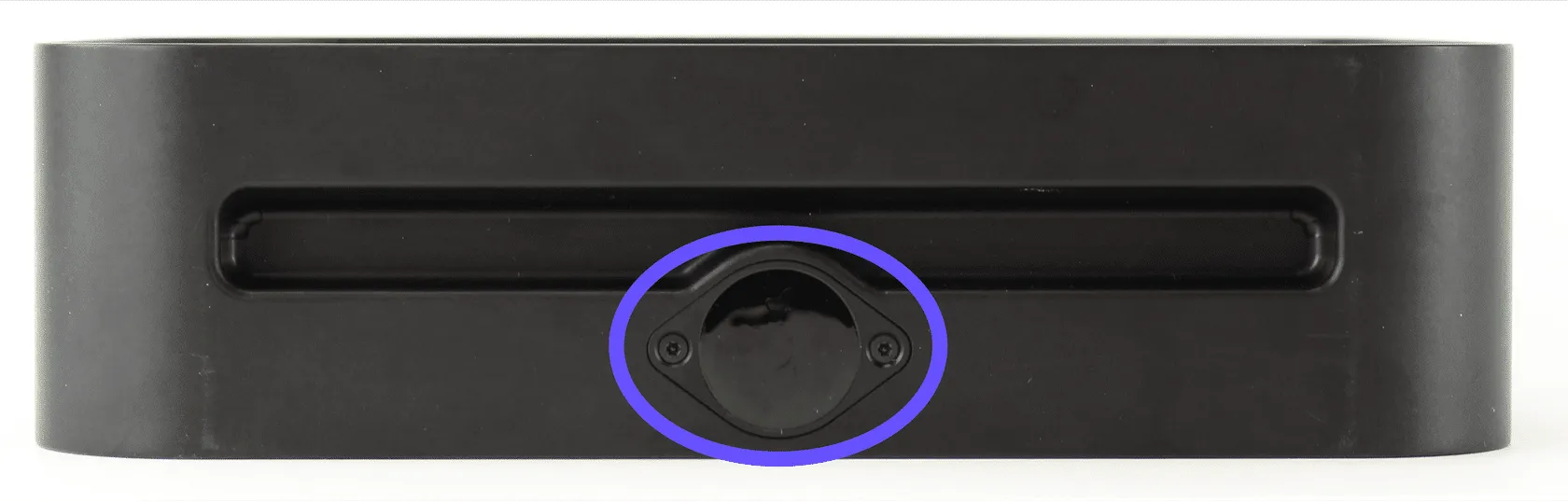

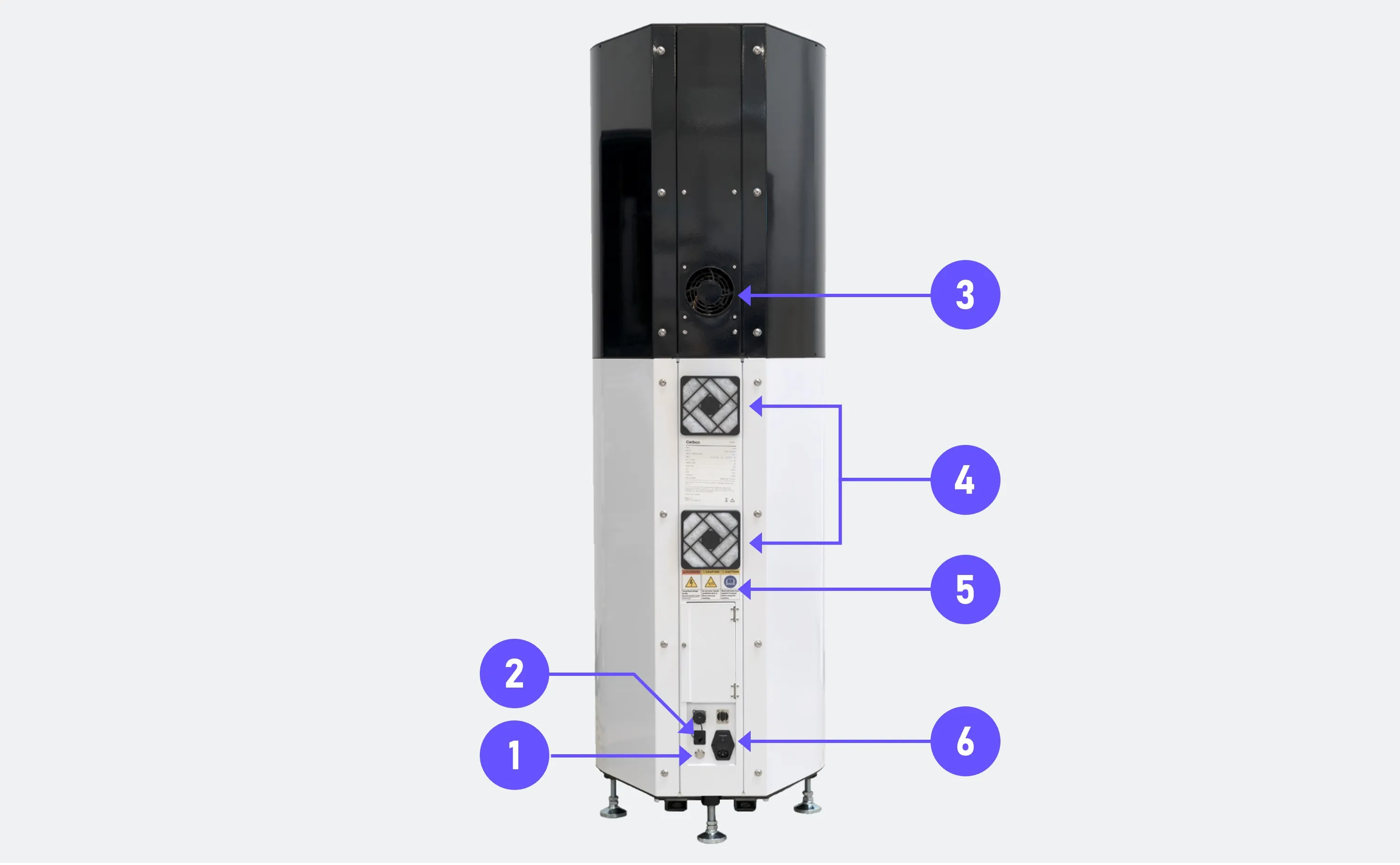

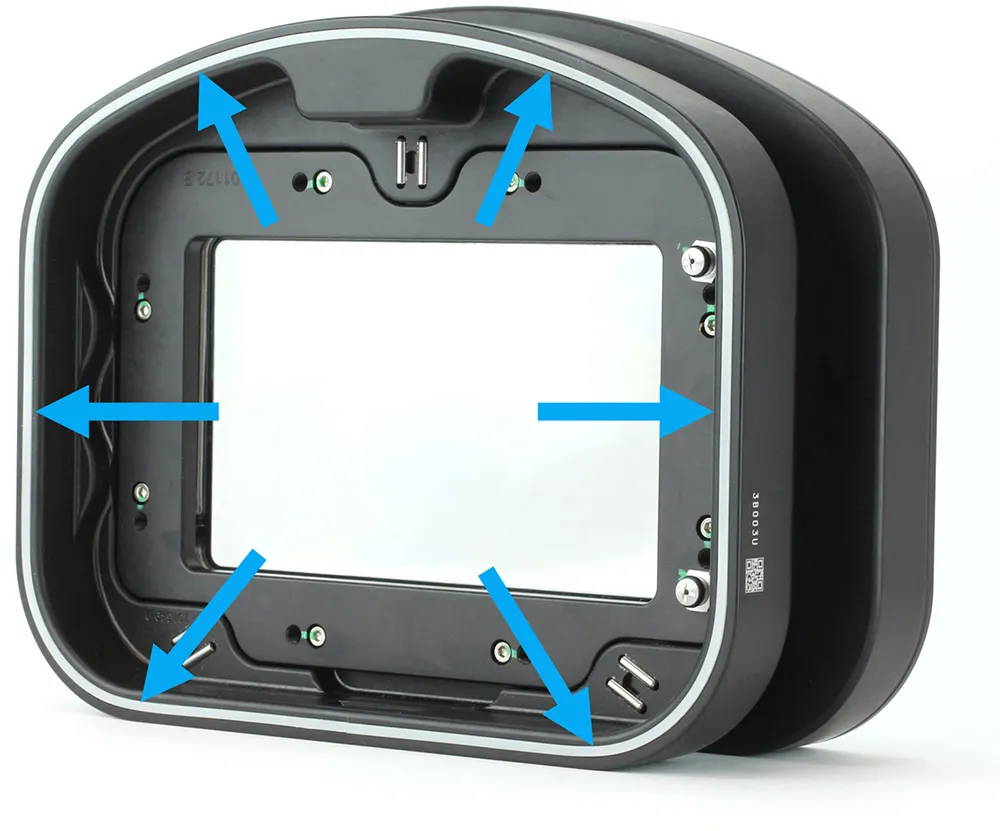

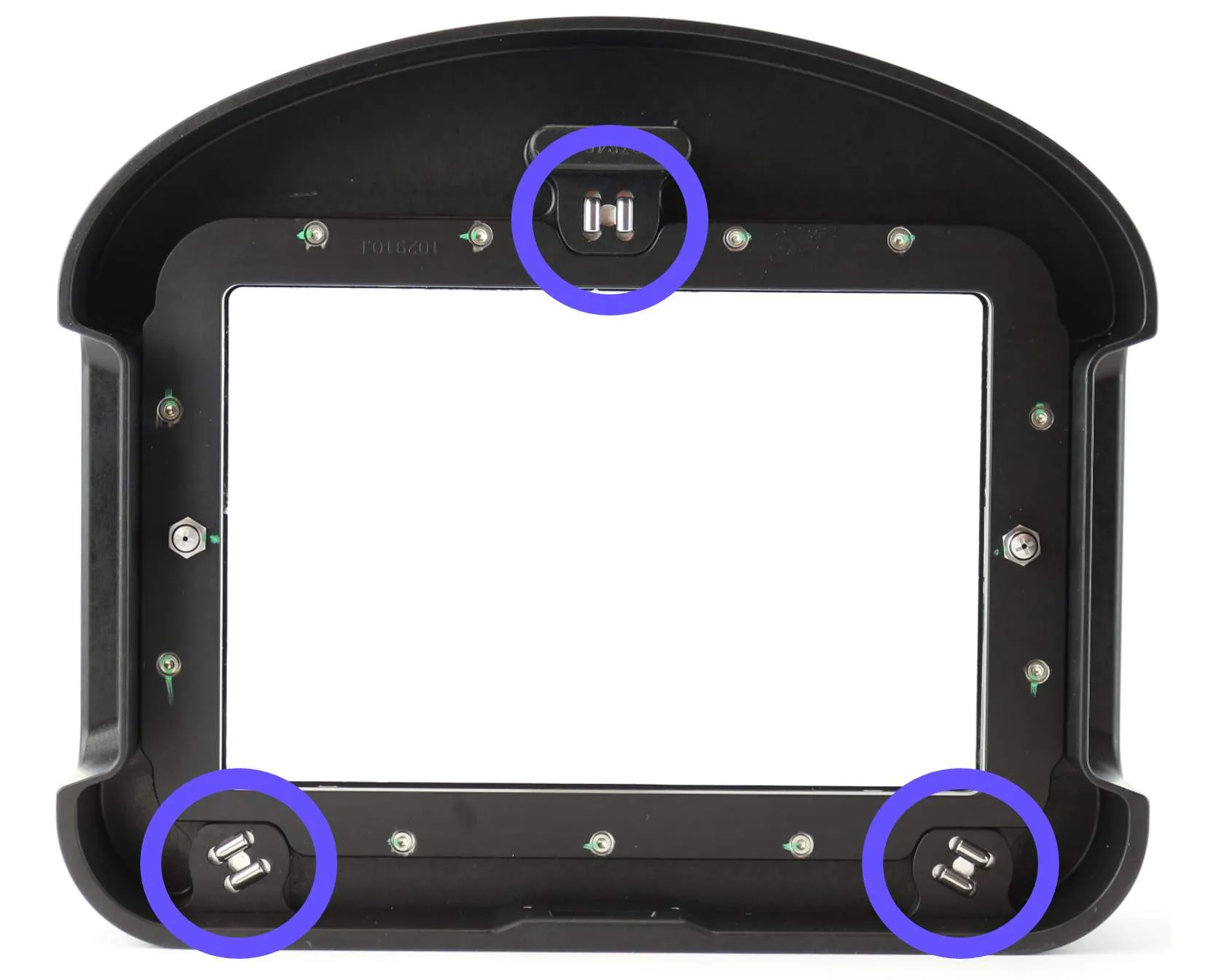

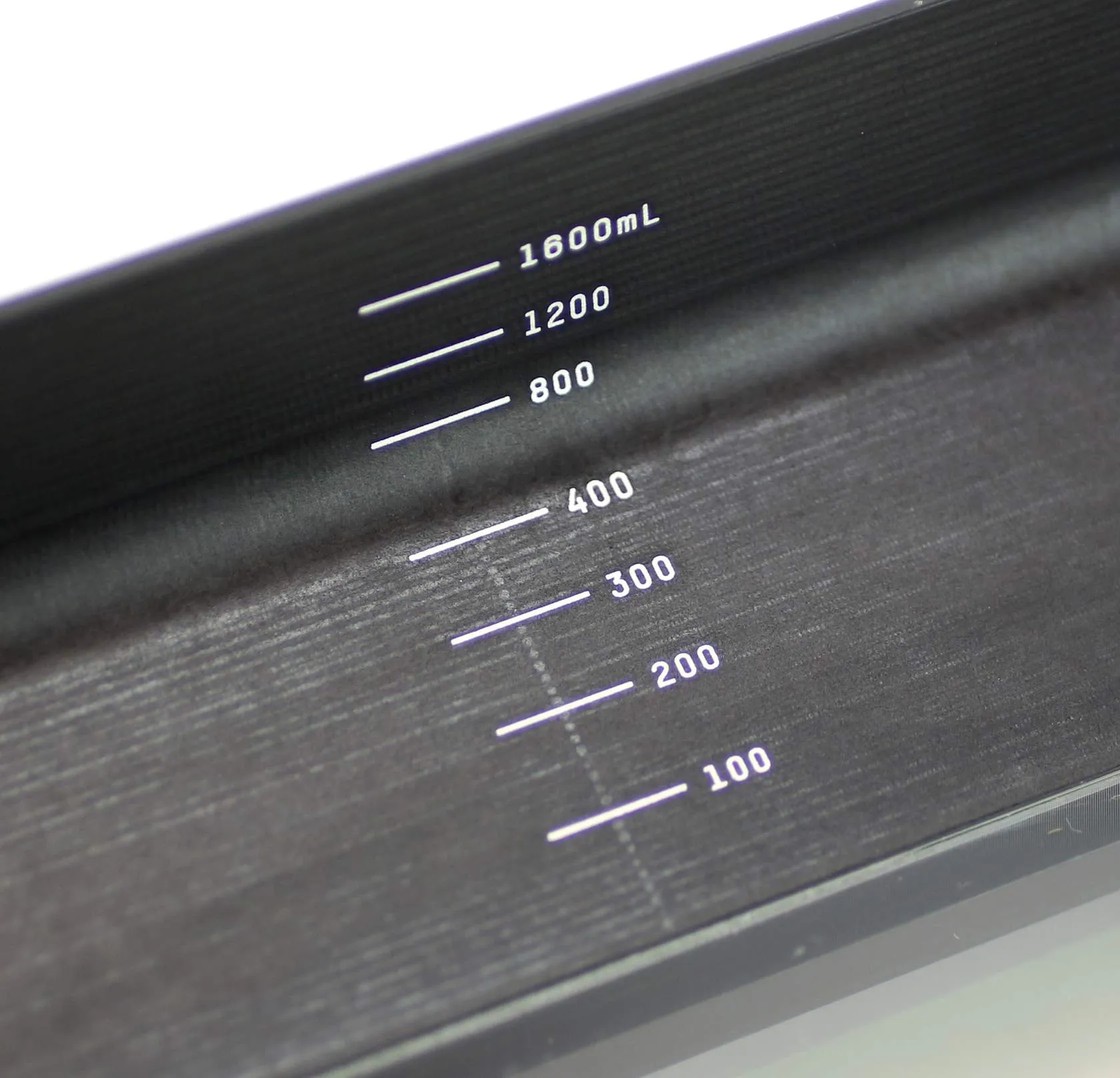

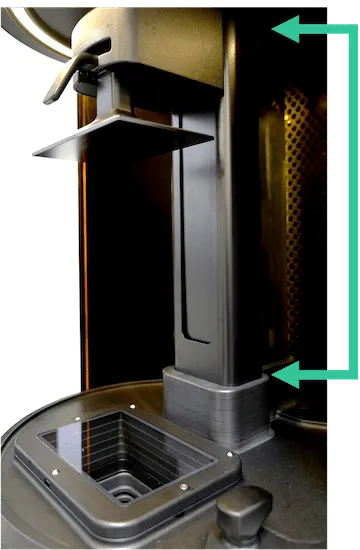

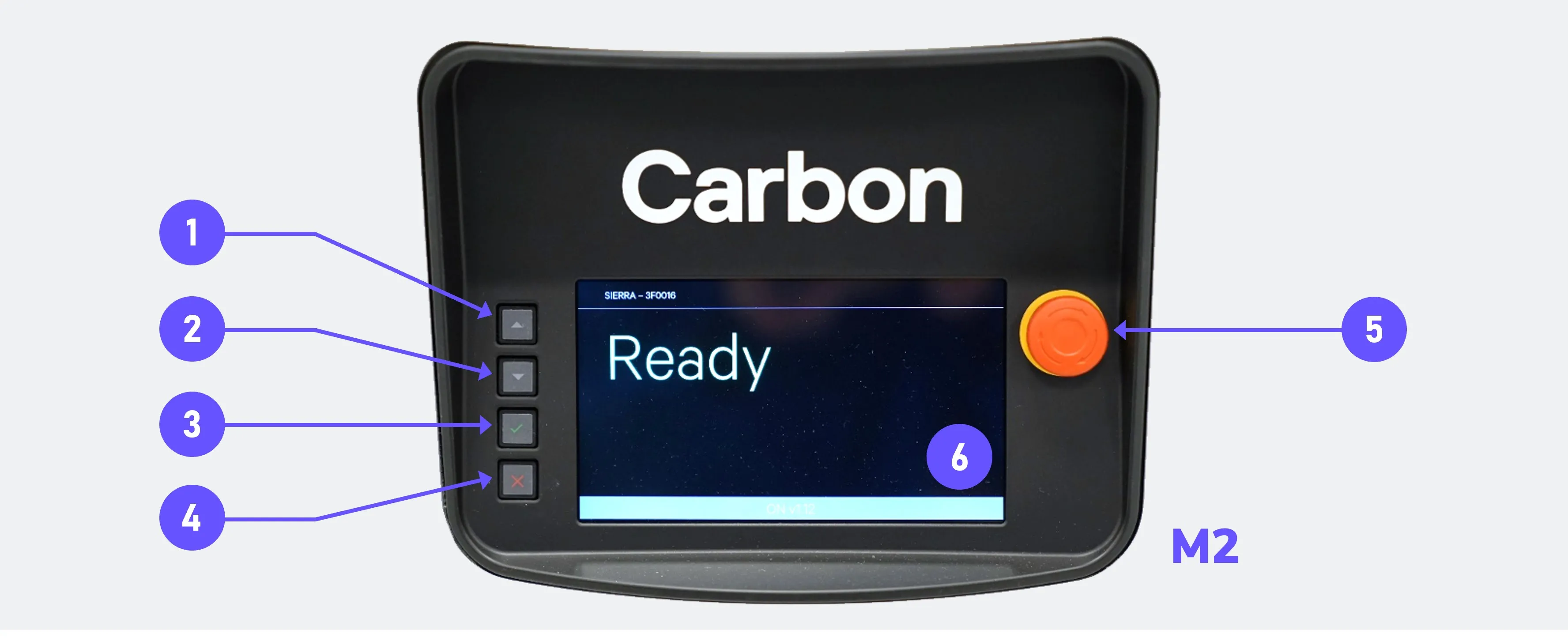

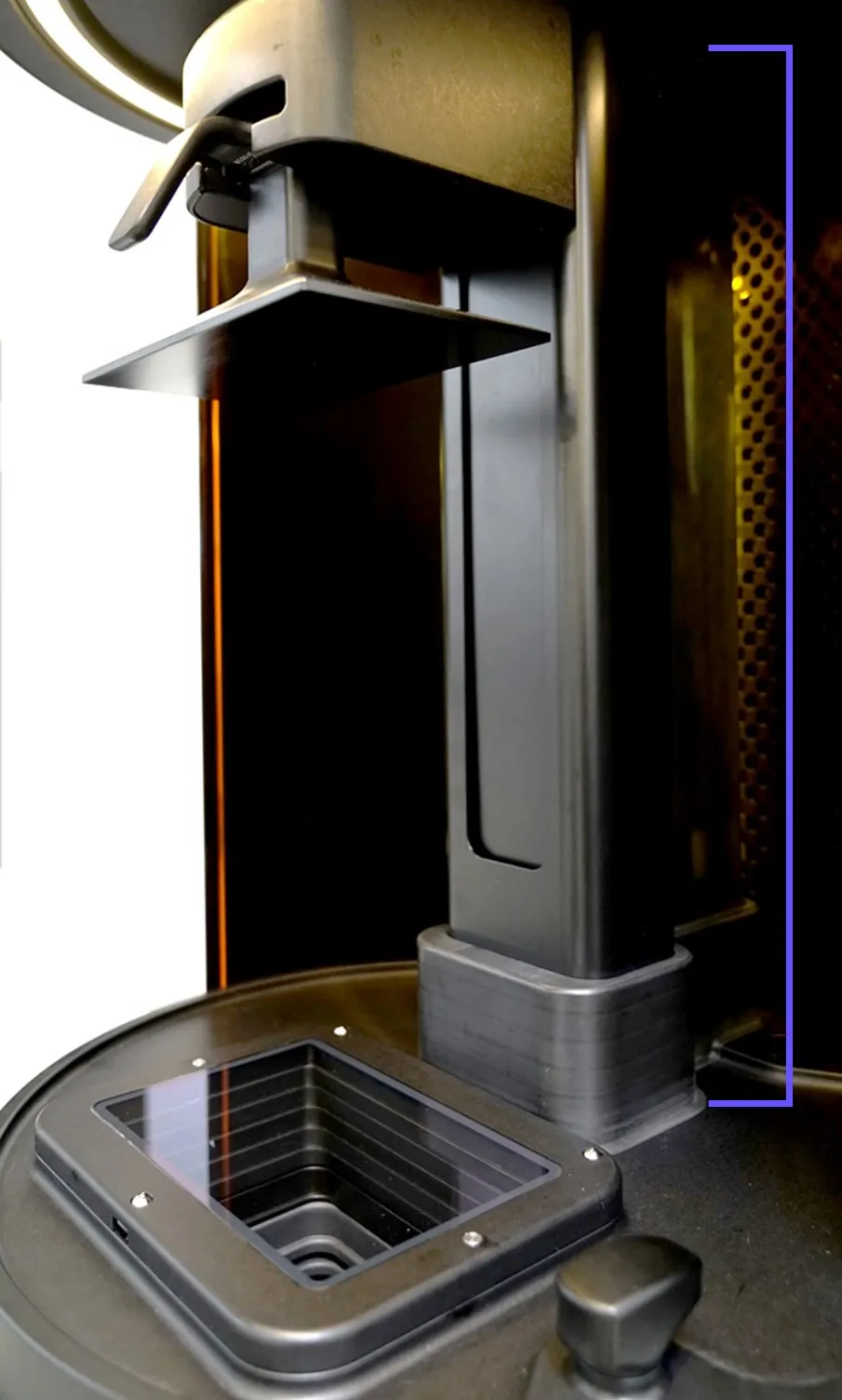

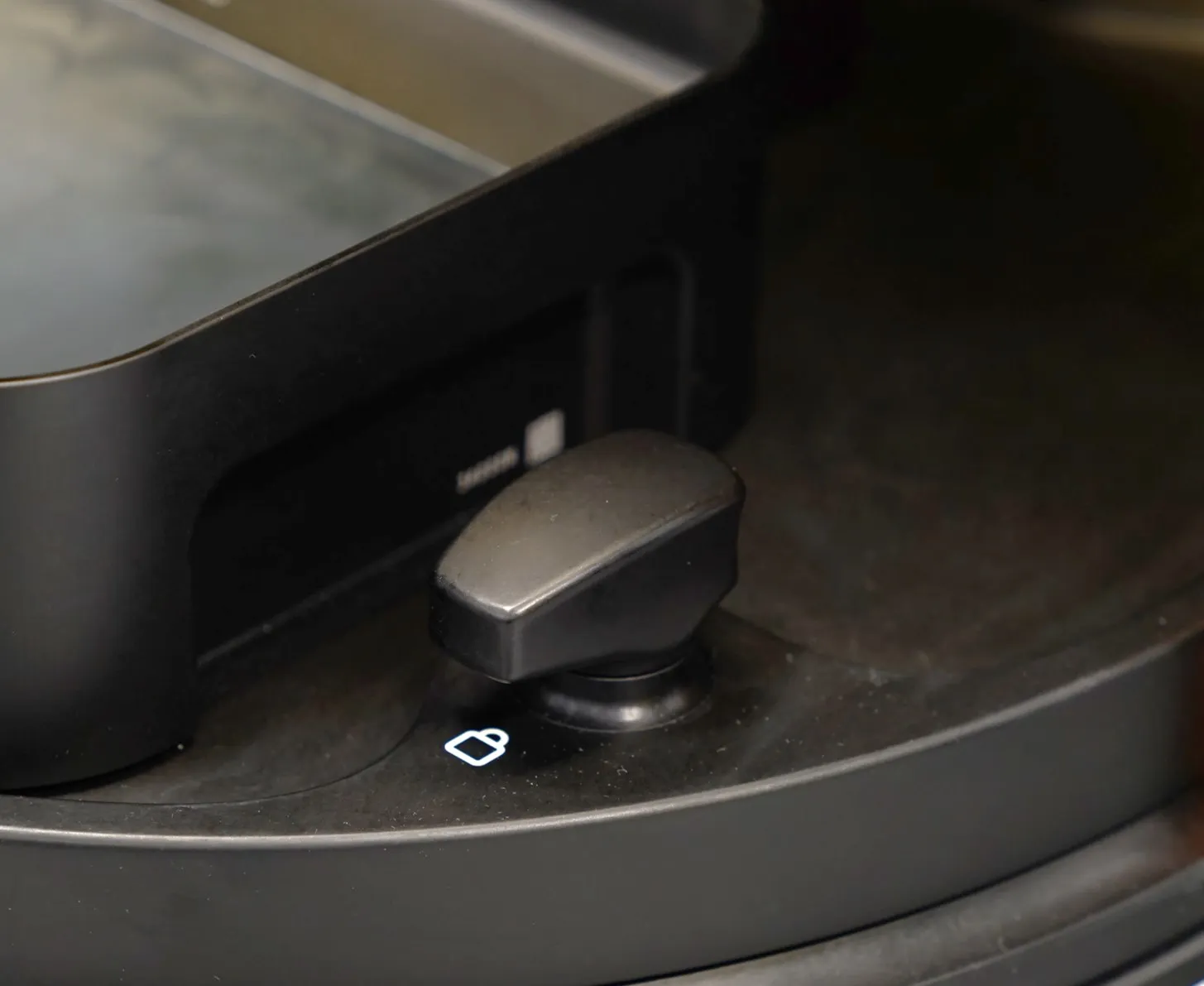

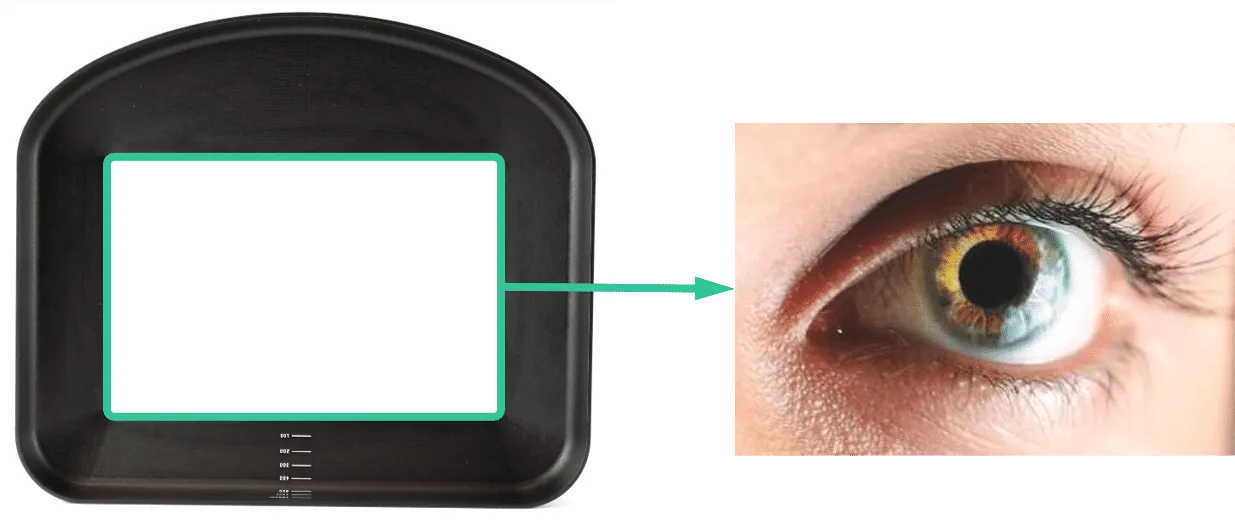

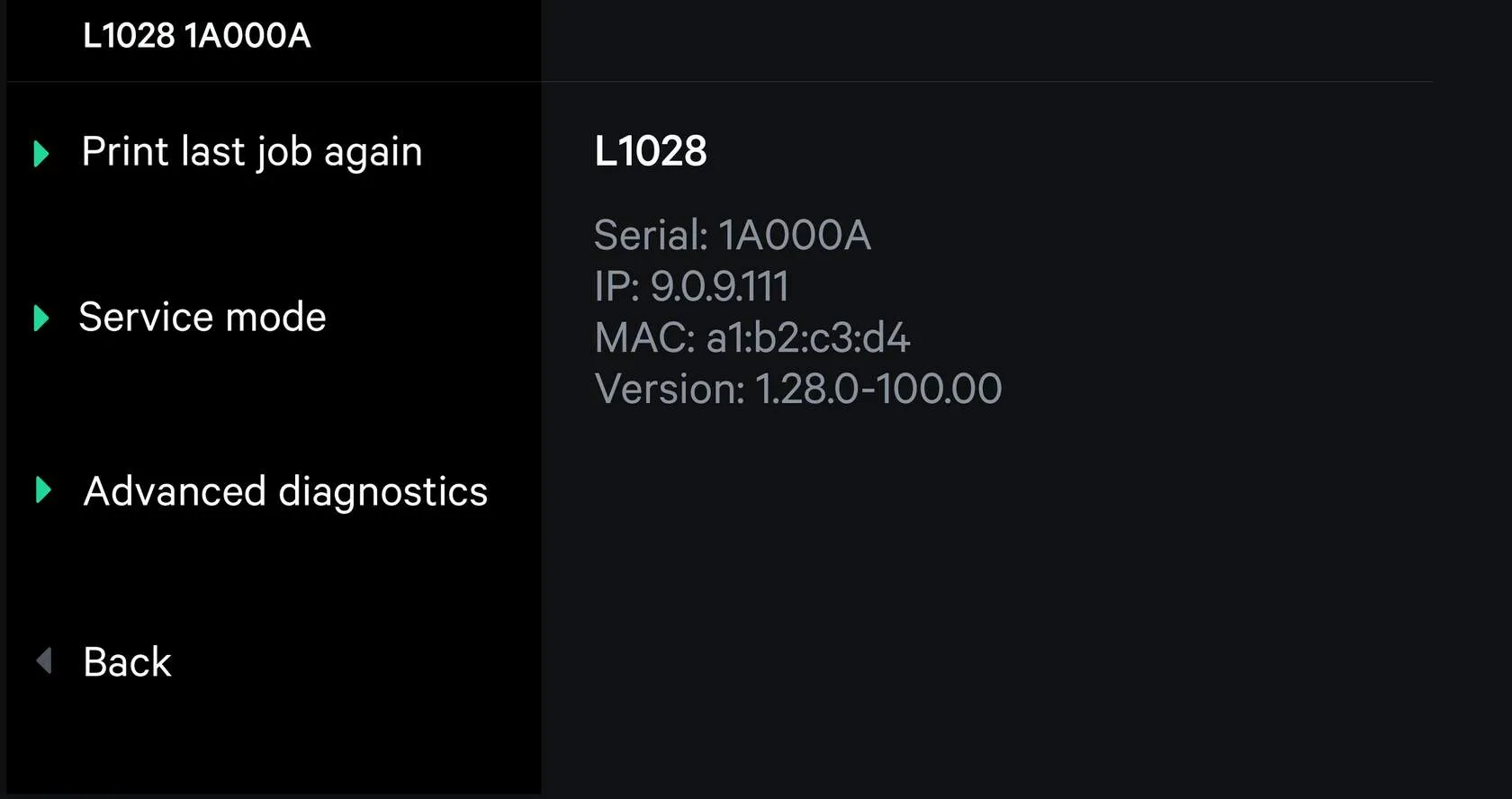

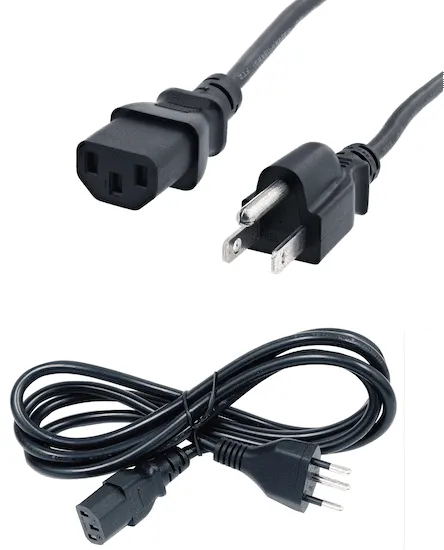

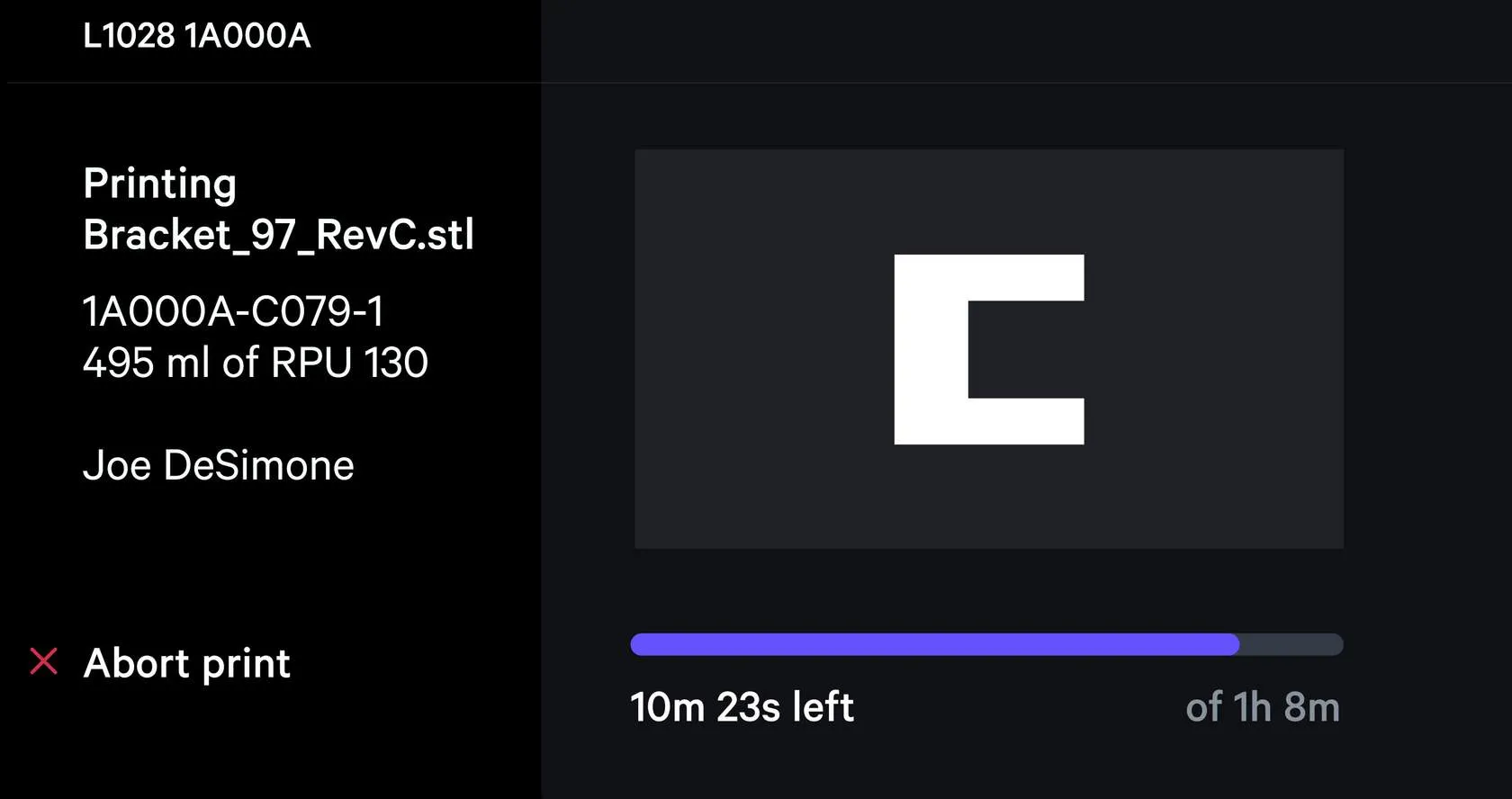

for information about facility requirements for installation, please see facility requirements docid\ qvbccaueszszatj588zq1 printer stats m1 dimensions 540 x 654 x 1734 mm (21 3 x 25 7 x 68 3 in) weight 180 kg (397 lbs) build envelope 141 x 79 x 326 mm (5 6 x 3 1 x 12 8 in) pixel size 75 µm m2 dimensions 540 x 654 x 1734 mm (21 3 x 25 7 x 68 3 in) weight 180 kg (397 lbs) build envelope 189 x 118 x 326 mm (7 4 x 4 6 x 12 8 in) pixel size 75 µm build area parts are printed in the build area operators will primarily interact with components in this part of the printer during daily operation the major components of the build area are platform cassette more information on the build area are provided in a detailed diagram below body the body is the portion of the printer below the build area it is clad with white sheet metal foot the foot is the base of the printer there are four leveling feet used to stabilize the printer door the door is the curved, transparent yellow barrier that encloses and protects the build area the door rotates behind the build area and is activated using the door switch located at the foot of the machine the door protects your part from ambient uv light as well as protecting against dust or objects interfering with the printing process the door sensors are disabled during printing and forcing open the door will automatically abort your print emergency stop button in case of emergency, press the emergency stop button when pressed, power will be cut to most printer systems and all printer motion will cease your in progress print will be lost if the emergency stop button is pushed any partially printed parts will need to be discarded and reprinted display the display shows the printer’s status and has buttons for performing basic functions foot switch the foot switch, located underneath the front edge of the printer, allows the user to open and close the door by placing their foot under the printer and lifting up note this is a non contact switch for hands free door operation build area door the door is the curved, transparent yellow barrier that encloses and protects the build area the door rotates behind the build area and is activated using the door switch located at the foot of the machine the door protects your part from ambient uv light as well as protecting against dust or objects interfering with the printing process the door sensors are disabled during printing and forcing open the door will automatically abort your print platform latch m2 automatic latch pictured in graphic above m1 latch must be pulled down to secure platform (see inset photo below) platform the platform (m2 shown) is a removable appliance with a flat surface upon which parts are printed elevator lowers and raises the build arm and platform during a print cassette the cassette is a highly engineered optical device that is a critical component of the digital light synthesis™ platform it is a removable appliance that holds the liquid resin used to make parts the window must be properly maintained to ensure print quality improper maintenance or damage to the window will reduce print quality and may result in failed prints and production delays cassette latch locks the cassette into place for printing must be unlocked to remove cassette from printer deck the deck is the flat surface that lines the bottom of the build area the cassette rests upon the printer deck back panel reset button (m2 only) the reset button must be pushed during power cycling or when recovering from an emergency stop network port standard rj 45 ethernet port for connecting the printer to your network exhaust duct air from the build area is passed through the exhaust duct at the top of the printer the printer must be connected to mechanical ventilation intake fans these fans bring air into the printer labels power port & switch power cord connection point and on/off switch cassette m1 weight 2 kg (4 4 lbs) dimensions 254 mm x 191 mm x 76 mm (10” x 7 5” x 3”) resin capacity 800 ml m2 weight 2 8 kg (6 2 lbs) dimensions 298 mm x 254 mm x 83 mm (11 75” x 10” x 3 25”) resin capacity 1600 ml the feature diagrams below are showing a standard m2 c2 cassette all features apply, in similar fashion, to the m1 cassette metal frame for measuring, containing and carrying resin graduation lines graduation lines indicate volume in milliliters the lines may be used as an approximation of resin amount when dispensing (other options also available ) window the window in the bottom of the cassette allows light and air to pass through into the resin during printing the transparent window is not a simple piece of glass it is a complex light and oxygen permeable membrane that is precious and delicate, like the surface of your eye seam the seam is where the window meets the frame do not use sharp tools to clean residual resin from the seam as this will damage the window handle there are handles on both sides of the cassette frame the cassette can be gripped using these features serial number unique identifier used to record specific print history nfc tag this feature wirelessly communicates the cassette's unique serial number to compatible carbon hardware cassette volume the m1 cassette holds a maximum of 800 ml of resin, due to the smaller build platform the larger m2 cassette holds 1600 ml of resin m1 and m2 cassette underside of the cassette the underside of the m1 and m2 cassettes contains kinematic pin mounts, kinematic pin mounts, which allow for accurate installation of the cassette in the printer care must be taken not to damage or contaminate any of these features during handling or storage underside of cassette with kinematic pin mounts m1 cassette gasket the underside of the m1 cassette contains a gasket gasket around the perimeter on the underside this is a legacy feature and is no longer required if the gasket comes loose, simply pull it off completely to ensure the cassette remains level a replacement gasket will not be required additional cassette types ao polishing cassette docid\ iffh3q8 wlk liqr87bd5 developed specifically for oral health applications, this cassette features light scattering technology to improve surface quality and reduce the need for manually finishing splints this cassette is labelled c4 c5 cassette docid\ l2pjeufznhenpztdqfvzv this heated cassette enables rpu 130 on m2 printers ao polishing cassette and c5 heated cassette & cable cassette lid the cassette lid is a uv resistant cover that enables resin to be stored in a cassette outside of a printer the lid keeps light, dust and debris from getting to the resin stored in the cassette, keeping the resin safe for reuse the lid is especially helpful for oral health customers that use one part resins only one part resins can be stored in the cassette two part resins cannot be stored due to their limited pot life two part resins that are past their pot life may damage the cassette easy labeling the cassette lid features a shiny surface that is designed to be used with a chalk marker be sure to write the name of the stored resin on the shiny surface the writing can easily be erased with a towel moistened with ipa or water chalk marker writing on the shiny surface of the cassette lid the lid must be removed from the cassette before printing as such, the cassette lid is designed to dislodge from the cassette if the two are placed in an m2 printer additional lids can be ordered from the carbon shop in quantities of two login is required platform the platform is a flat surface upon which parts are printed it is held in place by the build arm which moves vertically to build parts when printing is completed, the platform is removed from printer so that parts can be detached from the platform then washed and cured the platform has a front handle for ease of insertion and removal the handle may be removed from the platform by loosening the button head screw on the neck of the platform (m1 only) the kinematic balls engage with the printer in the platform latch (see maintenance section for care ) the platform can be scratched by steel tools such as the yellow scraper when removing parts keep all bladed tools parallel with the platform during part removal to minimize chances of damaging the platform scratches and dings on the platform’s printing surface will show on parts where they contact the platform dents, bumps, and scratches on the platform can damage the window of the cassette it is critical to clean it carefully and always treat the platform gently inspect the platform for damage before loading into the printer platform build area dimensions m1 141 mm x 79 mm (5 6” x 3 1”) m2 189 mm x 118 mm (7 4” x 4 6”) m1 kinematic balls engage with the printer in the platform latch (see maintenance section for care) m1 handle handle may be removed from the platform by loosening the button head screw on the neck of the platform (m1 only) m1 build area the flat surface of the platform where parts are built m2 kinematic balls engage with the printer in the platform latch see maintenance docid 0ywe7ymsiydn imldvtpn for care m2 handle m2 build area the flat surface of the platform where parts are built elevator elevator the elevator elevator is a vertical rail in the back of the build area the platform moves up and down along the elevator during printing the home position of the platform is at the top of the elevator every print starts with the platform at the home position the platform may only be removed at the home position deck the deck is the floor of the build area it supports the elevator and includes the deck glass and cassette latch the deck glass deck glass is a transparent window through which digitally projected light shines to cure the liquid resin the deck also includes two circular connectors, one on each side of the elevator in the back right side available for use with the c5 cassette and cable (required for rpu 130) right side available for use with the c5 cassette and cable (required for rpu 130) left side reserved for future carbon service upgrades left side reserved for future carbon service upgrades the cassette latch cassette latch is a handle that locks the cassette in place during printing display the display shows the printer’s status and has buttons for performing basic functions there are 5 buttons on the m2 display panel ▲ (up arrow) scrolls up when presented with a list of options on the screen ▼ (down arrow) opens an additional options menu also scrolls down when presented with a list of options on the screen ✓ (check) starts a queued print x aborts a print a non emergency option for quickly stopping a print emergency stop button (m2 only) emergency stop button is not available on m1 printers note you cannot continue after stopping a print screen the screen displays status information about the printer and builds power supply cable the regionally specific power supply cable (and any applicable adapters) can be obtained separately from carbon by contacting your account manager or sales operations via email at salesoperations\@carbon3d com ⚠️ the printer must be grounded in the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current the power supply cable is equipped with a cord having an equipment grounding conductor and a grounding plug the plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances to connect the printer to the main supply, plug the power cable into the appropriately installed and grounded outlet in your facility no additional protective earthing methods are necessary check with a qualified electrician if you are in doubt whether the printer is properly grounded do not modify the plug provided with the power supply cable; if it will not fit the outlet, have a proper outlet installed by a qualified electrician foot the foot of the printer includes the door switch door switch and the leveling feet leveling feet the door switch is a hands free method for opening or closing the door to activate the door switch door switch place your foot under the printer for a second or two the door will open the 5 leveling feet leveling feet are used to stabilize and level the printer door operation may be affected by an optional safety interlock if the door opens while printing, power to the platform motor stops immediately, likely resulting in a failed print
