Fruit Skinning
Fruit Skinning

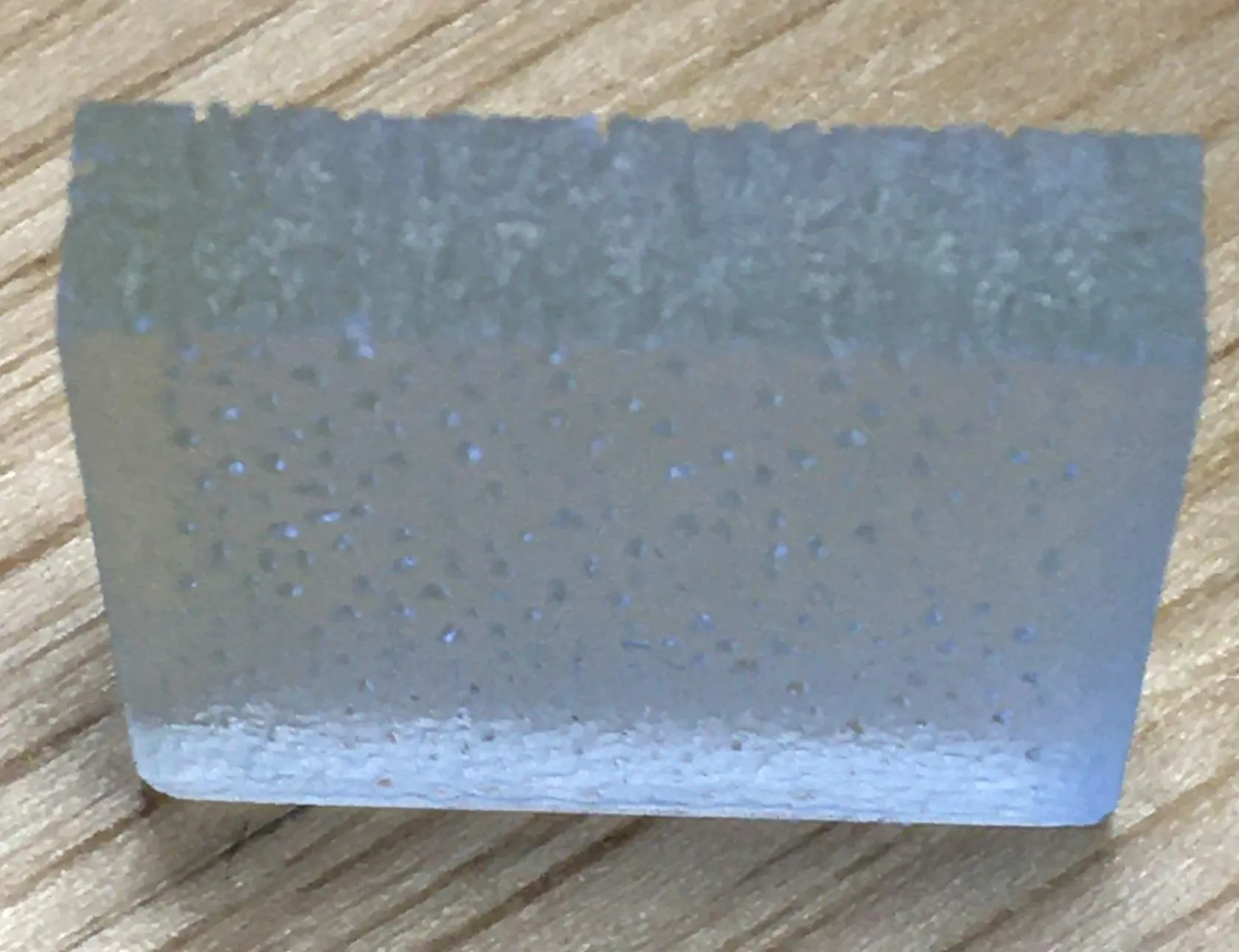

Dimpled, rough surface on parts.
How to Identify
Fruit Skinning can be diagnosed as follows:

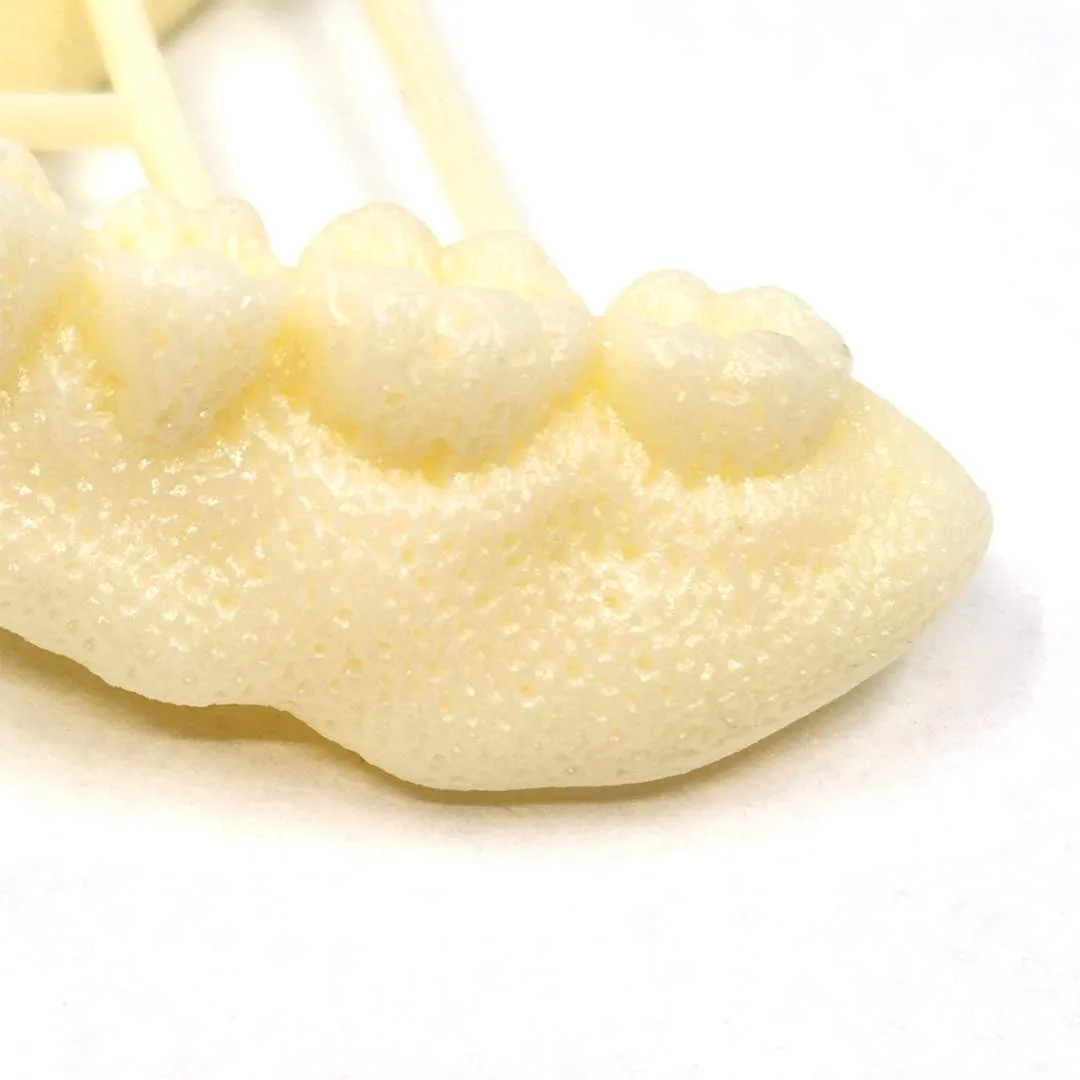

- The surface finish appears dimpled like the surface of a citrus fruit.
Cause - Inconclusive
Cause - Inconclusive
Cause - Inconclusive
Troubleshooting
It is recommended that you review all the possible solutions before taking action to ensure you are pursuing the best course of action.
If the best course of action is not apparent, try the troubleshooting options in the order listed. Refer here for more tips.
Process, Material, and Hardware Checks
If any of these conditions apply to your print, take the corrective action and reprint to see if the problem is resolved.
Print Preparation or Part Design Adjustments
The following solutions will address print or part-related causes of the defects. Choose among the suggested actions below and select the best approach for your application. Usually only one type of adjustment is needed.
If problems persist, please reach out to Carbon Support.
Explanation & Causes
Explanation
The part is not receiving enough UV exposure and is under-curing
Causes
Print Preparation or Part Design
How the part is oriented, supported, or designed is causing the defect.

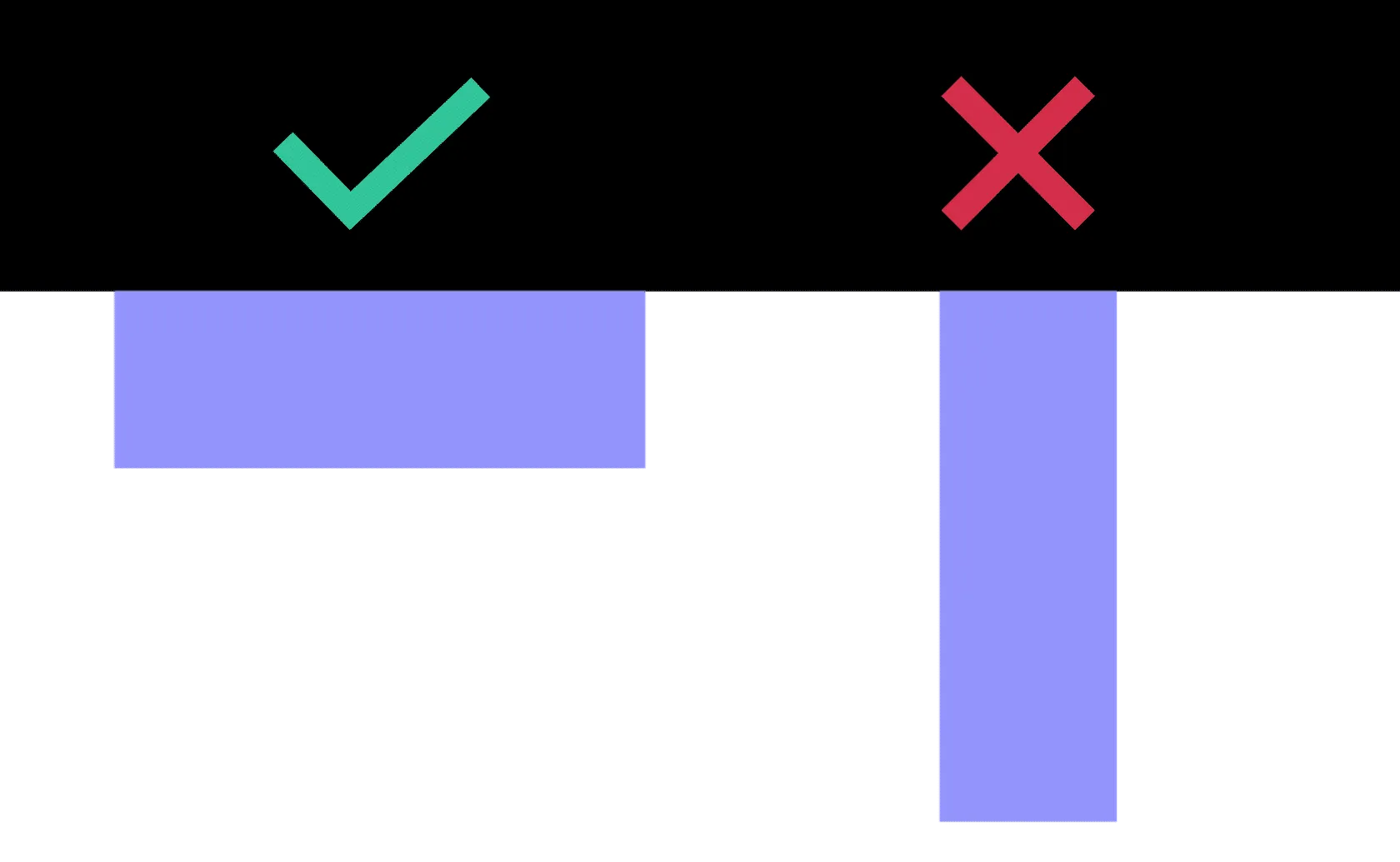

Root Issue | Problem | Why Defect Presents |
|---|---|---|
Orientation | Long print time | Two-part resins at the end of their pot life may be under-exposed due to the resin's change in properties. |

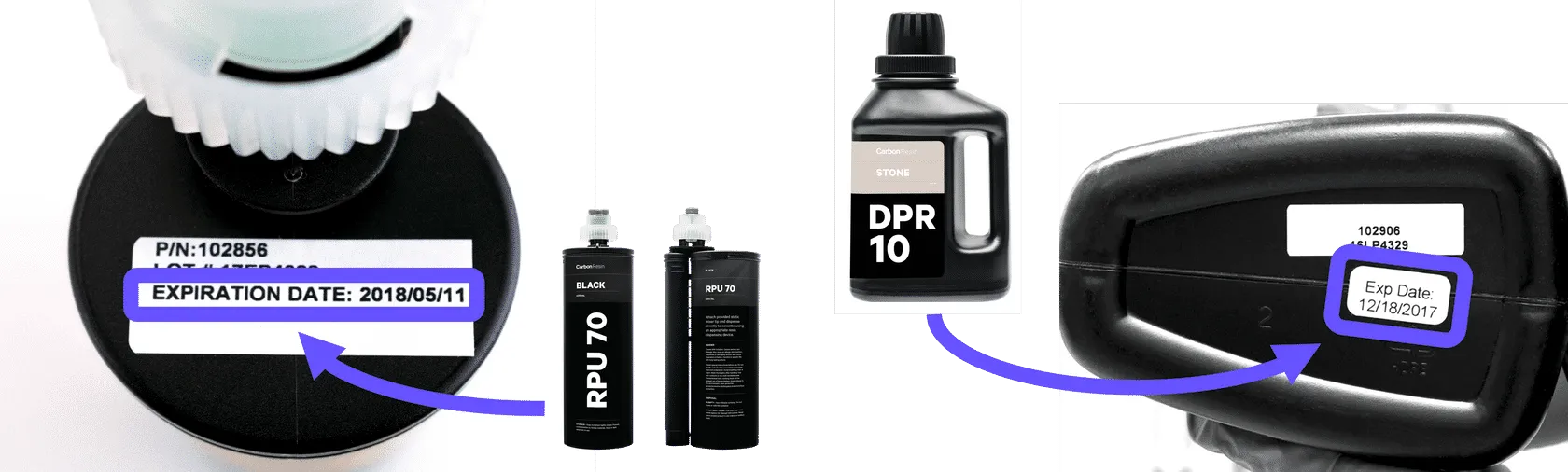

Resin
The printing material is expired, beyond the printing range in its pot-life, or has been improperly mixed, causing abnormalities in the print.
Root Issue | Problem | Why Defect Presents |
|---|---|---|
Expired | | The resin may not cure properly if expired. |
Print Plan Adjustments
Print Plan Adjustments adjust the print plan to optimize mid to high volume production and/or address part defects.
In doing so, adjustment may both prevent or cause defects. Below are adjustments that can cause this defect.
Printing Stage | Parameter Type | Type of Adjustment | Why Defect Presents |
|---|---|---|---|
5 Exposure | Exposure Timing | Decrease | Decreasing UV exposure can cause the part to under-cure. |
