Surface Isotropy
2 min
Pattern uniformity on the surface may be desired for aesthetic reasons, so Design Engine allows you to enable surface isotropy as an advanced option, with additional processing time (approximately 5 minutes).

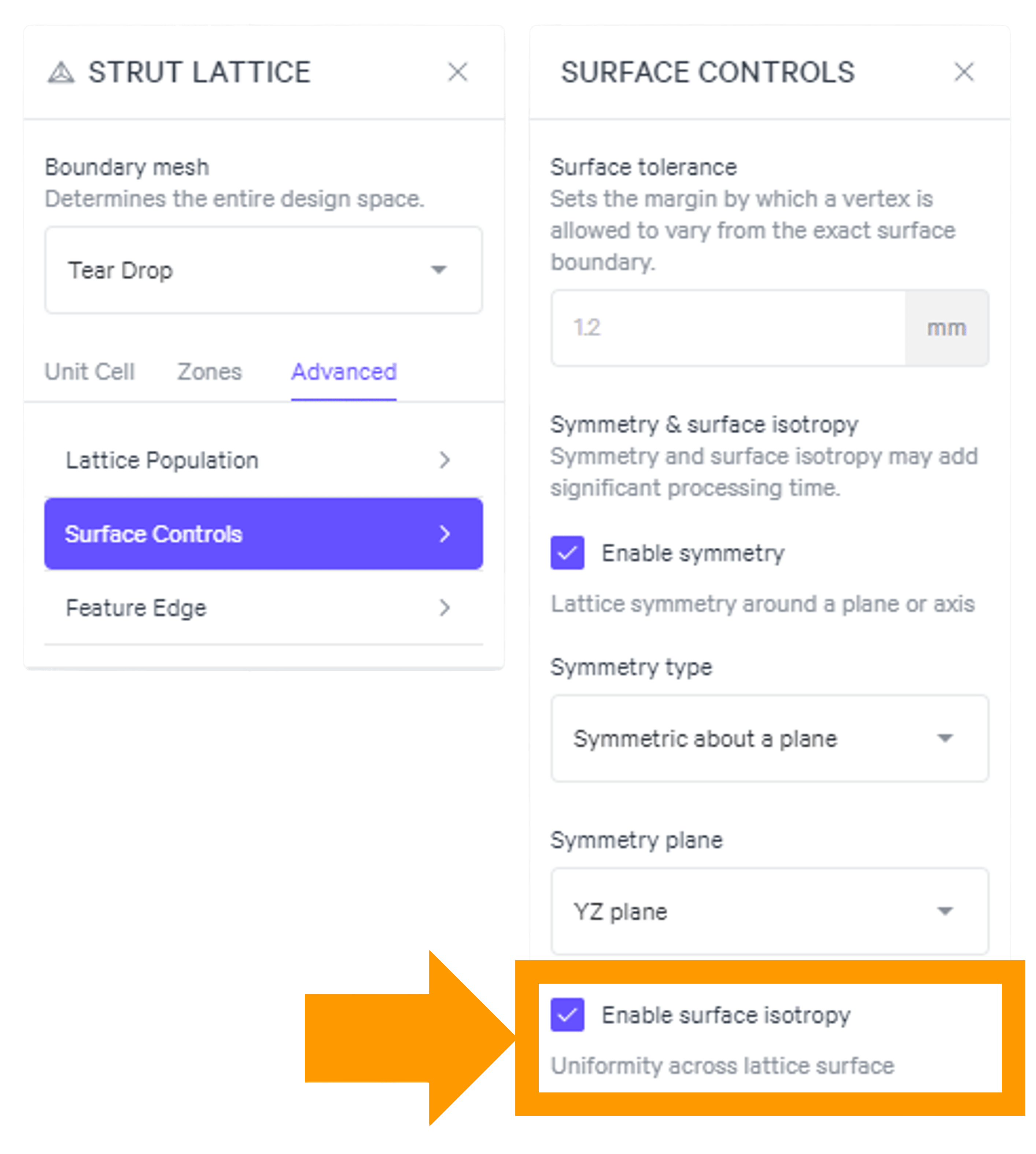

Accessing Surface Isotropy
STRUT LATTICE (operation)
- Advanced (tab)
- Surface Controls (sub-menu)
- Enable surface isotropy

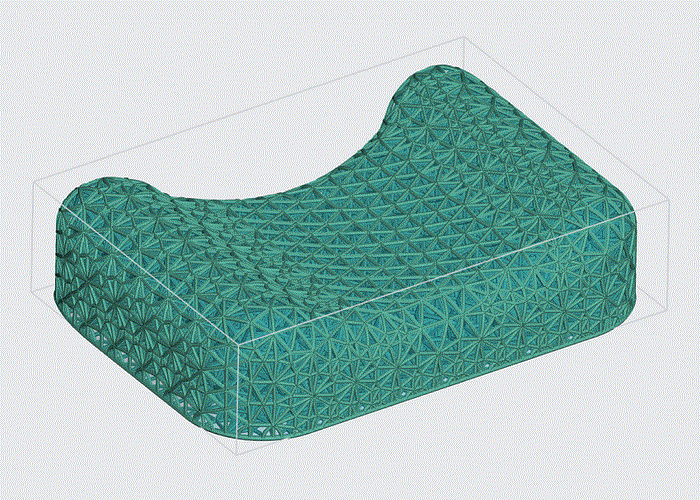

About Surface Isotropy
- Isotropy looks for consistency both across a single surface and across all surfaces as a cohesive unit.
- Variation may still be present where needed for conformity, so organic shapes and curves will see some variation to maintain the structure of the lattice.
- Using the default for Cell Size Adaptivity (ie the main cell size) will yield the most consistent results.
