Rigid Materials
UMA 90
15min

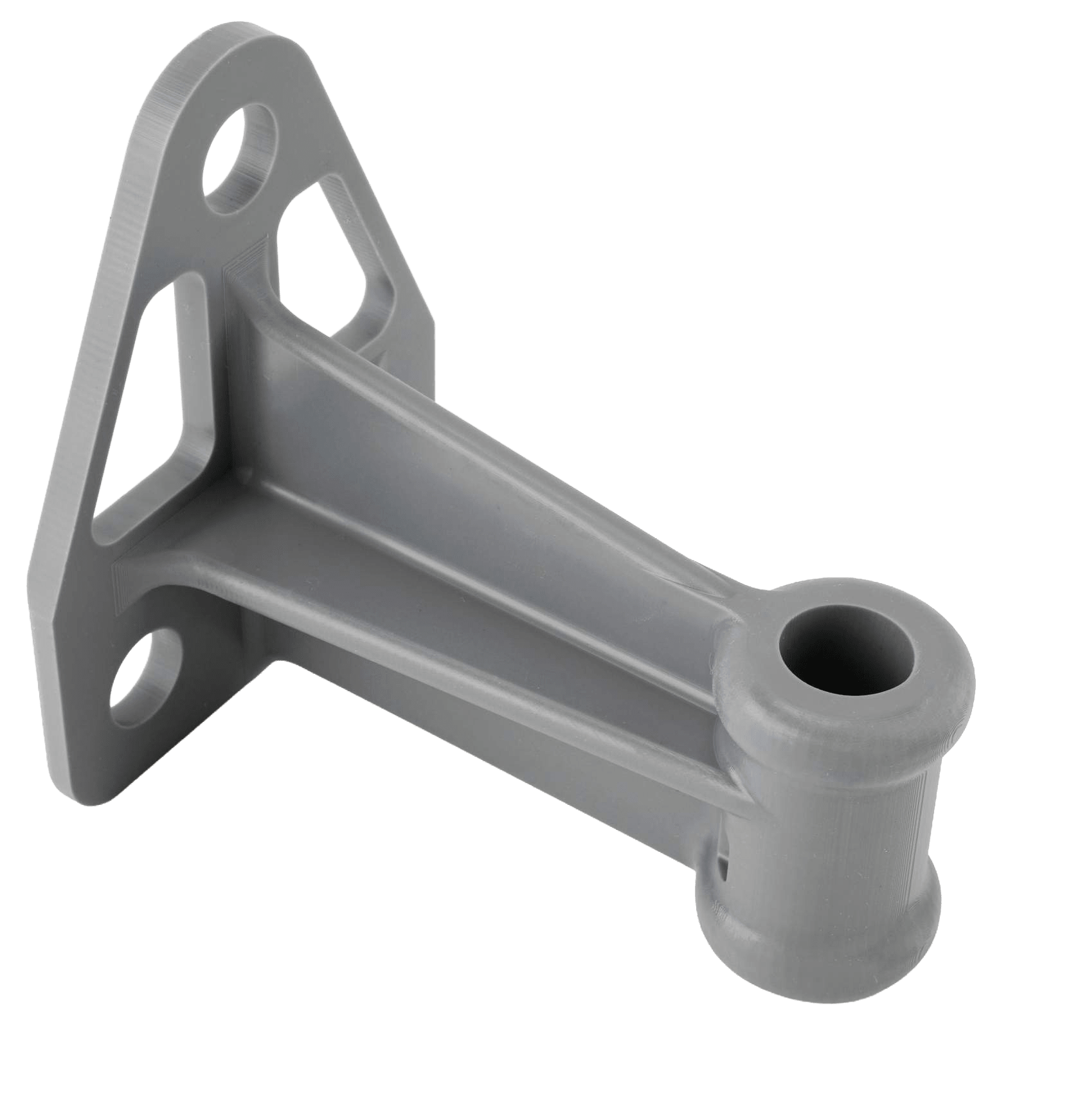

overview uma 90 (urethane methacrylate) is a rigid 1 part resin similar to conventional sla resins it is a good fit for manufacturing jigs & fixtures general purpose prototypes uma 90 bracket notes available in black, white, gray, magenta, yellow, and cyan colors can be mixed wash colors in dedicated solvent & washtubs to prevent discoloration from darker resins resource links about the material material overview and uses cases technical data sheet mechanical properties and data safety data sheet login required protocol sheet this downloadable pdf provides important usage information, including instructions about hardware storage resin dispensing & printing washing curing example protocol sheet print it out and bring it into the lab english https //archbee doc uploads s3 amazonaws com/uxbzokjjtgpphjapq8fvm t8s snzfreqnlrupbj0n 20250521 011713 pdf spanish/español https //archbee doc uploads s3 amazonaws com/uxbzokjjtgpphjapq8fvm ihst7e5ardd0lulms54h7 20250130 015053 pdf german/deutsch https //archbee doc uploads s3 amazonaws com/uxbzokjjtgpphjapq8fvm gs bpp9sloc2bevsdepth 20250130 015108 pdf japanese/日本語 https //archbee doc uploads s3 amazonaws com/uxbzokjjtgpphjapq8fvm sdlms8kih1g6kk9xqbiop 20250130 015147 pdf resin dispensing color mixing uma 90 comes in an assortment of colors (black, white, gray, cyan, magenta, and yellow) when printing any color in uma 90 you will select the uma 90 cmykwg from the drop down menu uma 90 colors can be mixed to create unique colors, or swirl patterns the color mixing tool provides color recipes to achieve desired colors click color mixing on the sidebar of the printer dashboard page scroll to view the color options click the color block desired enter the total amount of resin to be mixed (defaults to 1 kg) amount of resin by weight is listed per cmyk color additional information digital cmyk color mixes do not translate to the pigments in uma 90 color recipes are provided by weight 1 1 g of uma 90 = 1 ml extra resin can be stored in a color mixing bottle see accessories & supplies docid 95twe3ttl 5ihi6dnl4xi the color mixing tool does not allow user entered cmyk numbers if a custom color is needed, contact carbon support washing color protection uma 90's colors are best preserved by washing light and similar colors in dedicated solvent to avoid discoloration all resins absorb solvent during washing, which evaporates after cleaning when using previously used solvent, the pigments from other colors also absorb into the part but do not evaporate the following is recommended dedicated solvent and washtub for light and similar colors example of white part washed in solvent used for a black part scratches uma 90 is susceptible to scratches in both its green state and post uv cure state exercise extra care in handling cosmetic surfaces to mitigate scratches, washing parts on the platform is recommended parts washed loose in a washtub will scratch each other when washing parts off platform is preferred, wash parts individually to avoid scratching washing parts on the platform or individually will prevent scratches minor scratches can be removed with light finishing after curing, pack parts individually to avoid scratches tackiness uma 90 is especially prone to tackiness after washing and curing manual washing the second wash for uma 90 should use fresh ipa solvent in batch washing, the same second wash solvent can be used for multiple prints so long as it maintains crystal clarity the second wash standard recommendation is 5 minutes this time can be extended up to maximum solvent exposure time to mitigate tackiness if tackiness remains after curing, repeat the second wash in fresh ipa for an additional 5 minutes (or up to the maximum solvent exposure time) dry parts and repeat uv curing repeat wash / cure until tackiness is gone smart part washer uma 90 parts can be run through the part washer up to 2 times before curing to mitigate tackiness when washing uma 90 with dpm, post ipa dunk, allow uma 90 parts to sit for 2 3 hours before uv curing to prevent tackiness if tackiness remains after curing, follow manual washing methods above
