Rigid Materials

RPU 70

8min

Overview

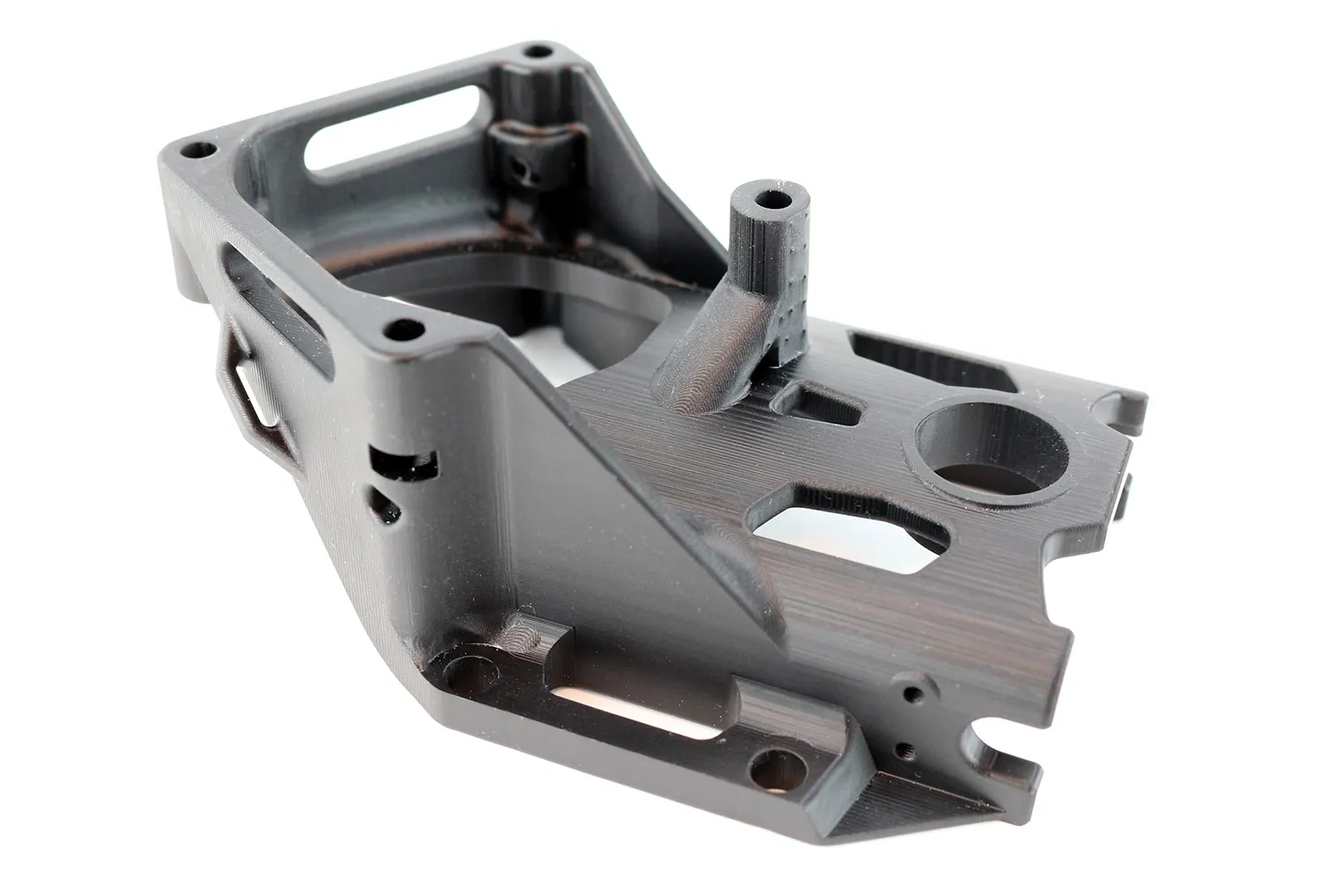

RPU 70 is stiff and strong, with ultimate tensile strength of 35 MPa. It is used across a wide range of industries, including consumer products, automotive, and industrial. RPU 70 has a UL 94 HB flame resistance classification. RPU 70 is comparable to ABS.

Document image


Resource Links



Resin Dispensing

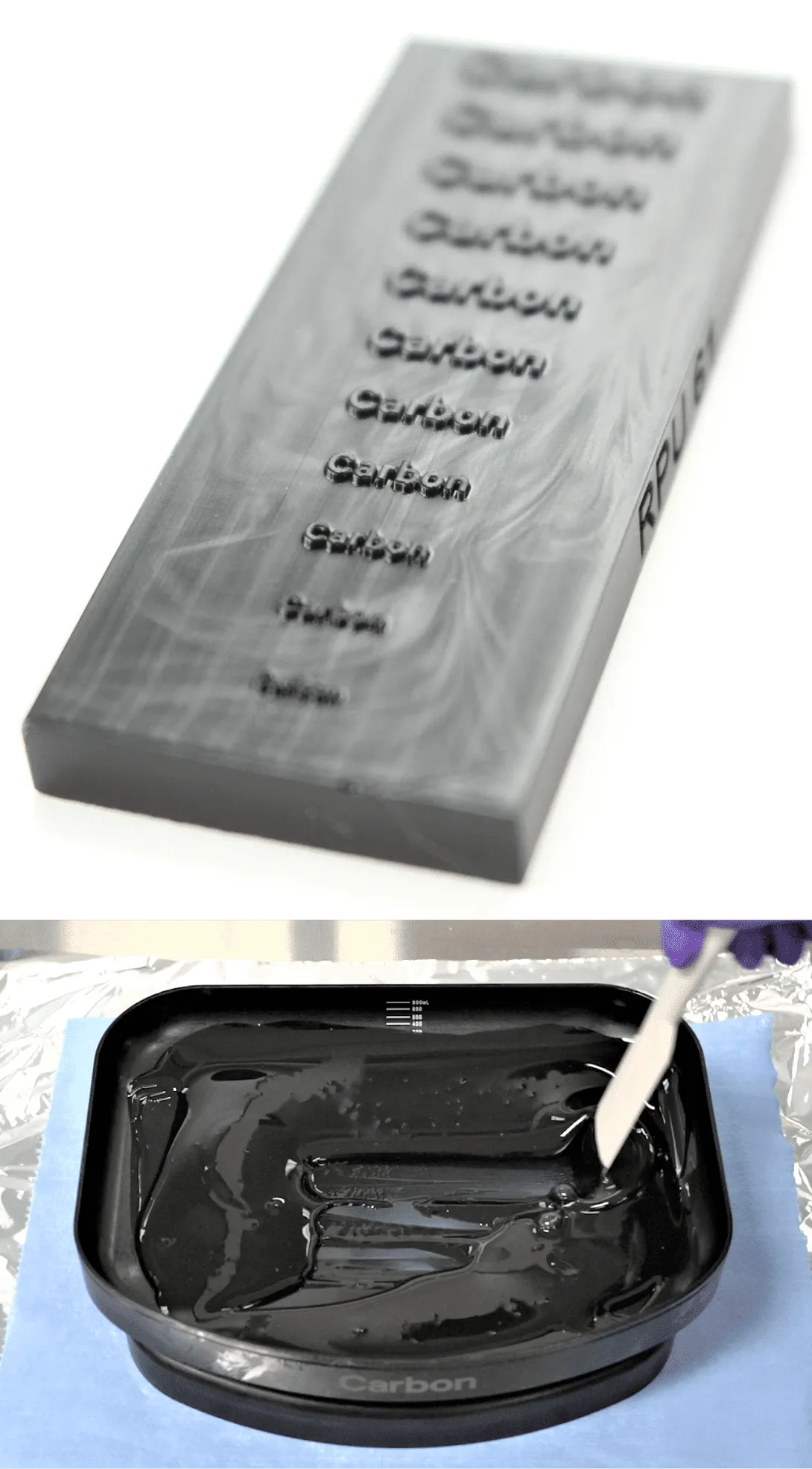

Smokiness

RPU 70 may be susceptible to smokiness .

To mitigate smokiness:

  • Follow burn off procedure closely.
  • Optionally, stir dispensed resin with a spatula when using more than one cartridge.
Document image


Curing

UV Cure before Salt Baking

RPU 70 is compatible with salt baking when appropriate for the geometry. Prior to packing in salt, a short UV cure is recommended to aid in the removal of salt post-thermal cure.

  • The UV light provides an additional thin layer of green state curing on the surface of the part.
  • The thin layer of UV curing minimizes the chances of salt sticking to the part during salt baking and allows for easy removal of salt after the thermal cure.
  • Follow resin protocols for UV cure times and apply to each side of the part.
  • RPU 70 can be UV cured after being washed in IPA, VF 1, or DPM.
Document image




Updated 30 Jan 2025
