Lucitone Digital Value 3D Economy Tooth and Trial Placement

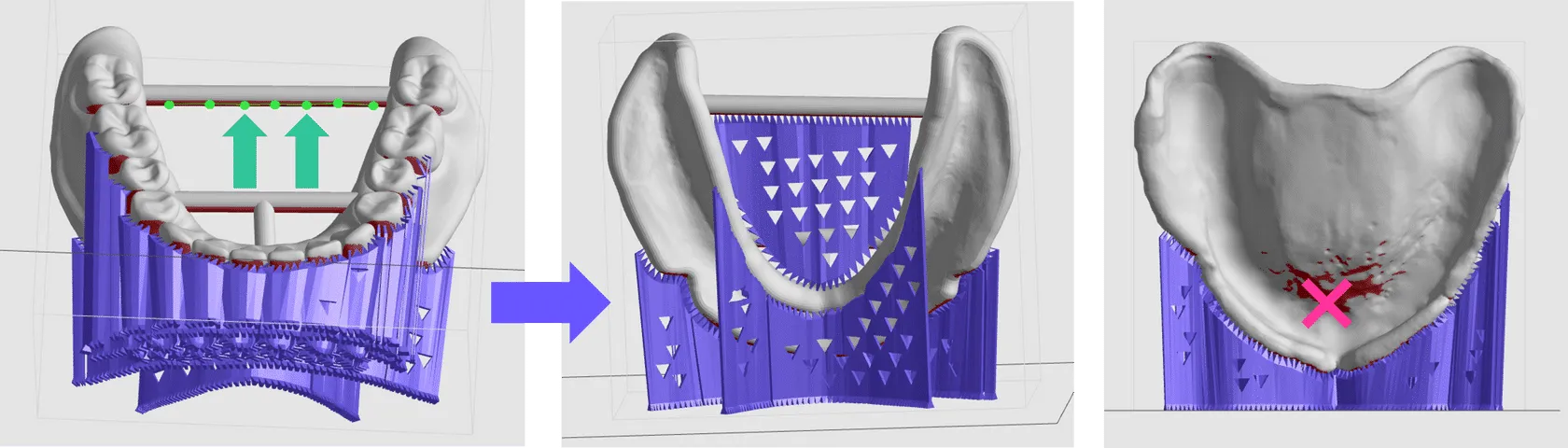

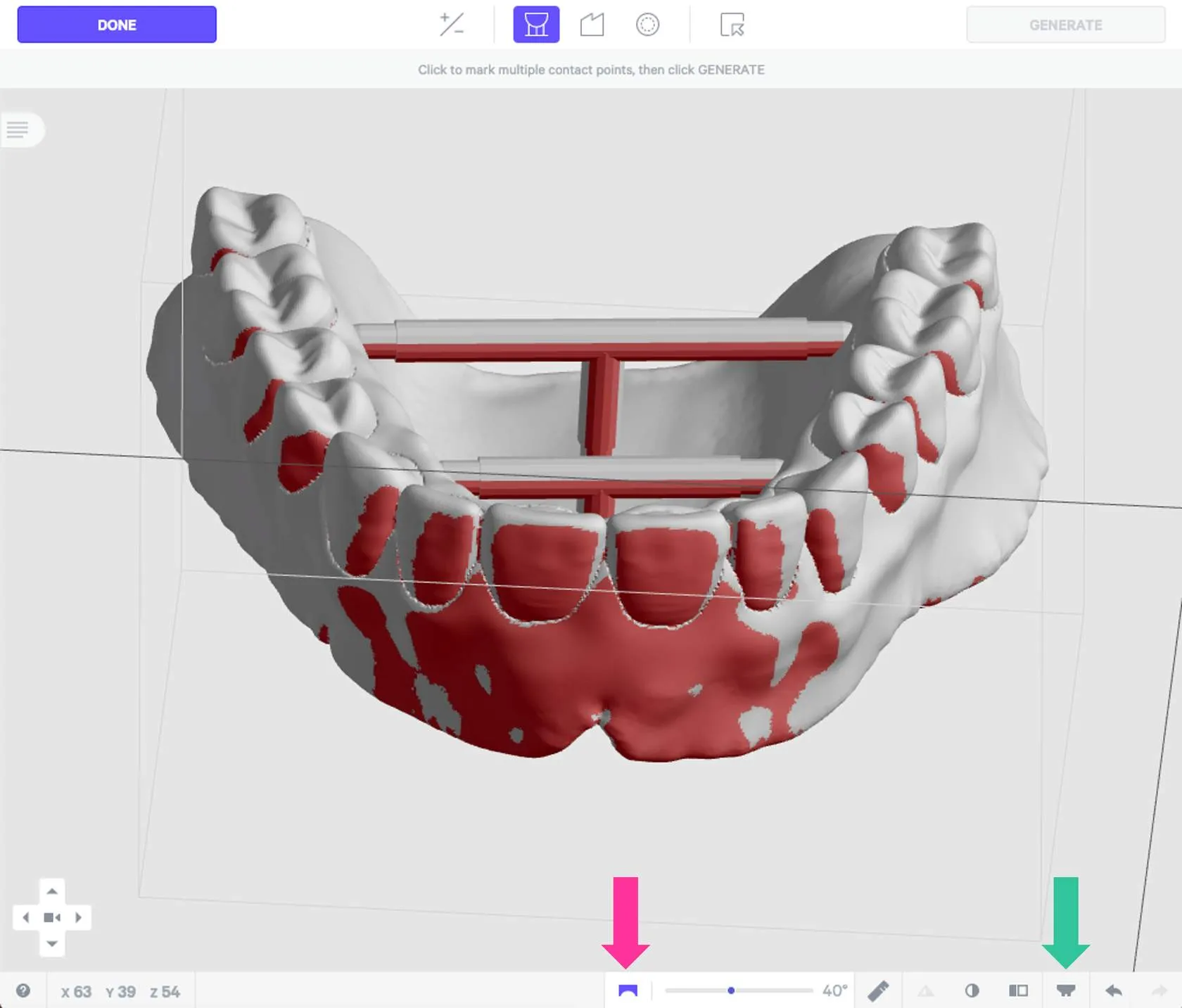

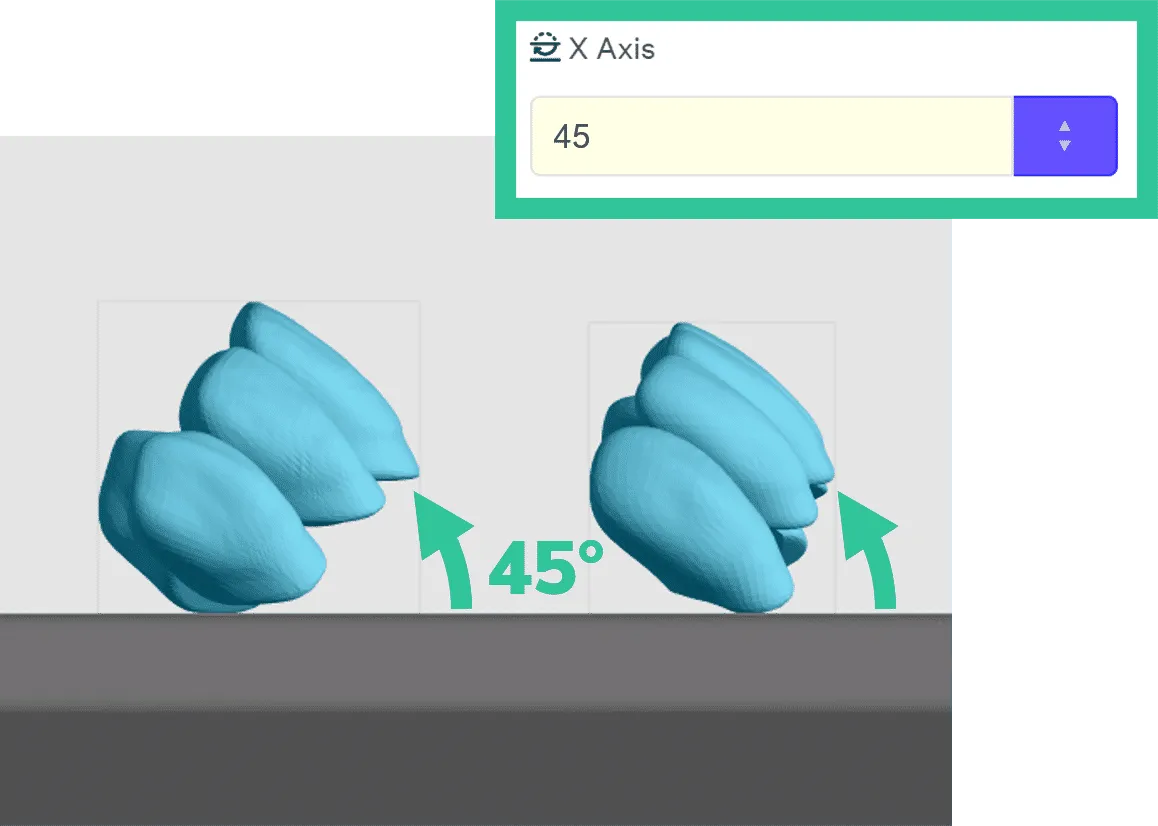

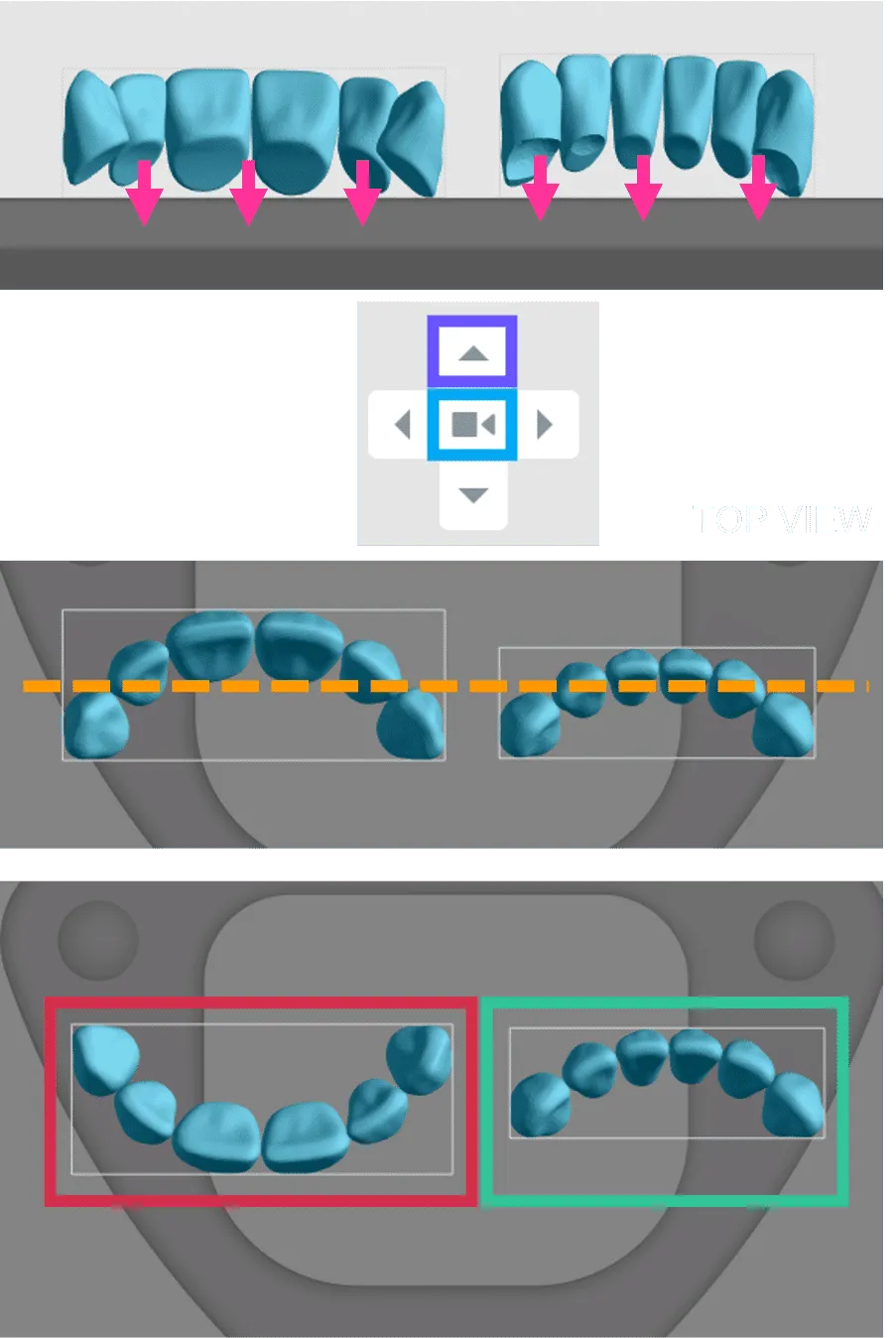

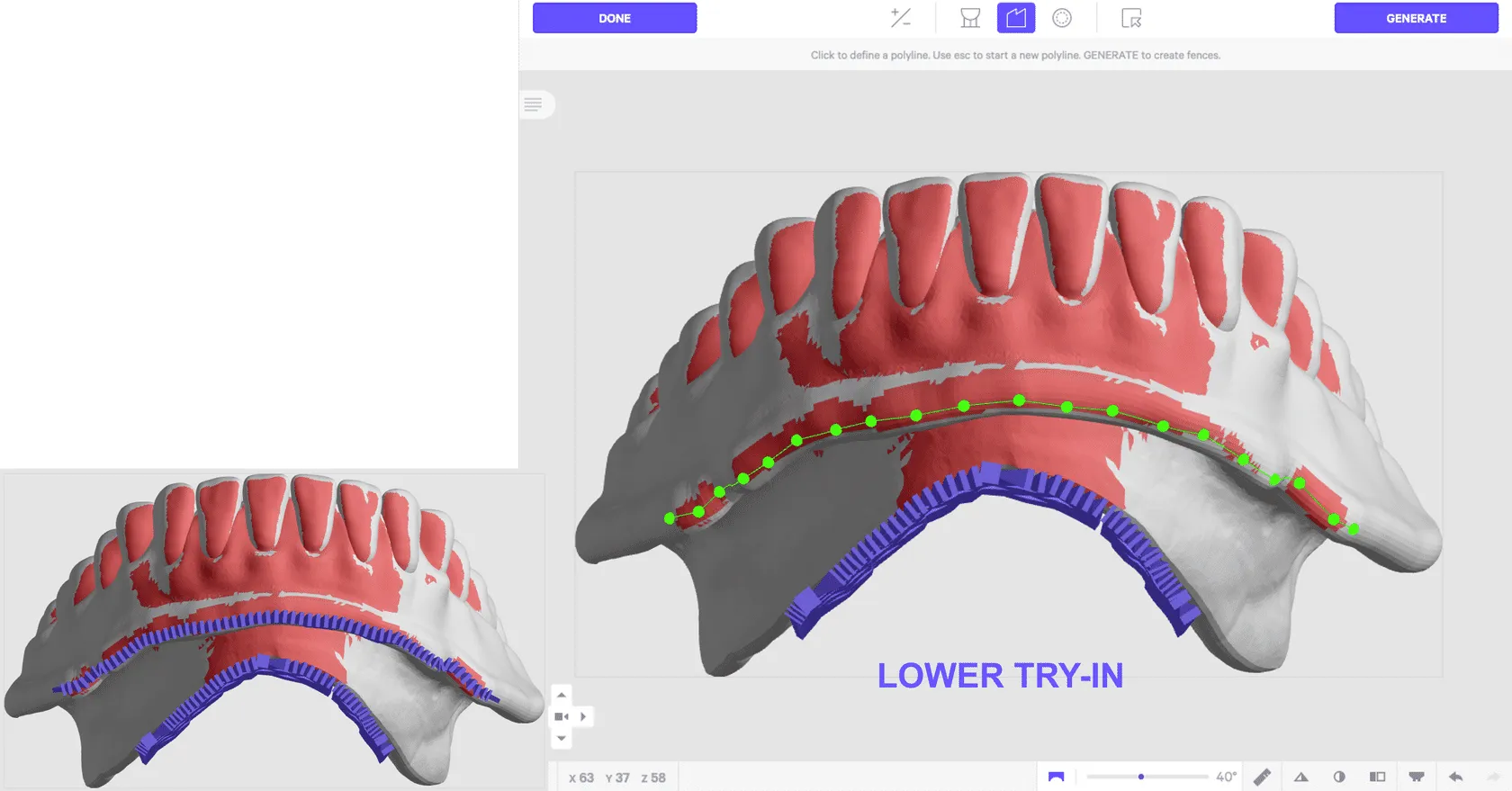

overview lucitone digital value™ 3d economy tooth & trial placement resin is now available for carbon m1/m2 printers to produce teeth for dentures when paired with lucitone digital print™ 3d denture base, you can create complete denture appliances with dls the following shades are available a1, a2, a3, b1, bl3 this resin is not currently compatible with the docid\ iffh3q8 wlk liqr87bd5 resource links https //www carbon3d com/materials/lucitone digital value tooth https //assets dentsplysirona com/websites/landingpages/english united states/lucitone digital print/documents smile way/lab ifu lucitone digital print multilingual 906159 2021 02 pdf https //www dentsplysirona com/en/customer support/download center html?downloadfilter=offset%3d0%26pagesize%3d20%26sort%3ddate desc%26filtertag%3dasset type%3adocuments%2fsafety data sheet%26q%3ddigital%2520value%25203d%2520economy protocol this downloadable handout provides important usage information, including instructions about storage, washing and curing print it out and bring it into the lab! dental post processing grids one of our most popular downloads! this table provides washing and curing instructions for all supported dental resins print it and use it in the lab as a quick reference images of dental post processing grids english german/deutsch spanish/español general orientation & support information hide the platform use toggle platform (or press b ) to hide the platform before orienting parts this will make it easier to see overhangs and place supports use fence tool to create supports fence tool docid\ vubpoaitblm11am9 qj1p are manually placed by the user and are best suited on linear overhangs or smaller areas fences provide stability while leaving smaller nubs than the default bars option review docid\ vubpoaitblm11am9 qj1p in docid\ oid4znztzyelttpvj984a course for more information denture teeth orientation anterior teeth setup orient the 2 anterior sections so the root side is facing the platform root side is facing the platform position the camera so you are looking straight down on the platform push the reset camera icon reset camera icon in the lower left corner of the screen to return to the default view push ▲ to look straight down ▲ to look straight down at platform adjust the sections so they are mostly parallel with the front edge of the platform mostly parallel with the front edge of the platform (x axis) make sure that the lingual region of each section is facing the lower portion of the screen lingual region of each section is facing the lower portion of the screen final orientation enter 45 45 into the x axis field the lingual side of the teeth sections will rotate 45 degrees toward the platform alternately, click on the x axis loop and rotate the teeth 45 degrees see manually adjust orientation in https //learn carbon3d com/software/printer ui/orient for more information posterior teeth position the camera so you are looking straight down on the platform push the reset camera icon reset camera icon in the lower left corner of the screen to return to the default view push ▲ to look straight down at platform adjust the sections so they are mostly parallel with the side edges of the platform mostly parallel with the side edges of the platform (y axis) orient the sections so the occlusal surfaces are roughly parallel with the platform occlusal surfaces are roughly parallel with the platform enter 20 into the x axis field the lingual side of the teeth sections will rotate 20 degrees toward the platform the lingual side of the teeth sections will rotate 20 degrees toward the platform alternately, click on the x axis loop and rotate the teeth 45 degrees see manually adjust orientation in https //learn carbon3d com/software/printer ui/orient for more information full arches the arch should be roughly parallel roughly parallel with the platform because full arches are organic surfaces with no well defined flat areas, we do not recommend using snap to platform make sure that the anterior region of the arch is facing the upper portion of the screen anterior region of the arch is facing the upper portion of the screen enter 30 into the x axis field the lingual side of the teeth sections will rotate 30 degrees toward the platform the lingual side of the teeth sections will rotate 30 degrees toward the platform alternately, click on the x axis loop and rotate the teeth 45 degrees see manually adjust orientation in https //learn carbon3d com/software/printer ui/orient for more information supporting enter support mode click support in the dark gray bar under position, select above platform to lift parts off the platform make sure patch is selected note do not use automatic supports this will create bar supports bar supports that leave large nubs on tooth surfaces and do not provide adequate accuracy remember to turn off the platform using toggle platform (or press b) this will make it much easier to see the underside of the parts anterior and posterior teeth click on the basal side of the teeth to be supported the patch settings will now appear in the right menu set overhang angle to 50 degrees set primary support fill type to boundary fence only if needed, continue clicking on remaining basal surfaces until all overhangs are selected green indicates current selection and light purple shows previous selection(s) click generate all to create the supports well supported examples anterior posterior full arches click on the basal side of the teeth to be supported the patch settings will now appear in the right menu set overhang angle to 50 degrees set primary support fill type to bar (default) set spacing to 5 mm (default) make sure boundary fence is checked (default) set margin to 0 mm (default) continue clicking on remaining basal surfaces until all overhangs are selected green indicates current selection and light purple shows previous selection(s) click generate all to create the supports well supported example intaglio lingual denture try ins orientation proper orientation of try ins lower try in 65 degree intaglio surface faces platform upper try in 70 degree intaglio surface faces platform make parallel orient each try in so that it is roughly parallel with the platform this will ensure proper final tilt click orient orient in the main bar in the printer software click minimize footprint minimize footprint button this will orient the try in roughly perpendicular to the platform roughly perpendicular to the platform orient the try in so that the tissue side is flat against the platform tissue side is flat against the platform type values in increments of 90 degrees into the xyz axis fields spin spin the try in around the z axis so that the anterior of the try in faces the bottom of the screen this is necessary to ensure proper tilt angle in future steps position the camera so you are looking straight down on the platform push the reset camera icon push the reset camera icon in the lower left corner of the screen to the default view push ▲ to look straight down at platform ▲ to look straight down at platform make sure that the anterior region of the try in is facing the lower portion of the screen rotate the try in as necessary by entering values in the z axis field by entering values in the z axis field check that the model is properly oriented check that the model is properly oriented and proceed to the next step tilt up now tilt the model up click on the part to select it tilt into position for lower try ins, enter 65 into the x axis field for lower try ins, enter 65 into the x axis field for upper try ins, enter 70 into the x axis field for upper try ins, enter 70 into the x axis field the anterior anterior of each try in should be touching the platform lower try in lower try in upper try in upper try in supporting the images below show the overall strategy for supporting try ins support try ins using fences each fence is a thin wall of support created by placing a series of dots on the try in surface the most effective supports are built along the ridges of the try in, rather than on the tissue surface supports should never be created on the intaglio surface upper try in lower try in enter support mode click supports supports in the dark gray bar under position position , select above platform to create room between the platform and the part skip auto support method as this mode is not recommended click manually add manually add to enter the edit support interface setup you will now see the support editing view optimize the interface for adding fences click toggle platform button toggle platform button in the lower tool bar or press the b key to hide the platform this will enable better visibility during fence creation click overhang detection button overhang detection button (v key) to find areas that need support check that the angle is set to the default value of 40 degrees edges of try ins support the edges of the try in first only lower try ins require supports on the inner edge (pictured here) upper try ins do not have an inner edge and therefore do not require supports click the fence icon the fence icon in the top menu bar click a series of points series of points along the edge to define the fence click esc key on keyboard to end a fence and begin another hold down the e key and click with the mouse to reposition points click generate generate to create the fence geometry this may take a few minutes do not put supports on intaglio surfaces here is an example of a fence created on the outer edge of a lower try in here is an example of a fence created on the outer edge of an upper try in be sure to apply fence all the way up the sides of the try ins do not put supports on intaglio surfaces anterior surface of try ins fences must be placed on the facials of anterior teeth the area under each tooth must also be supported on both upper and lower try ins this is an example of anterior surface fences created on an upper try in create two lines of fence supports two lines of fence supports across the facial surface of anterior teeth to ensure a proper print be sure to apply the under tooth pocket fence so that it supports the triangular area between teeth triangular area between teeth use a zigzag pattern zigzag pattern to support the central anterior area be careful not to make the supports too close together or they may merge into a solid mass this is an example of anterior support fences on a lower try in notes supports need to be added along the top support bar top support bar of the lower try in do not place supports on the intaglio surface do not place supports on the intaglio surface rely on edge supports to reinforce this area auto nest dentures the auto nest dentures feature enables automated orientation, support and nesting of full denture bases and try ins the denture automation tool is not enabled by default on your printer if you would like access to this tool, and do not currently see it, please mailto\ support\@carbon3d com see docid\ bznlvig8qrx2ipafwq1sc for more information nesting select the layout tab (shift + l) in the top menu bar under auto layout, select gen2 gen2 gen2 usually gives the most effecient packing for dental devices padding padding settings for denture teeth, enter at least 1 mm for denture try ins, 5 mm padding is recommended values down to 1 mm are acceptable leave optimize starting rotation unchecked this leaves your parts in their previous orientations leave allowed rotations at the default setting this gives the software maximum flexibility to fit the most possible parts on the build platform press the auto layout auto layout button to arrange your parts if necessary, nesting can be changed manually click and drag parts to adjust their position modify z rotation by using the spin tool or manual rotations under the orient tab (shift + o) use the part list tab as needed to more easily select models and focus on them print preparation print controls click print controls print controls or shift + p shift + p in the top menu bar slicing set slice thickness to standard (100 µm) project analysis select the project analysis project analysis tab click start analysis and wait for the processing to complete note the required resin volume and print time click add to queue manufacturer instructions for use https //assets dentsplysirona com/websites/landingpages/english united states/lucitone digital print/documents smile way/lab ifu lucitone digital print multilingual 906159 2021 02 pdf questions & support for questions about the resin properties, printing, washing or curing your denture teeth, please contact the dentsply sirona technical team email prosthetics customerservice\@dentsplysirona com phone 1 844 848 0137 for questions about your carbon printer or carbon software settings used for this resin, please contact carbon email mailto\ support\@carbon3d com phone 1 (650) 285 6307 option 2 printer ui on the dashboard, select the prints prints tab select one of the printed projects select one of the printed projects click request help request help in the lower right corner
