Loctite IND405 Clear
Overview

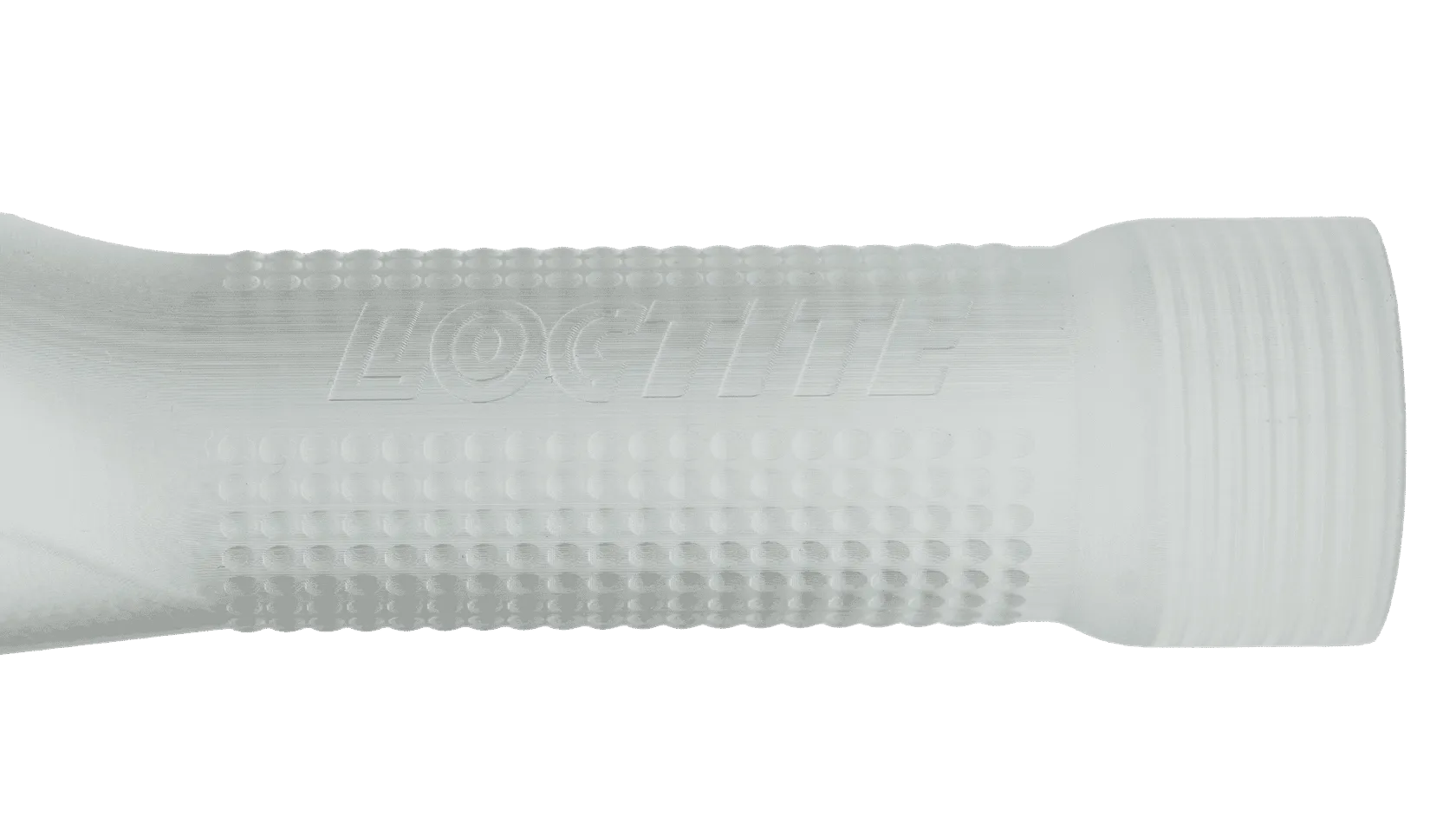

LOCTITE® IND405™ Clear is now available for Carbon printers to produce parts with a frosted clear aesthetic in a tough one-part resin compatible with the Smart Part Washer.
Resource Links
About the Material Material overview and uses cases
Technical Data Sheet Mechanical properties and data
Safety Data Sheet Link to instructions for searching on Henkel site
Protocol Sheet
This downloadable handout provides important usage information, including instructions about compatible hardware, storage, resin dispensing, washing and curing. Print it out and bring it into the lab.
Purchasing Information
Design
LOCTITE® IND405™ Clear has a high cure-thru.
- Small holes and deeply engraved features oriented vertically will be affected. These features may need to be oversized or modified by at least 0.3 mm to compensate.
- Features below 1.5 mm in size may not fully resolve. Reference design guidelines for holes for guidance on design compensation.
X,Y-PLANE, POSITIVE SPACE (mm) | X,Y-PLANE, NEGATIVE SPACE (mm) | Z-DIRECTION, NEGATIVE SPACE (mm) |
0.5 | 1 | 1.5 |
Resin Reclaim after Printing
For best results when reclaiming resin, users should place reclaimed resin into a separate light-blocking bottle so that the fresh resin maintains it’s translucency. This ensures that customers can choose to either mix new/used resin for the next print or use fresh resin based on the desired material properties of the printed part.
