Elastomeric Materials
EPU 46
EPU 46 Baking Considerations
4min

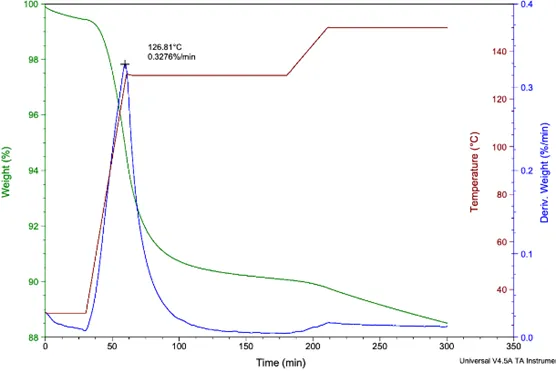

this document provides information to consider when determining which type of oven to use for baking epu 46 parts standard air oven or inert oven solvent release during baking epu 46 contains roughly 6% of a non glycol ether acetate solvent (cas 88917 22 0), which lowers resin viscosity during printing and is released over the course of the bake this release rate is likely to vary with surface area of the geometries to be baked faster release for larger surface area, and slower for lower this solvent is a category 4 flammability hazard hello this is a test recommended baking load carbon has measured the rate of solvent release in 1 mm thick lattice samples, and found a maximum volatiles release rate of 0 3%/min carbon testing has shown that convection ovens like the yamato dkn series equipped with our recommended ventilation requirements (20 cfm, see the appropriate facility requirement checklist see links below ) running our recommended bake schedule for epu 46 remained below lower flammability limits for this solvent for oven loadings of up to 3000 grams (2800 ml) of parts in a single bake cycle this is a change as always, customers should perform their own tests to ensure release of volatiles meets safety standards or requirements for a particular design solvent management cas 88917 22 0 may condense in cold spots of ventilation systems such as elbows or connectors that are further away from the oven we recommend periodic inspection for solvent accumulation in cold, low spots of the ventilation for larger scale production, carbon recommends installing water chilled intercoolers (example) and traps in the ventilation in order to collect and capture this solvent inert ovens will provide an additional layer of safety as well as color uniformity and less discoloration for light colors, but may not be necessary for smaller scale production based on your evaluation related documents facility requirements checklist – m1/m2 printers https //academy carbon3d com/learn/course/88/facility requirements checklist m1m2 printers?generated by=13068\&hash=8361e82b027e2ab6e4446b94a61efdfa140e89a8facility requirements checklist – m3 printers https //academy carbon3d com/learn/course/1397/facility requirements checklist m3 printers?generated by=13068\&hash=cdeabf5570312bff96f7813a59f11764a99bd9d3facility requirements checklist – m3 max printers https //academy carbon3d com/learn/course/1552/facility requirements checklist m3 max printers?generated by=13068\&hash=141997351eb401b5a3ee1c2eb22064ce0887df6bfacility requirements checklist – l1 printers https //academy carbon3d com/learn/course/110/facility requirements checklist l1 printers?generated by=13068\&hash=5f363486dccf2c8c65eca6af3c0d5f432823c5efepu 46 https //academy carbon3d com/learn/course/1634/epu 46?generated by=13068\&hash=14bf57121e89754495fda7cd08e1c3f38720c173
